4 Pack SunPower TCL 460W Shingled All Black Solar Panels – 1840W Bundle

Bundle includes: 4 × 460W SunPower TCL Shingled All Black Solar Panel. Each panel is rated at 460W, giving 1840W total rated array capacity.

This bundle uses the exact live source panel model and technology.

What's Included

• 4 × 460W SunPower TCL Shingled All Black Solar Panel

Not Included

Mounting hardware, controllers, inverters, batteries, fuses, cables and accessories are not included unless specifically stated.

Array Design Note

Electrical specifications below are per panel. Series wiring increases voltage and parallel wiring increases current. Confirm full-array electrical limits before installation.

Per-Panel Specifications & Product Details

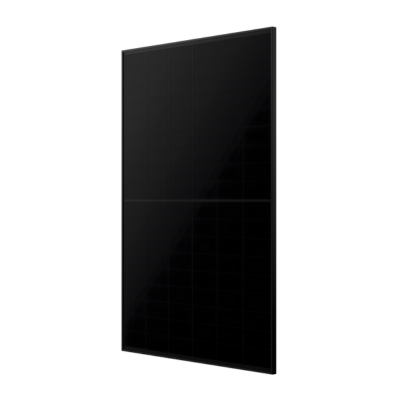

The TCL-BC-460-54P-BLK-SG-RES is a high-performance 460W N-Type Back Contact solar module engineered for maximum efficiency, durability, and aesthetics. With a maximum efficiency of 23.6%, innovative busbar-free back contact design, and a sleek full-black finish, this panel is ideal for Australian residential rooftops, off-grid systems, and commercial installations.

Back contact (BC) cell technology enhances energy density, reduces operating temperatures, and minimises the risk of micro-cracks and hotspots. Combined with TCL’s robust build quality and long-term warranties, this solar panel ensures reliable clean energy production for decades.

Key Features:

• High Output: 460W maximum power

• Efficiency: Up to 23.6%

• Back Contact Technology: Higher energy density & lower operating temps

• Aesthetic Design: Sleek full-black appearance for rooftops

• Durability: Lower hotspot risk, weather resistant, comprehensive certifications

• Warranty: 25-year product warranty + 30-year linear performance warranty

Electrical Specifications (STC):

• Rated Maximum Power (Pmax): 460W

• Power Tolerance: 0 ~ +3%

• Module Efficiency: 23.6%

• Open Circuit Voltage (Voc): 41.7V

• Short Circuit Current (Isc): 13.41A

• Maximum Power Voltage (Vmp): 34.9V

• Maximum Power Current (Imp): 13.19A

• Maximum System Voltage: 1000V DC

• Maximum Series Fuse Rating: 25A

• Nominal Module Operating Temperature (NMOT): 45 ± 2°C

• Operating Temperature Range: -40°C ~ +70°C

Temperature Coefficients:

• Pmax: -0.30%/°C

• Voc: -0.24%/°C

• Isc: +0.05%/°C

Mechanical Data:

• Cell Type: 182mm N-Type Back Contact Cells

• Number of Cells: 54 (6 × 9 layout)

• Module Dimensions: 1757 × 1134 × 30 mm

• Weight: 20.5 kg ± 3%

• Front Glass: 1.6 mm heat-strengthened glass with AR coating

• Backsheet: Black

• Frame: Black anodized aluminium alloy

• Junction Box: IP68, with 3 diodes

• Cables: 4.0 mm², length +1200 mm / -1200 mm (customisable)

• Connectors: Staubli PV-KST4/6II-UR, PV-KBT4/6II-UR

• Maximum Static Load: Front +5400 Pa / Back -2400 Pa

• Fire Rating: IEC Class C

Warranty:

• 25-Year Product Warranty

• 30-Year Linear Power Warranty (99% first year, 88.85% by year 30)
