4 Pack 400W 12V TOPCon Monocrystalline Fixed Solar Panels – 1600W Bundle

Bundle includes: 4 × 400W 12V Topcon Monocrystalline Fixed Solar Panel. Each panel is rated at 400W, giving a combined rated array capacity of 1600W.

This bundle uses the exact same panel model and technology as the live single-panel listing, with bundle pricing for customers building larger caravan, RV, camping, 4WD and off-grid solar arrays.

What's Included

• 4 × 400W 12V Topcon Monocrystalline Fixed Solar Panel

Not Included

Mounting hardware, charge controllers, inverters, batteries, fuses, cables and other accessories are not included unless specifically stated.

Important Array Design Note

The electrical specifications below are per panel. Series wiring increases array voltage and parallel wiring increases array current. Confirm the complete array voltage/current, controller or inverter limits, cable sizing, protection and installation requirements before connection.

Shipping

Freight availability and delivery method depend on destination and panel size. Shipping options are shown or confirmed during checkout and order processing.

Per-Panel Specifications & Product Details

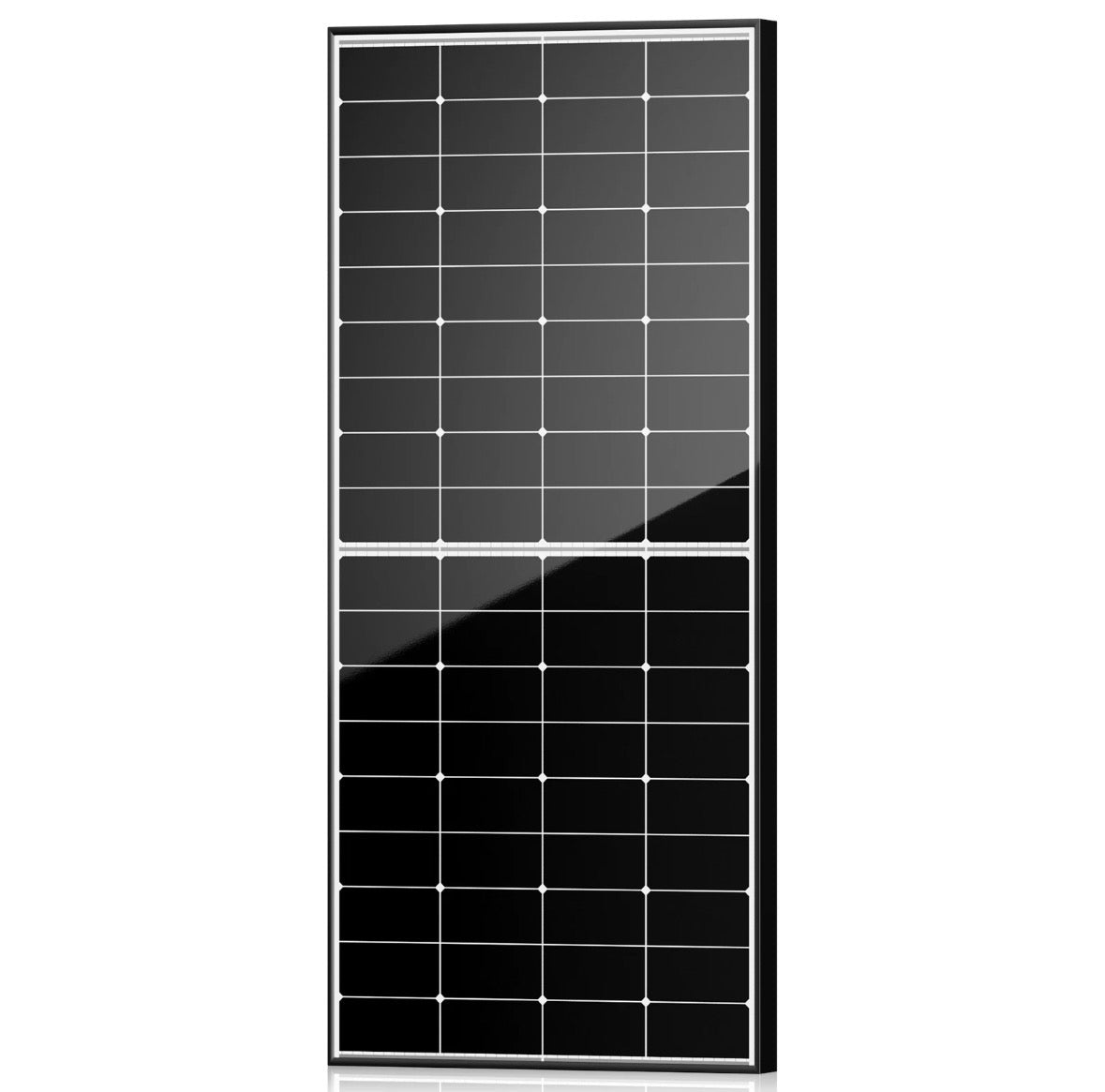

400W 12V TOPCon Monocrystalline Fixed Solar Panel

This 400W 12V TOPCon monocrystalline fixed solar panel is designed for compatible caravan, RV, 4WD, shed, cabin and off-grid installations requiring a rigid framed panel.

Check before ordering: the panel measures 1722 × 765 × 30mm. Confirm the available mounting area and that the controller or inverter can accept 27.13V open-circuit voltage and 18.97A short-circuit current.

Compare this model with other fixed, shingled, bifacial and portable options in StarPower’s 400W solar panel range.

Key Features

• 400W rated peak power under standard test conditions

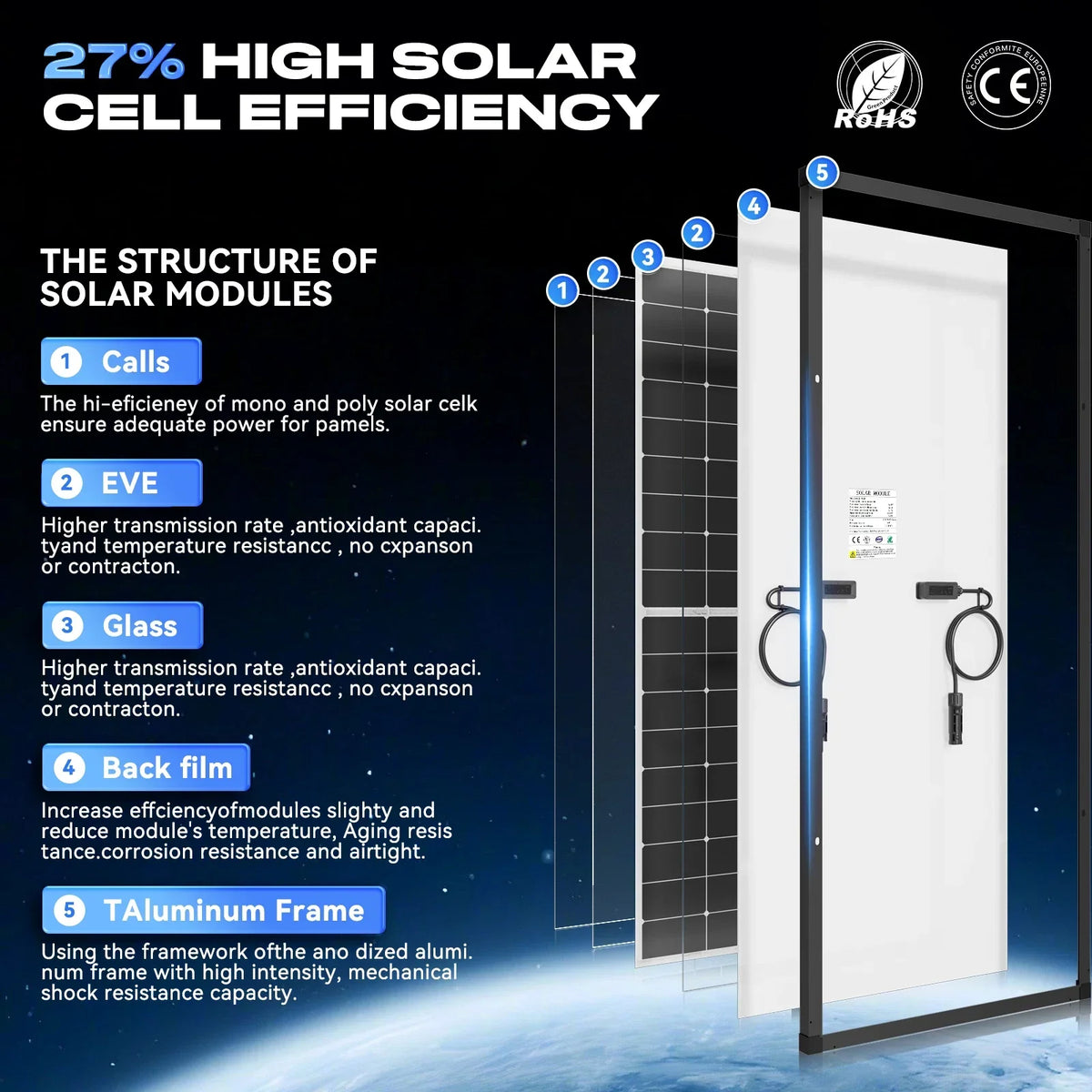

• TOPCon monocrystalline cell construction

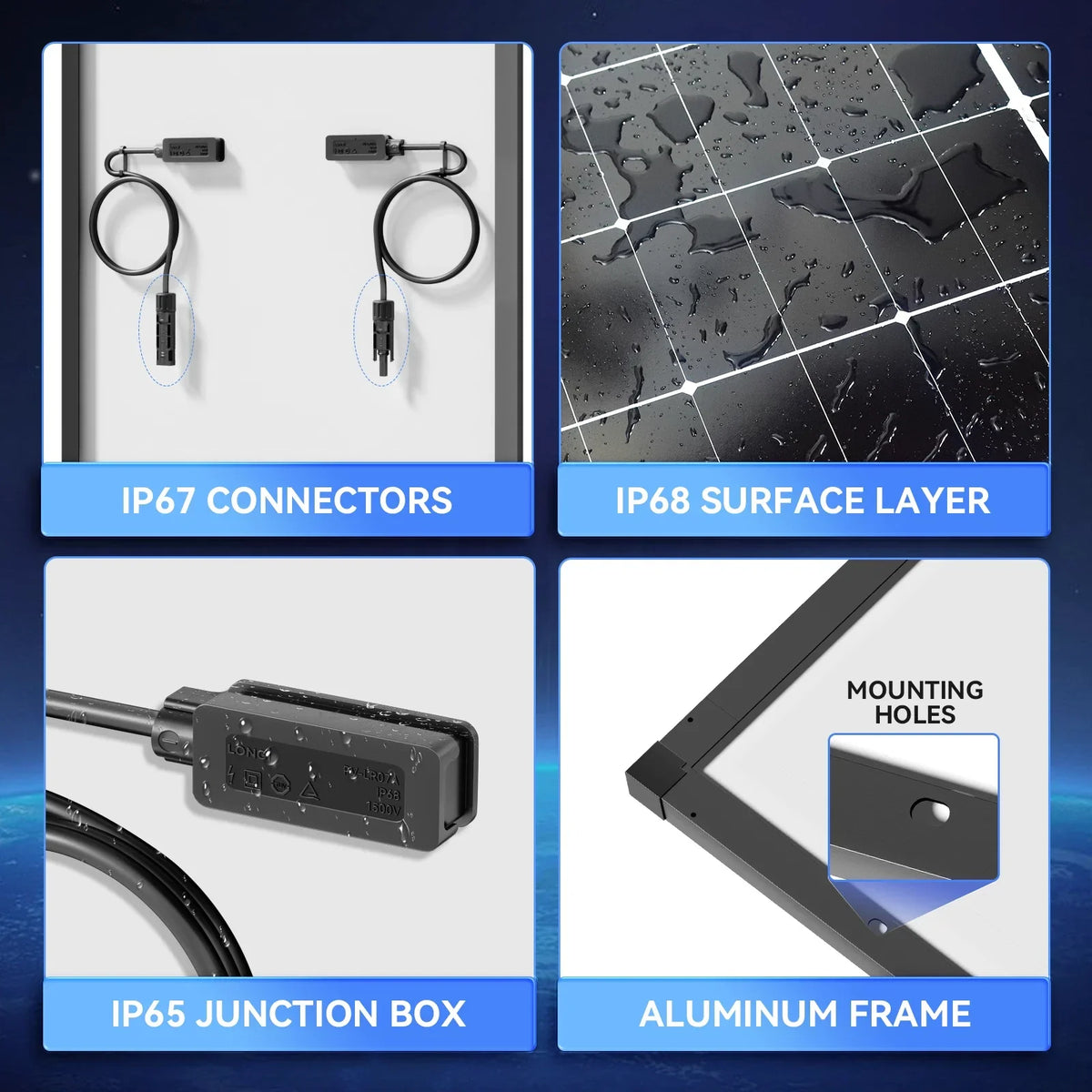

• Anodised aluminium alloy frame
• High-transparency low-iron tempered glass
• MC4-compatible connectors
• Suitable for compatible battery controllers, DC-DC chargers and hybrid inverters

Technical Specifications

• Model: 241225043
• Cell Type: TOPCon monocrystalline
• Maximum Power (Pmax): 400W
• Maximum Power Voltage (Vmp): 22.81V
• Maximum Power Current (Imp): 17.54A
• Open Circuit Voltage (Voc): 27.13V
• Short Circuit Current (Isc): 18.97A
• Power Tolerance: ±3%
• Maximum System Voltage: 1000V DC
• Dimensions: 1722 × 765 × 30mm
• Weight: approximately 13–15kg
• Frame: anodised aluminium alloy
• Operating Temperature: -40°C to 85°C
• Connector Type: MC4-compatible
• Listed Certifications: CE, ISO9001, CNAS and RoHS
• Standard Test Conditions: 1000W/m², AM 1.5 and 25°C

Controller and Battery Compatibility

Check the controller’s maximum PV voltage, PV current limit and charging output before connection. The battery-charging profile must suit the battery chemistry. Browse MPPT solar charge controllers and lithium batteries.

For multiple panels, series wiring increases array voltage and parallel wiring increases current. Recalculate the complete array and use appropriately rated cable, connectors, fuses and isolation.

Suitable Applications

• Caravans and motorhomes with sufficient mounting area
• 4WD and camping battery systems
• Off-grid cabins, sheds and remote systems
• Ground-mounted solar arrays

Installation and Output

Use secure structural support and follow the installation instructions. Rated output is measured under standard test conditions; sunlight, temperature, shade, mounting angle, cleanliness, cabling and controller efficiency affect actual output.

FAQs

Can this panel charge a lithium battery?

Yes, when used with a compatible controller set to the correct lithium charging profile.

Is a regulator included?

No regulator is listed as included. Select a controller that is compatible with the panel’s voltage and current and the intended battery system.
