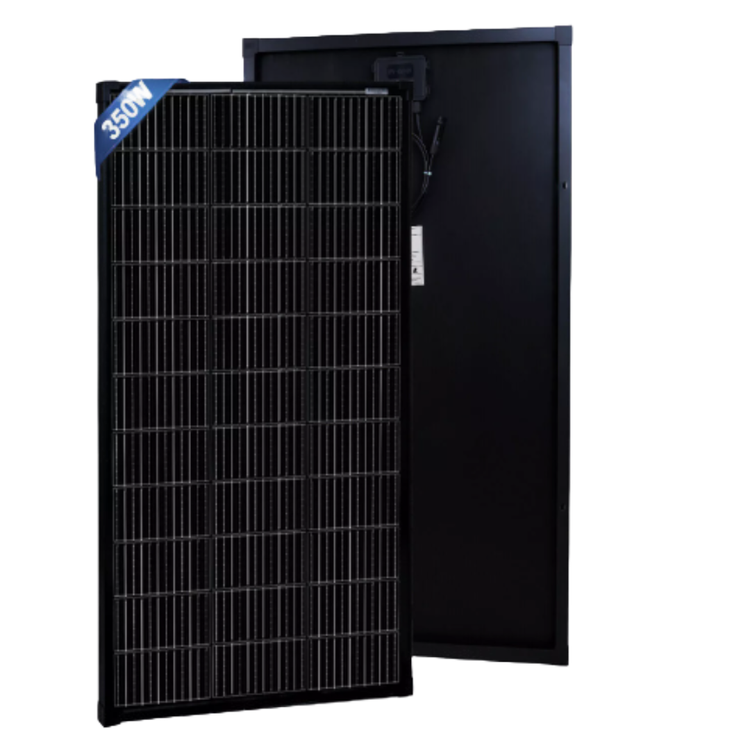

The 350W 12V Shingled Solar Panel is specifically designed to significantly reduce power losses that can occur due to partial shading. This advanced design optimizes the capture and conversion of sunlight, making it an excellent choice for installations in areas where trees, buildings, or other structures may intermittently cast shadows.

Furthermore, this innovative bifacial solar panel boosts energy generation by utilizing both sides of the panel. Its backside captures and converts reflected light from the ground and other surfaces. In environments with highly reflective ground, such as sandy or snowy areas, the panel can absorb more light, resulting in increased electricity production. This dual-sided capability makes the bifacial solar panel a highly effective option for maximizing energy output, even in less-than-ideal lighting conditions.

With its state-of-the-art design that incorporates PERC technology, half-cut cells, bypass diodes, and 9 busbars, this panel maximizes energy output even when partially shaded while also protecting the solar cells from overheating.

Specifications

Max Power / Pm 350W

Cell Tech Shingled Mono

Cell Class Grade A

Open Circuit Voltage / Voc 22.2 V

Max Power Voltage / Vmp 18.5 V

Max Power Current / Imp 20.5 A

Short Circuit Current / Isc 23.2 A

Max System Voltage DC 1000V

Operating Temperature Min - 40 ℃ ~ 85 ℃

Approx Net Weight 7.5 kg

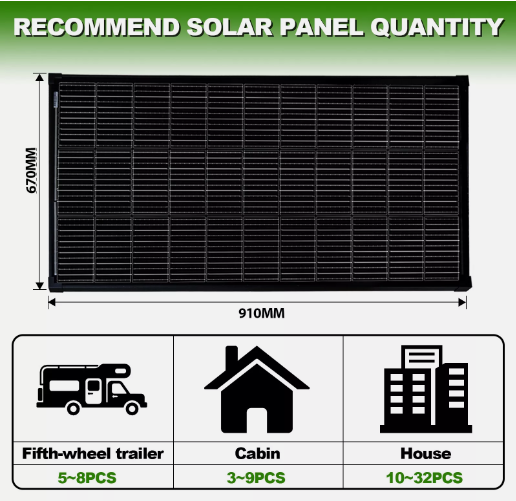

Dimensions 910*670*30 mm

Warranty: 25 Years Performance

Product Warranty: 3 Years
