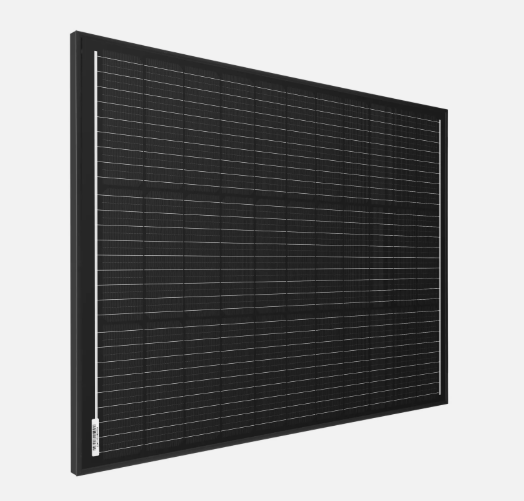

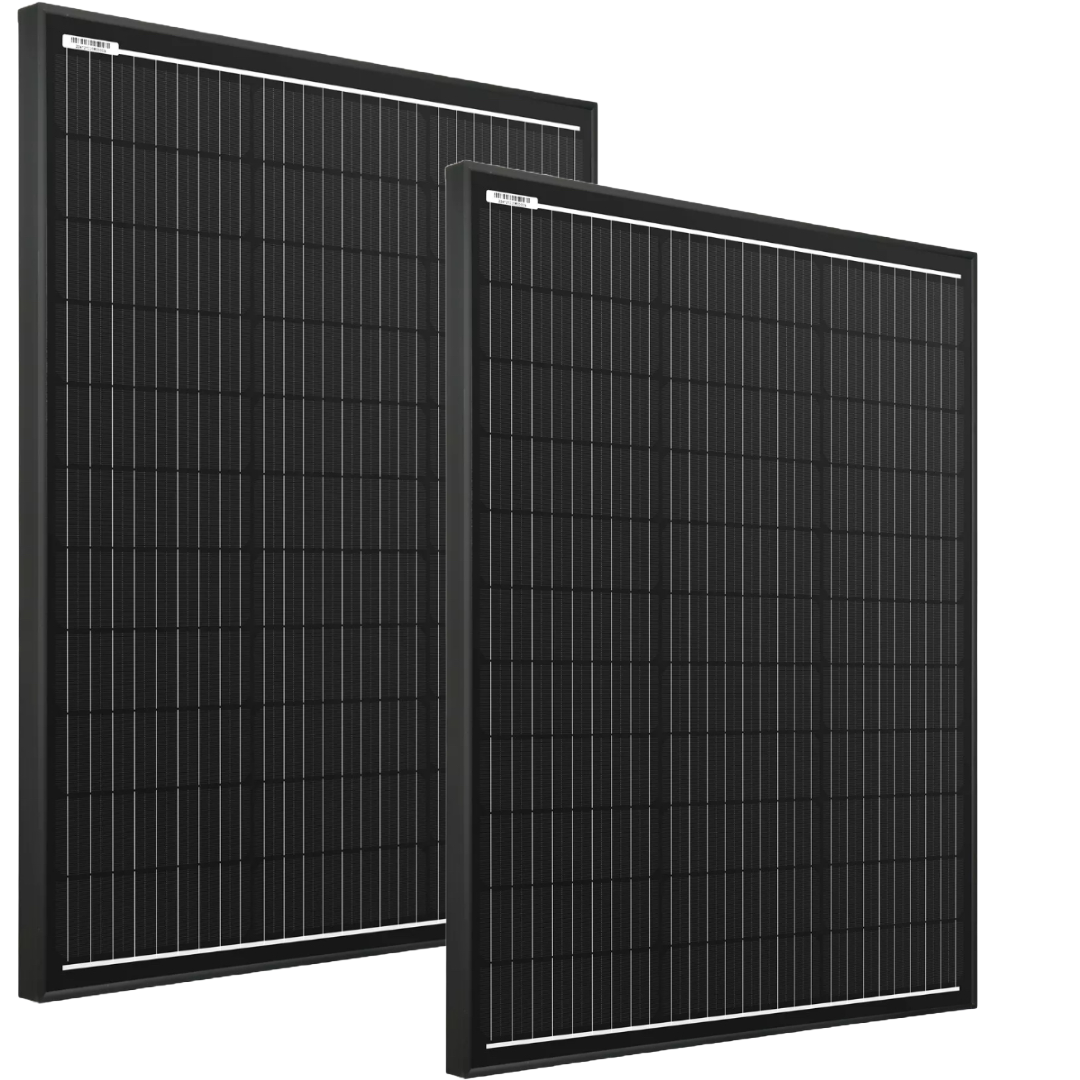

The 350W 12V Shingled Solar Panel is engineered to minimize power losses that can occur due to partial shading, making it an ideal solution for urban or densely vegetated areas. Its innovative design features shingled cells that reduce the impact of shading by allowing electricity to flow through unshaded cells while bypassing the shaded ones. This advanced technology enhances overall performance and efficiency, making it an excellent choice for installations where shadows from trees, buildings, or other structures are unavoidable.

In addition to its shading resilience, this cutting-edge bifacial solar panel boosts energy generation by harnessing sunlight from both the front and back sides. The rear side captures and converts reflected light from surfaces like the ground and walls. In highly reflective environments—such as sandy areas, snow-covered landscapes, or surfaces with light-colored materials—the panel can absorb additional light, significantly increasing electricity production compared to traditional single-sided panels. This dual-sided capability effectively maximizes energy output, even in challenging light conditions.

Furthermore, the panel incorporates industry-leading features including PERC (Passivated Emitter and Rear Cell) technology, which enhances light absorption and efficiency, as well as half-cut cells that improve performance by reducing resistance and heat generation. It also employs bypass diodes that minimize the effects of shading, ensuring continuous energy flow. With nine busbars optimized for electrical conductivity, this panel is designed to deliver peak energy output while safeguarding the solar cells from overheating, ensuring durability and long-term reliability. This combination of features positions the 350W 12V Shingled Solar Panel as a highly effective and versatile choice for maximizing solar energy production in various environments.

Specifications

Max Power / Pm 350W

Cell Tech Shingled Mono

Cell Class Grade A

Open Circuit Voltage / Voc 22.2 V

Max Power Voltage / Vmp 18.5 V

Max Power Current / Imp 20.5 A

Short Circuit Current / Isc 23.2 A

Max System Voltage DC 1000V

Operating Temperature Min - 40 ℃ ~ 85 ℃

Approx Net Weight 7.5 kg

Dimensions 910*670*30 mm

Warranty: 25 Years Performance

Product Warranty: 3 Years
