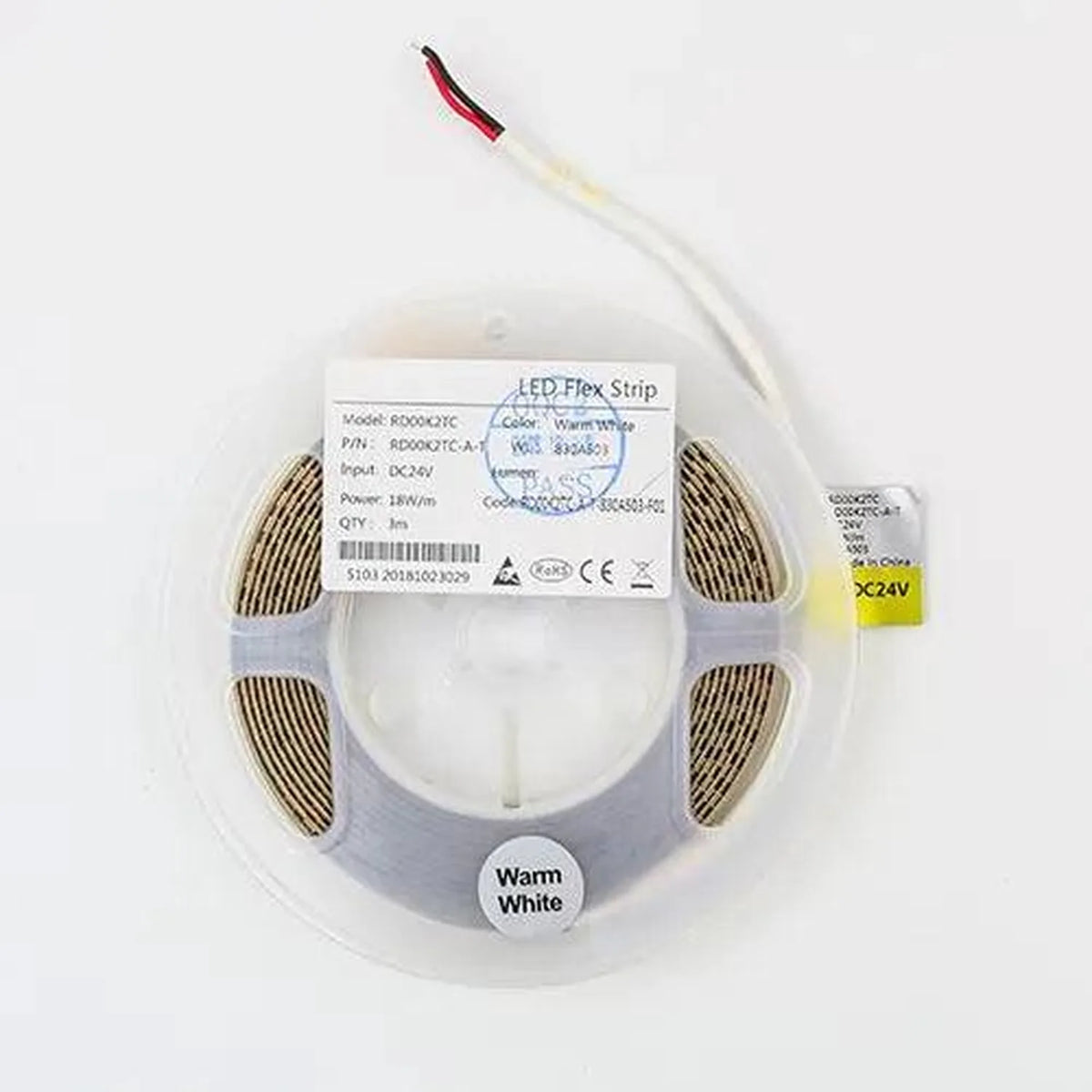

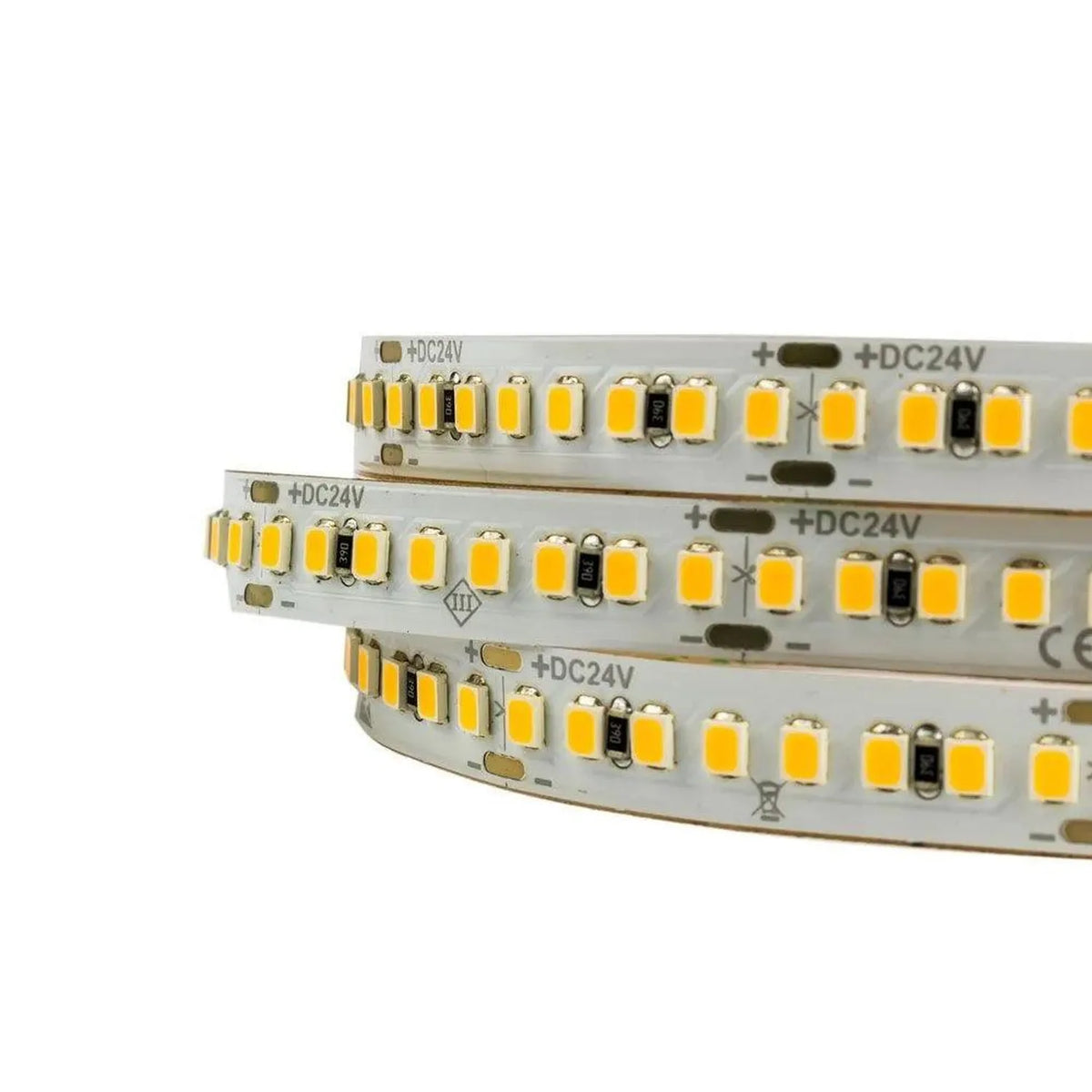

The Diamanti LED Strip is a 24V single colour strip light built for indoor accent, feature and task lighting. It packs 192 SMD2835 LEDs per metre and runs at 18W per metre, giving up to 2800 lumens per metre from a continuous, even light line. Supplied as a 5m roll.

Key features of this 24v led strip

• Voltage, 24V, chosen for lower current draw and less voltage drop over longer runs than a 12V strip.
• LED density, 192 SMD2835 LEDs per metre for a smooth, spot free light line.
• Output, up to 2800 lumens per metre.
• Power draw, 18W per metre.
• Protection rating, IP33, suited to indoor environments only.
• PCB, pure copper double layer board with a white finish.

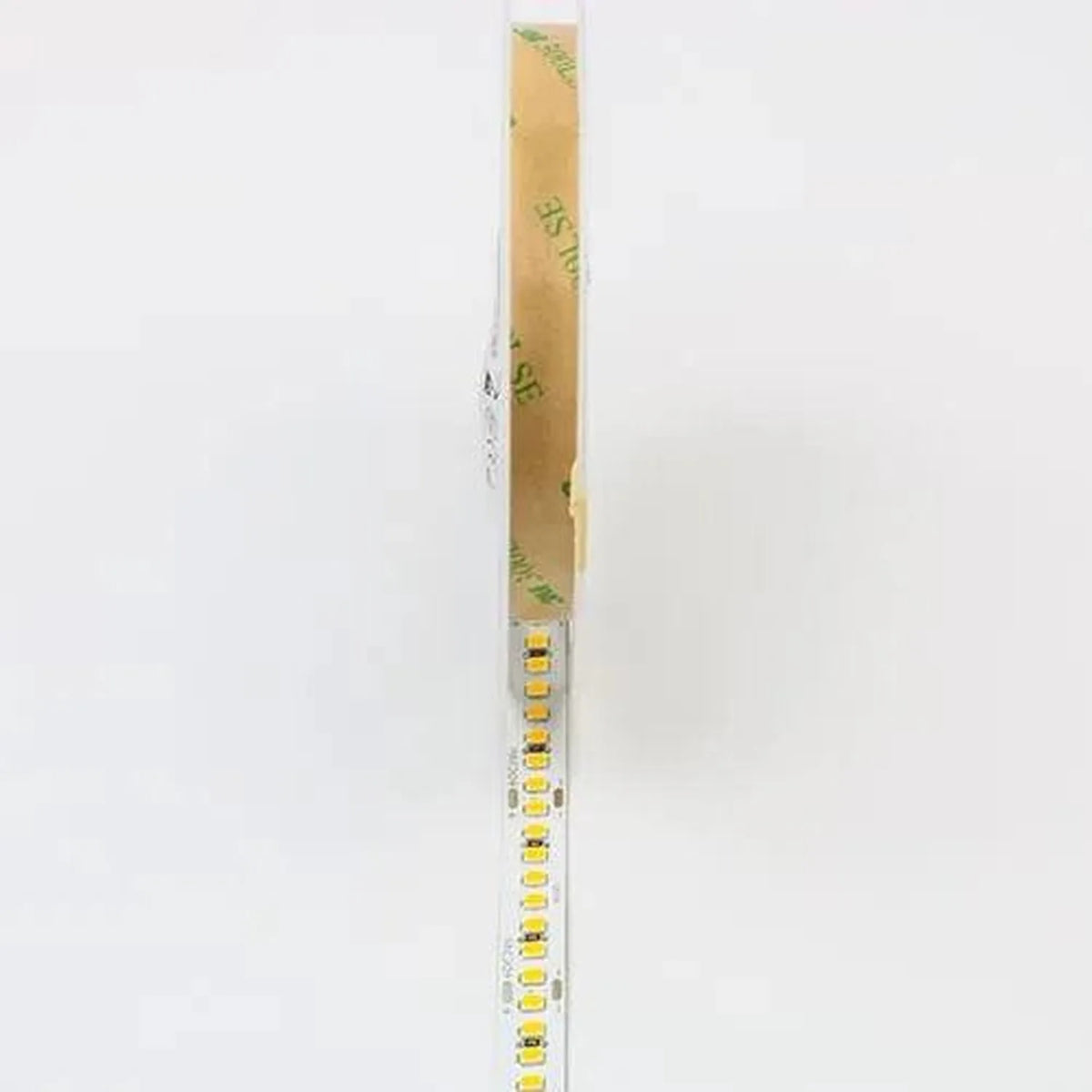

• Adhesive, 3M self adhesive backing on the rear for direct fitting to flat, clean, dry surfaces.

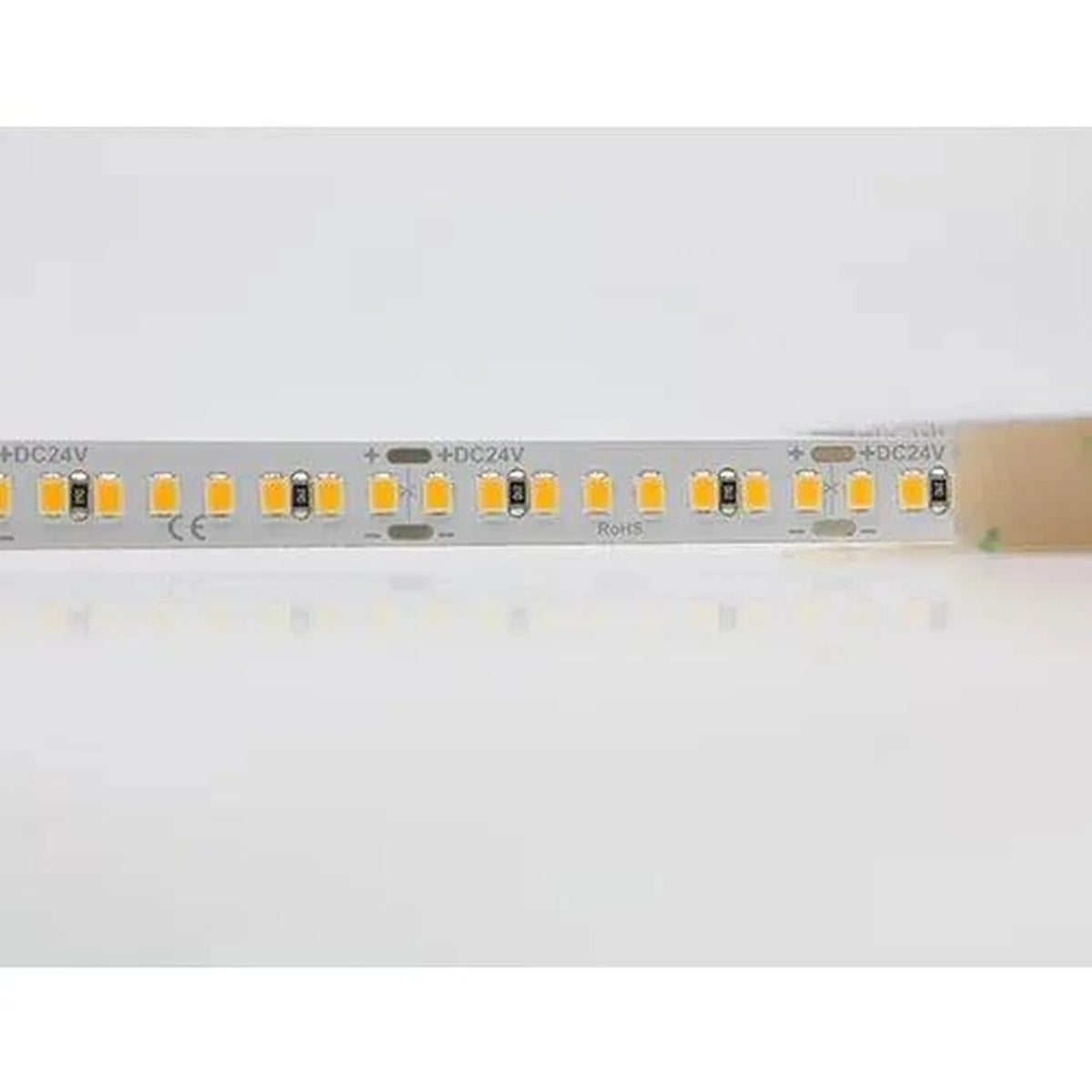

• Cutting points, cuttable every 8 LEDs along the marked lines.

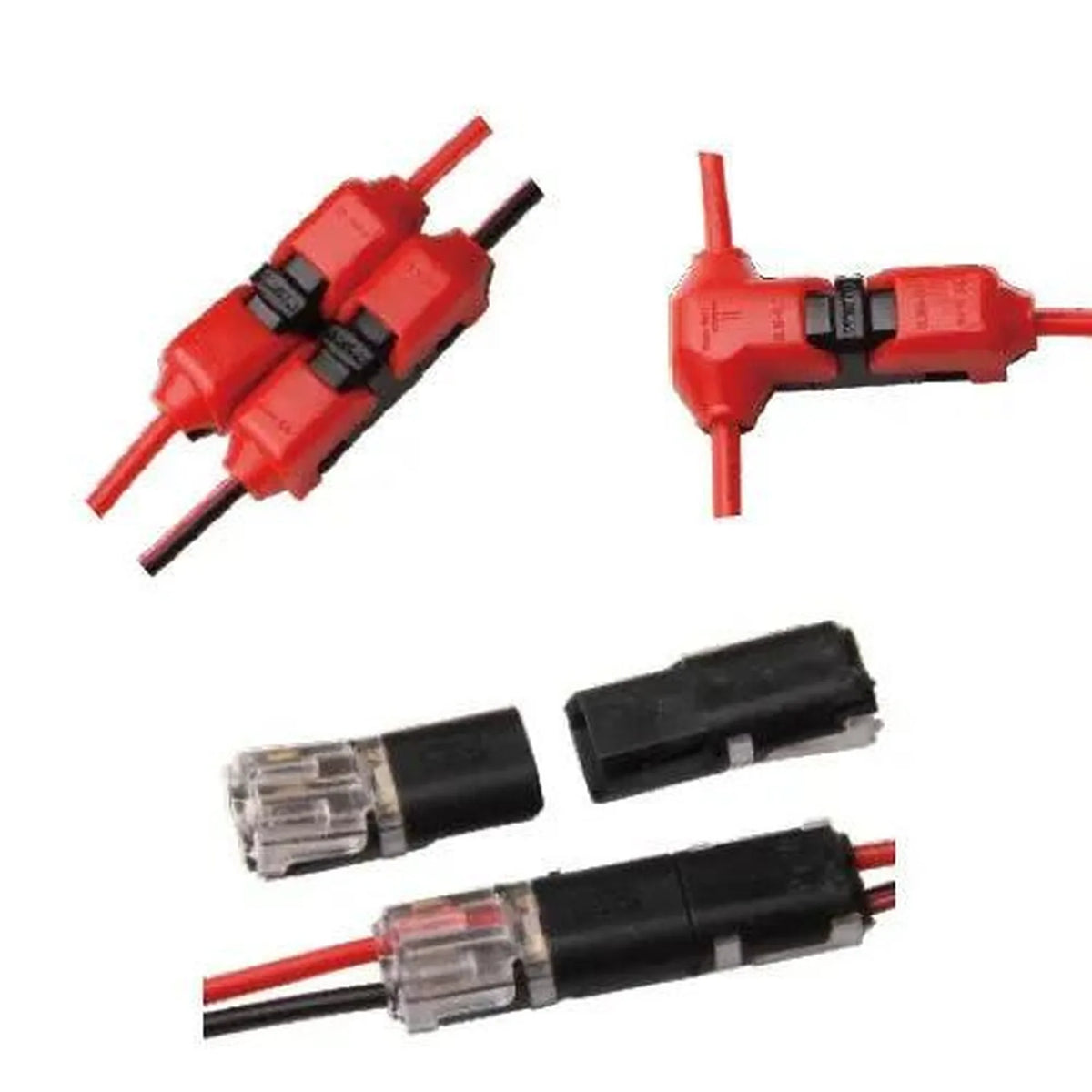

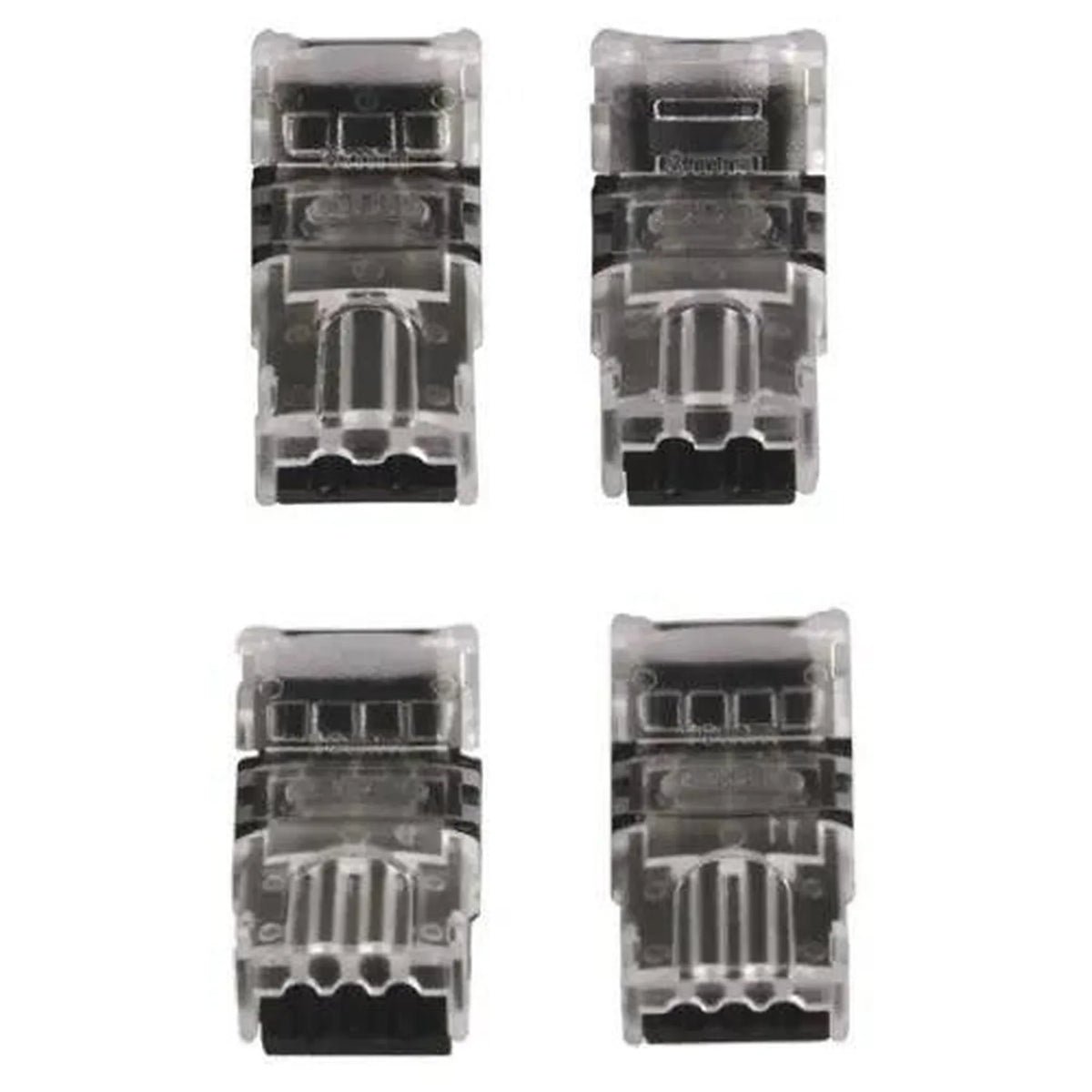

• Connectors, 10mm cable connectors included.
• Warranty, 5 years as standard.

Applications

Fits kitchens, bedrooms, living rooms, offices, cabinets, shelving and retail display lighting where a strong, consistent light line is needed indoors. The high LED count keeps the light even from end to end, rather than showing individual points of brightness.

Power supply

Total wattage depends on how much strip you fit, based on the 18W per metre rating. Choose a driver rated for the full run length. Drivers and connection accessories are sold separately.

Fitting notes

Surfaces must be dry, clean and free of dust, grease or oil before the 3M adhesive is applied. Rough, oily or uneven surfaces weaken the bond. This strip is for indoor use only.
