10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker
£11.00
Sale price
£11.00
Regular price
£16.00
Shipping calculated at checkout.
SUNDCCB10MN1P-US
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
DESCRIPTION

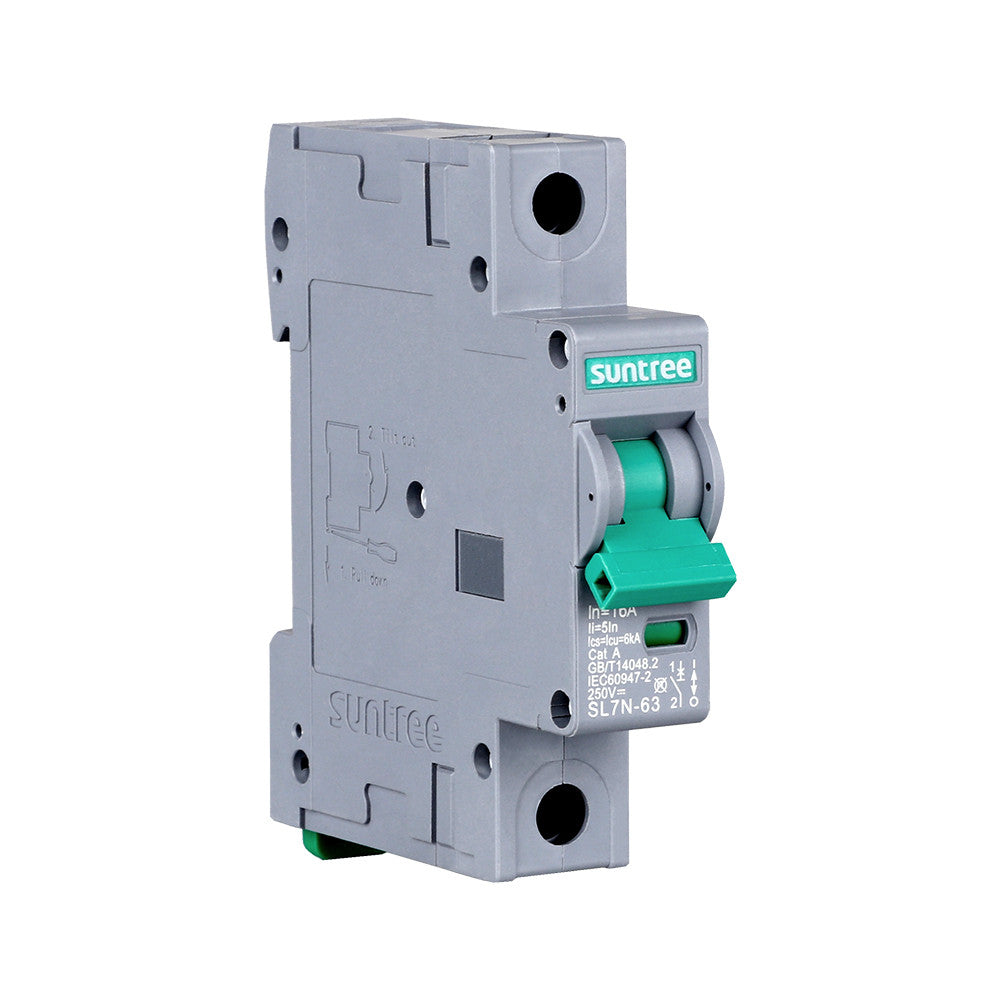

[DOUBLE SECURITY] Equipped with both the thermal and magnetic tripping mechanism for reliability and safety.
[SAFE TO USE] Designed for reversible connection and can work under bidirectional current.
[DURABLE FOR USE] After the circuit breakers is disconnected, only reset is needed and there will be no damage.
[CLEARLY MARK] Built-in indicator window helps identify the contact position.
[QUICK TO INSTALL] Easily install on the standard DIN rail with the buckle design.
The Suntree DC Miniature Circuit Breaker is designed to protect DC electrical installations against overloads and short circuits with both the thermal and magnetic tripping mechanism equipped. Once a fault is detected, the circuit breaker automatically switches off the electrical circuit to prevent damage to wires and avoid the risk of fire. The circuit breaker can also be manually opened under the full rated load without any damage when electrical maintenance needs to be performed. Engineered for reversible connection, the circuit breaker is allowed to be wired in either direction and functions under bidirectional current. The built-in indicator window helps identify the contact position of the circuit breaker at a glance. The buckle design enables easy installation on the standard DIN rail.
RELIABLE AND SAFETY
Equipped with both the thermal and magnetic tripping mechanism for reliability and safety, along with the certification of CE, RoHS, CB, TUV.
DURABLE FOR USE
Excellent product quality and strong service life. Material and workmanship warranty for 1.5 years.
SIZING TIPS
Advice of choosing suitable circuit breaker for different situations.

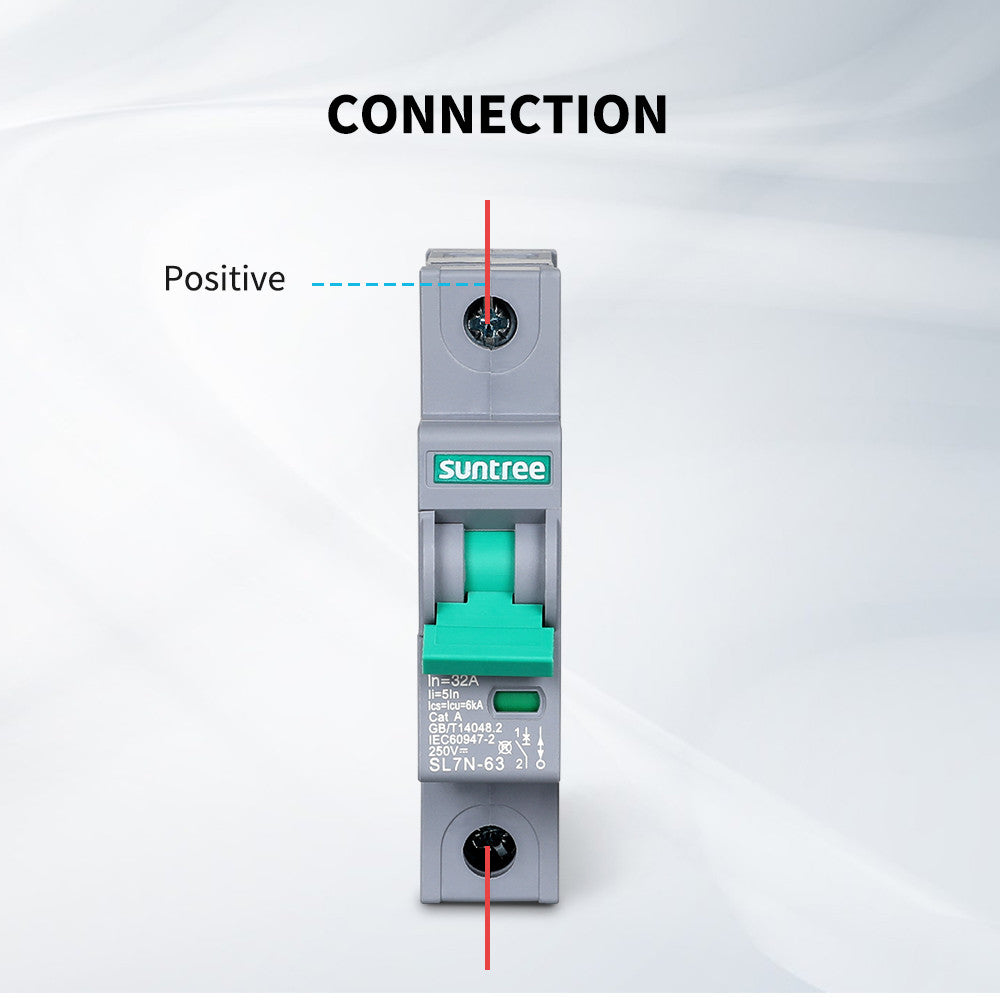

CONNECTION
Connected on positive and negative.

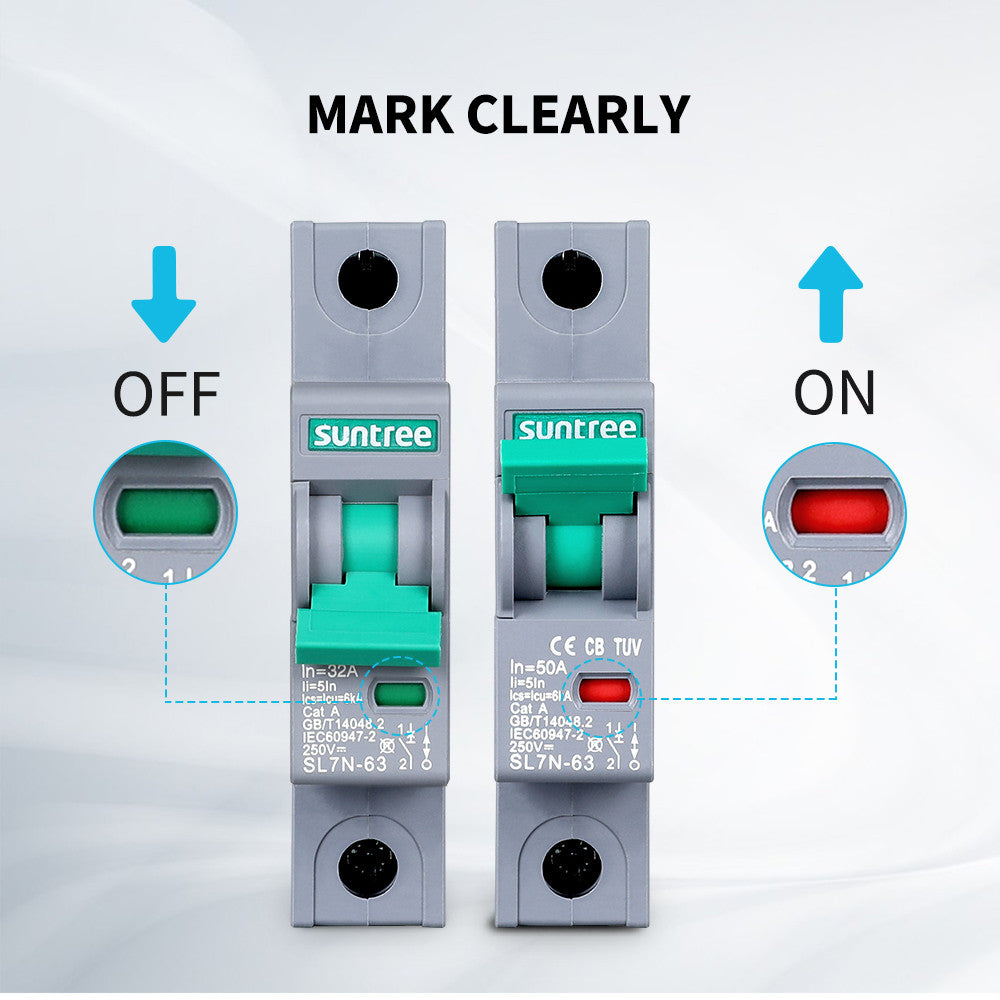

MARK CLEARLY
Built-in indicator window helps identify the contact position.

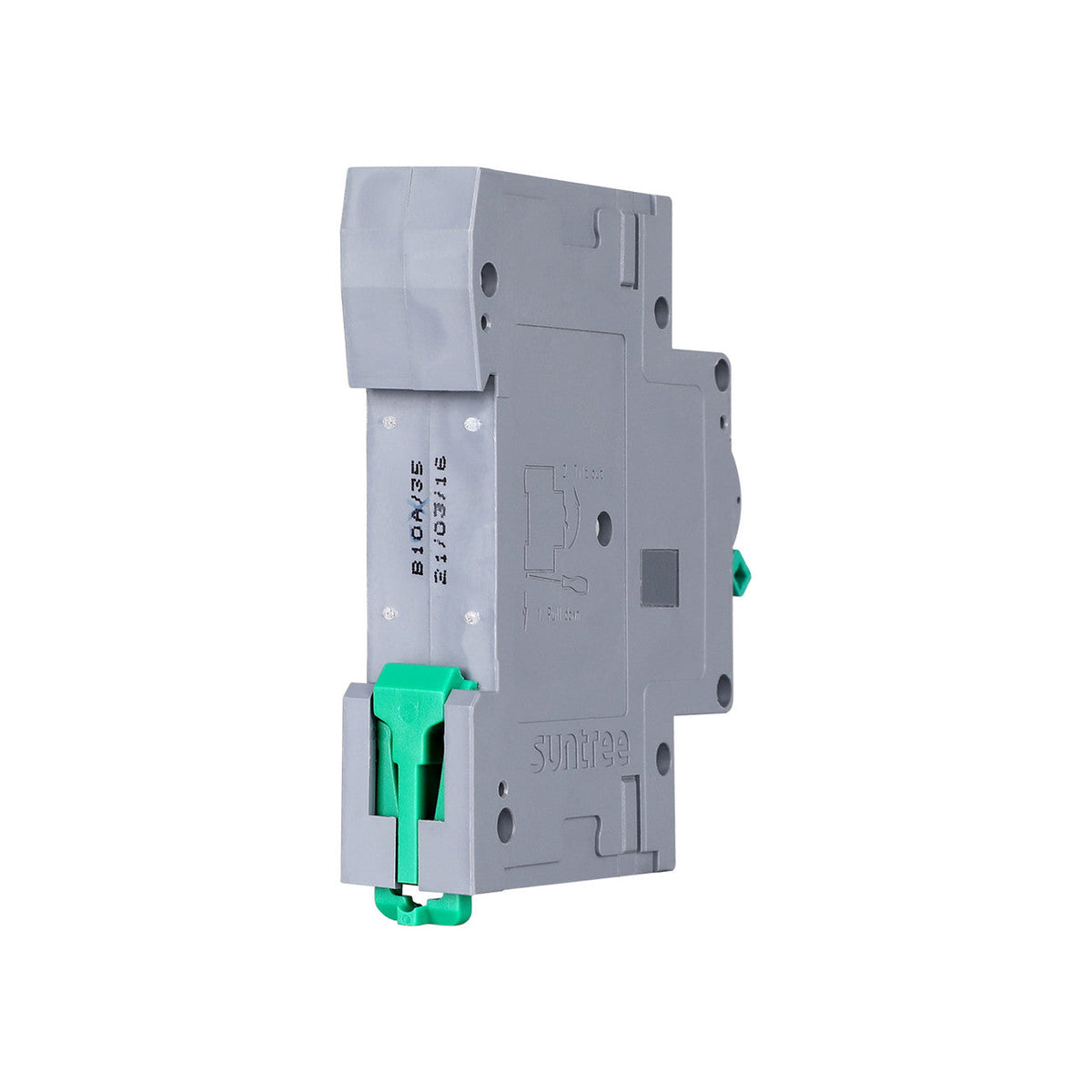

QUICK TO INSTALL
Easily install on the standard DIN rail with the buckle design.
For installation, snap it into the slot, then press the bottom part until the buckle snaps into the Din rail.
For disassembly, simply pull down the buckle.
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us with livechat for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK
Package Includes
| 10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker
1 x
|
| 10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker | |||
|---|---|---|---|
| Rated Insulation Voltage | 1250V | Operating Temperature Range | -22℉~158℉ (-30℃~70℃) |
| Rated Operating Voltage | 250V | Storage Temperature Range | -40℉~185℉ (-40℃~85℃) |
| Rated Frame Current | 63A | Protection Rating | IP20 |
| Rated Current | 10A/16A/32A/50A/63A | Operating Relative Humidity | ≤95% |
| Number of Poles | 1 | Rated Non-Tripping Current | 10.5A/16.8A/33.6A/52.5A/66.15A (≥1h) |
| Operating Short-Circuit Breaking Capacity | 6KA | Rated Tripping Current | 13A/20.8A/41.6A/65A/81.9A (<1h) |
| Ultimate Short-Circuit Breaking Capacity | 6KA | Rated Instantaneous Tripping Current | 60A/96A/192A/300A/378A (<0.1s) |
| Rated Impulse Withstand Voltage | 6KV | Certifications | |
| Mechanical Life | 20000 Times | CE | YES |
| Electrical Life | 1000 Times (<125VDC) | RoHS | YES |
| Trip Mechanism | Thermal-Magnetic | CB | YES |
| Damp Heat Resistance | Type 2 | TUV | YES |
| Mechanical Specifications | SAA | YES | |
| Dimensions | 3.2 x 3.0 x 0.7 in (82 x 76 x 18 mm) | ||
| Weight | 4.2 oz (120 g) | Installation Method | DIN Rail |
| Recommended Terminal Torque | 17.7 inch·lbs~20.4 inch·lbs (2 N·m~2.3 N·m) | Warranty | |
| Conductor Size | 14 AWG~4 AWG | Material and workmanship warranty | 1.5 Year |
1.How to choose suitable circuit breaker?
For controller/inverter/DCdevice
1. Determine the maximum continuous operating current=watt/voltage
2. Maximum current = 1.25 x maximum continuous operating current
3. Select the circuit breaker whose rated current is greater than and closest to the maximum current
For solar panel
1. Determine short-circuit current
2. Maximum current = Short-circuit current x 1.25 x 1.25
3. Select the circuit breaker whose rated current is greater than and closest to the maximum current
2. What size wire will it accept?
The circuit breaker accepts wire of 14 AWG~4 AWG.
3. What is the difference between 1P and 2P circuit breaker?
1P connects on the live wire only.
2P connects on both live wire and neutral wire, so it can cuts them at the same time.
Normally, 2P can afford greater rated current and working voltage than 1P.
4. What is the difference between fuse and circuit breaker?
Circut breaker:
Functions: overload/short circuit protection and active disconnection can be realized
Breaking time: small current delay trip, large current instant trip
Rated operating voltage: 250V/1000V
Replacement: after disconnecting, only reset is required, don't need to replace it
Fuse:
Function: overload/short circuit protection only
Breaking time: high current also has delay
Rated operating voltage: 72V
Replacement: Replacement is required immediately after breaking
5. Where is the circuit breaker often connected in?
Combinar box, breaker box, home kits, etc.
