Description

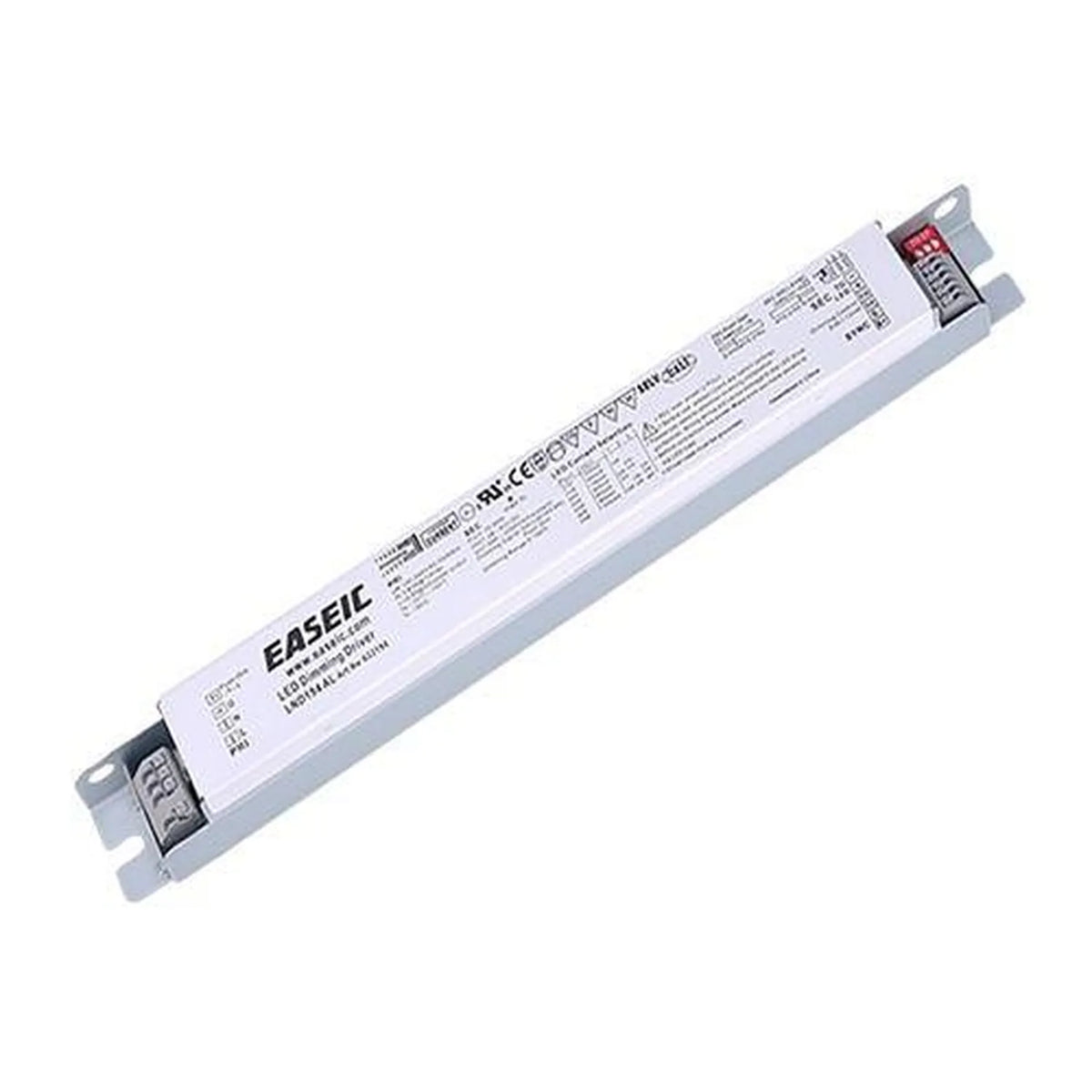

The EASEIC LNA136AL is a constant current LED driver built for architectural, commercial and OEM luminaires that need 1-10V dimming. Output current is adjustable from 200mA to 1050mA using onboard DIP switches, and the driver delivers up to 36W into a 3V to 66V DC load.
1-10v led driver features
- Output current, 200mA to 1050mA, set via DIP switches.
- Output voltage, 3V to 66V DC, up to 36W.
- Input supply, 100 to 277V AC, 50/60Hz.
- Dimming, 0/1-10V, PWM, resistance or PUSH-Dim, 0 to 100% range.
- Efficiency, up to 88%, power factor greater than 0.95, THD below 10%.
- Protection, short circuit, over voltage, over current and open circuit.
Applications
The slim 280 x 30 x 26mm housing and push terminals suit recessed luminaires, LED panels, battens and other compact fittings where space is tight. The universal AC input covers residential, commercial and industrial installations, and the multi-protocol dimming makes it a drop-in choice for lighting control systems already running 0/1-10V or PWM signals.
Operating conditions
Rated for use from -20°C to +50°C with a UL Damp and Dry environmental rating, and a maximum open circuit voltage below 77V.
