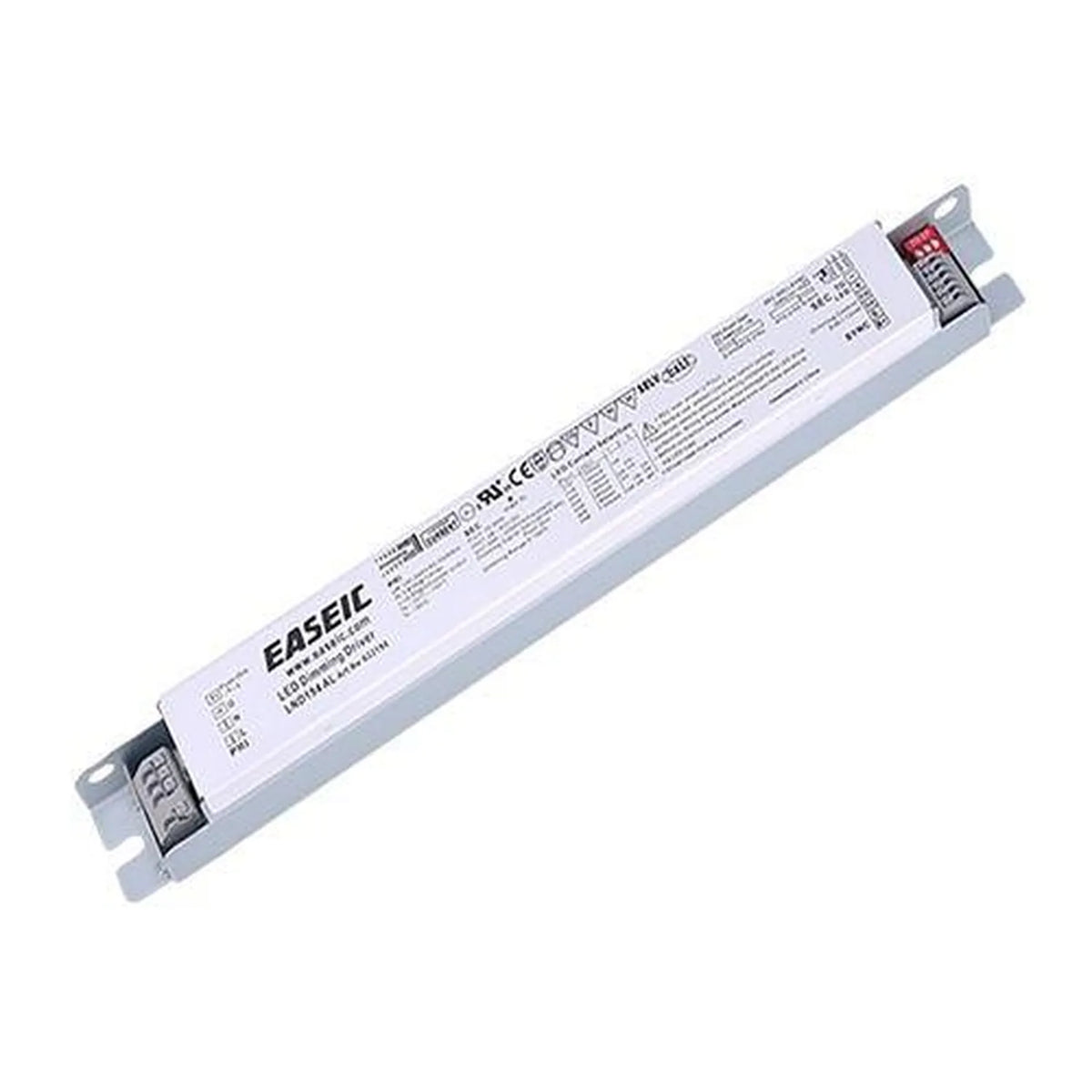

The Easeic LNA118AL is a constant current LED driver with adjustable output, built for compact luminaires, recessed fittings and architectural lighting. Output current is adjustable from 200mA to 1050mA via integrated DIP switches, so installers can set the driver to match the connected LED array.

Key features of this 1-10v led driver

• Output power, up to 18W
• Output current, 200mA to 1050mA, adjustable by DIP switch
• Output voltage, 3V to 66V DC
• Maximum open circuit voltage, under 77V
• Input voltage, 100 to 277V AC, 50/60Hz
• Dimming, 0/1-10V, PWM, resistance and PUSH-Dim, 0 to 100% range

Dimming and control

Three dimming methods are built into one driver: 0/1-10V, PWM and resistance dimming, alongside PUSH-Dim for switching and dimming from a standard push-button. The analogue dimming curve runs smoothly from 0% to 100% without flicker, which suits offices, hospitality fit-outs, retail spaces and other commercial dimmable lighting.

Efficiency and protection

Efficiency reaches up to 88%, with a power factor above 0.90 at full load and THD below 10%. The driver includes protection against short circuit, over voltage, over current and open circuit conditions.

Housing and installation

The slim housing measures 280 x 30 x 26mm, sized for recessed luminaires, LED panels, battens and other compact fittings where space is tight. Push terminals are fitted to speed up wiring on site. Operating temperature runs from -20°C to +50°C, and the driver carries a UL Damp and Dry environmental rating.
