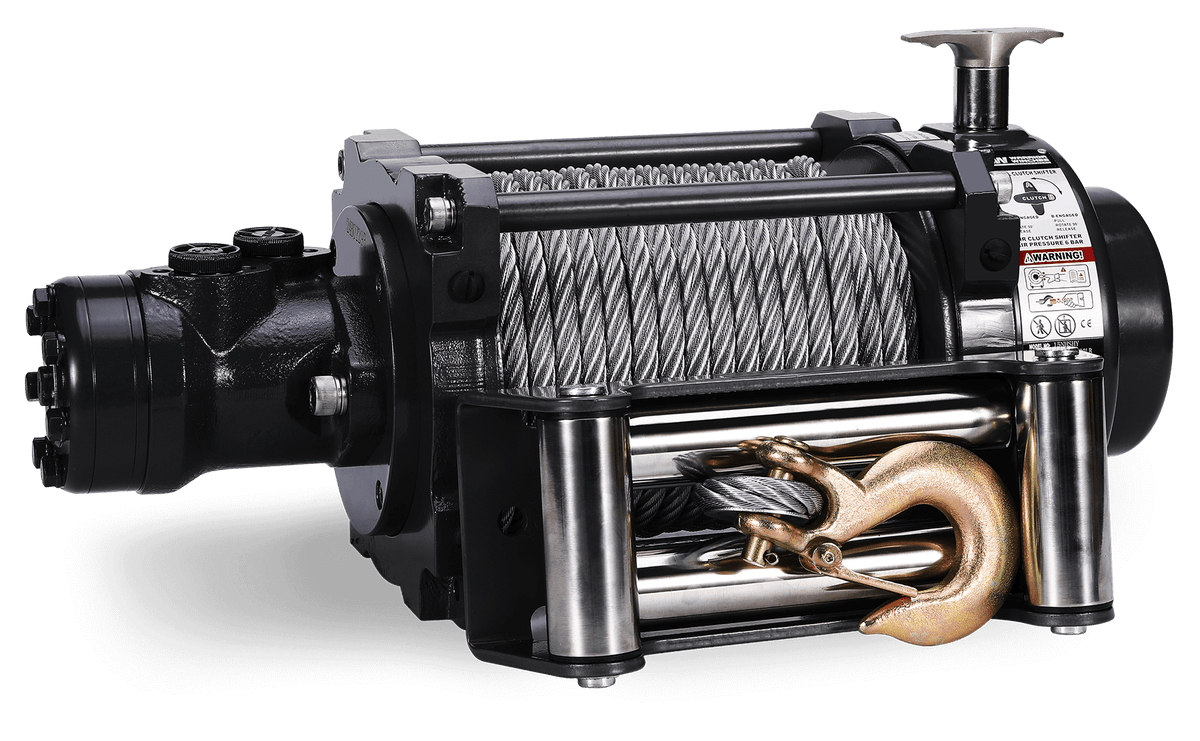

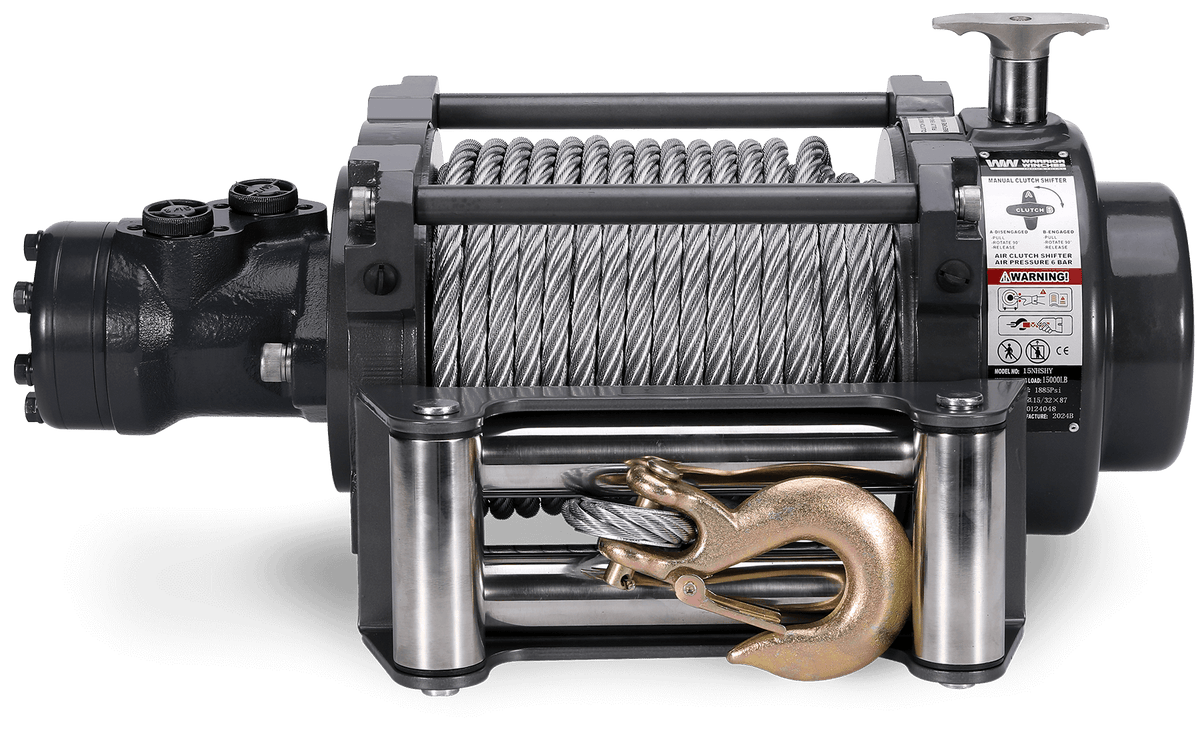

Warrior C10000NH Hydraulic Winch

Compact, tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.

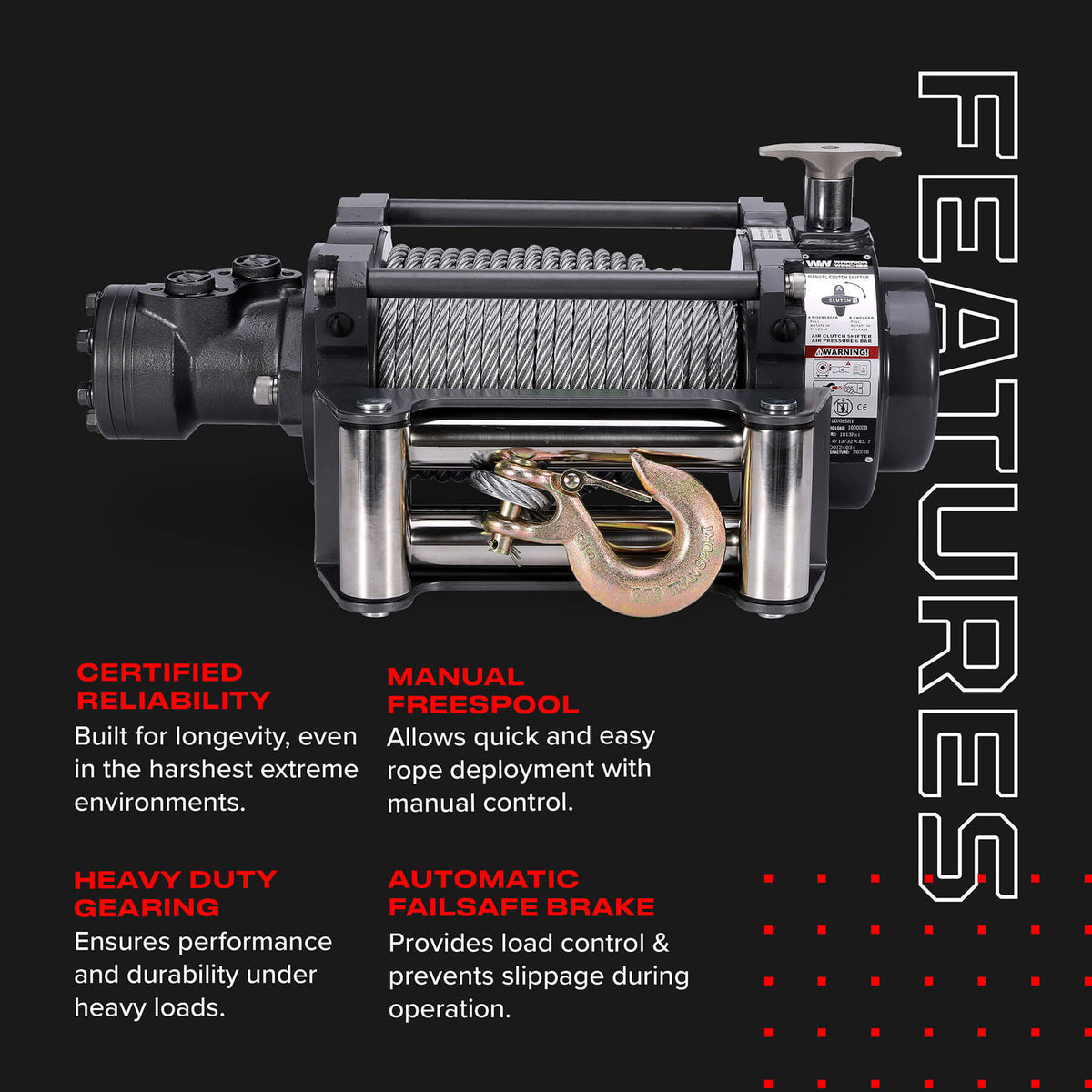

Standard Features:

♦ Line Capacity: 10,000lb (4,536kg)
♦ Rope: 26.5m of 10.2mm Steel Cable with Clevis Hook
♦ Motor: Hydraulic Dis 50ml/r
♦ Gearbox: Freespooling Clutch - Allows cable to be unwound manually
♦ Warranty: 1 Year Standard Return to Base Cover

Accessories:

♦ Mounting Plate: Available as optional extra
♦ Fairlead: Heavy Duty 4-Way Roller Fairlead
♦ Mounting Bolts: Included for Standard installations

Also Includes:

♦ Instruction Manual

Other Information:

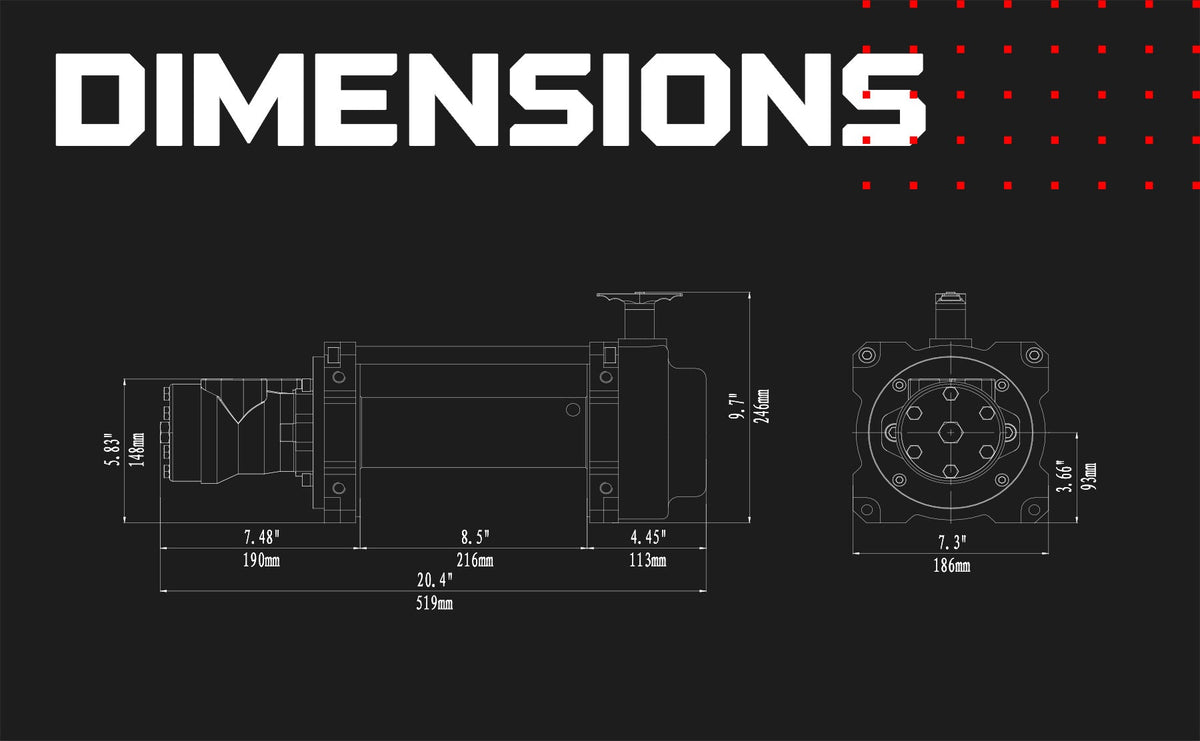

♦ Dimensions: 510mm L x 186mm D x 224mm H (Dimensions given assum electric pack is mounted remotely)
♦ Mounting Bolt Pattern: 254mm x 114.3mm
♦ Approx. Shipping Weight: 55kg
♦ Line Pull - No Load: 2.8 m/min (20 L/Min at 25 Bar)
♦ Line Pull - Full Load:  7.6 m/min (50 L/min at 130 Bar)

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
