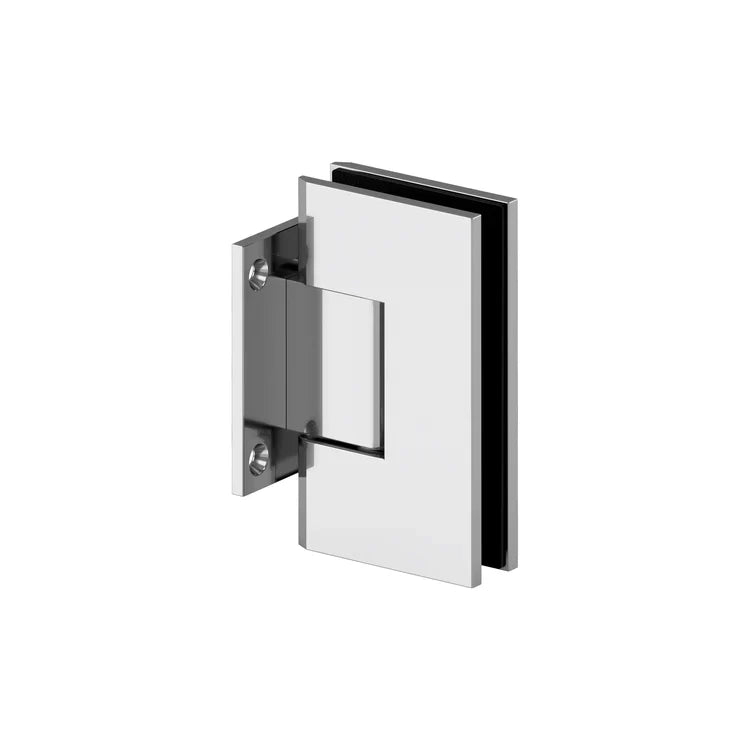

VOLANS Wall Mount Short Back Plate Hinge
Chrome - VOL-SB90-CH
£21.00
Sale price
£21.00
Regular price
Skip to product information
VOLANS Wall Mount Short Back Plate Hinge
£21.00
Sale price
£21.00
Regular price
Shipping calculated at checkout.
VOL-SB90-CH
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Product Overview
| 5 Degree Preset | No |
| Adjustable | No |
| Back Plate | Short Back |
| Glazing Thickness (in.) | 3/8 to 1/2 |
| Material | Brass |
| Max Door Weight (lbs.) (2 Hinges) | 130 |
| Max Door Weight (lbs.) (3 Hinges) | 160 |
| Max Door Width (in.) (2 Hinges) | 36 |
| Max Door Width (in.) (3 Hinges) | 36 |
| Mount Type | Wall Mount |
| Self-Centering | Yes |
| Width (in.) | 2.25 |
| Height (in.) | 3.3125 |
The Future Glass Volans Wall Mount Short Back Plate Hinge is made from High-Quality Solid Brass. As part of our mid-size hinge collection. The Volans supports door weights up to 130 lbs. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on your screen settings.
- NOT compatible with FG Glass Panels
- Solid brass construction
- Total allowable door weight (2 hinges) - Up to 130 lbs. (59 kg) and maximum door width of 36"
- Use with 3/8" (10 mm) or 1/2" (12 mm) thickness tempered safety glass
- Fast Fit technology easy slide-on hinge
- Fixed gaskets to prevent door slippage
- Available in several finishes
Substitutions: CERES HINGES: CRS-HB90
Guidelines and Templates:
