Victron Energy 50A SmartSolar MPPT: Intelligent Off-Grid Power Management

The Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller is engineered to deliver exceptional energy harvest for demanding off-grid systems. Whether you are outfitting a caravan, 4WD, marine vessel, or remote cabin, this controller acts as the central brain of your solar array. It efficiently converts high-voltage solar input down to the correct voltage required to safely and rapidly charge your 12V or 24V battery bank.

Ultra-Fast MPPT Technology for Maximum Yield

Variable cloud cover and shifting light conditions are common challenges for off-grid solar systems. Utilising ultra-fast Maximum Power Point Tracking (MPPT) technology, this controller constantly monitors the voltage and current output of your solar panels. This rapid response allows the system to harvest up to 30% more energy compared to traditional PWM controllers, and up to 10% more than slower MPPT alternatives. In scenarios involving partial shading, the advanced BlueSolar algorithm locks onto the optimal maximum power point, preventing the system from settling for less efficient energy transfer rates.

Seamless Monitoring with Built-In Bluetooth

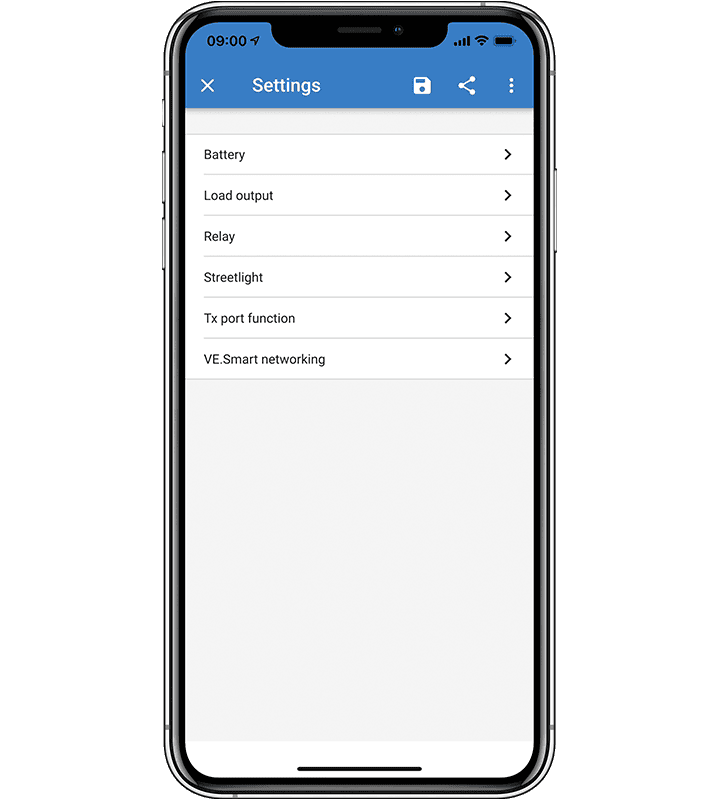

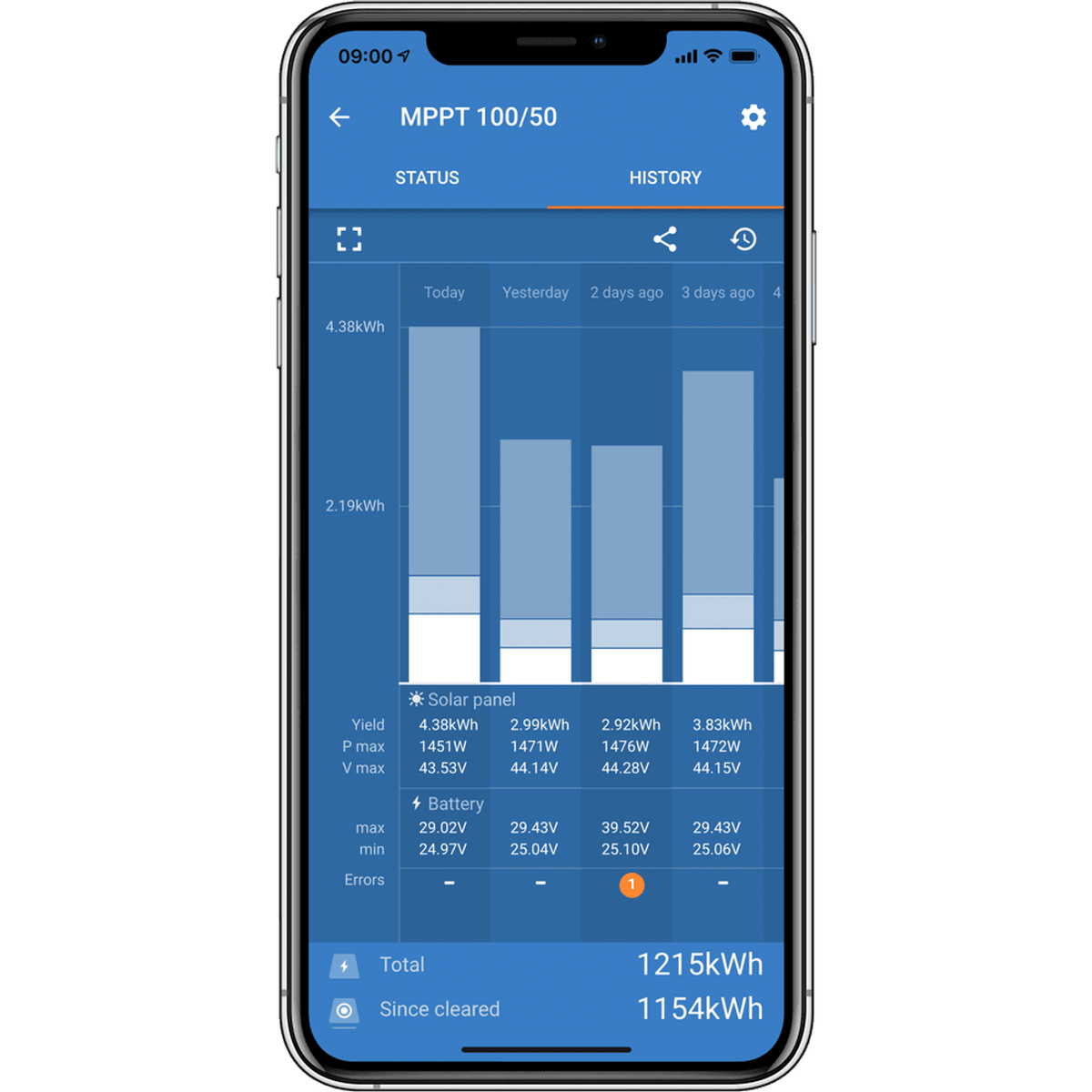

System management is completely wireless thanks to the integrated Bluetooth Smart feature. By pairing the controller with the VictronConnect app on your smartphone or tablet, you can easily configure charge settings, perform firmware updates, and monitor real-time data. The app provides a clear dashboard displaying solar wattage, battery voltage, and current charge stage. Additionally, the unit logs up to 46 days of historical performance trends, allowing you to track daily solar yield and monitor battery fluctuations without needing external meters.

High Efficiency and Fanless Reliability

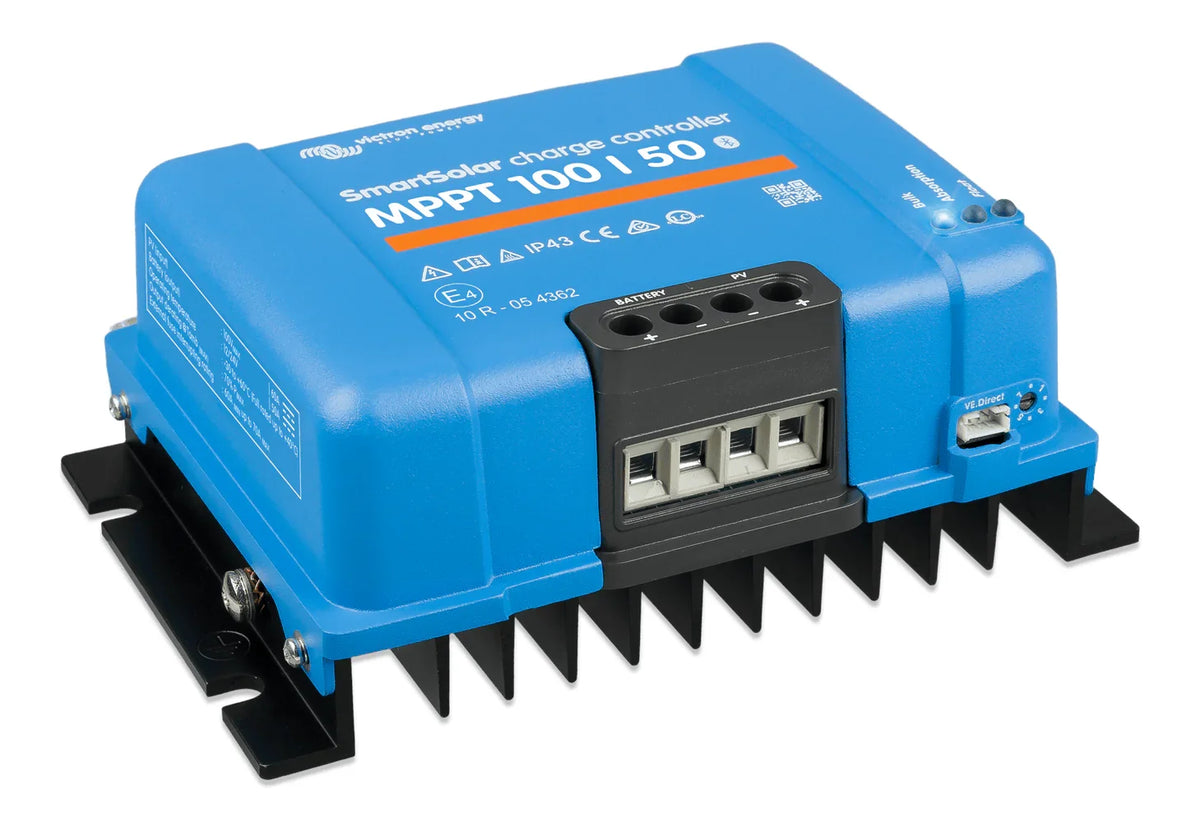

Built for harsh conditions, the MPPT 100/50 features a robust fanless design that eliminates the risk of mechanical cooling failures. Instead, it relies on large passive aluminium cooling fins to dissipate heat, allowing the unit to maintain a peak conversion efficiency of up to 98% and deliver its full 50A output in temperatures up to 40 degrees Celsius. The electronic components are IP43 protected, reducing the risk of dust and moisture ingress, which is vital for coastal or outback environments.

Intelligent Battery Protection

A solar controller must do more than just harvest power; it must also protect your valuable energy storage. The multi-stage adaptive charging algorithm automatically adjusts the duration of the absorption stage based on the battery's depth of discharge. This prevents overcharging after minor use and helps ensure a complete charge after deep cycling. An accurate internal temperature sensor compensates charging voltages based on environmental changes, making it highly compatible with sensitive lithium and premium lead-acid battery banks.

Expandable System Integration

For complex power setups, the integrated VE.Direct port provides a hardwired data connection to the Cerbo GX ecosystem, allowing for advanced monitoring and control. High-current 16 mm2 (approx. 6 AWG) screw down terminals provide secure, low-resistance connections for both the solar array and the battery bank, minimising power loss.

Key Features

• Ultra-fast Maximum Power Point Tracking (MPPT) maximises yield in shifting light conditions
• Built-in Bluetooth for wireless setup and monitoring via the VictronConnect app
• Auto-selects between 12V and 24V systems (supporting up to 700W or 1400W solar input respectively)
• Advanced algorithm optimises energy harvest during partial shading
• Fanless aluminium heat sink design provides up to 98% efficiency without moving parts
• Multi-stage adaptive charging protects deep-cycle battery health
• Heavy-duty 16 mm2 (approx. 6 AWG) terminals ensure secure power transfer

Upgrade your off-grid system with the Victron 12/24V 50A SmartSolar MPPT 100/50 Bluetooth Solar Charge Controller. It provides the intelligent power management required to keep your battery bank healthy and fully charged, no matter where your travels take you.
