Victron 6000A/50mV Shunt with Integrated PCB for High-Capacity BMV Battery Monitoring

Scale Your Energy System with Precision Current Measurement

The Victron 6000A/50mV shunt is engineered for large-scale DC energy systems where accurate current monitoring is critical. Designed as a direct upgrade for the standard 500A shunt in Victron BMV battery monitors, this high-current shunt enables safe, precise measurement of currents up to 6000A—ideal for industrial battery banks, large off-grid installations, and marine power systems.

With a 50mV output at rated current, it maintains full compatibility with Victron BMV-700, BMV-712, and BMV-702 monitors, as well as other 50mV shunt-compatible devices. The included quick-connect PCB (pre-mounted) simplifies integration, eliminating the need for separate adapters or complex wiring modifications.

Built for Demanding Environments

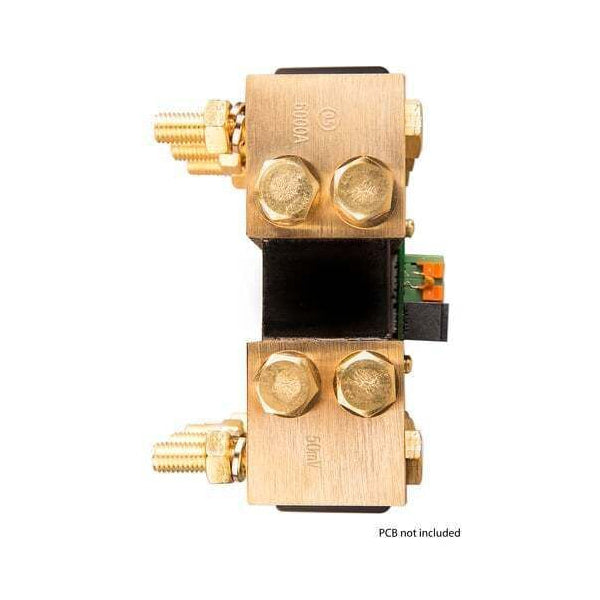

This shunt features five M10 (approx. 3/8"-16) stud terminals on solid brass blocks, providing low-resistance connections for heavy-duty lugs up to 4/0 AWG (approx. 95mm²). The parallel resistive element design ensures stable millivolt output even under sustained high loads, while the robust insulated base allows secure mounting in electrical enclosures or battery compartments.

Compared to generic shunts, the Victron 6000A model reduces the risk of overheating and measurement drift, protecting your investment in battery health monitoring. Its precision engineering supports accurate state-of-charge tracking, helping prevent deep discharges and extending battery lifespan in critical applications.

Key Features

• 6000A continuous current rating with 50mV output for Victron BMV compatibility
• Five M10 stud terminals on solid brass blocks for secure, low-loss connections
• Pre-mounted quick-connect PCB for seamless BMV integration
• Parallel resistive elements ensure stable readings under fluctuating loads
• Compact footprint (168 x 70 x 110mm) with four 6mm mounting holes
• Insulated base for safe installation in metal enclosures

Applications

This shunt is suited for systems requiring high-current measurement beyond the standard 500A range, including:

• Large off-grid solar installations with multiple inverters
• Industrial battery banks and backup power systems
• Marine and RV setups with high-demand DC loads
• Telecom and remote monitoring stations

Note: This shunt is supplied without a BMV monitor, allowing you to upgrade an existing system or build a custom monitoring solution.

Upgrade Your Monitoring Precision

Enhance your Victron BMV system with the 6000A/50mV shunt for reliable, high-current measurement. Order today to ensure accurate battery data in your large-scale energy setup.
