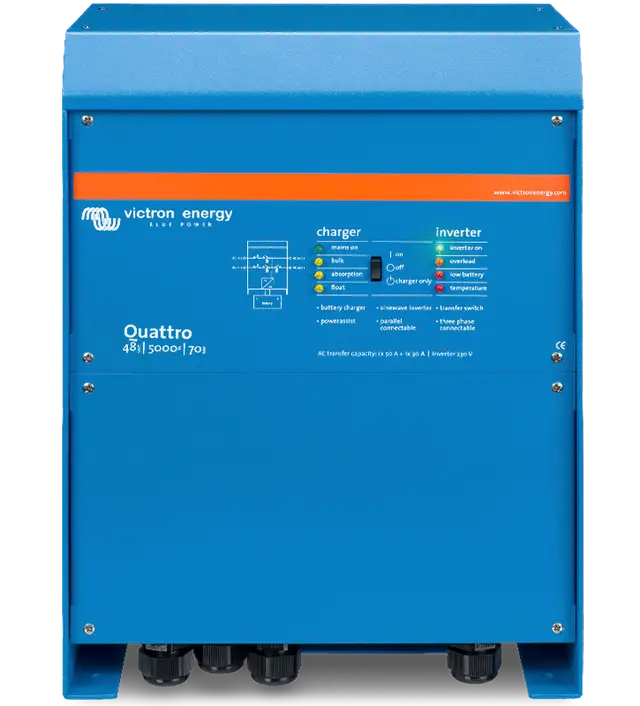

VICTRON Quattro 48/5000/70-100/100 5kVA (4kW) 48V Off-grid Hybrid Inverter Charger
£517.00
Sale price
£517.00
Regular price
Skip to product information
VICTRON Quattro 48/5000/70-100/100 5000VA (4kW) 48V Off-grid Hybrid Inverter Charger
VICTRON Quattro 48/5000/70-100/100 5kVA (4kW) 48V Off-grid Hybrid Inverter Charger
£517.00
Sale price
£517.00
Regular price
Shipping calculated at checkout.
QUATTRO-48-5000
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
VICTRON Quattro 48/5000/70-100/100 5000VA (4kW) 48V Off-grid Hybrid Inverter Charger
- 70A continuous inverter rating handles sustained heavy loads in industrial sites.
- Dual 100A chargers support rapid recharging from grid or generator.
- Two AC inputs enable seamless generator integration for remote operations.
The 48/5000/70-100/100 Quattro intelligently combines a powerful 5000VA 48V pure sine wave inverter, sophisticated dual 100A battery chargers with adaptive charge technology, and a high speed 100A AC transfer switch in one single unit. This makes the Quattro ideal for demanding commercial applications like logistics depots and construction sites, allowing compact systems with fewer cables than separate units.
Perfect for off-grid power, hybrid solar setups, and backup in modular buildings or warehouses.
Installation available – contact us for a quote.
Key features
- 5000VA 48V pure sine wave inverter: Delivers 4000W continuous (70A at 25°C), 10,000W peak for motors. Powers tools, compressors, and site lighting.
- Solar & hybrid ready: Works with off-grid PV controllers and grid-tie inverters for renewable integration.
- Scalability: Up to 6 units parallel for 25kW/30kVA, or 3-phase configs.
- Dual adaptive 100A chargers: 4-stage smart charging (bulk-absorption-float-storage) for 48V batteries; auto-adapts to type and use.
- Uninterruptible power supply (UPS): High-speed 100A switchover (<20ms) keeps critical loads like servers running uninterrupted.
Delivery:
- Available to the UK, Ireland, Africa, the Caribbean and worldwide. If shipping rate not shown at checkout, contact us on +44 2080640335 or info@energian.co.uk for a quote.
Detailed Specifications:
| Model: Quattro 48/5000/70-100/100 |
| Nominal battery voltage: 48VDC (38-66V) |
| Inverter: Cont. output power at 25°C: 5000VA / 4000W |
| Cont. output current at 25°C: 70A |
| Peak power: 10,000W |
| Output waveform: Pure sine wave |
| CHARGERS: AC input 1/2 charge current max: 100A / 100A |
| AC transfer switch: 100A |
| Transfer time: 16ms |
| Max. inverter efficiency: 96% |
| Zero load power: 25W |
| Operating temperature: -40 to +65°C (derating above 40°C) |
| Humidity: 95% non-condensing |
| Ingress protection: IP22 |
| Dimensions (h x w x d): 485 x 328 x 255 mm |
| Weight: 40 kg |
In the box:
- 1 x Victron Quattro 48/5000/70-100/100 48V Off-grid Hybrid Inverter
- 1 x Temperature sensor
- 1 x User manual
Warranty: 5-year manufacturer warranty included.
UK expert support available - contact us with any questions or support requests via phone, email or live chat, or visit our office for an in-person consultation. Suggest installation via trusted partners.
