Description
VICTRON ENERGY ▶ PHOENIX SERIES

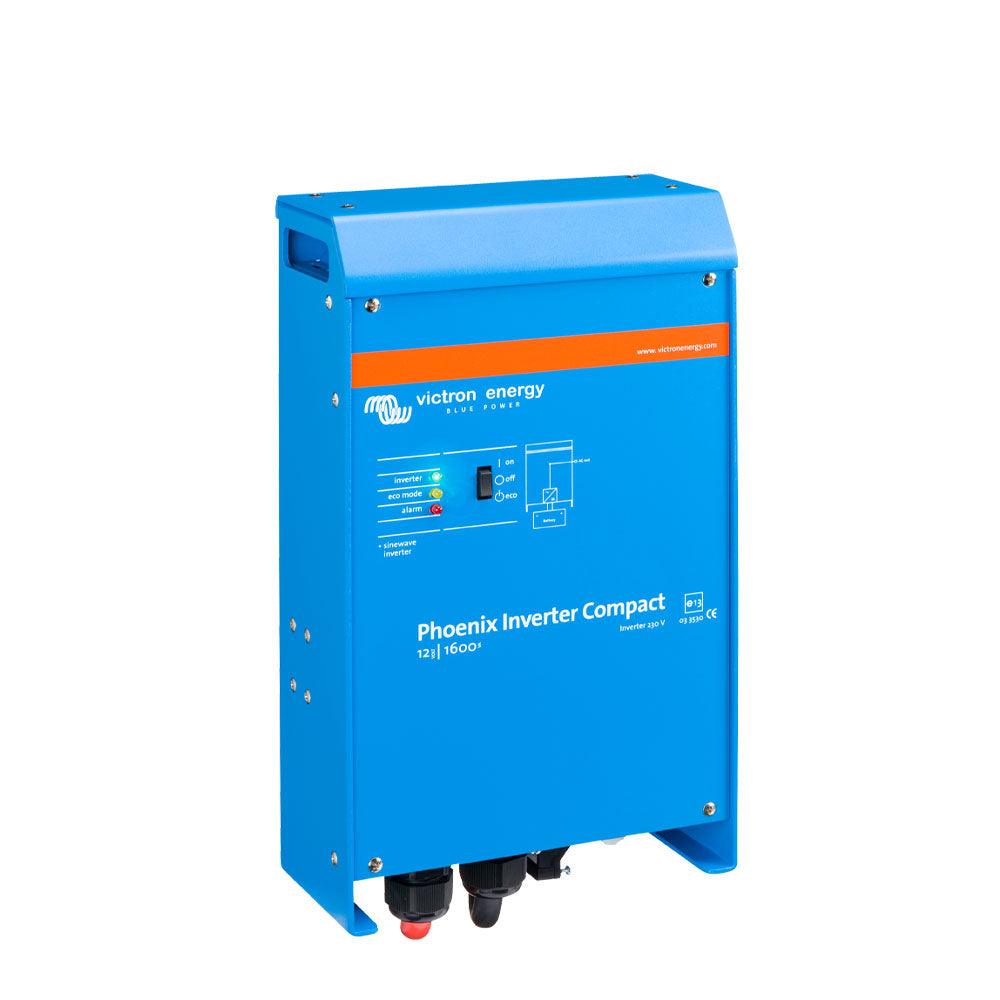

Victron Phoenix Inverter Compact C12/1600
12V DC to 230V AC | 1600VA Pure Sine Wave | Professional Grade
The Victron Phoenix Inverter Compact C12/1600 is a high-efficiency, pure sine wave inverter designed for professional and demanding applications. It reliably converts 12V DC battery power into stable 230V AC electricity, suitable for a wide range of sensitive and inductive loads in off-grid, marine, automotive, and backup power systems.
Utilising Victron's innovative SinusMax technology and hybrid high/line frequency switching, this inverter delivers exceptional performance with a compact and lightweight design. It's engineered to provide clean, high-quality power without compromising efficiency, even for appliances with high start-up currents.
KEY SPECIFICATION: Delivers 1600VA (1300W) of continuous true sine wave AC power from a 12V DC source, with a 3000W peak power capacity.
Key Features
| ▶ Pure Sine Wave Output — Provides clean, stable 230V AC power suitable for sensitive electronics and inductive loads. |
| ▶ SinusMax Technology — Offers very high start-up power, enabling the inverter to handle demanding loads like refrigeration compressors and electric motors. |
| ▶ Parallel & 3-Phase Capability — Up to six units can operate in parallel for increased power output or in a 3-phase configuration for larger systems. |
| ▶ VE.Bus Communication Port — Allows for remote monitoring, configuration, and system integration with Victron GX devices and software. |
| ▶ High Efficiency Design — Optimised performance with minimal energy losses, ensuring efficient power conversion. |
| ▶ Compact & Robust Construction — Designed for professional duty with space-saving dimensions and durability for various environments. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage (DC) | 12V (9.5 - 17V) |
| Output Voltage (AC) | 230V AC ±2% |
| Output Frequency | 50 Hz ±0.1% |
| Continuous Output Power (25°C) | 1600 VA / 1300 W |
| Peak Power | 3000 W |
| Efficiency (Max) | Optimised |
| No-load Consumption (Standard) | 8 W |
| Communication Port | VE.Bus (RS-485) |
| Dimensions (H x W x D) | 375 x 214 x 110 mm |
| Weight | 10 kg |
Operating & Power Guidance
| True Sine Wave Output | Delivers high-quality AC power identical to grid electricity, ensuring safe operation for all types of appliances, including sensitive electronics. |
| High Peak Power Capability | The 3000W peak power allows the inverter to handle high start-up currents from motors, pumps, and other inductive loads. |
| Parallel Operation | Connect up to six Phoenix Inverter Compact units in parallel to achieve a higher total power output for increased demand. |
| 3-Phase Operation | Configure multiple units for a 3-phase star (Y) system, providing versatile power solutions for more complex setups. |
| Remote Monitoring & Control | The VE.Bus port allows connection to a PC via an MK3-USB interface for customisation and monitoring using VEConfigure or VictronConnect software. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Ideal for converting battery power in remote homes, cabins, or small independent power setups. |
| Marine & Automotive | Provides reliable AC power for boats, yachts, campervans, and other mobile applications. |
| Backup Power Solutions | Suitable for providing emergency power during grid outages for essential appliances. |
| Small Business & Commercial | Powers tools, office equipment, and other professional-grade devices where reliable AC is needed. |
Built-In Protection Functions
The Victron Phoenix Inverter Compact C12/1600 includes comprehensive electronic protection features to ensure safe and reliable operation: ▶ Output Short Circuit Protection • Overload Protection • Over-temperature Protection • Battery Low Voltage Shutdown • Battery High Voltage Shutdown • 230V AC on Inverter Output Protection • Input Voltage Ripple too High Protection.
Common Questions
What is SinusMax technology?
SinusMax is Victron's proprietary technology that enables Phoenix inverters to deliver very high start-up power, far exceeding conventional high-frequency inverters. This makes them ideal for powering difficult loads like refrigeration compressors and electric motors.
Can this inverter be expanded for more power?
Yes, the Victron Phoenix Inverter Compact C12/1600 supports parallel operation, allowing up to six identical units to be connected together for increased power output. It also supports 3-phase configuration.
Does this inverter include an automatic transfer switch?
No, the Phoenix Inverter Compact C12/1600 does not have a built-in automatic transfer switch. For applications requiring this feature, Victron Energy recommends using their MultiPlus inverter/charger range, which includes this functionality.
How can I monitor or configure this inverter?
The inverter features a VE.Bus communication port. You can connect it to a PC using an optional MK3-USB VE.Bus to USB interface and use Victron's free VEConfigure or VictronConnect software for detailed monitoring, parameter customisation, and system integration.
Installation Notes
- Professional installation by a qualified electrician or solar installer is highly recommended to ensure safety and optimal performance.
- Ensure the DC input voltage matches the inverter's specification (12V DC) and that battery cabling is appropriately sized.
- Install in a well-ventilated area to prevent overheating, allowing for adequate airflow around the unit.
- Always refer to the official Victron Energy installation manual for detailed instructions and safety guidelines.
- The inverter should be mounted securely on a non-flammable surface.
Before You Buy
- Verify DC System Voltage: Confirm your battery bank operates at 12V DC to ensure compatibility with this inverter.
- Assess Power Requirements: Calculate the total continuous and peak power (surge) requirements of your appliances to ensure the 1600VA/1300W continuous and 3000W peak output is sufficient.
- Consider Expansion: If you anticipate needing more power in the future, remember this model supports parallel operation with up to six units.
- Required Accessories: Note that an MK3-USB VE.Bus to USB interface is required for PC connection and software configuration (sold separately).
- Application Suitability: Ensure this pure sine wave inverter meets the specific power quality needs of your intended loads.
Specifications are based on manufacturer data and verified information. Always consult the official product manual for the most accurate and up-to-date details before purchase and installation.
