Description
Victron Energy | Phoenix Series

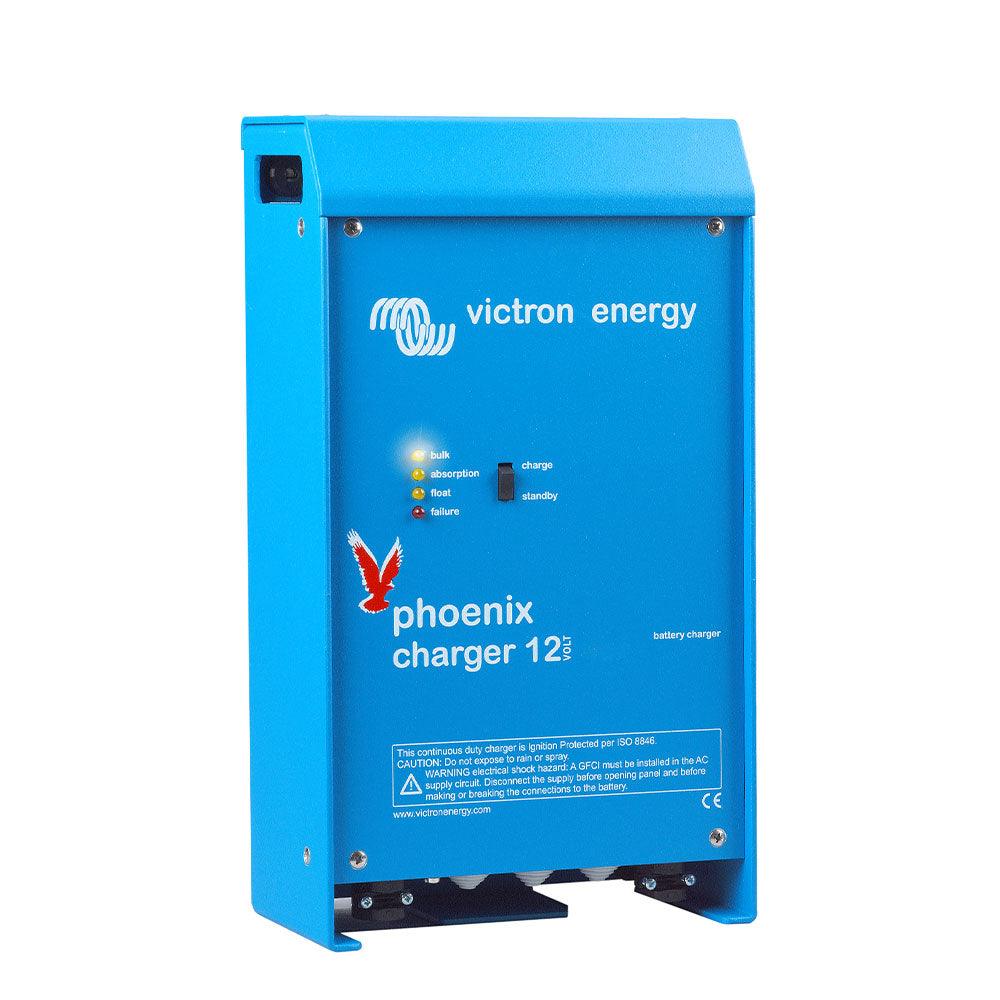

Victron Phoenix Charger 12V/50A (2+1)
Adaptive 4-Stage Charging | Multi-Output Battery Management | MPN: PCH012050001
The Victron Phoenix Charger 12V/50A (2+1) is a robust and intelligent multi-output battery charger designed for reliable power management in various demanding applications. This advanced unit from Victron Energy provides a powerful 50 Amp charge current at 12 volts, making it suitable for charging larger battery banks found in marine, mobile, and off-grid systems.
Equipped with an adaptive 4-stage charging algorithm, the Phoenix Charger optimises the charging process for different battery types, ensuring maximum battery life and performance. Its unique (2+1) output configuration allows for simultaneous charging of two main battery banks with full current, plus a dedicated trickle charge output for a starter battery.
KEY CAPABILITY: Provides 50A charging across two main outputs, plus a 4A output for a starter battery, all from a universal AC/DC input.
Key Features
| ▶ Adaptive 4-Stage Charging — Optimises the charge process (Bulk, Absorption, Float, Storage) based on battery usage for extended life. |
| ▶ Multi-Output Design (2+1) — Two full-rated 50A outputs for house batteries and a dedicated 4A output for a starter battery. |
| ▶ Universal Input Voltage — Accepts 90-265V AC and 90-400V DC, allowing operation worldwide and from various power sources. |
| ▶ BatterySafe Mode — Prevents damage from excessive gassing by intelligently limiting the rate of voltage increase. |
| ▶ Storage Mode — Reduces float voltage to minimise gassing and corrosion during periods of inactivity, enhancing battery longevity. |
| ▶ Temperature Compensation — Includes a battery temperature sensor to automatically adjust charging voltage for optimal performance. |
| ▶ Voltage Sense Function — Corrects for voltage drops across battery cables, ensuring the correct charge voltage is delivered to the battery terminals. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model (MPN) | PCH012050001 |
| Battery Voltage | 12V |
| Charge Current (House Battery) | 50A |
| Charge Current (Starter Battery) | 4A |
| Number of Outputs | 3 (2 full current + 1 trickle) |
| Input Voltage Range (AC) | 90-265V AC |
| Input Voltage Range (DC) | 90-400V DC |
| Frequency | 45-65 Hz |
| Charge Characteristic | 4-stage adaptive |
| Recommended Battery Capacity | 200-800 Ah |
| Protection Category | IP21 |
| Operating Temperature Range | -20 to 60°C |
| Dimensions (H x W x D) | 350 x 200 x 108 mm |
| Weight | 3.8 kg |
Charging & Output Modes
| Mode/Output | Description |
|---|---|
| Adaptive 4-Stage Charging | Automatically adjusts the charging process through Bulk, Absorption, Float, and Storage stages to suit battery condition and usage. |
| Main Outputs (2) | Two isolated outputs each capable of delivering the full 50A charge current, ideal for charging separate house battery banks. |
| Starter Battery Output (1) | A dedicated 4A output designed to maintain a starter battery, ensuring it is always ready for use. |
| BatterySafe Mode | Limits the rate of voltage increase during high-current charging to prevent excessive gassing and protect batteries. |
Typical Applications
| Application | Context |
|---|---|
| Marine Vessels | Ideal for yachts, sailboats, and other marine craft requiring reliable charging for house and starter batteries. |
| Mobile & RV Systems | Suitable for motorhomes, caravans, and vans, ensuring multiple battery banks are charged efficiently on the go. |
| Off-Grid Power Systems | Provides robust battery charging for remote cabins, workshops, and other standalone power setups. |
| Backup & UPS Systems | Can be integrated into backup power solutions to maintain critical battery banks for uninterrupted power supply. |
Built-In Protection Functions
The Victron Phoenix Charger 12V/50A (2+1) incorporates several safety features to protect both the charger and connected batteries. These include protection against output short circuits • battery reverse polarity • battery voltage too high • and excessive internal temperature. The BatterySafe mode actively prevents damage from excessive gassing during charging.
Common Questions
What does the "(2+1)" in the model name signify?
The "(2+1)" indicates that the charger has three isolated outputs: two main outputs capable of delivering the full 50A charge current for house battery banks, and one smaller 4A output specifically for maintaining a starter battery.
What types of batteries is this charger compatible with?
The Victron Phoenix Charger is designed with an adaptive charging algorithm that is optimised for various battery chemistries, including lead-acid, AGM, gel, and lithium batteries.
Can this charger be used as a power supply?
Yes, the Victron Phoenix Charger 12V/50A (2+1) can be used as a power supply, providing stable DC voltage when needed.
Does it include a temperature sensor?
Yes, the charger comes with a battery temperature sensor. When connected, the charging voltage automatically adjusts based on the battery temperature, which helps to extend battery life.
Installation Notes
- Ensure the charger is installed in a well-ventilated area to prevent overheating.
- Connect the battery temperature sensor for optimal charging performance and battery longevity.
- Use appropriate cable gauges for all connections to minimise voltage drop and ensure safety.
- Professional installation is recommended to ensure correct wiring and system integration.
- Refer to the manufacturer's manual for detailed installation instructions and safety guidelines.
Before You Buy
- Verify that the 12V system voltage and 50A charge current meet your specific battery bank requirements.
- Confirm the type and capacity (Ah) of your batteries to ensure compatibility with the charger's adaptive algorithm.
- Consider the physical dimensions (350x200x108 mm) and weight (3.8 kg) to ensure adequate installation space.
- Check the input voltage requirements (90-265V AC / 90-400V DC) to match your available power source.
- For advanced configuration, an RS-485 to USB interface (MK2-USB) and Victron VEConfigure software are required.
All specifications are based on manufacturer data and are subject to change. Please verify compatibility and requirements before purchase.
