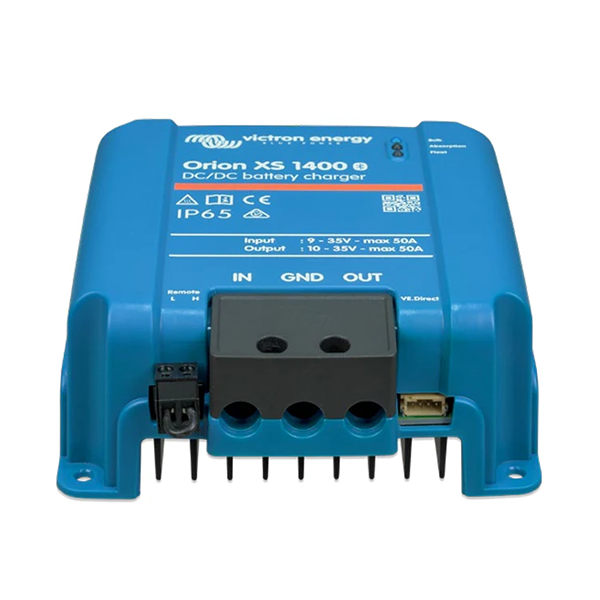

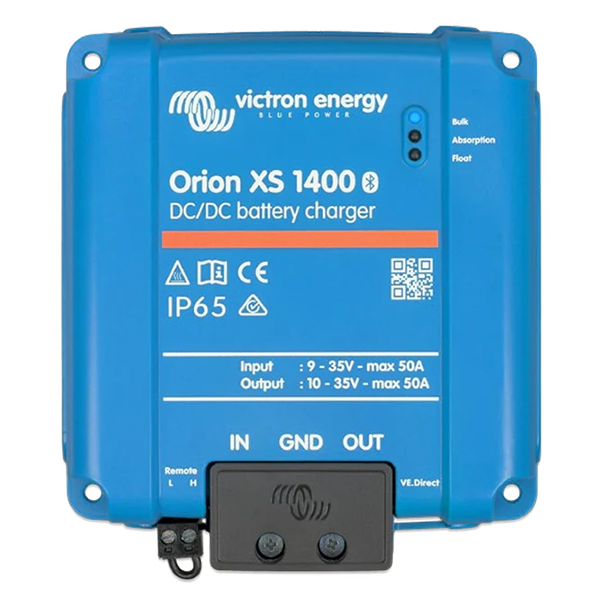

The Victron Orion XS 1400 is a next-generation battery charger delivering up to 1400W / 100A of charging power — one of the most powerful DC-DC chargers available for dual battery systems. Engineered for modern vehicles with smart alternators (variable voltage regulators), the Orion XS ensures your auxiliary battery receives a proper multi-stage charge regardless of alternator output.

Fully configurable via the VictronConnect app over Bluetooth, the Orion XS supports AGM, gel, flooded, and lithium (LiFePO₄) battery chemistries, making it the ideal upgrade for 4WDs, caravans, camper trailers, and marine applications.

Key Specifications

• Type: Orion XS 12/12 DC-DC Battery Charger
• Input voltage range: 9–17V DC
• Output voltage tolerance: +/- 0.5% / 5mV
• Output voltage range: 12.6V max
• Input limit (default / max bulk): 0–92A
• Maximum continuous output power at 40°C: 1400W
• Minimum efficiency: 88.5%
• No-load current consumption: <100mA
• Standby current consumption: <1.4mA
• Bluetooth: Yes (built-in)
• VE.Direct: Yes
• Operating temperature range: -20 to +50°C (derating 2.5% per °C above 40°C)
• Humidity: Max 95% non-condensing
• IP rating: IP43 (electronics), IP22 (terminals)
• Dimensions (H x W x L): 65 x 171 x 246mm
• Weight: 1.92kg (4.23 lb)
• Protection class: IP43 / IP22

Standards

• Safety: IEC 62477-1
• Emission: EN 55032-B & EN 61000-3-2
• Immunity: IEC 61000-6-2, IEC 61000-4-2, EN 61000-4-2
• Automotive Directive: AIS 005.3

Features

• Smart alternator compatible — works with variable voltage regulators in modern vehicles
• Bluetooth built-in — configure and monitor via the free VictronConnect app (iOS & Android)
• Engine detection — automatically starts and stops charging based on alternator status
• Isolated output — fully isolates starter and auxiliary batteries
• VE.Direct port — integrates with Victron GX devices and MPPT solar controllers
• Programmable charge profiles — supports AGM, gel, flooded, and LiFePO₄ lithium

Versatile Applications

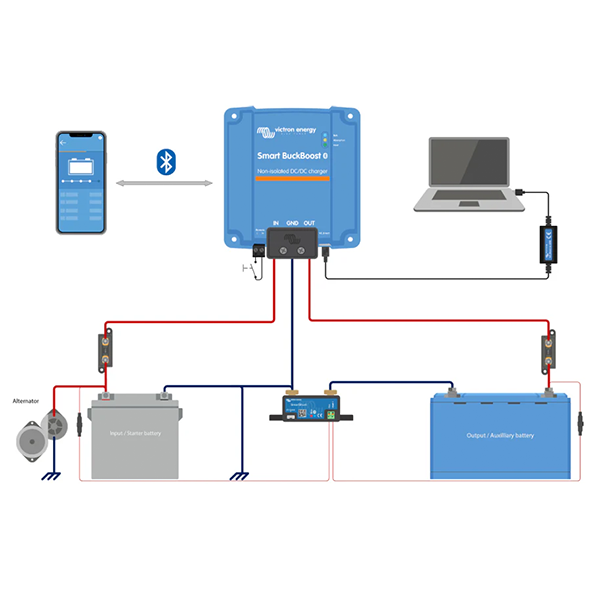

Whether you're upgrading a dual battery system in a 4WD, caravan, or boat, or building an off-grid power solution, the Orion XS 1400 adapts to a wide range of configurations:

• 12 V to 12 V (50 A) for standard auxiliary battery charging
• 12 V to 24 V (25 A) for 24 V battery banks
• 24 V to 12 V (50 A) for trucks and heavy vehicles
• 24 V to 24 V (50 A) for larger off-grid systems

Its ability to operate as a power supply with a fixed output voltage further extends its utility for powering sensitive equipment directly.

Backed by Victron Energy's industry-leading warranty and supported by 1224.com.au with Australian stock and local technical support.

Download Manual
