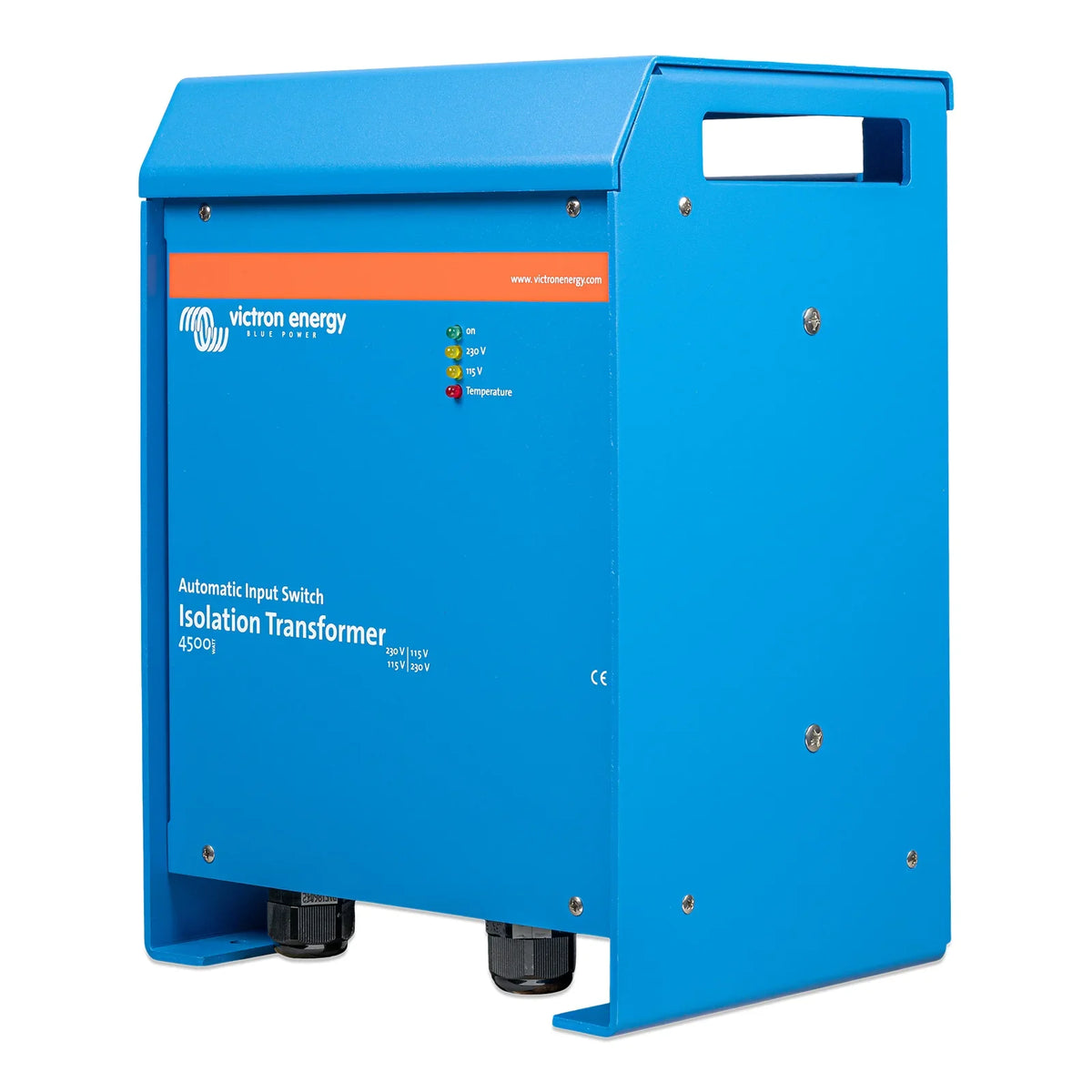

Victron 4500W Auto Isolation Transformer: Automatic Voltage Switching and Shore Power Protection

Automatic 115/230V Switching with Soft Start and Toroidal Core

The Victron Energy 4500W Auto Isolation Transformer provides complete electrical separation between shore power and a vessel's onboard AC system. By eliminating electrical continuity between the shore-side supply and the vessel, it helps prevent galvanic corrosion while supporting the correct operation of safety equipment such as GFCIs and circuit breakers.

This automatic model detects the incoming shore power voltage and switches between the 115V and 230V input ranges without requiring manual input reconfiguration. This makes it particularly suitable for vessels travelling internationally or connecting to marinas with different shore power standards.

Automatic 115V and 230V Input Detection

The transformer automatically selects the appropriate input range based on the incoming shore power voltage:

• 88V to 130V input: automatically selects the 115V input range
• 185V to 250V input: automatically selects the 230V input range

This automatic switching removes the need to manually reconfigure the transformer when connecting to a different shore power voltage. The AC output can be configured for either 120V or 240V to suit the vessel's onboard electrical system.

Why Galvanic Isolation Matters

Connecting a vessel directly to shore power can create an electrical path between the shore earth and underwater metal components such as propellers, shafts and through-hull fittings. This can accelerate galvanic corrosion, rapidly deplete sacrificial anodes and cause premature damage to valuable underwater equipment.

The Victron Isolation Transformer prevents this by transferring power magnetically between separate primary and secondary windings. Shore power is connected to the primary side, while the vessel's electrical system is supplied from the secondary side, electrically isolating the vessel from the shore earth.

This protection is important for fibreglass vessels as well as aluminium and steel hulls, as galvanic corrosion can occur whenever electrically connected metal components are exposed to water.

Flexible Voltage Conversion

In addition to electrical isolation, the transformer can support different input and output voltage combinations:

• 115V to 120V for isolation within a nominal 115V system
• 230V to 240V for isolation within a nominal 230V system
• 115V to 240V for powering a 240V onboard system from a 115V shore supply
• 230V to 120V for powering a 120V onboard system from a 230V shore supply

The transformer supports both 50Hz and 60Hz AC systems. It does not convert frequency, so the output frequency remains the same as the incoming shore power frequency.

5% Voltage Boost

The transformer's 1:1.05 winding ratio increases the output voltage by approximately 5%. This helps compensate for voltage drops commonly experienced across long shore power cables and marina electrical infrastructure. A nominal 115V input provides approximately 120V output, while a nominal 230V input provides approximately 240V output.

Key Features

• 4500W power rating for demanding onboard AC systems
• Automatic 115/230V input detection for use with different shore power supplies
• 120V or 240V output options for isolation or voltage conversion
• Galvanic isolation between shore power and the vessel's electrical system
• Soft-start technology to reduce inrush current and help prevent upstream circuit breakers from tripping
• 1:1.05 transformer ratio to compensate for common shore power voltage drops
• Toroidal transformer design for reduced weight and low operating noise
• Aluminium enclosure finished in Victron blue RAL 5012
• IP21 protection rating
• EN 60076 safety compliance

Soft Start for Reliable Shore Power Connection

High-power transformers can draw significant inrush current when first connected to shore power. The integrated soft-start system limits this initial current, helping prevent the upstream shore-side circuit breaker from tripping when the transformer is switched on.

The soft-start function operates automatically and does not require additional external components.

Correct Operation of Onboard Safety Devices

The isolation transformer allows the vessel to establish a separate onboard neutral-to-earth connection. When correctly installed with the required GFCI and protective devices, this ensures that the onboard safety system can respond properly to current leakage or a short circuit involving a metal component.

When the vessel is out of the water for maintenance or winter storage, it is recommended that the shore earth is connected to the vessel earth. Installation and grounding arrangements must follow the Victron installation instructions and applicable local electrical regulations.

Durable Marine Installation

The transformer is housed in a durable aluminium enclosure with an IP21 protection rating. Its toroidal design helps reduce weight, audible noise and stray magnetic fields, making it suitable for installation within marine electrical systems.

The automatic model measures approximately 362mm high x 258mm wide x 243mm deep and weighs approximately 21.8kg. It should be installed in a dry, well-ventilated location with sufficient clearance for cooling.

Professional Installation Required

The Victron 4500W Auto Isolation Transformer is a Safety Class I electrical product and must be installed by a suitably qualified person. The output voltage configuration, cable sizes, protective earthing, GFCI protection and circuit breakers must comply with the installation manual and applicable local electrical regulations.

International Shore Power Made Easier

Suitable for cruising yachts, motorboats and commercial vessels, the Victron 4500W Auto Isolation Transformer combines galvanic isolation, automatic shore voltage detection and voltage conversion in one robust unit. It is an ideal solution for vessels that regularly connect to both 115V and 230V shore power systems.

Order the Victron 4500W Auto 115/230V Isolation Transformer today for dependable shore power protection across different marina electrical systems.
