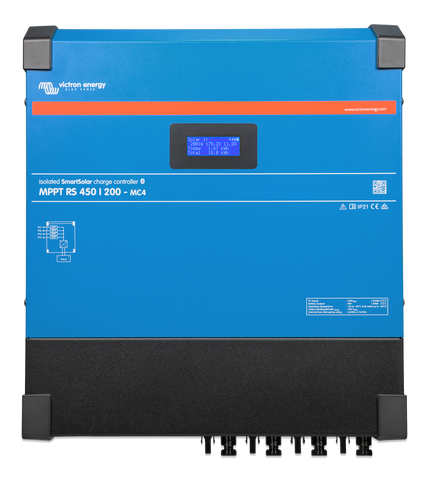

Victron Energy 200A / 450VDC Charge Controller | SmartSolar MPPT RS 450/200-MC4
£1,024.00
Sale price
£1,024.00
Regular price
Skip to product information
Victron Energy 200A / 450VDC Charge Controller | SmartSolar MPPT RS 450/200-MC4
£1,024.00
Sale price
£1,024.00
Regular price
Shipping calculated at checkout.
SCC145120510
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Victron Energy SmartSolar MPPT RS 450/200-MC4 is a high-performance solar charge controller designed for large-scale 48V battery systems. With a maximum PV input voltage of 450V and a charging current of up to 200A, it efficiently manages energy from extensive solar arrays, making it ideal for both off-grid and grid-connected applications.
Key Features
- Ultra-Fast MPPT Technology: Maximizes solar energy harvest by rapidly tracking the maximum power point, even under varying light conditions.
- Wide PV Input Range: Operates efficiently with PV voltages between 65–450V DC, accommodating large series-connected solar arrays.
- Multiple Independent MPPT Trackers: Features four independent MPPT trackers, allowing for optimal performance with multiple PV arrays facing different orientations.
- Advanced Connectivity: Equipped with VE.Can and VE.Direct ports for seamless integration with Victron's GX devices, enabling system monitoring, data logging, and remote firmware updates.
- Built-in Bluetooth and Display: Allows for easy configuration and real-time monitoring via the VictronConnect app and the integrated front panel display.
Product Overview
The SmartSolar MPPT RS 450/200-MC4 is engineered to handle the demands of substantial solar power systems. Its high voltage input capability reduces the need for large cable sizes, simplifying installation and reducing costs. The controller's four independent MPPT trackers ensure that each solar array operates at its optimal efficiency, even when arrays are installed in different orientations or are subject to shading.
Safety is paramount, with full galvanic isolation between PV and battery connections, and continuous PV insulation monitoring to detect potential faults. The unit's robust design includes a durable metal enclosure with fully covered electrical connections, enhancing both safety and aesthetics.
For system expansion, up to 25 units can be connected in parallel using VE.Can, synchronizing their charging stages and enabling large-scale energy solutions.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | SCC145120510 |
| Battery Voltage | 48V |
| Maximum Charge Current | 200A |
| Maximum PV Input Voltage (Voc) | 450V |
| MPPT Operating Voltage Range | 65–450V DC |
| Number of MPPT Trackers | 4 |
| Max PV Power per Tracker | 4000W |
| Total Max PV Power | 11.52kW |
| Efficiency | Up to 96% |
| Self-Consumption | 15 mA |
| Communication Ports | VE.Can, VE.Direct, Bluetooth |
| Display | Integrated front panel display |
| Enclosure Protection | IP21 |
| Dimensions (H x W x D) | 487 x 434 x 146 mm |
| Weight | 13.7 kg |
| Operating Temperature Range | -40°C to +60°C (fan-assisted cooling) |
| Compliance Standards | EN-IEC 62109-1 |
| Country of Origin | Designed in the Netherlands, made in India |
