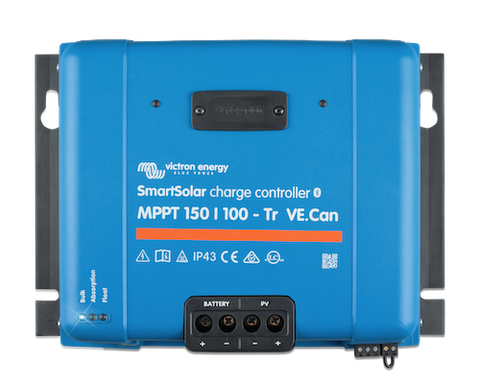

Victron Energy 100A / 150VDC Charge Contoller | SmartSolar MPPT 150/100-Tr VE.Can
£274.00
Sale price
£274.00
Regular price
Skip to product information
Victron Energy 100A / 150VDC Charge Contoller | SmartSolar MPPT 150/100-Tr VE.Can
£274.00
Sale price
£274.00
Regular price
Shipping calculated at checkout.
SCC115110411
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Key Features:
- Ultra-Fast Maximum Power Point Tracking (MPPT): Maximizes energy harvest, especially under changing light conditions.
- Advanced Partial Shading Detection: Ensures optimal energy capture even when shading occurs.
- High Conversion Efficiency: Achieves up to 98% efficiency without the need for cooling fans.
- Integrated Bluetooth Connectivity: Allows for easy setup and monitoring via the VictronConnect app.
- VE.Can and VE.Direct Communication Ports: Facilitates seamless integration with multiple devices and systems.
Product Overview:
The Victron Energy SmartSolar MPPT 150/100-Tr VE.Can is a high-performance solar charge controller designed to optimize the charging of battery systems in solar installations. With its advanced MPPT technology, it ensures that your solar panels operate at their maximum power point, delivering the highest possible energy yield.
This controller is compatible with 12V, 24V, 36V (manual selection), and 48V battery systems, automatically detecting the system voltage upon initial power-up. It can handle a maximum PV open-circuit voltage of 150V and deliver up to 100A of charging current, making it suitable for a wide range of solar applications.
The integrated Bluetooth functionality allows for convenient monitoring and configuration through the VictronConnect app, providing real-time data on PV voltage and current, battery voltage and current, and historical trends. Additionally, the VE.Can and VE.Direct ports enable communication with other Victron devices, allowing for system expansion and integration.
The SmartSolar MPPT 150/100-Tr VE.Can is equipped with extensive electronic protection features, including over-temperature protection, PV short circuit protection, PV reverse polarity protection, and PV reverse current protection. Its robust design ensures reliable operation in various environmental conditions, with an operating temperature range of -30°C to +60°C and a humidity tolerance of up to 95% (non-condensing).
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | SCC115110411 |
| Battery Voltage | 12/24/36/48V (auto-select for 12/24/48V) |
| Maximum Charge Current | 100A |
| Maximum PV Open Circuit Voltage | 150V (absolute maximum) |
| Nominal PV Power (12V system) | 1450W |
| Nominal PV Power (24V system) | 2900W |
| Nominal PV Power (36V system) | 4350W |
| Nominal PV Power (48V system) | 5800W |
| Maximum PV Short Circuit Current | 70A |
| Peak Efficiency | 98% |
| Self-Consumption | <35mA @ 12V / <20mA @ 48V |
| Charge Algorithm | Multi-stage adaptive or user-defined |
| Operating Temperature Range | -30°C to +60°C (full output up to 40°C) |
| Humidity | 95%, non-condensing |
| Maximum Altitude | 5000m (full output up to 2000m) |
| Enclosure Protection Category | IP43 (electronics), IP22 (connection area) |
| Dimensions (HxWxD) | 216 x 295 x 103 mm |
| Weight | 4.5 kg |
| Communication Ports | VE.Can, VE.Direct |
| Programmable Relay | Yes |
| Remote On/Off | Yes |
| Parallel Operation Capability | Up to 25 units via VE.Can |
