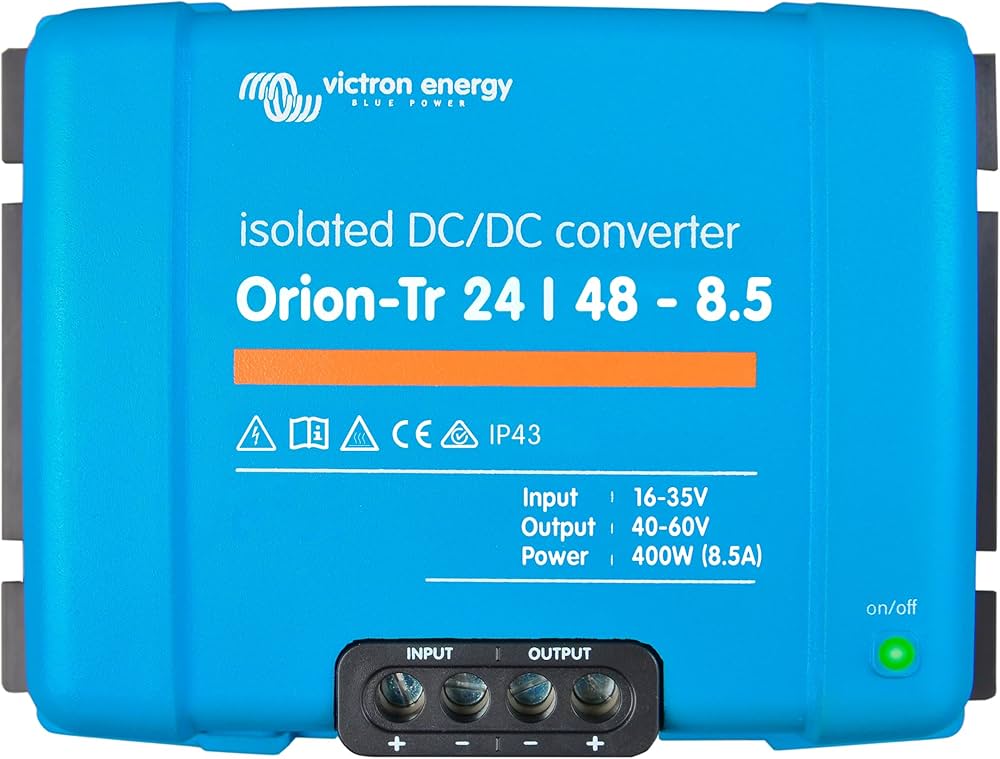

Victron Energy Orion-Tr 24/48-8.5A 400W | Isolated DC-DC Converter
£107.00
Sale price
£107.00
Regular price
Skip to product information
Victron Energy Orion-Tr 24/48-8.5A 400W | Isolated DC-DC Converter
£107.00
Sale price
£107.00
Regular price
Shipping calculated at checkout.
ORI244841110
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Victron Energy Orion-Tr 24/48-8.5A is a fully isolated 400W DC-DC converter purpose-built for reliable 24V to 48V step-up conversion in marine, mobile, and industrial power applications.
Key Features
- Galvanic Isolation 200VDC isolation between input, output, and case eliminates ground loops and fully protects all connected equipment.
- Remote On/Off Terminal A low-power switch or engine run/stop signal controls the unit remotely, removing the need for high-current input switching.
- Paralleling Capability An unlimited number of units can be connected in parallel to scale output current as system power demands grow.
- Adjustable Output Voltage Output is field-adjustable from 40–60V to precisely match specific 48V system voltage requirements.
- High Temperature Protection Output current automatically reduces at elevated ambient temperatures to prevent thermal damage and ensure uninterrupted operation.
The Orion-Tr 24/48-8.5A delivers 8.5A continuous output at 40°C from a 16–35VDC input, stepping voltage up to a nominal 48.2VDC with 89% efficiency and a short circuit output current rated at 25A. Its tool-free screw terminal design ensures fast, professional installation with no special tools required.
With an operating range of -20°C to +55°C and humidity tolerance up to 95% non-condensing, this converter is built to perform reliably across the most demanding real-world environments. IP43 protection is achieved when the unit is installed with screw terminals oriented downward.
Certified to EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, and ECE R10-5 automotive directive standards, the Orion-Tr 24/48-8.5A meets rigorous international safety, emission, and immunity requirements for professional-grade DC power systems.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage Range | 16–35VDC |
| Under Voltage Shutdown | 14V |
| Under Voltage Restart | 15V |
| Nominal Output Voltage | 48.2V |
| Output Voltage Adjust Range | 40–60V |
| Output Voltage Tolerance | ±0.2V |
| Output Noise | 2mV rms |
| Continuous Output Current at 40°C | 8.5A |
| Maximum Output Current (10s) | 15A |
| Short Circuit Output Current | 25A |
| Continuous Output Power at 25°C | 480W |
| Continuous Output Power at 40°C | 400W |
| Efficiency | 89% |
| No Load Input Current | <120mA |
| Current Consumption (Disabled) | <200µA |
| Galvanic Isolation | 200VDC (input, output, and case) |
| Operating Temperature Range | -20 to +55°C (derate 3%/°C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16mm² (AWG6) |
| Weight | 3.5 lbs (1.6 kg) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) |
| Safety Standard | EN 60950 |
| Emission Standard | EN 61000-6-3, EN 55014-1 |
| Immunity Standard | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-5 |
