Description

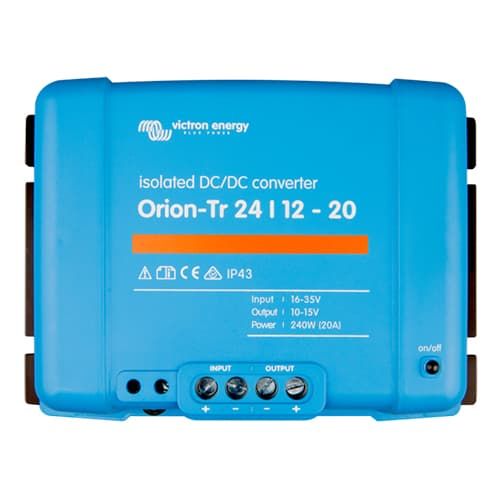

The Victron Energy Orion-Tr 24/12-20A is a fully isolated 240W DC-DC converter engineered for reliable voltage conversion in mobile, marine, and industrial power systems.
Key Features
- Galvanic Isolation 200VDC isolation between input, output, and case eliminates ground loop issues and protects sensitive equipment.
- Remote On/Off Terminal A low-power switch or engine run/stop signal controls the unit remotely, eliminating the need for high-current input wiring switches.
- Paralleling Capability An unlimited number of units can be connected in parallel to scale output current as system demands grow.
- Adjustable Output Voltage Output is adjustable from 10–15V to fine-tune system voltage without additional regulators.
- High Temperature Protection Output current automatically reduces at elevated ambient temperatures, preventing thermal damage and ensuring longevity.
The Orion-Tr 24/12-20A delivers 20A continuous output at 40°C from a 16–35VDC input, with a peak efficiency of 88% and short circuit output current rated at 50A. Its screw terminal design requires no special tools, making installation straightforward in any professional setting.
With an operating temperature range of -20°C to +55°C and a humidity tolerance of up to 95% non-condensing, this unit is built for harsh environments. The IP43 protection rating applies when installed with screw terminals oriented downward.
Compliant with EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, and ECE R10-5 automotive directive standards, the Orion-Tr meets rigorous international safety, emission, and immunity certifications for professional-grade installations.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage Range | 16–35VDC |
| Under Voltage Shutdown | 14V |
| Under Voltage Restart | 15V |
| Nominal Output Voltage | 12.2V |
| Output Voltage Adjust Range | 10–15V |
| Output Voltage Tolerance | ±0.2V |
| Output Noise | 2mV rms |
| Continuous Output Current at 40°C | 20A |
| Maximum Output Current (10s) | 25A |
| Short Circuit Output Current | 50A |
| Continuous Output Power at 25°C | 300W |
| Continuous Output Power at 40°C | 240W |
| Efficiency | 88% |
| No Load Input Current | <100mA |
| Current Consumption (Disabled) | <200µA |
| Galvanic Isolation | 200VDC (input, output, and case) |
| Operating Temperature Range | -20 to +55°C (derate 3%/°C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16mm² (AWG6) |
| Weight | 3 lbs (1.3 kg) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) |
| Safety Standard | EN 60950 |
| Emission Standard | EN 61000-6-3, EN 55014-1 |
| Immunity Standard | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-5 |
