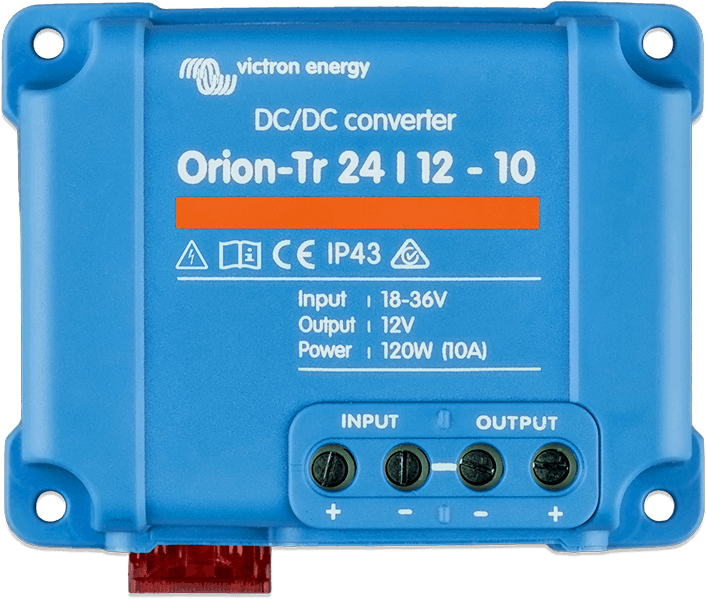

Victron Energy Orion-Tr 24/12-10 120W | Non-Isolated DC-DC Converter
£18.00
Sale price
£18.00
Regular price
Skip to product information
Victron Energy Orion-Tr 24/12-10 120W | Non-Isolated DC-DC Converter
£18.00
Sale price
£18.00
Regular price
Shipping calculated at checkout.
ORI241210200R
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Victron Energy Orion-Tr 24/12-10 is a compact, non-isolated DC-DC converter delivering 10A of continuous output current at 120W with 97% efficiency via synchronous rectification, for reliable 24V-to-12V power conversion in vehicle, marine, and industrial applications.
Key Features:
- 97% High Efficiency via Synchronous Rectification — Full load efficiency exceeds industry norms, generating minimal heat and enabling compact fanless installation without derating concerns in most environments.
- Wide 18–35V Input Range — Stable 12.5V output is maintained across the full input range, accommodating voltage surges and sags from other equipment sharing the same 24V battery or bus.
- IP43 Protection — Rated IP43 when installed with screw terminals oriented downward, protecting the electronics against dust and angled water ingress in demanding installation locations.
- Screw Terminal DC Connection — No special tools required for installation; accepts cable up to 6mm²/AWG10 for straightforward field wiring.
- High Temperature Protected — Output current automatically derades 3% per °C above 40°C to protect against thermal damage without converter failure, suitable for confined or warm installation spaces.
The Orion-Tr 24/12-10 delivers a fixed 12.5V output at up to 10A continuous and 12A peak, drawing less than 45mA at no load. The unit is non-isolated — input and output share a common ground — making it well suited for applications where galvanic isolation is not required and where cost, size, and efficiency are priorities.
Installation is straightforward with screw terminals accepting up to 6mm²/AWG10 cable, and the compact 73×94×37mm footprint allows mounting in tight spaces. No remote on/off terminal or Bluetooth is included on this model; for battery charging applications, Victron recommends the Orion-Tr Smart series instead.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Orion-Tr 24/12-10 Non-Isolated |
| Input Voltage Range | 18–35V |
| Output Voltage | 12.5V |
| Continuous Output Current | 10A |
| Maximum Output Current | 12A |
| Continuous Output Power | 120W |
| Efficiency | 97% |
| Off-Load Current | <45mA |
| Galvanic Isolation | No |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 6mm² / AWG10 |
| Protection Category | IP43 (terminals oriented downward) |
| Operating Temperature | -20°C to +55°C (derate 3%/°C above 40°C) |
| Weight | 0.2 kg (0.44 lbs) |
| Dimensions (H x W x D) | 73 x 94 x 37 mm |
| Safety | EN 60950 |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-4 |
