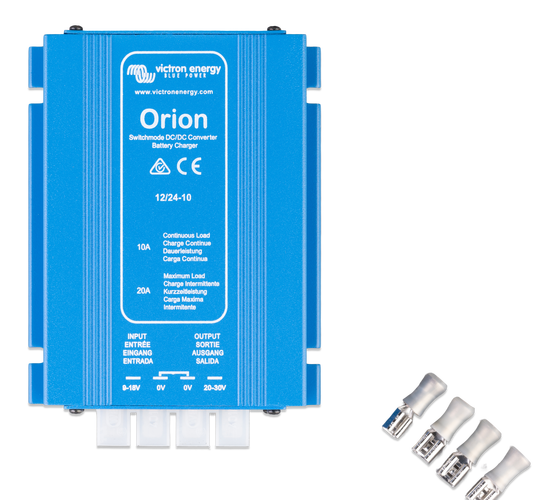

Victron Energy Orion 12V/24V-10 Step-Up DC/DC Voltage Converter
£34.00
Sale price
£34.00
Regular price
Skip to product information
Victron Energy Orion 12V/24V-10 Step-Up DC/DC Voltage Converter
£34.00
Sale price
£34.00
Regular price
Shipping calculated at checkout.
ORI122410020
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Victron Energy Orion 12/24-10 Step-Up DC/DC Voltage Converter is a versatile and efficient solution for converting 12V DC power to 24V DC, making it ideal for various applications such as automotive, marine, and off-grid systems. This non-isolated, high-power converter ensures stable and reliable voltage conversion to meet your power needs.
Key Features:
- High Conversion Efficiency: Achieves up to 95% efficiency, minimizing energy loss during the voltage conversion process.
- Adjustable Output Voltage: Factory-set to 26.4V, but can be adjusted between 20V and 30V to suit specific requirements.
- Parallel Connectivity: Supports parallel connection of up to five units to increase output current capacity.
- Remote On/Off Control: Features a remote on/off connector, eliminating the need for a high-current switch in the input wiring.
- Compact and Lightweight Design: Weighs only 0.4 kg and measures 45 x 90 x 125 mm, facilitating easy installation in space-constrained environments.
Product Description:
The Victron Energy Orion 12/24-10 DC/DC Converter is engineered to provide efficient and reliable voltage conversion from 12V DC to 24V DC. Its high conversion efficiency of up to 95% ensures that energy loss is minimized, making it suitable for applications where power efficiency is crucial.
The converter's output voltage is factory-set to 26.4V but can be adjusted between 20V and 30V using a potentiometer, allowing for flexibility to meet specific voltage requirements. This feature is particularly beneficial when charging a 24V battery bank or powering 24V equipment from a 12V power source.
For applications requiring higher current, up to five units can be connected in parallel to increase the output current capacity. This scalability makes the Orion 12/24-10 a versatile solution for expanding power needs.
The remote on/off connector simplifies control by eliminating the need for a high-current switch in the input wiring. It can be operated with a low-power switch or integrated with the engine run/stop switch, providing seamless operation in automotive or marine settings. Designed with a compact form factor, the converter measures 45 x 90 x 125 mm and weighs only 0.4 kg, making it easy to install even in limited spaces. Its robust construction ensures durability and reliable performance across various applications.
Specifications:
| Specification | Value |
|---|---|
| Input Voltage Range | 9-18 V DC |
| Undervoltage Shutdown | 8 V DC |
| Undervoltage Restart | 10 V DC |
| Output Voltage | Adjustable 20-30 V DC (Factory set at 26.4V) |
| Continuous Output Current | 10 A |
| Maximum Output Current | 20 A |
| Efficiency | 95% |
| Off-Load Current | < 15 mA |
| Operating Temperature Range | -20°C to +55°C (Derate 3% per °C above 40°C) |
| DC Connection | Faston tabs 6.3 mm |
| Weight | 0.4 kg |
| Dimensions (H x W x D) | 45 x 90 x 125 mm |
| Standards | EN 60950 (Safety), EN 61000-6-3, EN 55014-1 (Emission), EN 61000-6-2, EN 61000-6-1, EN 55014-2 (Immunity), EN 50498 (Automotive Directive) |
Applications:
- Automotive: Power 24V equipment from a 12V vehicle battery system.
- Marine: Operate 24V devices on boats with a 12V power supply.
- Off-Grid Systems: Integrate into solar power setups requiring 24V output from 12V batteries.
