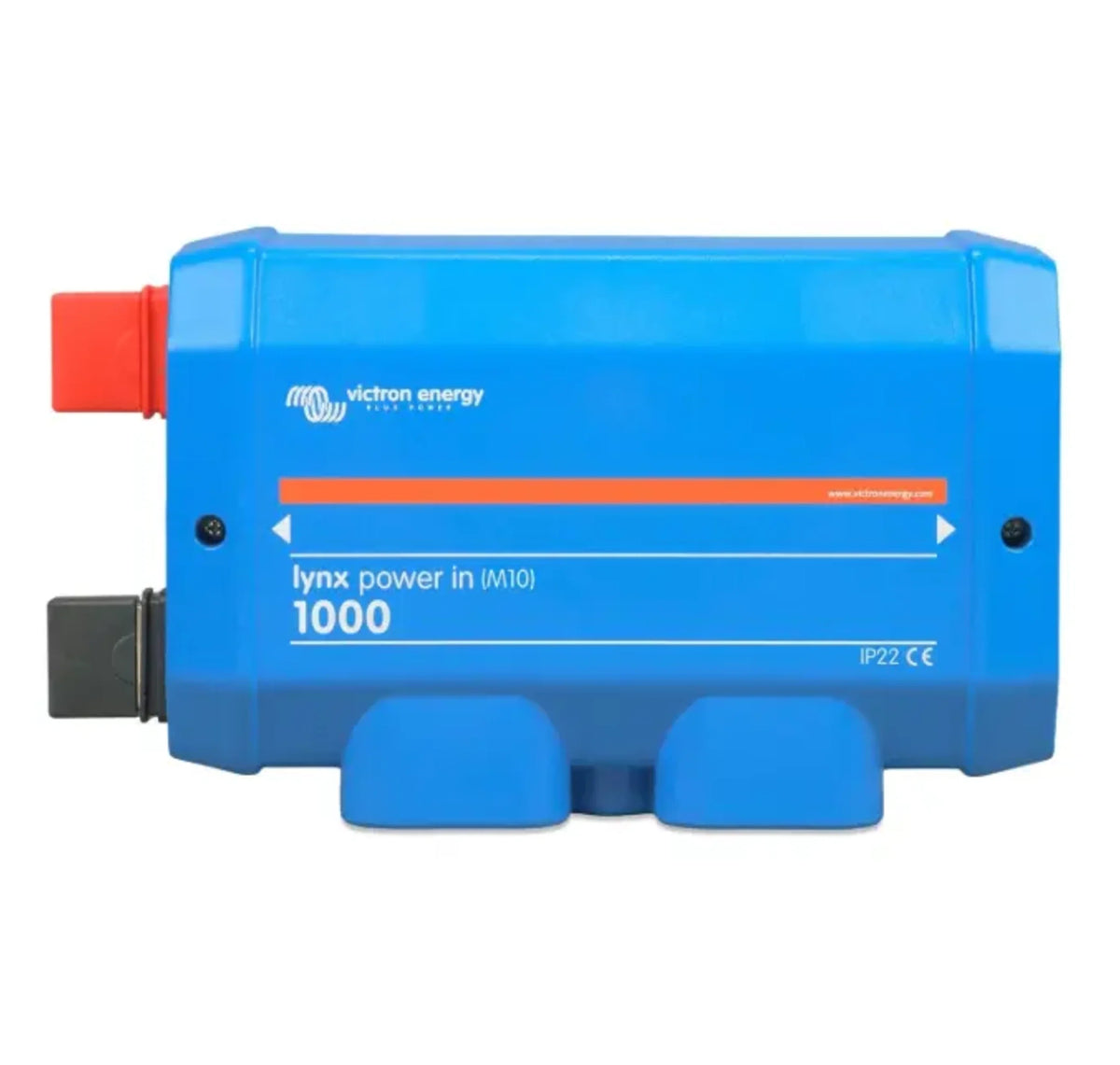

Discover the Victron Lynx Power In (M10) – a powerful and modular DC busbar designed to streamline the connection of multiple high-current DC sources, such as parallel battery banks, to your Lynx distribution system. This essential component is ideal for creating a cohesive and efficient energy network within renewable and hybrid systems.

Efficient Coupling for High-Current DC Sources

The Victron Lynx Power In (M10) model features a durable copper busbar and insulated housing, specifically designed to safely combine multiple batteries or DC power sources operating at the same voltage. It is perfect for solar and wind energy systems that require dependable connectivity across components.

Versatile Applications

• Parallel Battery Connections: Easily link identical batteries to support your solar inverter or battery charger, maintaining stable power flow.
• Multi-Source DC Input: For hybrid setups, like solar and wind systems, this busbar allows you to connect 12V, 24V, or 48V sources seamlessly.

Key Features

• Positive and Negative Busbars: Equipped with four connections for batteries, loads, or chargers, plus a ground connection for added safety.
• Modular Compatibility: Designed for connection with other Lynx modules, making it easy to expand your DC distribution system.
• M10 Connections: This version uses M10 terminals for connections, compatible with larger current capacities and varied setups.
• GTIN: 8719076057581
• Product Code: LYN020102010

Victron Lynx Distribution System Overview

The Victron Lynx Distribution System offers a modular approach to DC power distribution, incorporating features like DC connections, fusing, battery monitoring, and Lithium battery management. Key components include the Lynx Power In, Lynx Distributor, and Lynx Shunt VE.Can – each essential for a comprehensive energy distribution solution.

Internal Layout

Inside the Lynx Power In (M10), you’ll find:

• Positive and Negative Busbars
• Connections for both positive and negative poles
• A ground connection for secure operation

Each Lynx module connects with adjacent modules, allowing for flexible expansion. Note that M10 and M8 modules are not interchangeable; ensure compatibility within your system setup.

Boost the performance and reliability of your energy distribution with the Victron Lynx Power In (M10), engineered to manage complex DC coupling seamlessly – ideal for solar, wind, and hybrid energy systems.
