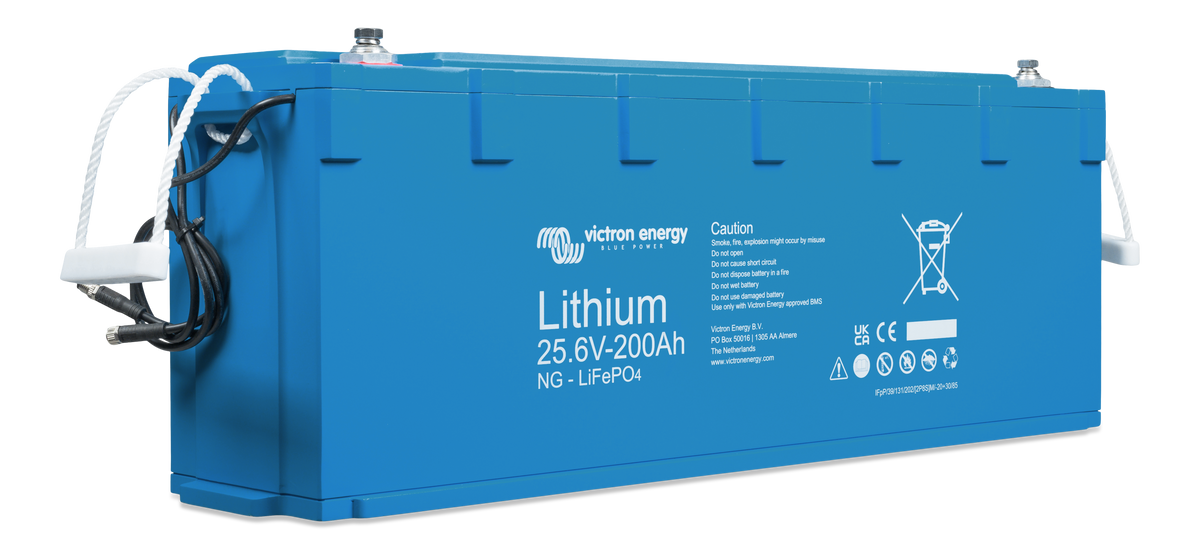

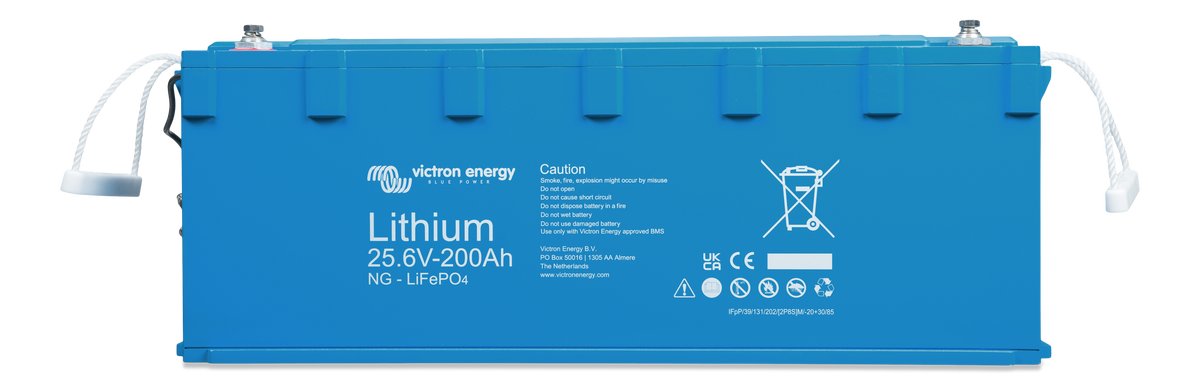

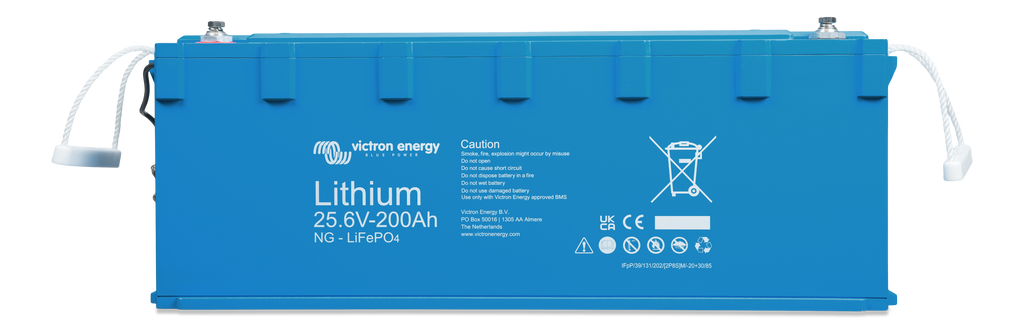

Victron Lithium NG 25.6V 200Ah LiFePO4 Battery

Smart, Safe, Scalable Energy Storage for Off-Grid and Hybrid Systems

The Victron Lithium NG 25.6V 200Ah battery delivers reliable, high-capacity energy storage in a rugged IP65 enclosure. Using Lithium Iron Phosphate (LiFePO₄) technology, this next-generation battery is designed for professional off-grid, marine, and backup power systems.

Built-in cell balancing, monitoring, and an integrated current shunt ensure optimal performance and safety. The battery communicates with a Lynx Smart BMS (sold separately), providing full system visibility via VictronConnect or a GX device and remote access through the VRM Portal.

🔧 Key Features

• 25.6V / 200Ah (5.12kWh) Capacity

• IP65 Rated – sealed against dust and water jets

• Bluetooth Monitoring (via BMS)

• Scalable – connect up to 50 batteries for 384kWh total capacity

• Mountable with Brackets – secure in place with included mounts

• Long Cycle Life – up to 5000 cycles at 50% DoD

📱 Smart Integration

• Real-time cell voltage, temperature, and current monitoring

• Auto-configuration with Victron BMS

• View data via:

  • VictronConnect App (Bluetooth)

  • GX Device (e.g. Cerbo GX)

  • Victron Remote Management (VRM) Portal

⚡ Electrical Specifications

• Nominal Voltage: 25.6V

• Nominal Capacity: 200Ah (5.12kWh)

• Max Continuous Discharge Current: 200A

• Max Pulse Discharge (10s): 400A

• Max Continuous Charge Current: 100A

• Max Pulse Charge (10s): 200A

• Charge Voltage Range: 28.0 – 28.8V

• Float Voltage: 27V

• End of Discharge Voltage: 22.4V

• Internal Resistance: 2mΩ

🧱 Mechanical & Environmental

• Dimensions (HxWxD): 235 × 341 × 160 mm

• Weight: 19 kg

• Mounting: Brackets or straps, can be mounted on side (not upside-down)

• Operating Temp (Discharge): -20°C to +50°C

• Operating Temp (Charge): +5°C to +50°C

• Storage Temp: -45°C to +70°C

• Self-Discharge: ≤ 2% per month

• Humidity (Non-condensing): ≤ 95%

🛡️ Safety & Certifications

• UL1973, UL9540A, IEC62619 (cells)

• IP65 ingress protection

• Repairable – cover can be removed for servicing

• Firmware updates via BMS

🔌 What's Required

• Mandatory: Lynx Smart BMS NG 500A or 1000A (M10 busbars)

• Recommended: GX Device for system monitoring, M8 extension cables for BMS connection

Ideal for:
✔ Off-grid solar power systems
✔ Battery backup for critical loads
✔ Marine & mobile energy storage
✔ Scalable commercial storage applications

📦 Low Stock - please call to verify before placing an order. Pre-order now to secure early delivery.

Victron Energy LiFePO4 Battery 25.6V/200Ah NG Datasheet

Looking for a complete off-grid system? Need help with system design? Contact our team for tailored advice.
