Description

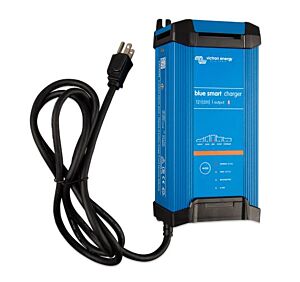

The Victron Energy Blue Smart IP22 12/20 is a Bluetooth-enabled, VE.Smart Network-capable smart battery charger delivering 20A of charge current from a 120V AC input, with a six-stage adaptive charge algorithm, Li-ion compatibility, and synchronized parallel charging support for 12V battery systems.
Key Features:
- Bluetooth Smart with VE.Smart Networking — Monitors voltage and current, adjusts settings, and receives firmware updates wirelessly via the VictronConnect app; connects with up to ten chargers in a VE.Smart Network for synchronized parallel charging as a single large charger.
- Six-Stage Adaptive Charge Algorithm — Microprocessor-controlled test, bulk, absorption, recondition, float, and storage stages automatically optimize charging based on battery usage patterns, with fully programmable absorption, float, storage, and recondition voltages via the app.
- Storage Mode with Weekly Equalization — Reduces float voltage to 13.2V after 24 hours without discharge to minimize plate corrosion and gassing, then raises voltage weekly to prevent electrolyte stratification and sulfation.
- NIGHT and LOW Modes — Reduces output current to a maximum of 50% of nominal for completely silent operation; NIGHT mode automatically ends after 8 hours, while LOW mode remains until manually ended.
- 40-Cycle History Log — Eleven onboard LEDs display real-time charge stage and mode, while the VictronConnect app provides lifetime historical data and detailed statistics for the last 40 charge cycles.
The Blue Smart IP22 12/20 charges at 20A continuous (10A in NIGHT or LOW mode) with up to 93% efficiency, generating up to four times less heat than industry-standard chargers, and reduces to just 0.5W no-load power once the battery is fully charged. A full discharge recovery function initiates charging on batteries depleted to 0V and reconnects to fully discharged Li-ion batteries with internal disconnect function.
Optional integration with a Smart Battery Sense, BMV-712 Smart Battery Monitor, or SmartShunt via the VE.Smart Network enables remote battery voltage and temperature compensated charging, as well as tail-current-based switching from absorption to float. Battery connections are made via screw terminals rated for 16mm²/AWG6 cable, with a 1.8m AC cable with NEMA 5-15 plug included.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Blue Smart IP22 Charger 12/20 |
| Input Voltage Range | 100–130VAC, 45–65Hz |
| Charge Current – Normal Mode | 20A |
| Charge Current – NIGHT or LOW Mode | 10A |
| Maximum Efficiency | 93% |
| No-Load Power Consumption | 0.5W |
| Charge Algorithm | 6-stage adaptive |
| Number of Outputs | 1 |
| Charge Voltage – Absorption (Normal) | 14.4V |
| Charge Voltage – Absorption (High) | 14.7V |
| Charge Voltage – Absorption (Li-ion) | 14.2V |
| Charge Voltage – Float (Normal/High) | 13.8V |
| Charge Voltage – Float (Li-ion) | 13.5V |
| Charge Voltage – Storage (Normal/High) | 13.2V |
| Charge Voltage – Storage (Li-ion) | 13.5V |
| Protection | Battery reverse polarity (fuse), output short circuit, over temperature |
| AC Connection | 1.8m cable with NEMA 5-15 plug |
| Battery Connection | Screw terminals 16mm² / AWG6 |
| Protection Category | IP22 |
| Operating Temperature | -40°C to +60°C (full output up to 40°C) |
| Humidity | Max 98% non-condensing |
| Material | Aluminium (blue RAL 5012) |
| Weight | 1.3 kg (3 lbs) |
| Dimensions (H x W x D) | 235 x 108 x 65 mm |
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity | EN 55014-2, EN 61000-6-1/2, EN 61000-3-3 |
| Automotive | ECE R10-5 |
| Warranty | 5 years |
