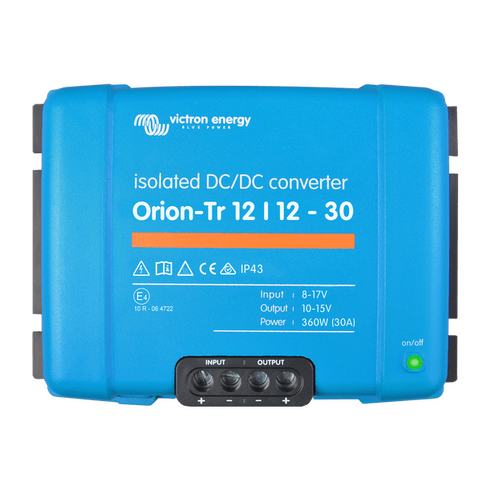

Victron Energy 360W 12V/12V 30A Orion-Tr Isolated DC-DC Converter
£109.00
Sale price
£109.00
Regular price
Skip to product information
Victron Energy 360W 12V/12V 30A Orion-Tr Isolated DC-DC Converter
£109.00
Sale price
£109.00
Regular price
Shipping calculated at checkout.
ORI121240110
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Victron Energy Orion-Tr 12/12-30A (360W) Isolated DC-DC Converter is a professional-grade solution.
Key Features:
- High Temperature Performance: Delivers full-rated output at ambient temperatures up to 40°C and operates in environments up to 55°C with appropriate derating.
- Extensive Electronic Protection: Features over-temperature, overload, short circuit, and connector over-temperature protections for enhanced reliability.
Product Overview:
The Orion-Tr 12/12-30A Isolated DC-DC Converter is engineered to provide a stable 12.2V output from a 12V input, delivering up to 30A of continuous current. Its galvanic isolation ensures separation between input and output, enhancing safety and system integrity.
The unit is designed for high-temperature environments, maintaining full output at ambient temperatures up to 40°C and operating safely up to 55°C with appropriate power derating. Its extensive electronic protection mechanisms, including over-temperature, overload, short circuit, and connector over-temperature protections, ensure reliable performance in various conditions.
Specifications:
| Specification | Value |
|---|---|
| Input Voltage Range | 10-17 V |
| Under Voltage Shutdown | 7 V |
| Under Voltage Restart | 7.5 V |
| Nominal Output Voltage | 12.2 V |
| Output Voltage Adjust Range | 10-15 V |
| Continuous Output Current (40°C) | 30 A |
| Maximum Output Current (10s) | 40 A |
| Short Circuit Output Current | 60 A |
| Continuous Output Power (25°C) | 430 W |
| Continuous Output Power (40°C) | 360 W |
| Efficiency | 87% |
| No Load Input Current | < 80 mA |
| Galvanic Isolation | 200 VDC between input, output, and case |
| Operating Temperature Range | -20 to +55°C (derate 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16 mm² (AWG6) |
| Weight | 1.3 kg (3 lb) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) |
| Protection Category | IP43 (electronics), IP22 (connection area) |
