Description

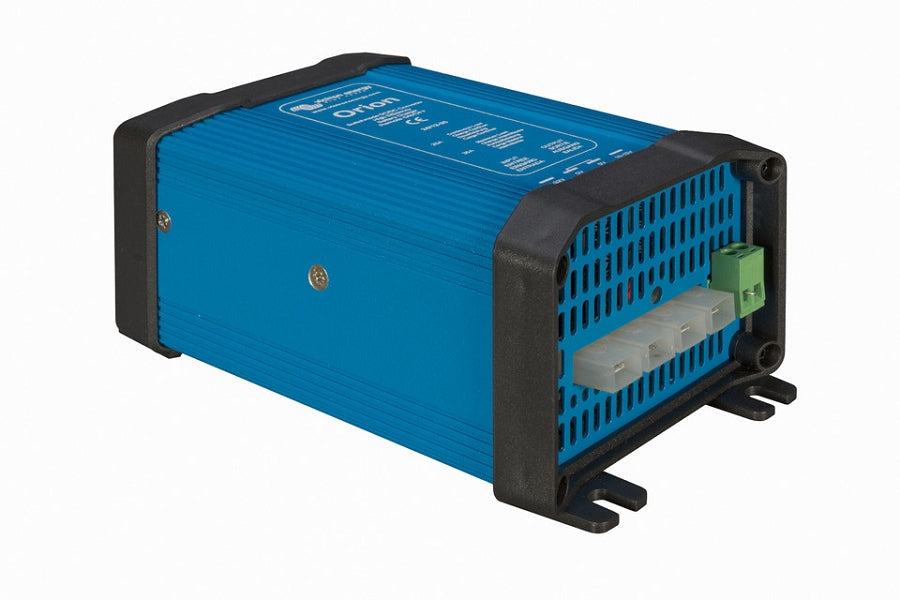

The Victron Energy Orion 24/12-25A DC-DC Converter is a high-performance, non-isolated power converter designed to provide a stable 12V output from 24V DC power sources. With a continuous output of 25 amps, it is ideal for automotive, marine, and industrial applications, ensuring reliable operation of 12V devices in 24V environments.
Key Features
- High Efficiency: Achieves up to 96% efficiency, minimizing energy loss and reducing heat generation for optimized performance.
- Adjustable Output Voltage: Factory-set to 13.2V, adjustable between 10V and 15V, ensuring compatibility with a wide range of 12V devices.
- Parallel Connection Capability: Supports parallel operation with up to five units, allowing for scalable solutions to meet higher power requirements.
- Remote On/Off Connector: Simplifies control with a low-power switch or integration with an engine's run/stop switch, eliminating the need for high-current input switches.
- Compact and Durable Design: Features a lightweight and robust construction with dimensions of 2.6 x 3.5 x 6.3 inches, suitable for installations in space-constrained environments.
Product Overview
The Victron Energy Orion 24/12-25A DC-DC Converter is built for reliability and versatility, providing stable power for sensitive 12V devices in environments where only a 24V DC source is available. Its adjustable voltage output and high efficiency ensure your devices receive consistent and optimized power.
Designed for easy integration, the unit includes four insulated Fastons Female Crimp 6.3mm connectors, facilitating quick and straightforward setup. The ability to connect multiple units in parallel provides a flexible solution for systems requiring additional output capacity.
Its lightweight and compact design, coupled with a robust build, ensures long-lasting performance even in demanding automotive, marine, and industrial environments. The converter’s remote on/off capability enhances convenience and safety, while its efficient energy use makes it an environmentally friendly choice.
Applications
- Automotive: Power 12V accessories such as lights, communication systems, or GPS in trucks, buses, and other vehicles with 24V systems.
- Marine: Provide reliable power for navigation systems, pumps, and other 12V equipment on boats with 24V power setups.
- Industrial: Support 12V control systems, sensors, and other devices in 24V industrial setups.
Specifications
| Specification | Value |
|---|---|
| Input Voltage Range | 18-35V DC |
| Output Voltage | 12V DC (adjustable 10-15V) |
| Continuous Output Current | 25A |
| Maximum Output Current | 35A |
| Output Power | 300W |
| Efficiency | 96% |
| Off-Load Current | <15 mA |
| Ripple and Noise | <50 mV RMS |
| Operating Temperature Range | -20°C to +55°C (derate 3% per °C above 40°C) |
| Cooling | Natural convection |
| Mounting Options | Surface mounting |
| Parallel Operation | Supported (up to 5 units) |
| Dimensions (H x W x D) | 2.6 x 3.5 x 6.3 inches (66 x 88 x 160 mm) |
| Weight | 1.55 lbs (0.7 kg) |
| Protection Features | Overload, over-temperature, and short-circuit protection |
| Remote On/Off Capability | Yes |
| Certification | CE, RoHS compliant |
| Warranty | 5 years |
