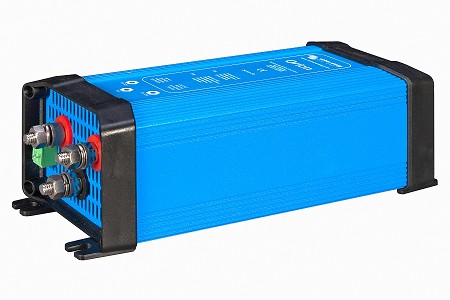

Victron Energy 12V/24V-70A Orion DC-DC converter
£134.00
Sale price
£134.00
Regular price
Skip to product information
Victron Energy 12V/24V-70A Orion DC-DC converter
£134.00
Sale price
£134.00
Regular price
Shipping calculated at checkout.
ORI241270020
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Victron Energy Orion 24/12-70A DC-DC Converter
The Victron Energy Orion 24/12-70A DC-DC Converter is a robust and efficient non-isolated power converter designed to reliably step down 24V DC to 12V DC. Delivering a continuous output of 70 amps, it is ideal for powering 12V devices in vehicles, boats, off-grid systems, and industrial setups that rely on a 24V power source.
Key Features
-
Remote On/Off Connector
Simplifies installation by eliminating the need for a high-current switch in the input wiring. Operates with a low-power switch or directly through an engine’s run/stop switch.
-
Adjustable Output Voltage
Factory-set to 13.2V but adjustable between 10V and 15V using a potentiometer, ensuring compatibility with a range of 12V devices and batteries.
-
Parallel Operation Capability
Supports parallel connections of up to five units, significantly increasing output current to meet higher power demands.
-
Battery Charging Functionality
Dual-purpose design can charge a 12V starter or accessory battery in a 24V system, adding flexibility for hybrid or auxiliary systems.
-
High Efficiency and Performance
Delivers up to 92% conversion efficiency, minimizing energy loss for optimized power utilization.
Product Overview
The Victron Energy Orion 24/12-70A is engineered with performance and reliability at its core. The remote on/off connector is particularly advantageous for complex installations, as it allows seamless control of the converter with minimal wiring adjustments. Whether in a commercial vehicle, marine system, or off-grid setup, this feature simplifies system integration.
The adjustable output voltage ensures it can meet the requirements of various 12V systems, making it suitable for diverse applications. Its parallel operation capability allows scalability, with up to five units working together to deliver increased current output for more demanding systems.
Designed for versatility, the Orion can also function as a battery charger, providing efficient charging for a 12V battery in systems where a 24V primary power source is used. Its rugged construction, temperature-controlled cooling fan, and wide operating temperature range make it durable and reliable in harsh environments.
The unit is lightweight and compact, making it easy to install in tight spaces. Despite its small size, it packs a punch with its impressive performance and efficiency.
Specifications
| Specification | Value |
|---|---|
| Input Voltage Range | 18-35V DC |
| Output Voltage | Adjustable 10-15V DC (Factory set to 13.2V) |
| Continuous Output Current | 70A |
| Maximum Output Current | 85A |
| Efficiency | Up to 92% |
| Remote On/Off | Yes |
| Parallel Operation | Up to 5 units |
| Battery Charging Function | Yes |
| Operating Temperature Range | -20°C to +55°C (Derate 3% per °C above 40°C) |
| Cooling | Temperature-controlled fan |
| Dimensions (H x W x D) | 2.6" x 3.5" x 7.7" |
| Weight | 2.0 lbs (0.9 kg) |
| Mounting Options | Surface mounting or integration into panels |
| Warranty | 5 years |
Applications
- Powering 12V electronics in vehicles and boats using a 24V primary battery system.
- Off-grid solar or wind setups requiring 12V DC for smaller loads.
- Battery charging in hybrid systems, ensuring balanced energy flow between 24V and 12V components.
- Industrial automation systems with mixed voltage requirements.
