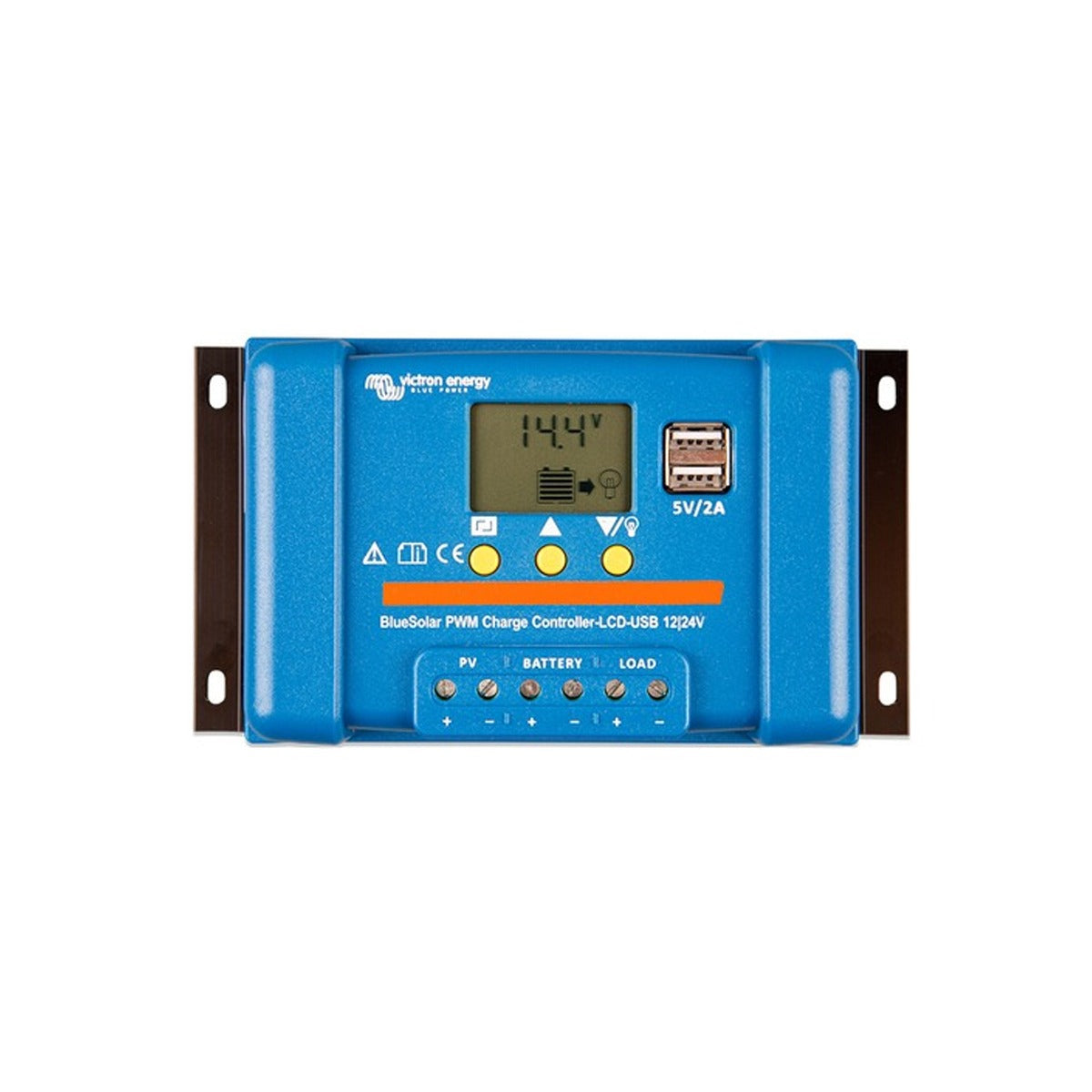

Victron Blue Solar 12/24V-20a PWM-LCD & USB Charge Controller
£24.00
Sale price
£24.00
Regular price
Skip to product information
Victron Blue Solar 12/24V-20a PWM-LCD & USB Charge Controller
£24.00
Sale price
£24.00
Regular price
Shipping calculated at checkout.
SCC010020050
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Introducing the Victron BlueSolar PWM-LCD & USB Charge Controller 12/24V-20A (Model: SCC010020050)—a robust and efficient charge controller designed to optimize battery charging and manage solar energy systems for small-scale off-grid applications. With advanced features and safety protections, this controller is a reliable choice for ensuring the longevity and performance of your solar setup.
Key Features:
- LCD Display: Real-time system monitoring and intuitive setup for solar system parameters, including battery voltage, charging current, and load output status.
- Dual USB Ports: Integrated 5V USB outputs with a combined capacity of 2A, ideal for charging mobile devices directly from the controller.
- Three-Stage Battery Charging: Implements bulk, absorption, and float stages for efficient and safe battery charging, extending battery life and optimizing performance.
- Battery Compatibility: Preprogrammed charge algorithms for AGM, GEL, Flooded, and Lithium (LiFePO‚ÇÑ with internal BMS) batteries, offering flexibility for diverse setups.
- Load Management: Features programmable load output with low voltage disconnect (LVD), overload protection, and day/night timing options for automated operation.
- Comprehensive Protections: Includes safeguards against reverse polarity, short circuits, overloads, and over-temperature, ensuring reliable operation and system safety.
- Compact Design: Lightweight and space-saving design for easy installation in various environments.
Product Overview:
The Victron BlueSolar PWM-LCD & USB Charge Controller is tailored to optimize the performance of your solar power system. Its intelligent three-stage charging process ensures batteries are charged efficiently while preventing overcharging or undercharging, which can degrade battery health over time.
The controller features a clear LCD display, allowing users to monitor system performance at a glance and adjust settings for battery charging and load management. The dual USB outputs offer a convenient way to power devices like smartphones, tablets, and other USB-powered electronics directly from the controller.
Safety is a top priority, with protections against reverse polarity for both solar panels and batteries, as well as overload and short circuit safeguards. The programmable load output with manual control or automated day/night timing options enhances the controller's versatility, making it particularly useful for solar lighting applications or other time-specific loads.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | SCC010020050 |
| Battery Voltage | 12/24V with automatic detection |
| Rated Charge Current | 20A |
| Maximum Solar Voltage | 28V (12V system) / 55V (24V system) |
| Self-Consumption | < 10 mA |
| Load Output | Manual control, low voltage disconnect, and timer |
| USB Output Voltage | 5V DC |
| USB Output Current | 2A (combined total) |
| Charging Stages | Bulk, Absorption, Float |
| Operating Temperature Range | -35°C to +60°C (-31°F to +140°F) |
| Protection Rating | IP20 |
| Dimensions (H x W x D) | 96 x 169 x 36 mm |
| Weight | 0.15 kg (150 g) |
| Terminal Size | 6 mm² / AWG10 |
| Protections | Battery reverse polarity, output short circuit, over temperature, overload |
| Display Type | LCD |
| Battery Compatibility | AGM, GEL, Flooded, Lithium (LiFePO‚ÇÑ with internal BMS) |
Applications:
- Off-Grid Solar Systems: Perfect for small-scale solar setups such as cabins, RVs, and boats.
- Solar Lighting: Programmable day/night timing for automated lighting control in off-grid environments.
- Mobile Device Charging: Dual USB ports provide convenient power for smartphones, tablets, and other devices.
- Backup Power Systems: Ensures efficient battery management and reliable power supply during outages.
