Description
Victron Energy | Blue Smart Series

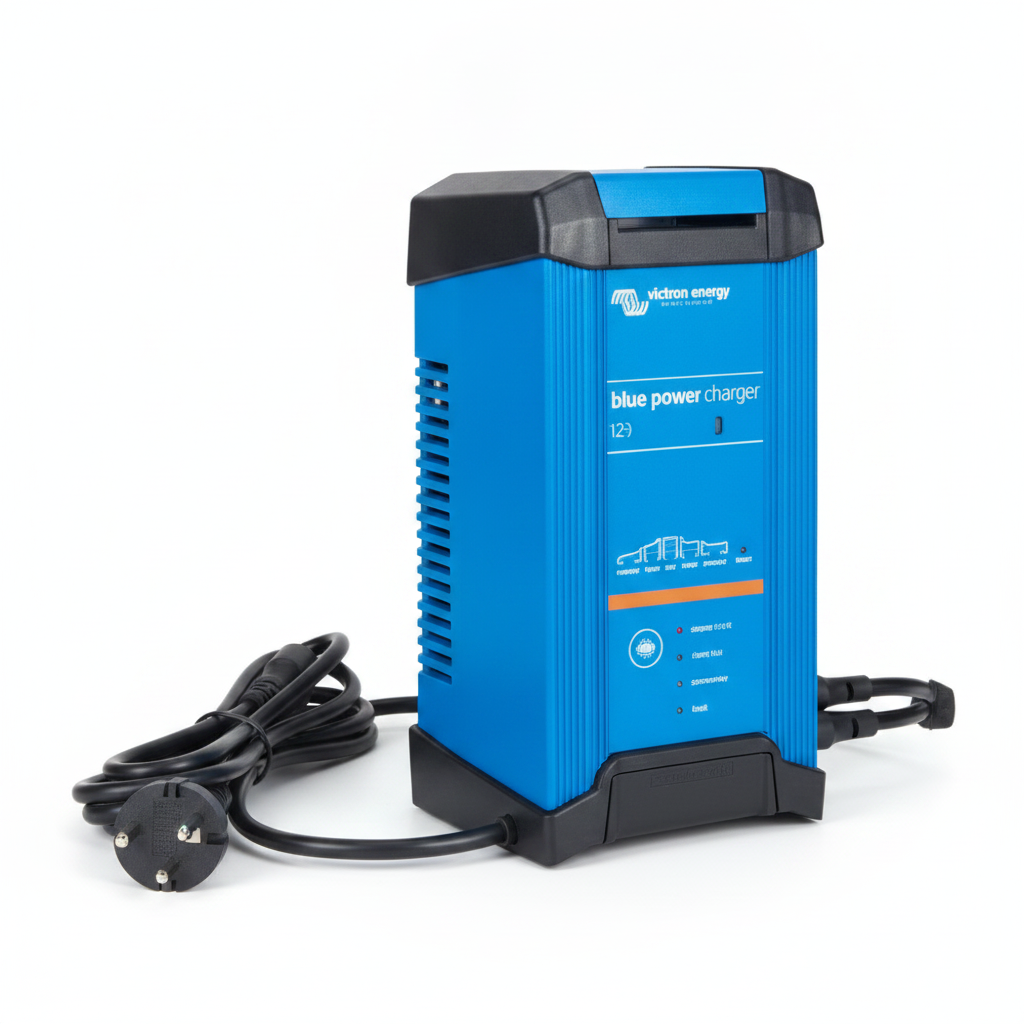

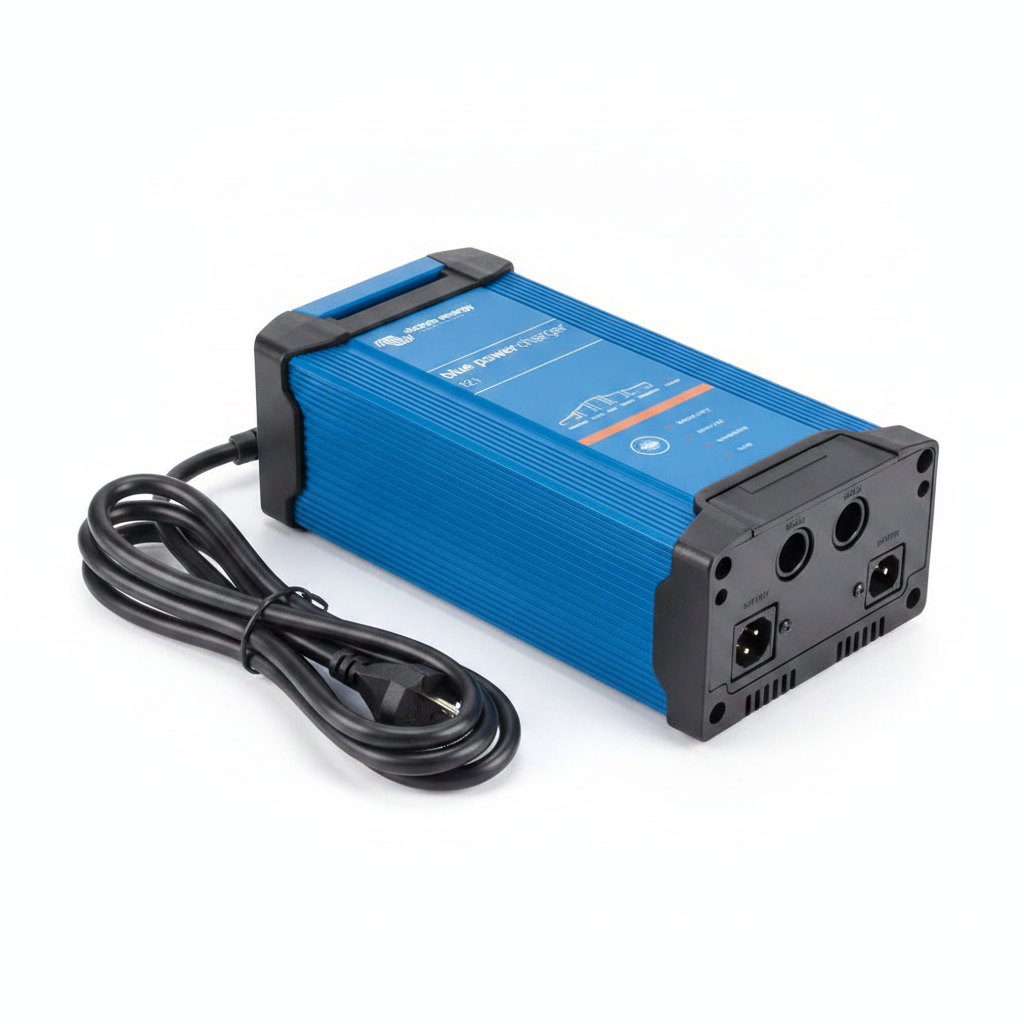

Victron Blue Smart IP22 Charger 12/30 (3) 230 UK
Professional 12V 30A Battery Charger | Three Outputs | Bluetooth Smart Connectivity
The Victron Blue Smart IP22 Charger 12/30 (3) 230 UK is a professional 12V 30A battery charger designed for a wide range of applications, from workshops to motor vehicles, boats, and campervans. This advanced charger, model BPC123048022, features three isolated outputs, allowing it to charge up to three separate 12V battery banks simultaneously, with a total output of 30 Amps.
Equipped with built-in Bluetooth Smart technology, the Victron Blue Smart IP22 Charger enables wireless monitoring, configuration, and updates via the VictronConnect app on your smartphone or tablet. Its adaptive 6-stage charging algorithm ensures optimal battery health and longevity for both lead-acid and LiFePO4 batteries.
UK Specific: Supplied with a standard UK (BS 1363) plug for direct connection to 230V AC mains power.
Key Features
| ▶ Bluetooth Smart Connectivity — Monitor voltage, current, change settings, and update firmware wirelessly via the VictronConnect app. |
| ▶ High Efficiency (Up to 94%) — Generates significantly less heat and reduces power consumption to just 0.5W when batteries are fully charged. |
| ▶ Adaptive 6-Stage Charge Algorithm — Optimises the charging process (Test – Bulk – Absorption – Recondition – Float – Storage) based on battery usage. |
| ▶ Storage Mode — Reduces float voltage to minimise gassing and corrosion, with weekly equalisation to prevent stratification and sulfation. |
| ▶ Li-ion (LiFePO4) Battery Charging — Supports LiFePO4 batteries with a dedicated Bulk – Absorption – Float algorithm. |
| ▶ NIGHT and LOW Settings — Reduces output current by up to 50% for silent operation, ideal for quiet environments. |
| ▶ Overheating Protection — Automatically reduces output current if temperature rises to prevent damage. |
| ▶ Fully Discharged Battery Recovery — Can initiate charging even for batteries discharged to zero volts. |
| ▶ VE.Smart Networking Capability — Allows synchronised parallel charging with up to ten compatible Victron chargers. |
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model | Blue Smart IP22 Charger 12/30 (3) |
| SKU / MPN | BPC123048022 |
| Input Voltage (AC) | 180-265V AC (230V UK) |
| Output Voltage (DC) | 12V |
| Max Charge Current | 30A |
| Number of Outputs | 3 (Isolated) |
| Efficiency | Up to 94% |
| No Load Power Consumption | 0.5W |
| IP Rating | IP22 |
| Dimensions (H x W x D) | 235 x 108 x 65 mm |
| Weight | 1.3 kg |
| AC Connection | 1.5m cable with UK (BS 1363) plug |
| Battery Connection | Screw terminals (16 mm² / AWG6) |
Charging & Battery Modes
| Mode/Feature | Description |
|---|---|
| Adaptive 6-Stage Algorithm | Automatically optimises charging through Test, Bulk, Absorption, Recondition, Float, and Storage stages. |
| Storage Mode | Reduces float voltage to 13.2V (for 12V batteries) to minimise gassing and corrosion during inactivity, with weekly equalisation cycles. |
| Li-ion (LiFePO4) Charging | Dedicated Bulk – Absorption – Float algorithm for safe and efficient charging of Lithium Iron Phosphate batteries. |
| NIGHT & LOW Modes | Reduces output current to 50% for silent operation. NIGHT mode is 8 hours, LOW mode is manual. |
| Power Supply Function | Can be used as a stable DC power supply, providing constant voltage for various loads. |
Typical Applications
| Application | Description |
|---|---|
| Automotive & Leisure Vehicles | Ideal for charging batteries in classic cars, motorbikes, campervans, and motorhomes. |
| Marine & Boating | Suitable for maintaining and charging batteries on boats and other marine craft. |
| Workshops & Garages | A versatile charger for various battery maintenance and charging tasks in professional or home workshops. |
| Fixed Installations | Can be permanently mounted in protected indoor environments within buildings or RVs. |
Built-In Protection Functions
The Victron Blue Smart IP22 Charger incorporates multiple safety features to protect both the charger and your batteries. These include protection against battery reverse polarity (via fuse), output short circuits, and over-temperature conditions. The charger's IP22 rating indicates protection against solid objects larger than 12.5mm and dripping water when tilted up to 15 degrees, making it suitable for indoor or protected installations.
Common Questions
Can I charge different types of batteries simultaneously?
While the charger has three outputs, all connected batteries should ideally be of the same chemistry (e.g., all lead-acid or all LiFePO4) for optimal and safe charging, as the charger applies a single charge profile across all outputs.
Is this charger suitable for outdoor use?
With an IP22 rating, this charger is designed for indoor or protected installations. It offers protection against dripping water but is not waterproof and should not be exposed to direct rain, splashes, or dusty environments.
How does the 30A output distribute across the three ports?
The total charge output of 30 Amps is shared across the three isolated outputs. The distribution depends on the state of charge of each connected battery, with lower charged batteries typically drawing more current until they reach a similar state.
Can I use this charger as a power supply?
Yes, the Victron Blue Smart IP22 Charger can function as a stable DC power supply, providing a constant voltage output for various 12V loads.
Installation Notes
- Ensure the charger is installed in a dry, well-ventilated area, protected from direct moisture, dust, and extreme temperatures, in line with its IP22 rating.
- Connect the charger to a suitable 230V AC mains outlet using the supplied UK plug.
- Connect the DC output cables to your battery banks, ensuring correct polarity. The screw terminals are suitable for up to 16 mm² / AWG6 cables.
- For optimal performance and battery longevity, ensure all battery connections are secure and free from corrosion.
- Consider using Victron VE.Smart Networking devices like a Smart Battery Sense or SmartShunt for enhanced battery voltage and temperature compensation, especially in installations where the charger is located far from the battery.
Before You Buy
- Verify that your battery system requires a 12V charger with a maximum output of 30 Amps.
- Confirm that your installation environment is suitable for an IP22 rated device, meaning it is protected from significant dust and water ingress.
- If charging multiple batteries, ensure they are of the same chemistry (e.g., all lead-acid or all LiFePO4) to benefit from the optimal charging algorithm.
- Consider the total current draw if using all three outputs simultaneously, as the 30A is shared.
- For any specific compatibility questions or advanced system designs, consulting a qualified installer or the manufacturer's documentation is recommended.
Product specifications are subject to change by the manufacturer. Always refer to the official Victron Energy documentation for the most current details and ensure compatibility with your specific system. This product is backed by a 5-year manufacturer's warranty.
