Victron BMV-710H Smart: Precision Battery Monitoring for High-Voltage Systems

Advanced State-of-Charge Tracking for 60V to 385V DC Installations

The Victron BMV-710H Smart is a high-precision battery monitor engineered for demanding high-voltage DC systems. Designed to operate across a wide supply range of 60V to 385V DC, it provides accurate, real-time insight into battery performance, making it an essential tool for electric vehicles, industrial equipment, and large-scale energy storage. By precisely tracking ampere-hours consumed and integrating current flow, the BMV-710H Smart calculates true state of charge (SoC), eliminating guesswork and helping to prevent unexpected downtime.

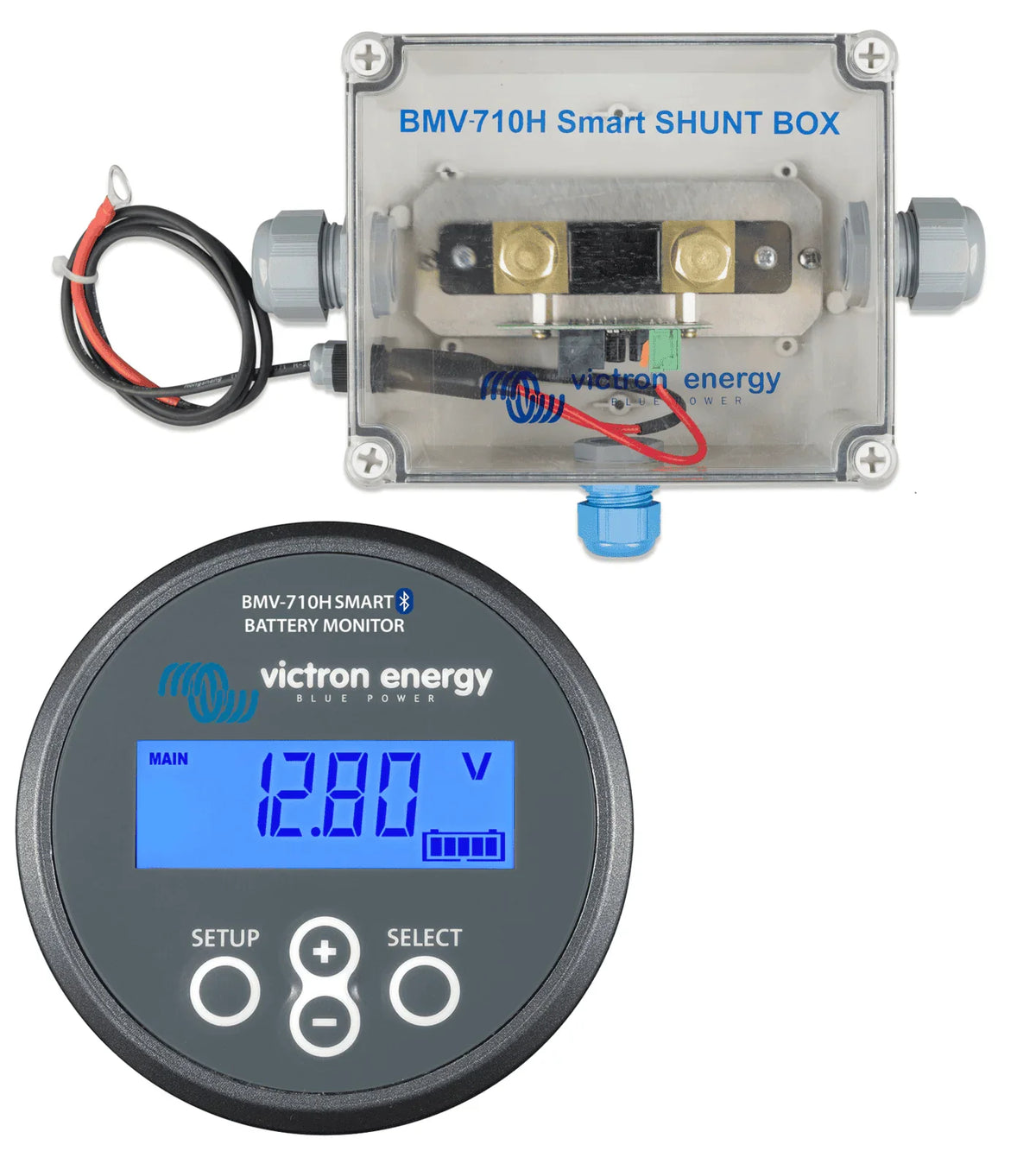

Unlike basic voltage-based indicators, this monitor uses a 500A / 50mV shunt housed in a dedicated safety enclosure, ensuring reliable current measurement even in high-voltage environments. The included 10-metre UTP cable with RJ12 connectors allows flexible placement of the round head unit, while the optional square bezel overlay enables seamless integration into existing dashboards.

Wireless Connectivity with VictronConnect App

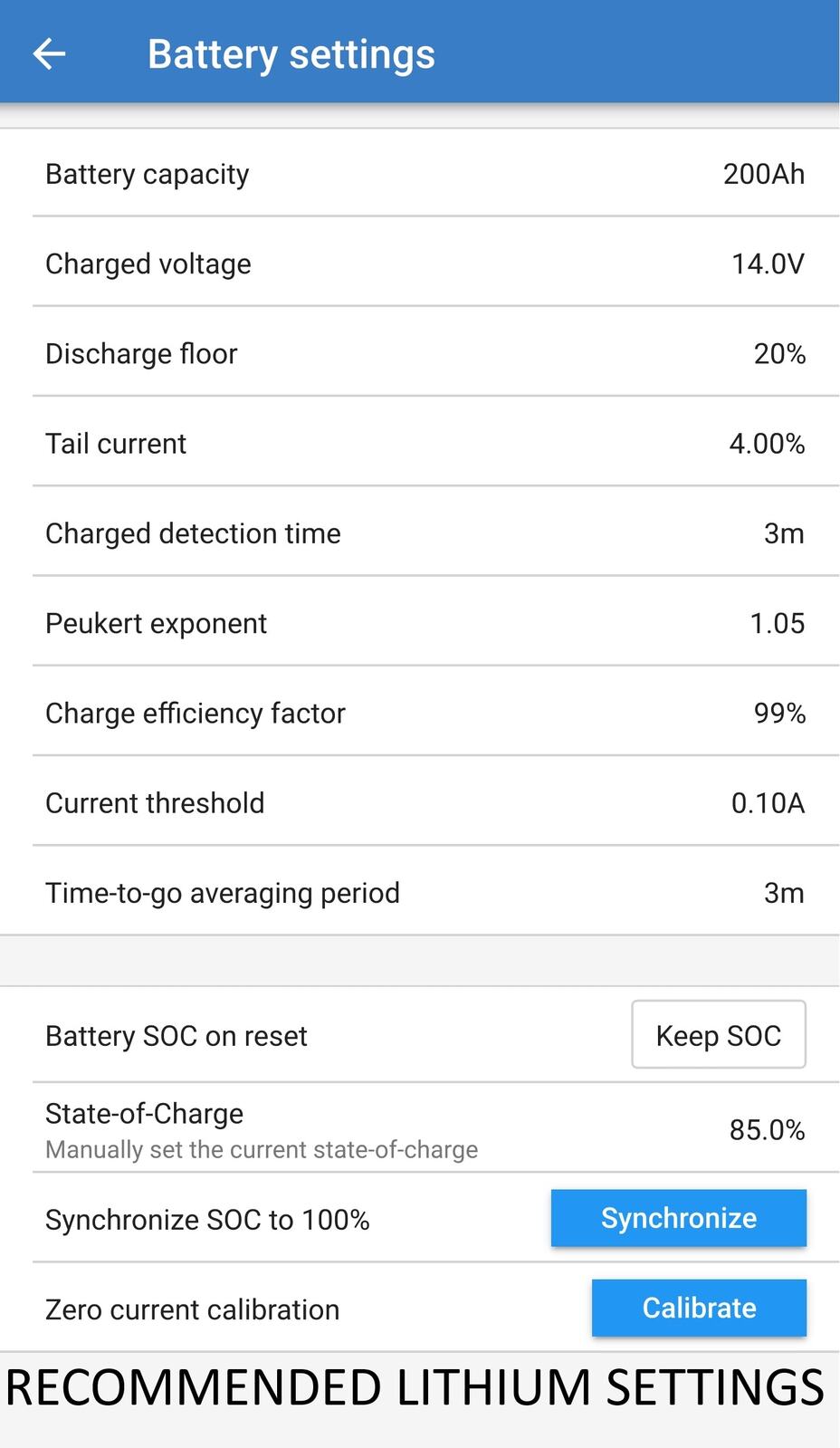

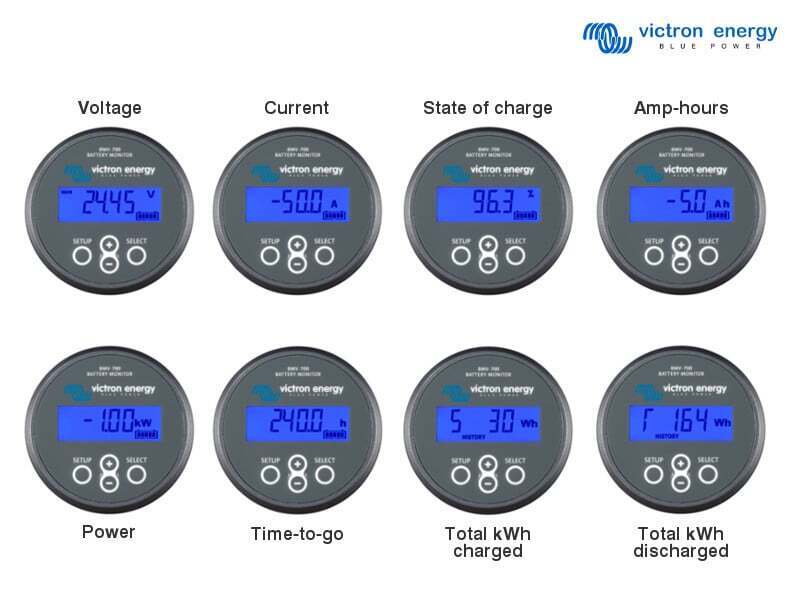

Built-in Bluetooth Smart enables direct connection to your smartphone or tablet via the free VictronConnect app. From a single screen, you can view all critical parameters—state of charge, voltage, current, power, and time-to-go—as well as historical data logs. Configure alarms, update firmware, and adjust settings without needing a separate display or programming tool. This wireless capability simplifies installation and provides convenient access to battery data from anywhere within range.

Key Features

• Monitors battery banks from 60V to 385V DC, ideal for high-voltage lithium, lead-acid, and nickel-based systems
• High-accuracy measurement: ±0.4% current, ±0.3% voltage, and ±0.1% SoC resolution

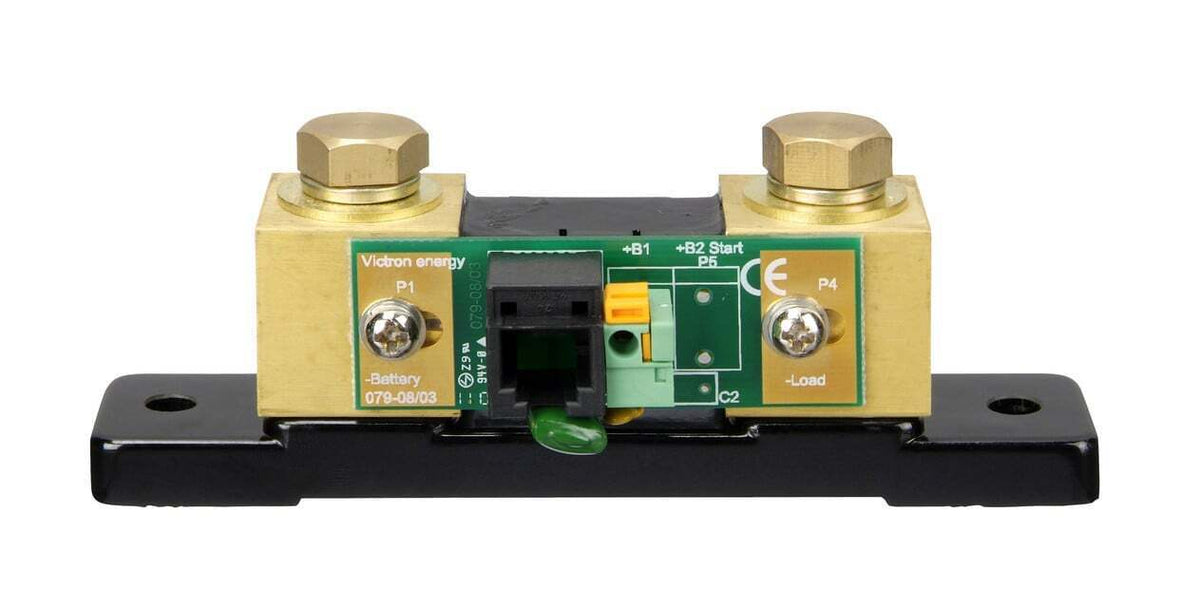

• Includes a 500A / 50mV shunt in a protective enclosure, with M10 (approx. 3/8") brass connection bolts
• Bluetooth built-in for real-time monitoring and configuration via VictronConnect (iOS/Android)
• Programmable visual and audible alarms, plus a bistable relay for external control
• Flush-mount round display (52mm body diameter) with IP55 protection; square bezel included for panel mounting
• 10-metre UTP RJ12 cable and fused power supply cable supplied for straightforward installation

Why High-Voltage Monitoring Matters

In systems operating above 60V DC, standard battery monitors often lack the necessary isolation and safety features. The BMV-710H Smart addresses this with a dedicated high-voltage shunt enclosure and robust design, reducing the risk of electrical hazards and ensuring accurate readings in applications such as electric forklifts, aerial work platforms, solar storage systems, and marine hybrid propulsion. By providing precise SoC data, it helps extend battery lifespan through informed charging and discharging decisions.

Reliable Data for Critical Applications

With an operating temperature range of -40°C to +50°C and compliance with automotive ECE R10-4 and safety standard EN 60335-1, the BMV-710H Smart is built for harsh environments. The backlit LCD display remains readable in low light, and the low current draw (<1 mA with backlight off) minimises parasitic drain on the battery. Whether monitoring a single string or a large bank, the monitor supports capacities from 1 to 9999 Ah, adapting to a wide variety of setups.

Take Control of Your High-Voltage Energy System

Upgrade your battery management with the Victron BMV-710H Smart and gain the clarity needed to optimise performance and prevent costly failures. Order today to start monitoring your high-voltage system with professional-grade accuracy.
