Victron BMV-700 Grey: Precision Battery Monitoring for Off-Grid and Mobile Power Systems

Advanced Battery Management for Caravans, RVs, Marine, and Remote Installations

The Victron BMV-700 Battery Monitor functions as an intelligent fuel gauge for your battery bank, delivering real-time data on voltage, current, power, ampere-hours consumed, and state of charge. Unlike basic voltmeters that only show surface voltage, the BMV-700 uses sophisticated algorithms to factor in discharge rate, temperature, and battery age, providing a true picture of remaining capacity and estimated runtime. This level of insight is critical for anyone relying on deep-cycle batteries in caravans, motorhomes, boats, or off-grid solar systems, where unexpected power loss can disrupt travel or compromise essential equipment.

By accurately tracking energy flow, the BMV-700 helps prevent excessive discharge, which is a leading cause of premature battery failure. It supports a wide range of battery types including AGM, Gel, Flooded Lead-Acid, and Lithium (LiFePO4), making it a versatile choice for mixed fleets or future upgrades. The included 500A / 50mV shunt with brass terminals ensures precise current measurement down to ±0.01A, while the VE.Direct communication port allows integration with Victron GX devices, solar charge controllers, and data loggers for expanded system visibility.

Key Features

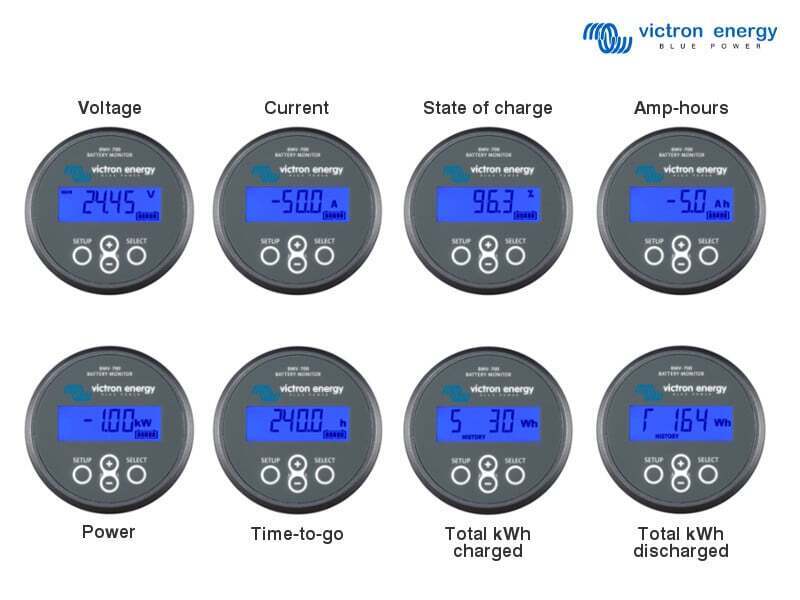

• Comprehensive real-time display of voltage, current, power, consumed amp-hours, and state of charge
• Time-to-go indicator calculates remaining runtime at the current discharge rate
• Programmable alarm relay to automatically disconnect non-critical loads or start a generator
• 500A quick-connect shunt included with support for shunts up to 10,000A for large systems

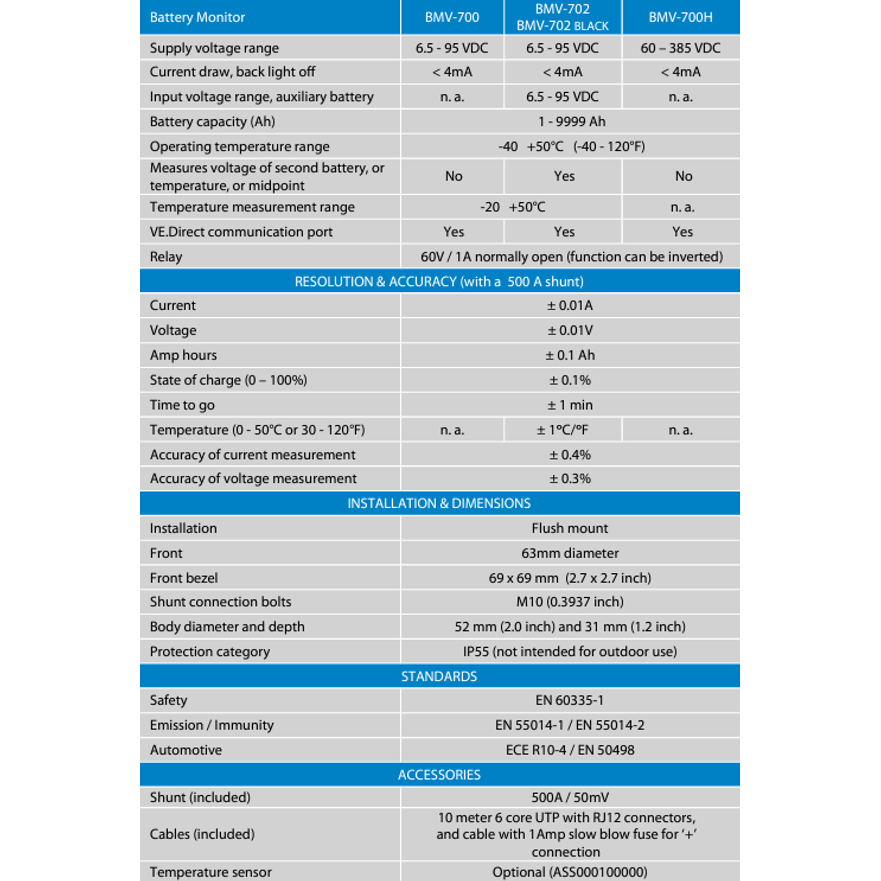

• Wide 6.5 – 95V DC input range suitable for 12V, 24V, and 48V battery banks
• Ultra-low power consumption of only 2.9Ah per month at 12V, preserving battery charge
• VE.Direct wired interface for reliable data logging and system integration
• Historical event logging to analyse usage patterns and diagnose battery health issues

Why the BMV-700 Outperforms Basic Battery Monitors

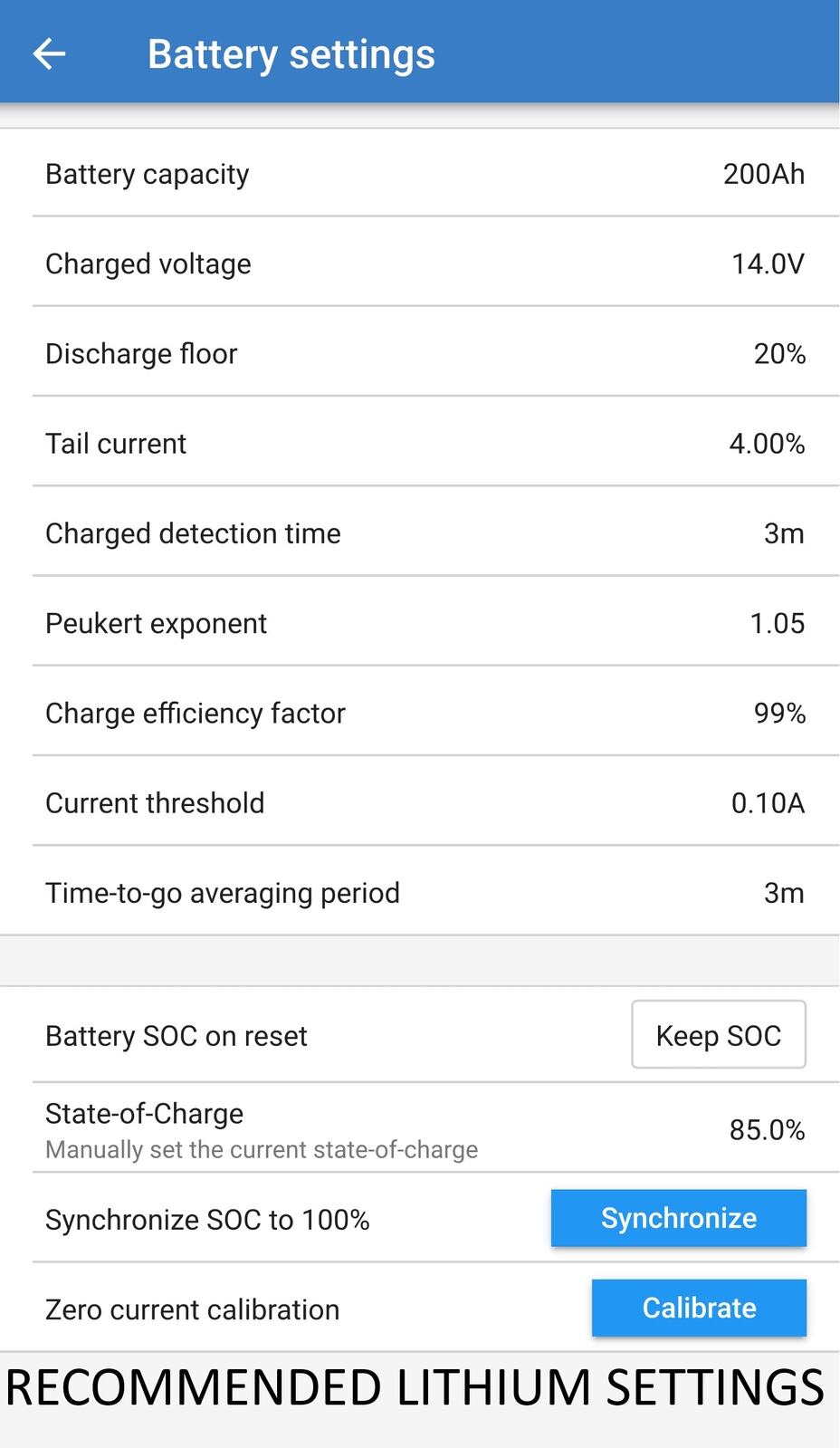

Many entry-level monitors rely solely on voltage readings, which can be misleading under load or during charging. The BMV-700 employs coulomb counting via a precision shunt to track every amp-hour entering and leaving the battery. This method, combined with Peukert’s exponent compensation and temperature-adjusted algorithms, delivers state-of-charge accuracy within ±0.1%. For users managing expensive lithium banks or critical backup systems, this precision reduces the risk of over-discharge and extends battery service life.

The programmable relay adds a layer of automation: set it to disconnect non-essential loads when the battery reaches a user-defined low state of charge, or trigger a generator start signal. This protects batteries from deep discharge damage without manual intervention, a valuable feature for unattended off-grid sites or marine vessels on moorings.

Straightforward Installation with Included Components

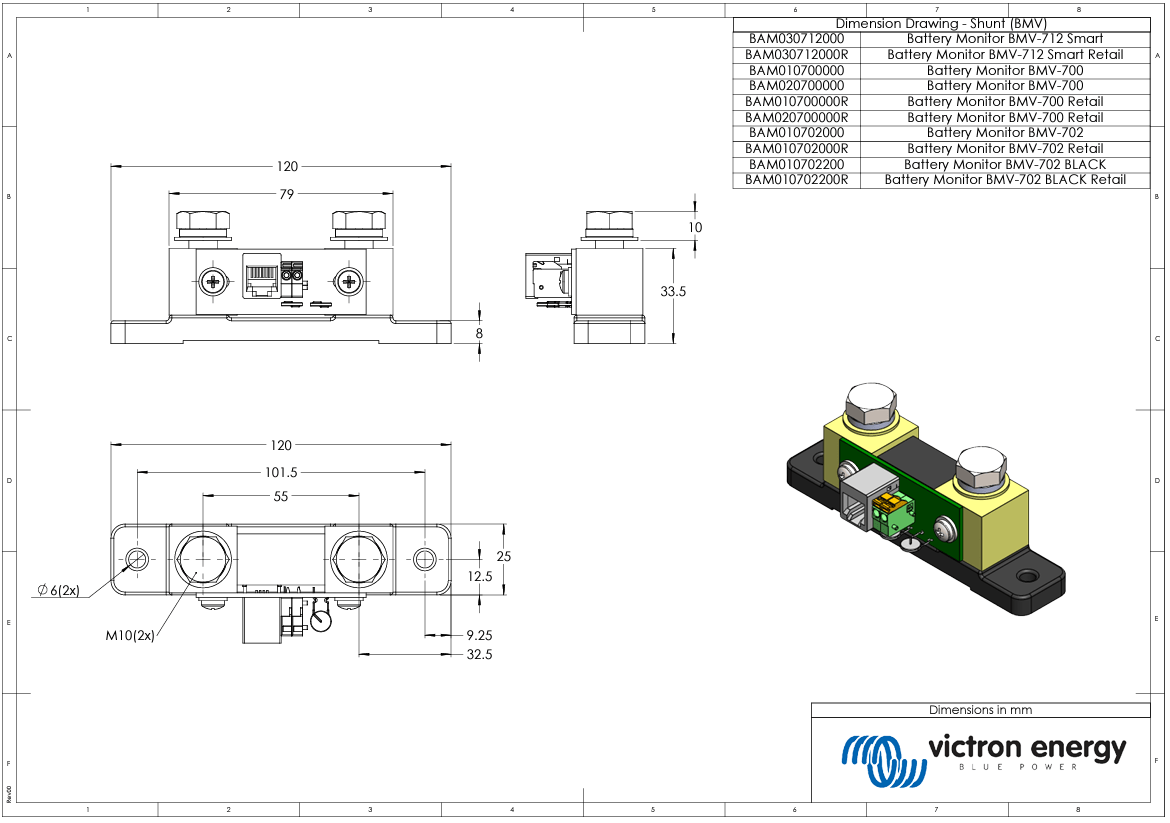

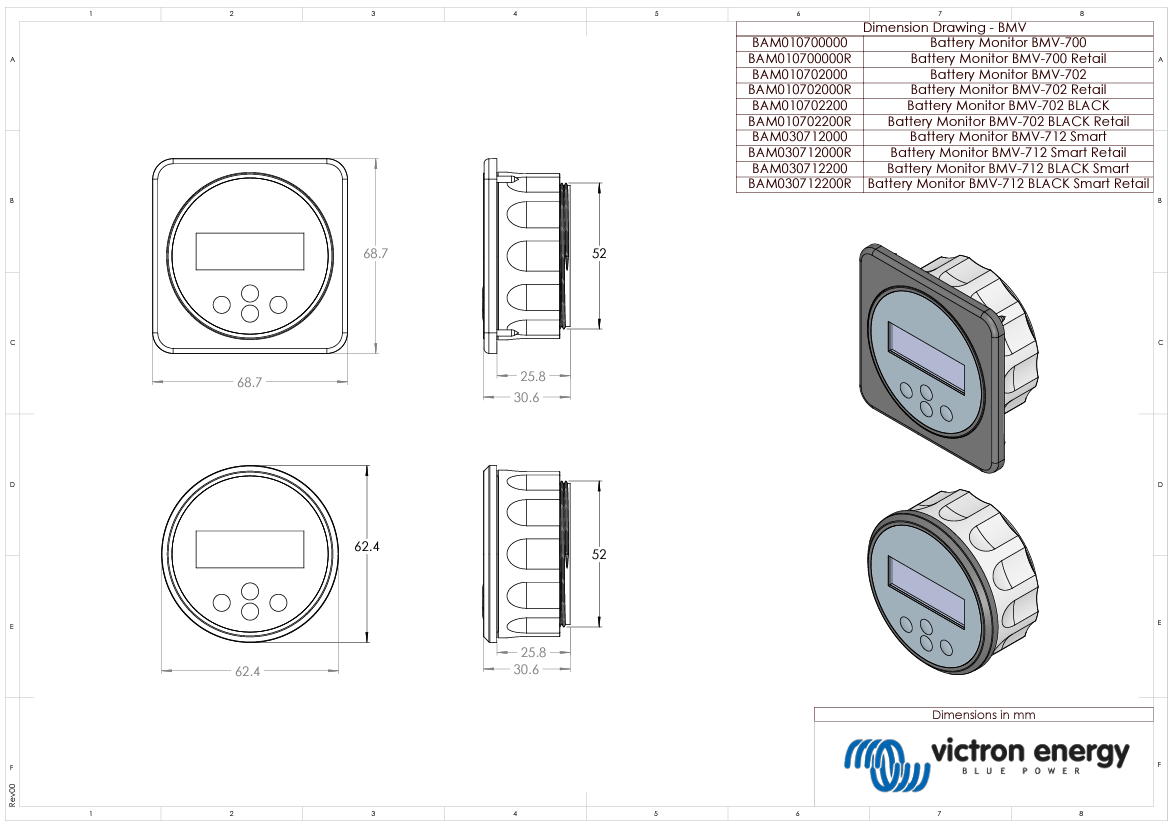

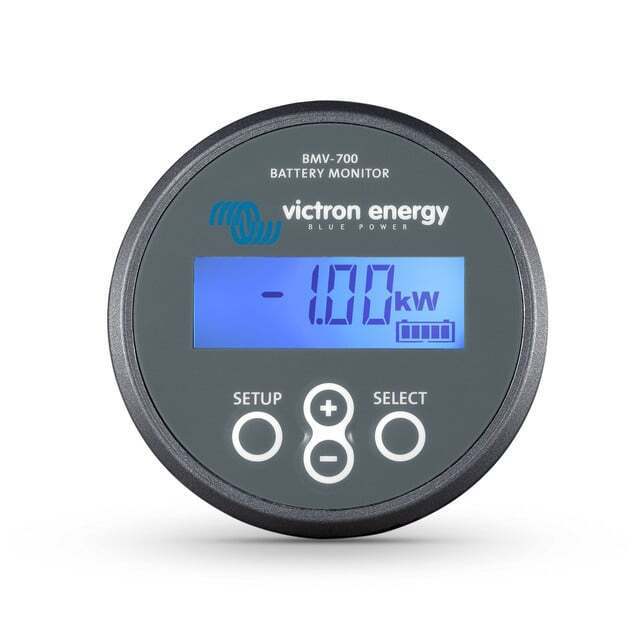

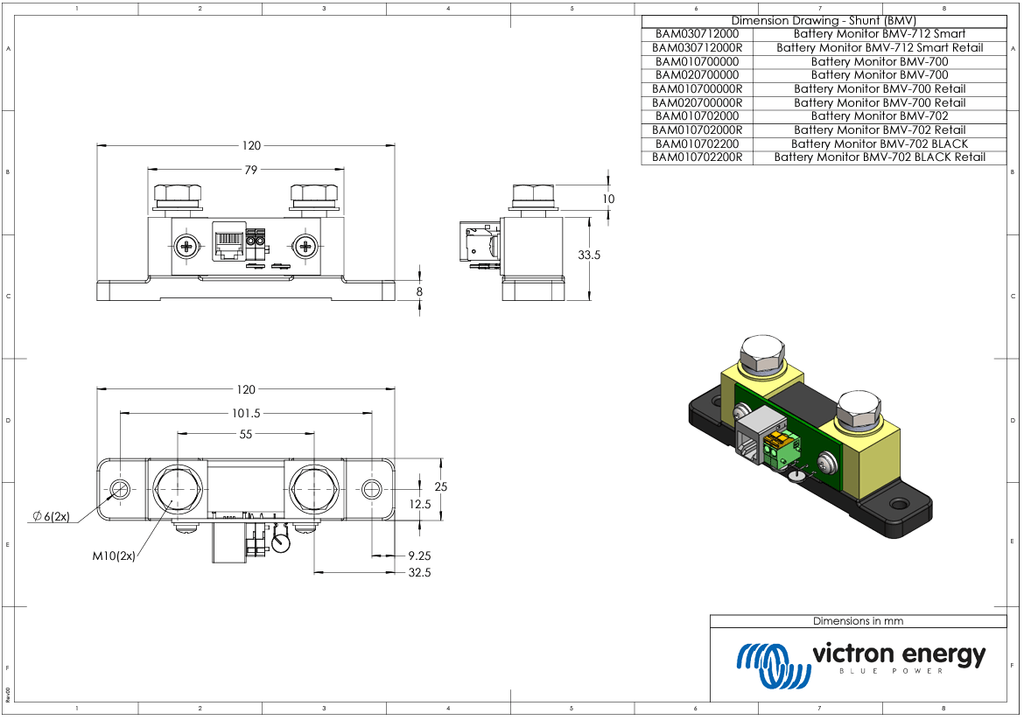

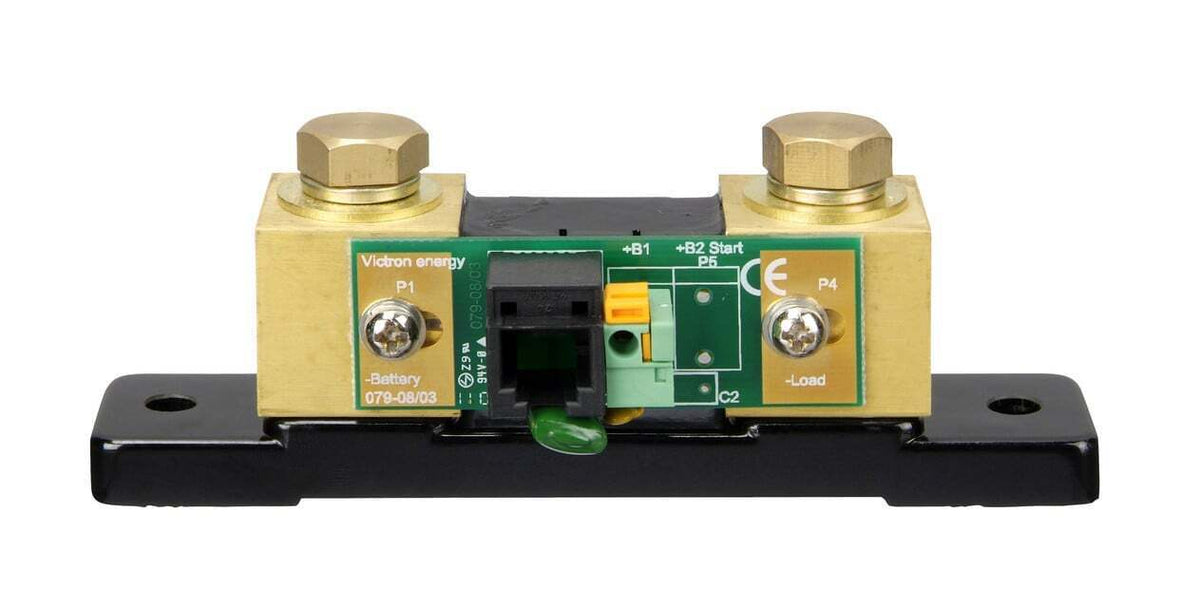

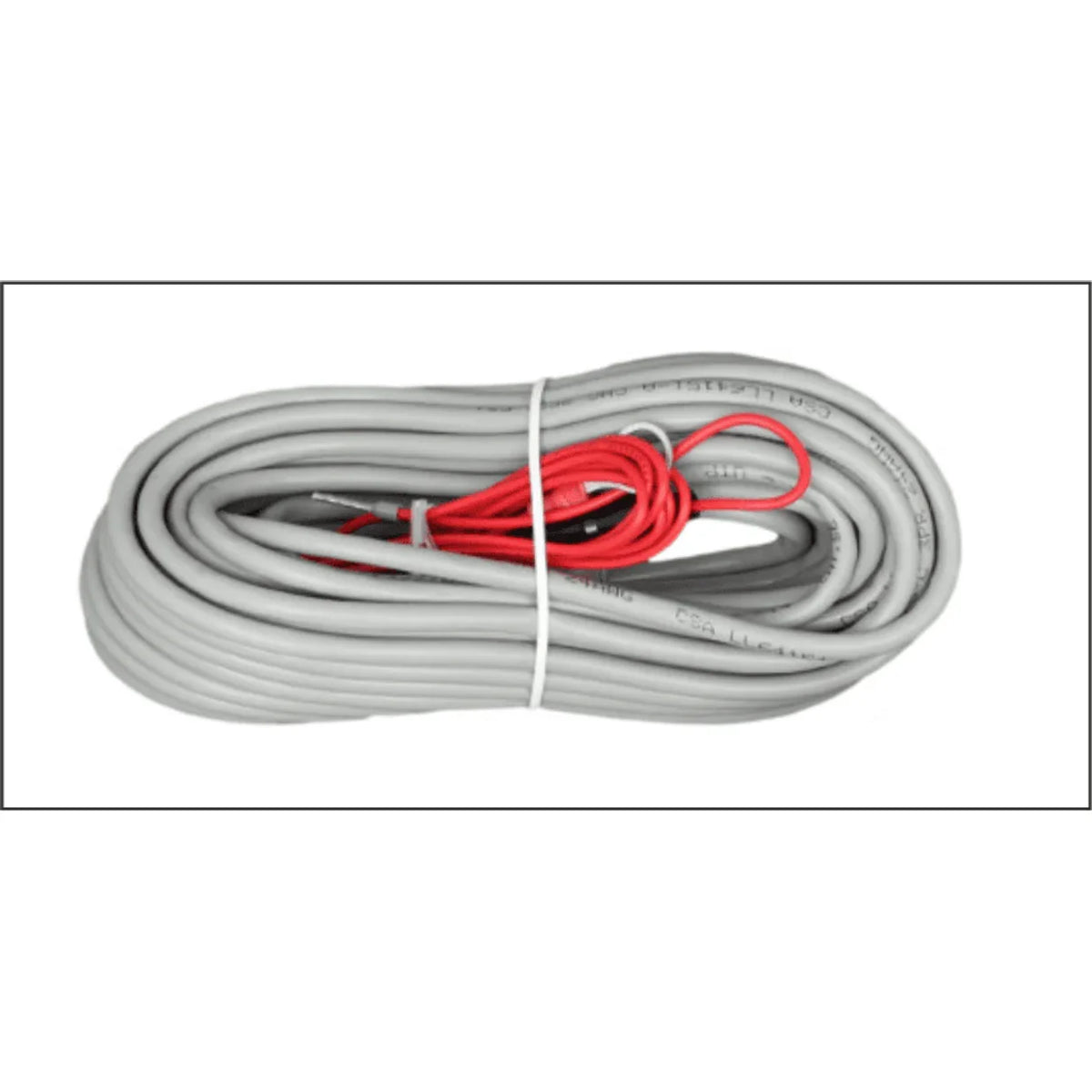

The BMV-700 ships with everything needed for a typical single-battery installation: a 500A / 50mV shunt with M10 (approx. 3/8") brass stud terminals, a 10-metre RJ12 UTP cable for the display connection, and a fused positive supply cable. The shunt is installed in the negative battery lead, and the monitor head unit can be flush-mounted using the supplied square or round bezel options. The 52mm body diameter fits standard instrument panel cutouts, common in RV and marine dashboards. No additional components or proprietary tools are required.

Applications Across Mobile and Stationary Systems

The BMV-700 is engineered for environments where reliable battery data is essential:

• Caravans and RVs: Monitor house battery status to avoid running out of power while free camping.
• Marine: Track battery consumption on sailboats and powerboats, with IP55-rated front protection against spray.
• Off-grid solar: Integrate with Victron MPPT controllers via VE.Direct for a complete energy management solution.
• Remote telemetry and industrial: Use the relay output for low-battery alarms in unattended equipment enclosures.

Take Control of Your Energy Storage

Equip your battery system with the Victron BMV-700 Battery Monitor and gain the clarity needed to manage power with confidence. Whether you are upgrading an existing setup or building a new off-grid installation, this monitor provides the accurate, actionable data that protects your investment and enhances your independence. Add the BMV-700 to your system today and eliminate the guesswork from battery management.
