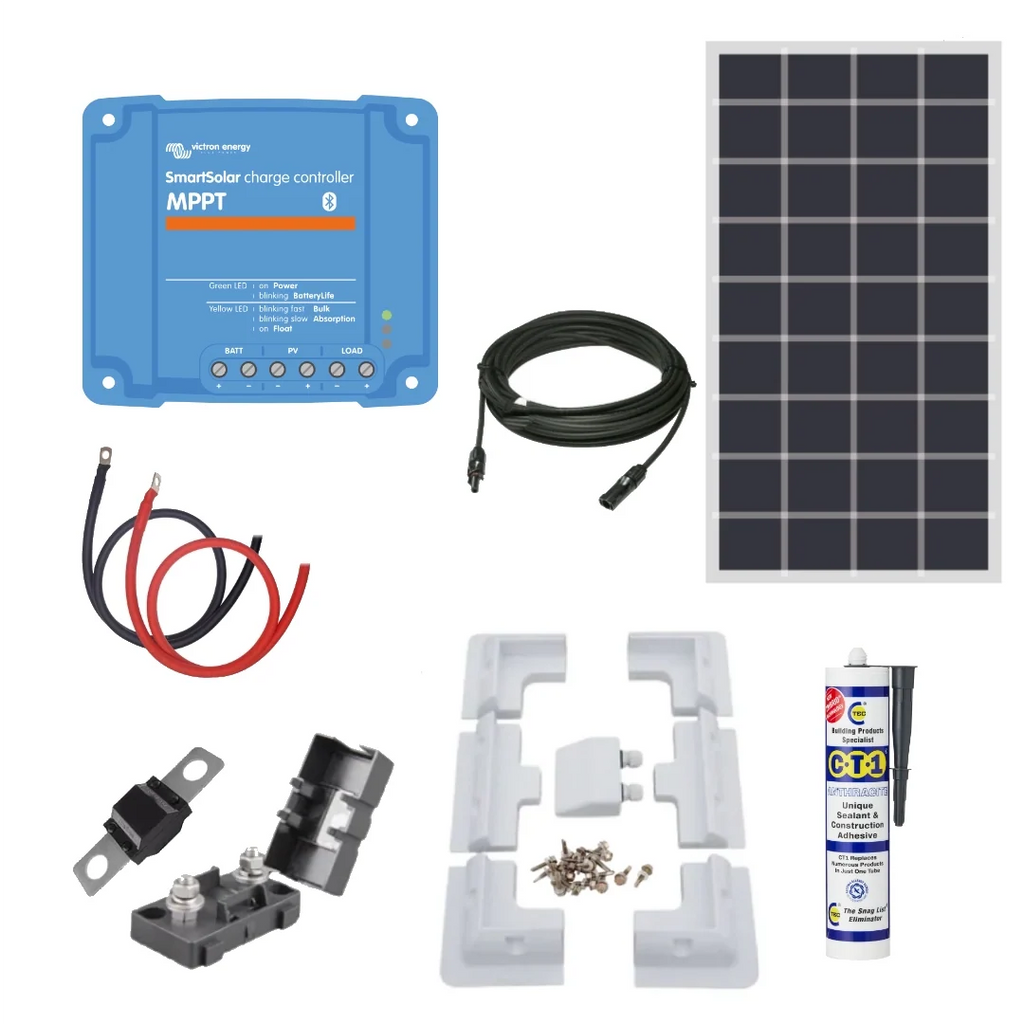

Victron SmartSolar MPPT 75/15 Solar Charging Kit with 130W Solar Panel

This complete Victron Energy 130W solar charging kit provides an efficient and dependable solution for charging leisure batteries in campervans, motorhomes, caravans, boats and small off-grid installations.

The kit combines the Victron SmartSolar MPPT 75/15 charge controller with a high-efficiency 130W monocrystalline solar panel, a 10-metre solar cable and ABS mounting brackets.

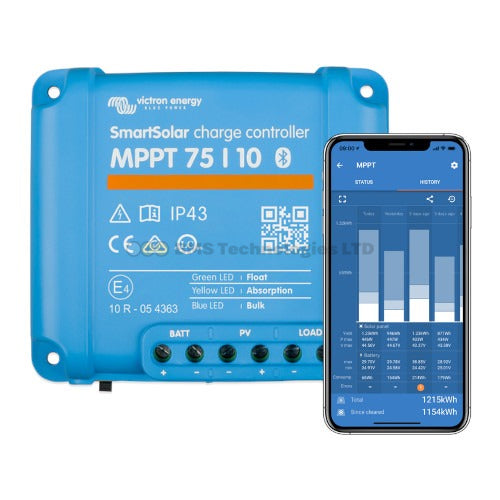

Victron SmartSolar MPPT 75/15

The Victron SmartSolar MPPT 75/15 uses ultra-fast Maximum Power Point Tracking technology to maximise the amount of energy harvested from the solar panel.

This is particularly beneficial during cloudy or changing weather conditions, when the available level of sunlight can vary throughout the day.

Built-In Bluetooth Monitoring

Integrated Bluetooth allows the controller to connect directly to the VictronConnect app on compatible smartphones, tablets and computers.

The app allows you to:

Monitor solar generation
Check battery voltage and charging current
View daily and historical solar yield
Adjust charging settings
Select the appropriate battery profile
View system status and fault notifications
Install compatible firmware updates
No separate Bluetooth accessory is required.

Intelligent Battery Charging

The SmartSolar MPPT 75/15 uses intelligent charging algorithms to charge the connected battery safely and efficiently.

It can be configured for a range of battery chemistries, including:

Lithium LiFePO₄
AGM
Gel
Flooded lead-acid
Sealed lead-acid

Correct configuration helps improve charging performance, protect the battery and extend its service life.

Programmable Load Output

The controller includes a programmable load output that can be used to power suitable low-current DC equipment.

The load output can automatically disconnect connected equipment when the battery voltage becomes too low, helping to protect the battery from excessive discharge.

Controller Specifications

Maximum PV open-circuit voltage: 75V
Maximum battery charging current: 15A
Suitable for 12V and 24V battery systems
Ultra-fast MPPT technology
Built-in Bluetooth
VictronConnect app compatibility
Programmable load output
Intelligent multi-stage battery charging
Compatible with lithium and lead-acid batteries

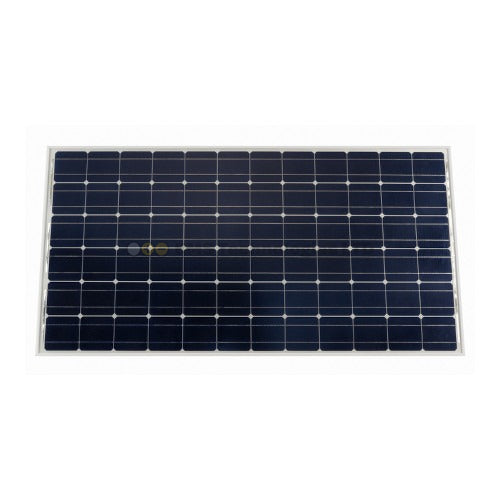

Victron Energy 130W Monocrystalline Solar Panel

The included Victron Energy 130W monocrystalline solar panel provides dependable energy generation in both direct sunlight and lower-light conditions.

Its compact dimensions make it particularly suitable for campervan, motorhome, caravan and boat roofs where installation space may be limited.

Solar Panel Features

Rated output: 130W
Nominal voltage: 12V
Cell type: Monocrystalline
Dimensions: 1200 × 668 × 30mm
Excellent low-light performance
High-transmission tempered glass
Strong aluminium frame
Integrated bypass diodes to reduce shading losses
Sealed and weather-resistant construction
Suitable for permanent roof mounting

Solar Panel Warranty

25-year limited warranty on power output and performance
5-year limited warranty on materials and workmanship

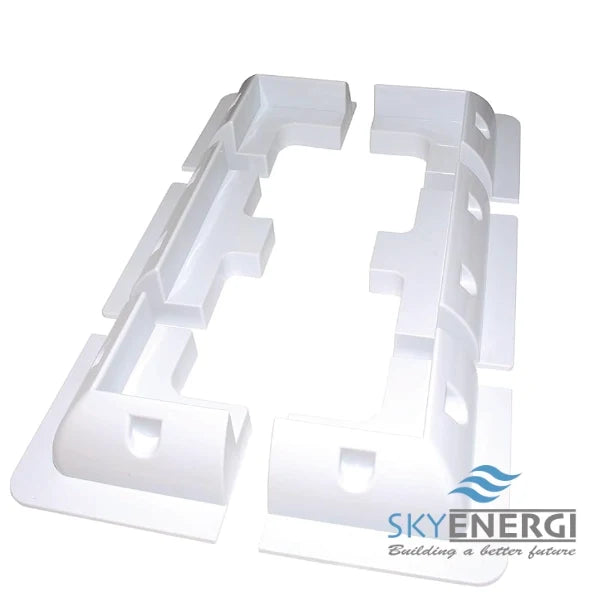

ABS Solar Panel Mounting Brackets

The supplied ABS mounting bracket kit provides a secure and tidy method of installing the solar panel onto a suitable vehicle, caravan or boat roof.

The lightweight and durable brackets help maintain airflow beneath the panel while avoiding the need to drill through the panel frame.

A suitable automotive or marine-grade adhesive and sealant should be used in accordance with the manufacturer’s installation instructions.

Ideal For

This complete solar charging kit is suitable for:

Campervans
Motorhomes
Caravans
Boats
Horseboxes
Cabins and garden rooms
Portable power systems
Small off-grid installations
Leisure and auxiliary battery charging

Combining dependable Victron Energy equipment, Bluetooth monitoring and a compact 130W solar panel, this kit provides a straightforward and reliable way to maintain your leisure battery using solar energy.
