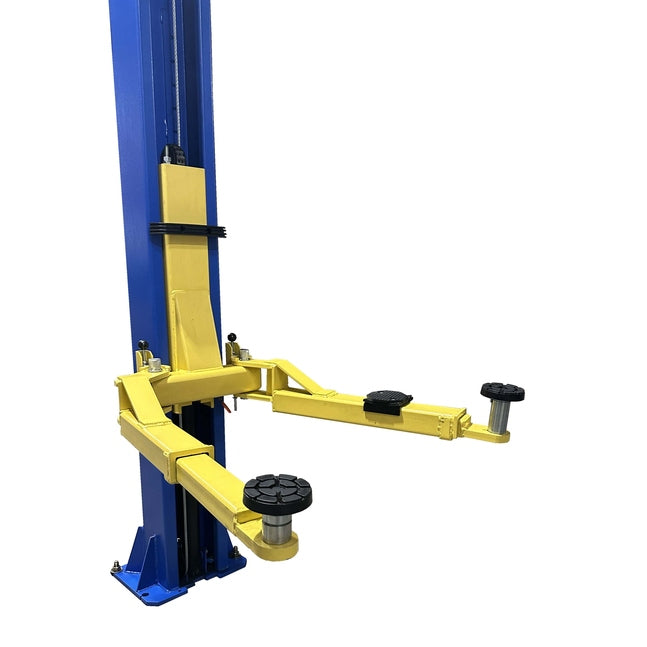

Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric
Warehouse Pickup
£1,321.00
Sale price
£1,321.00
Regular price
£2,076.00
Skip to product information
Tuxedo TP9KACX 9,000 lb Two Post Clear Floor - Asymmetric
£1,321.00
Sale price
£1,321.00
Regular price
£2,076.00
Shipping calculated at checkout.
TP9KACX
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Description

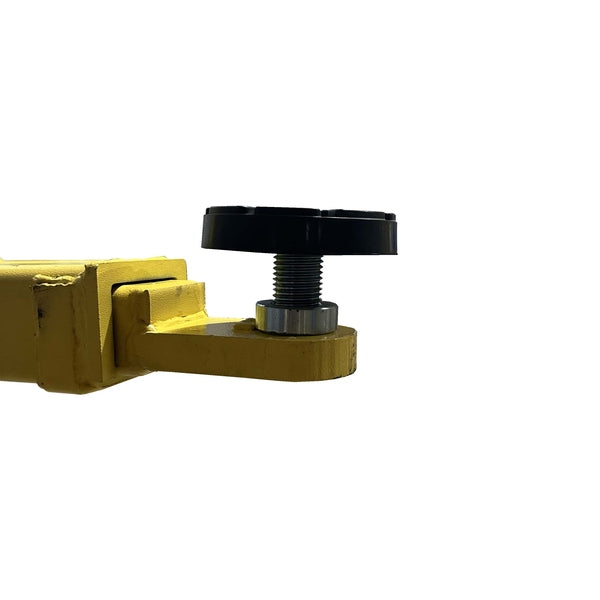

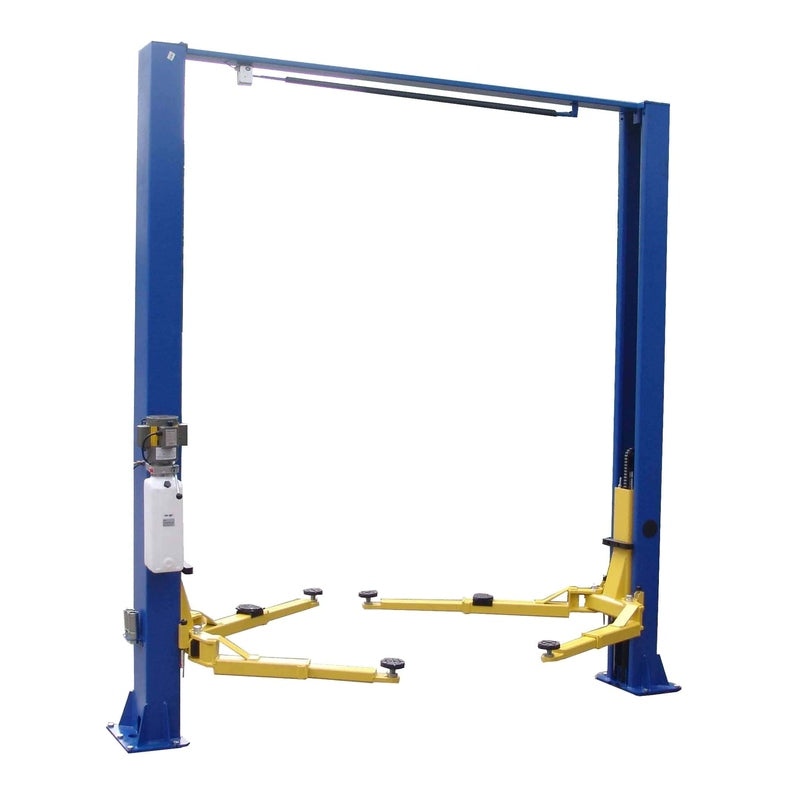

The new TP9KACX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the bestTwo Post Lift values in the industry!
Features
- 9,000 lbs capacity

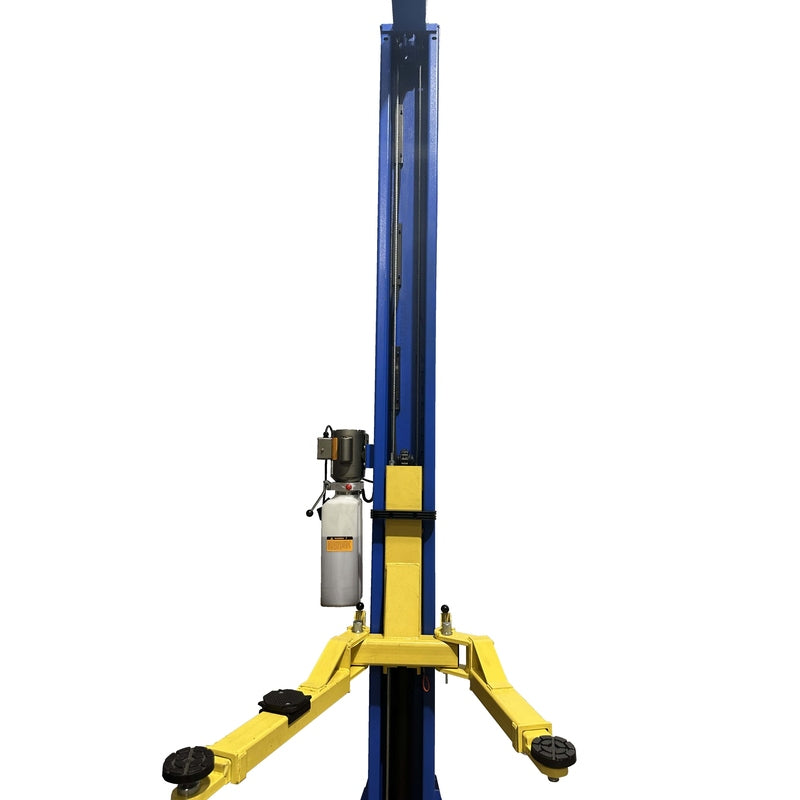

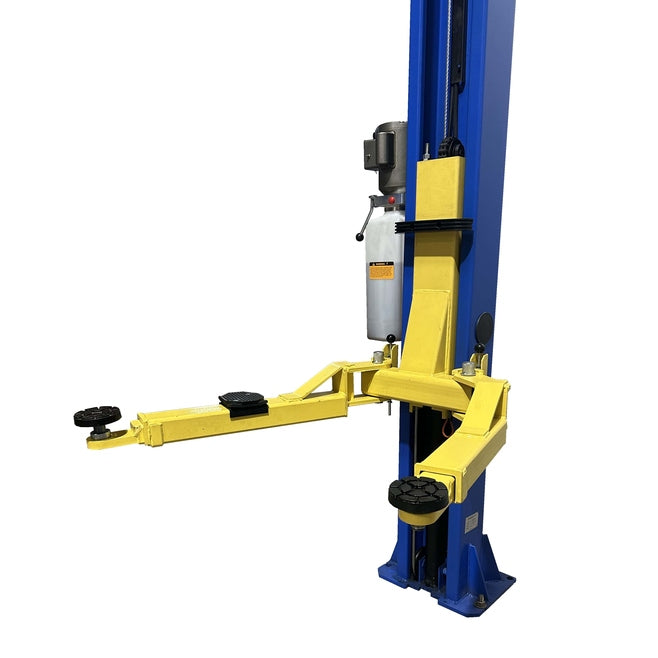

- ASymmetric Arms

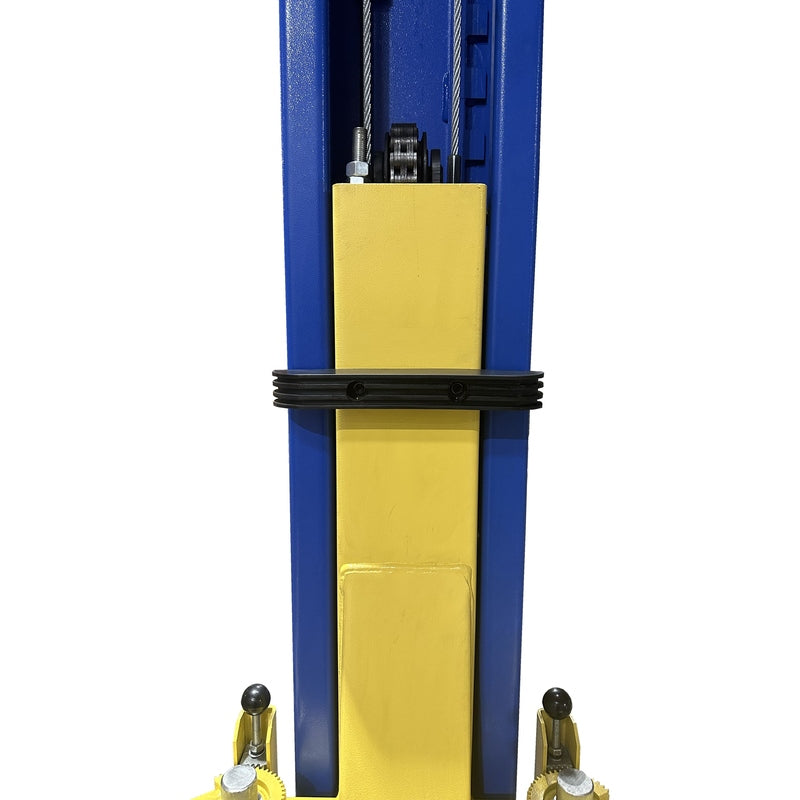

- Rubber Door Guards

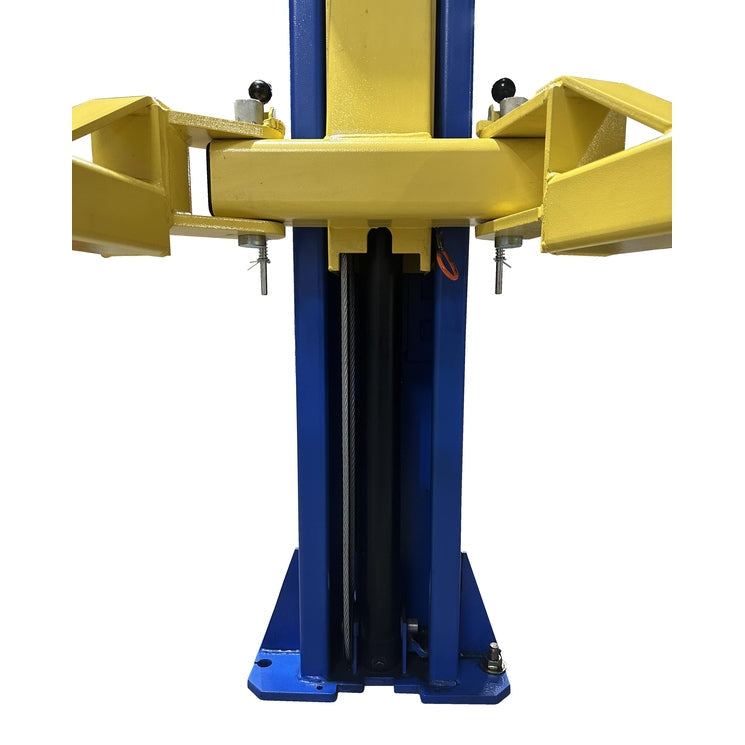

- Chain Drive Cylinders
- Dual Point Lock Release

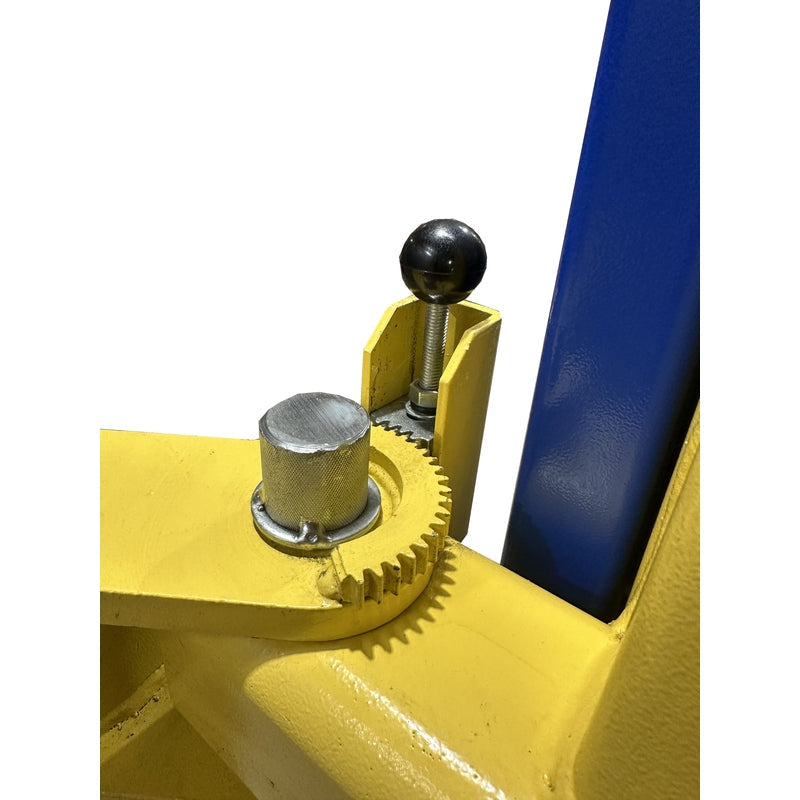

- Auto Arm Restraint System

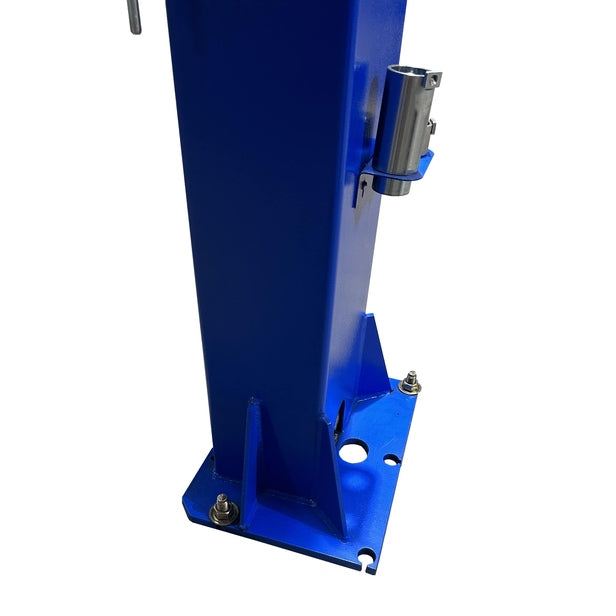

- Single Piece Column
- Internal Hose routing

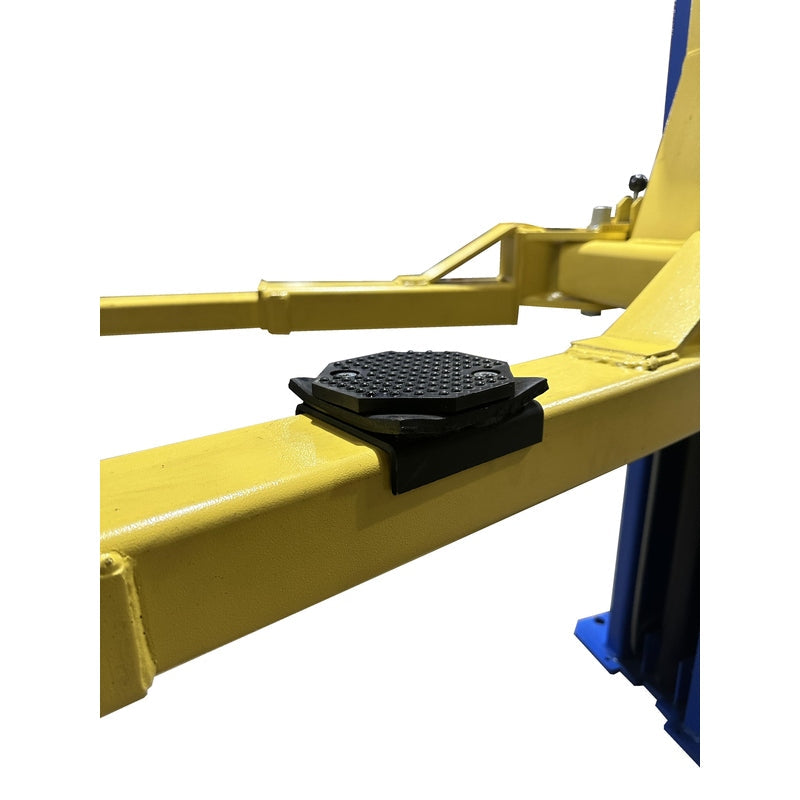

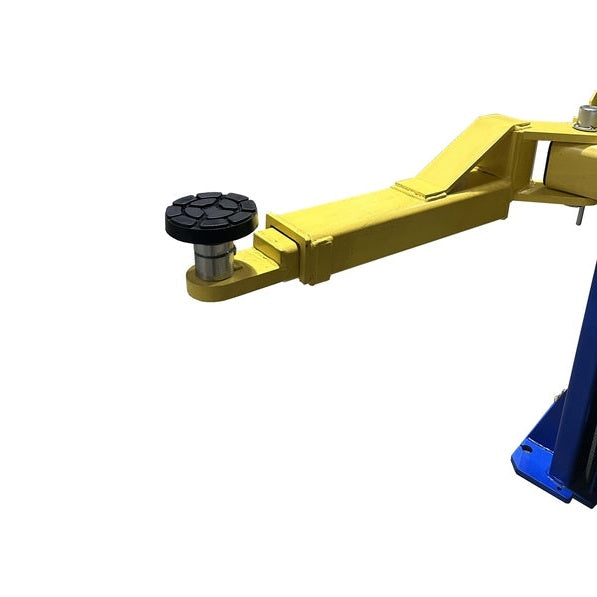

- Low profile Spin Up Lift Pads

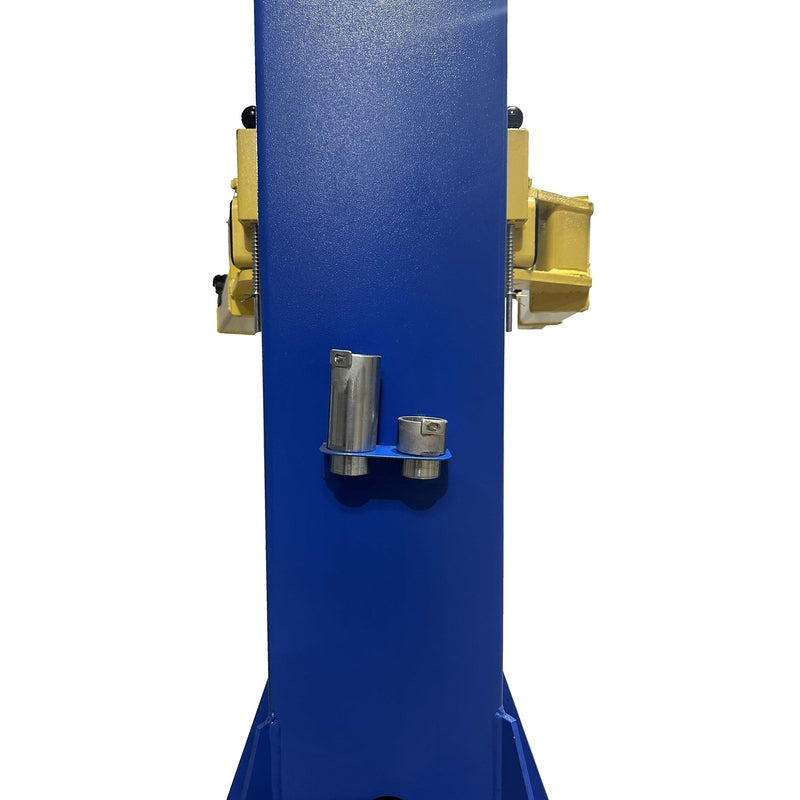

- Stackable Adapters Included

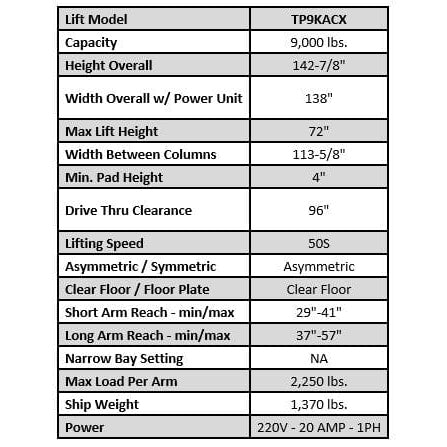

Specifications
| Lift Model | TP9KACX |
| Capacity | 9,000 lbs. |
| Height Overall | 142-7/8" |
| Width Overall w/ Power Unit | 138" |
| Max Lift Height | 72" |
| Width Between Columns | 113-5/8" |
| Min. Pad Height | 4" |
| Drive Thru Clearance | 96" |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach min/max | 29"-41" |
| Long Arm Reach min/max | 37"-57" |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,370 lbs |

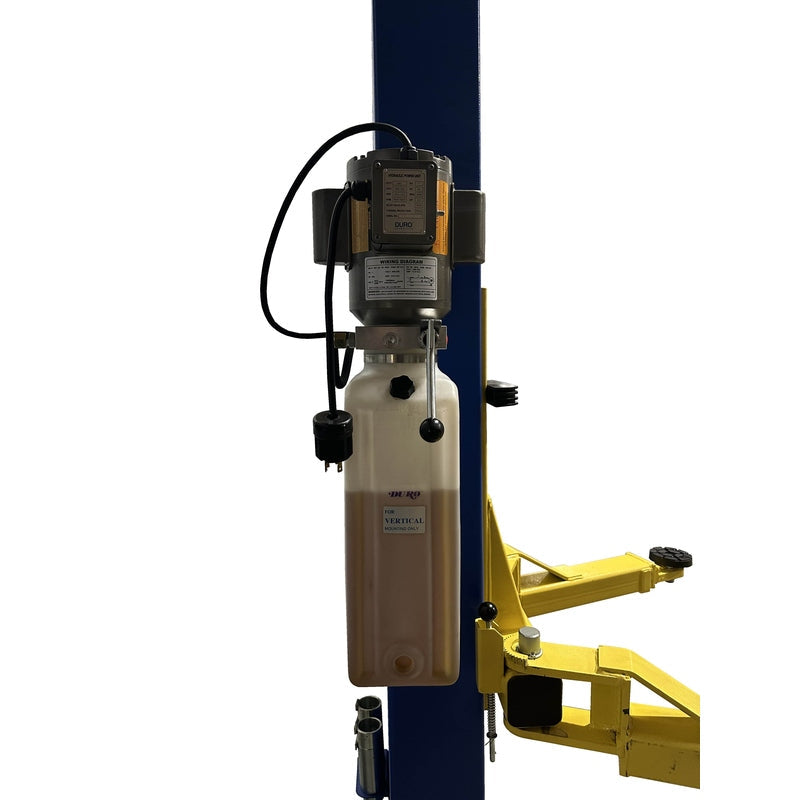

| Power | 220V 20 AMP 1 PH |
Manual
Tuxedo TP9KACX 9,000 lb 2 Post Lift Manual
Warranty
Tuxedo covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. Tuxedo pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
