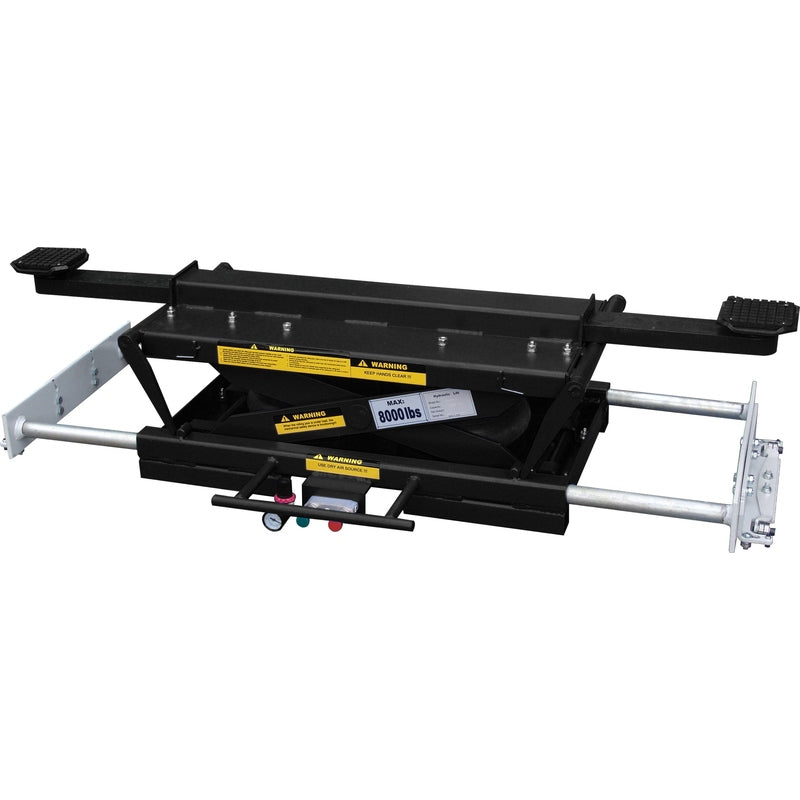

Tuxedo Rolling Air Jack 8,000 lb. Capacity

The RAJ-8K Rolling Air Jack is a high quality, low profile, Air Bag, scissor type rolling bridge Jack with Pneumatic operation that includes exclusive telescoping Universal Roller Body Bracket Assemblies designed for either High Mount or Low Mount applications.

The RAJ-8K adjustable spring loaded Roller Body Assemblies also consist of dual precision on-rail type Roller Bearing Wheels and Side Bearing Guide Wheels designed for smooth and safe operation. The RAJ-8K Jacks also come standard with stackable Pad & Height Adaptors, dual Air Bags, adjustable Pressure Regulator & Locking Height Position.

Features

Universal Roller Body design with dual spring loaded precision Roller Bearing & Side Guide Wheels with adjustable Height for Low, Medium & High Jack Rail configurations.
Low Profile configuration
Rolls on the top edge of Jack Rail for smooth maneuverability
Dual Height Telescoping Support Arms
Pneumatic operation w/ Adjustable Pressure Regulator
Dual Air Bags
Stackable Pad & Height Adaptors 1-5/16 & 5 Height Adaptors (1 Pair each)
Ships in durable Wooden Crate

Specifications

Lift Capacity: 8,000 lbs.
Telescoping Support Arms Min/Max: 38-3/8 60 (Roller Body wheel center)
Lifting Arms Min / Max: 35-7/16 57-1/2 (Pad center)
Lifting Height Min/Max: 6-9/16 14-7/8 (Pad Adaptor only)
High Mount adjustable Roller Body Bracket Height: 1
Low Mount adjustable Roller Body Bracket Height: 1
Stackable Adaptor Heights: 1-5/16 & 5 (1 Pair)
Locking Positions: 1ea
Required Power: 100 125 PSI / 10 20 CFM
Ship Weight: 426 lbs.

Warranty

Tuxedo covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. Tuxedo pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
