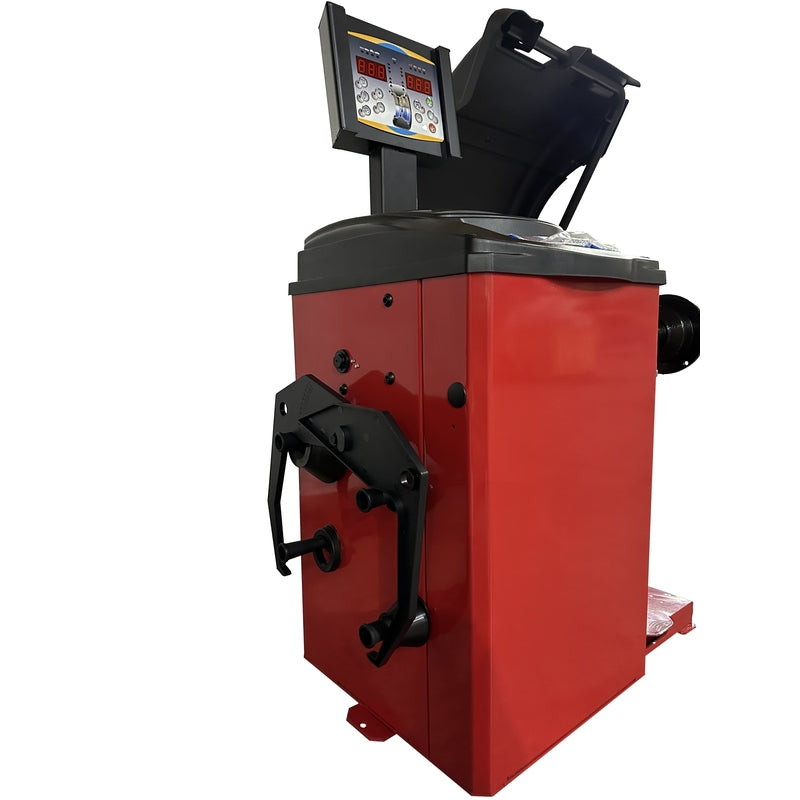

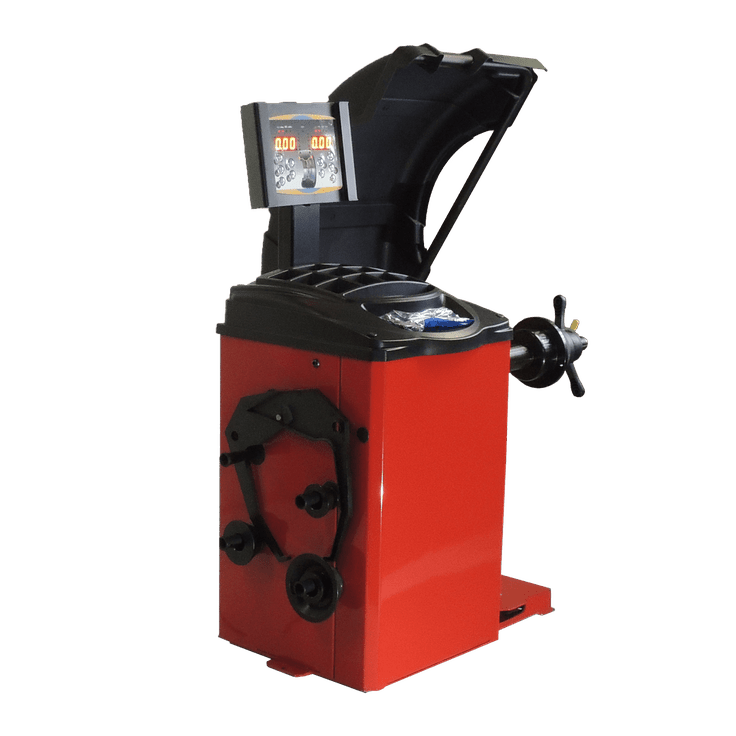

Tuxedo WB-CB66-VE Wheel Balancer

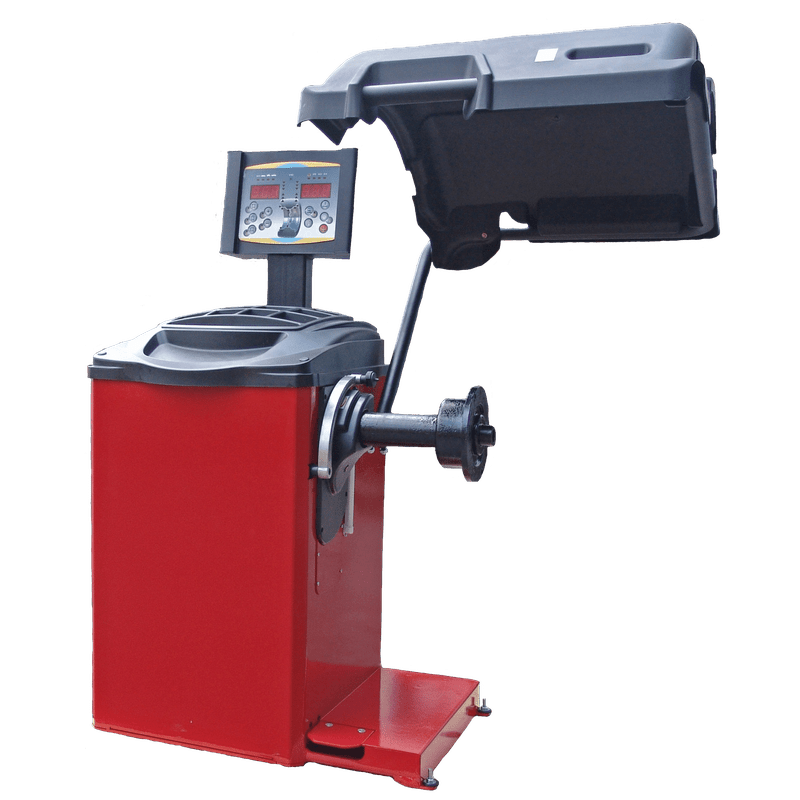

The CB66-VE Wheel Balancer is a highly accurate & reliable wheel balancing system designed to accommodate large rims up to 28" in diameter and overall wheel diameters up to 44". A 40mm Balancing Shaft provides incredible durability. At the same time, the exclusive Laser & Light feature illuminates the inside of the wheel at the unbalanced weight position, for convenient & precise wheel weight applications. The CB66-VE also comes standard with Multi-Mode Balancing options, along with Power Saving Mode, while allowing the user to choose between 5 Standard & 2 ALU Smart balancing configurations. A high-performance balancer at an unbeatable value!

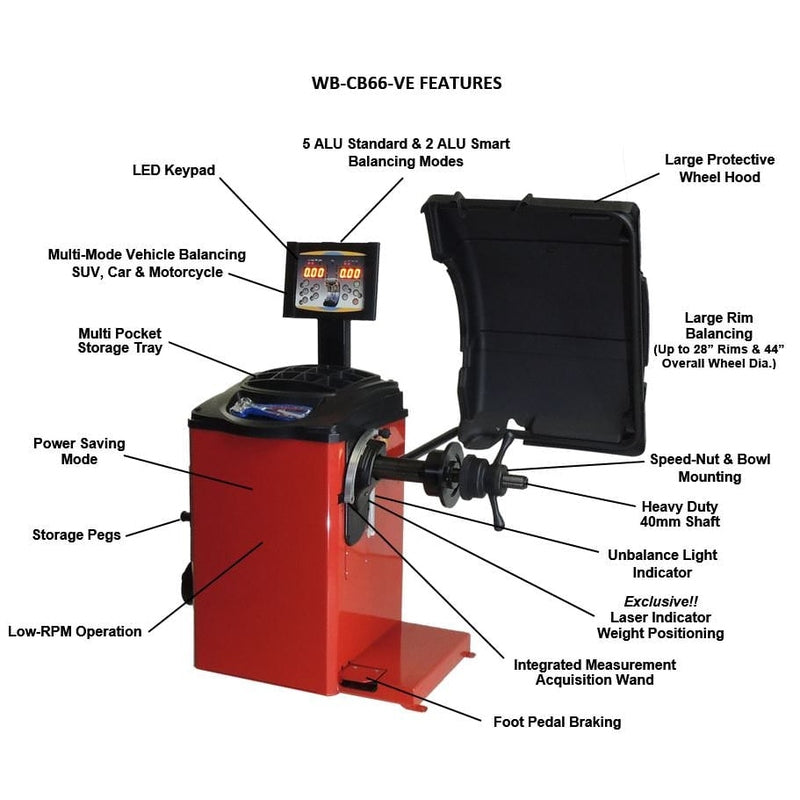

Features

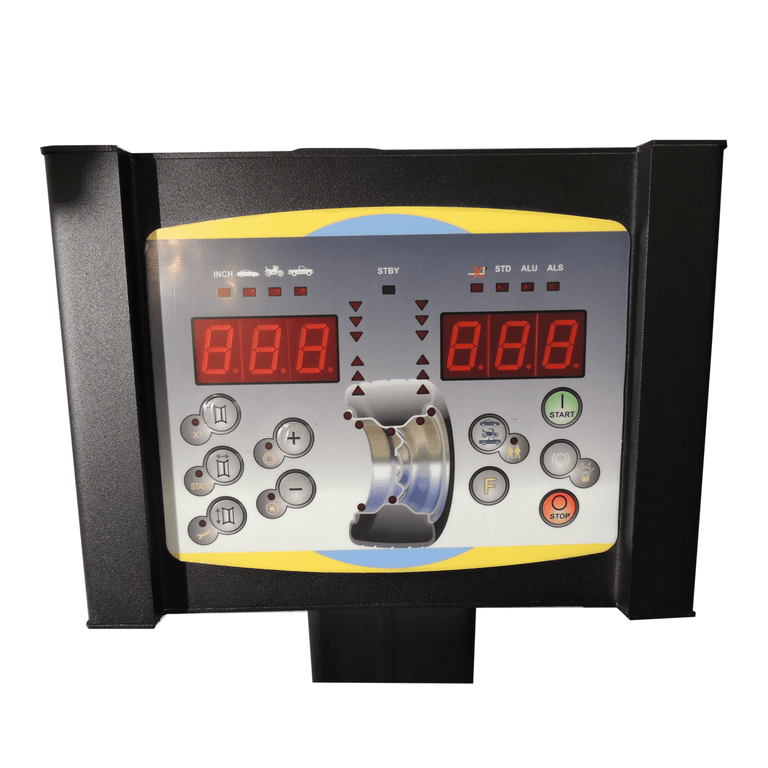

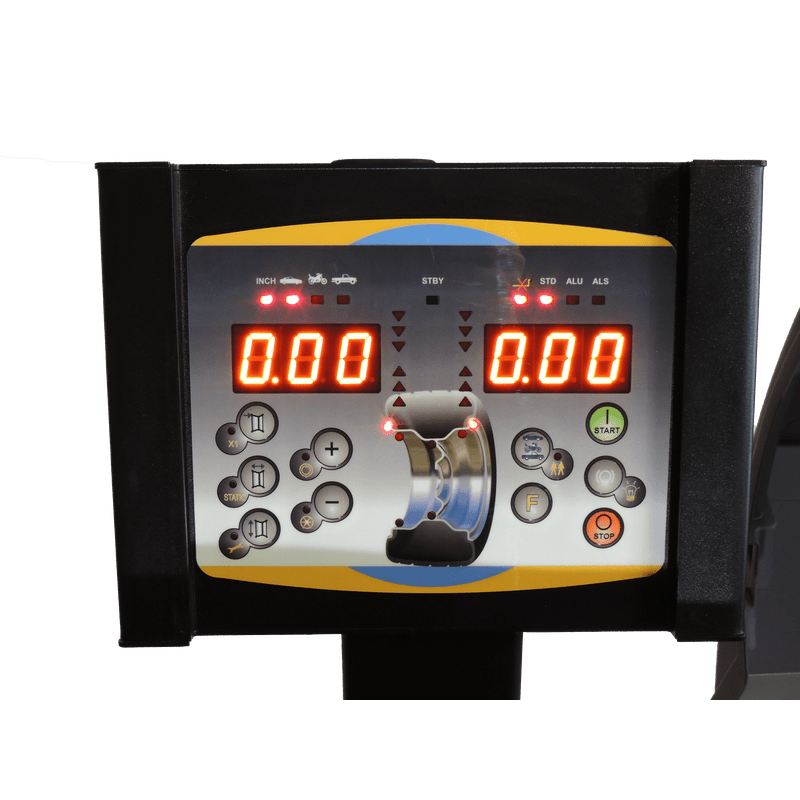

• 1. User Friendly Operation LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.

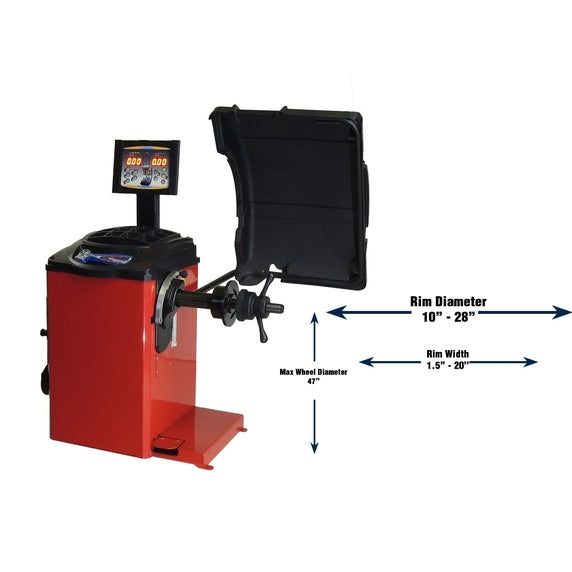

• Large Rim Diameter Balancing able to balance up to 28 Rim diameter & 44 overall Wheel Diameter.
• Multi-Mode Vehicle Balancing standard with SUV, Car & Motorcycle balancing modes.
• Low-RPM Operation at 140 RPM, the balancers life is further extended for sensitive electronics & moving components, all while providing highly accurate wheel balancing.
• Ease-Of-Use with manual measurement input for distance & diameter with 5 ALU Standard modes and 2 ALU Smart modes.
• Exclusive Laser Indicator lights up automatically at the unbalance weight position under ALUS mode in the 6 oclock wheel position.
• Integrated Measurement Acquisition Wand allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
• Light Indicator illuminates inside of wheel automatically at the unbalanced weight position, for improved wheel weight applications.

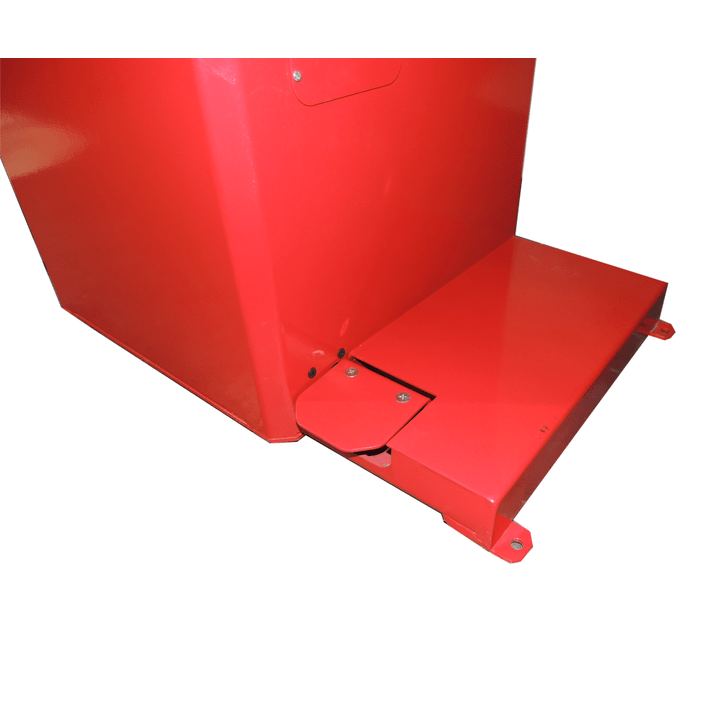

• Foot Pedal Braking System conveniently secures the wheel in the unbalanced position to accurately apply balance wheel weights.

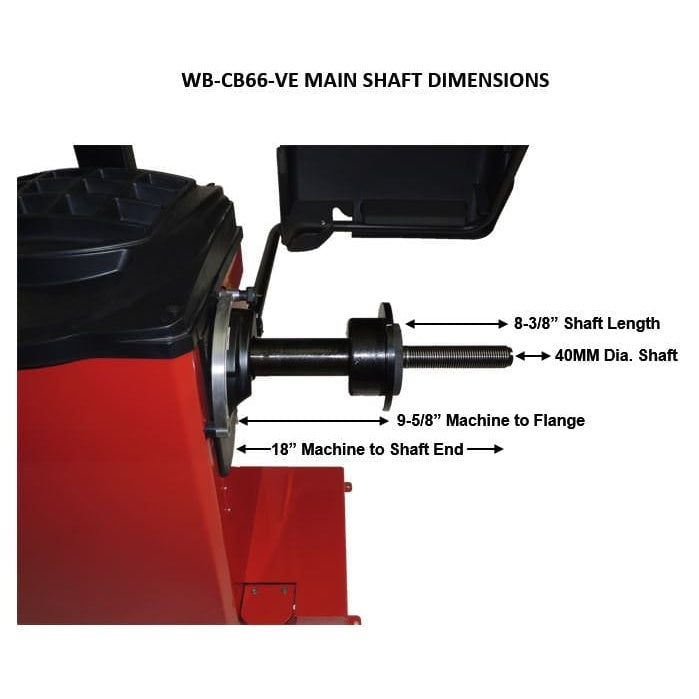

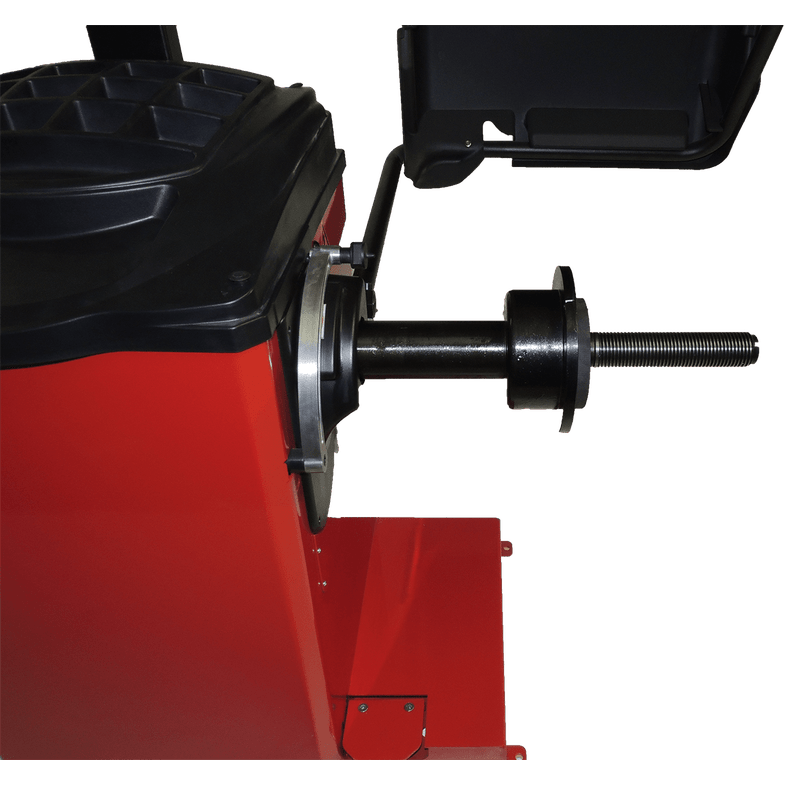

• Extra Long, Heavy Duty Balancing Shaft the 12" long, 40mm diameter balancing shaft accommodates wide range of wheels, including unique aftermarket wheels of different sizes & shapes.

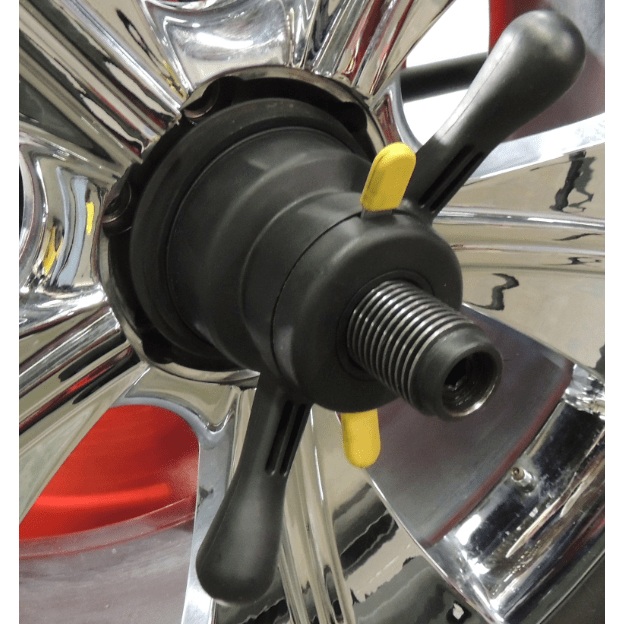

• Speed-Nut Mounting the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
• Multi Pocket Wheel Weight Shelf 14 articulated pockets, over 1.5" deep, allowing plenty of storage for weights & tooling.

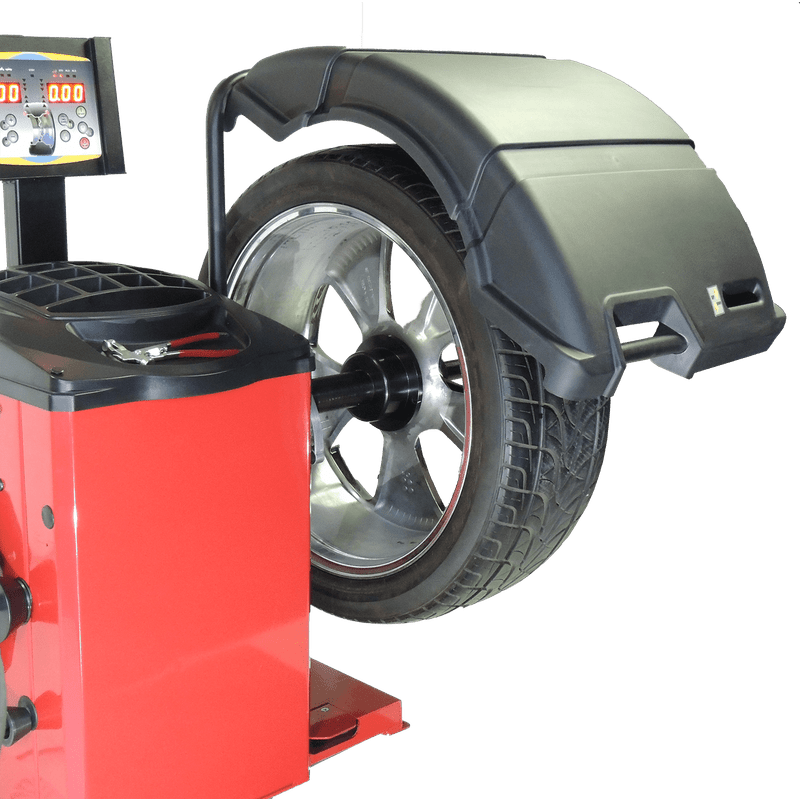

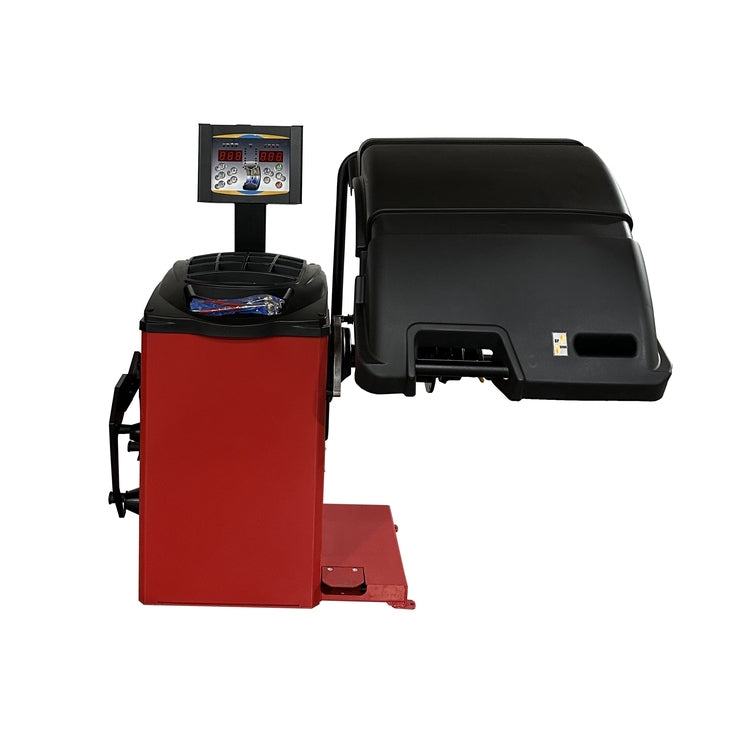

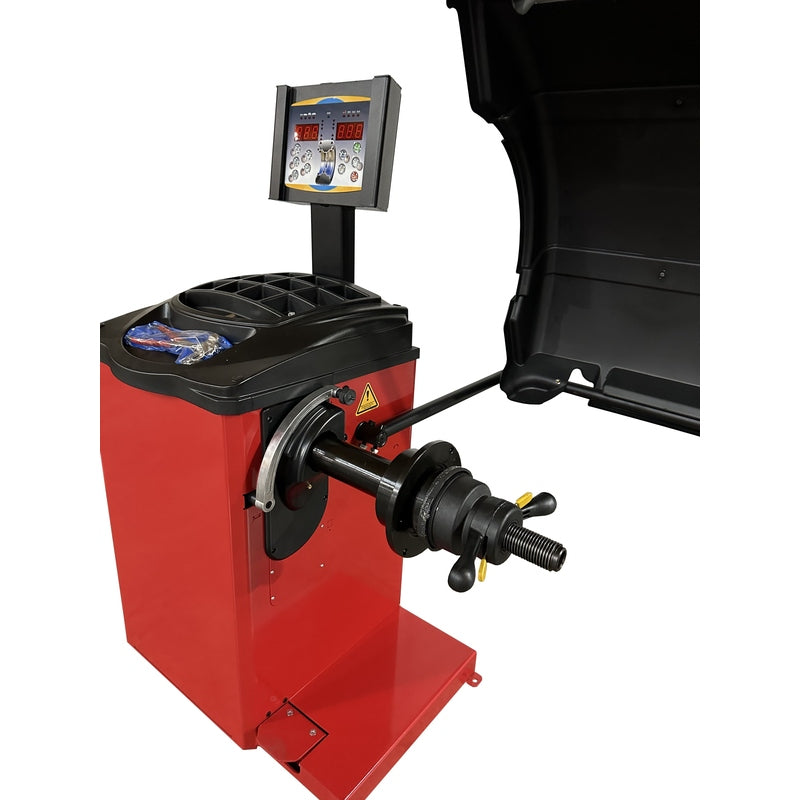

• Large Wheel Shroud the large 38 wheel hood prevents debris from flying off the tire while in use.
• Power Saving Mode automatically puts machine in stand-by mode after 5 minutes of non-usage.

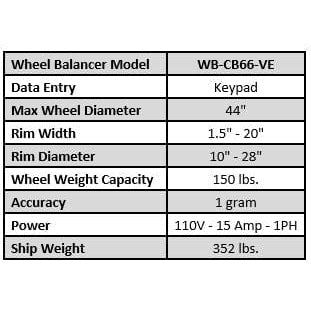

Specifications

Manual

Tuxedo WB-CB66-VE Wheel Balancer Manual

Warranty

Tuxedo covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. Tuxedo pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
