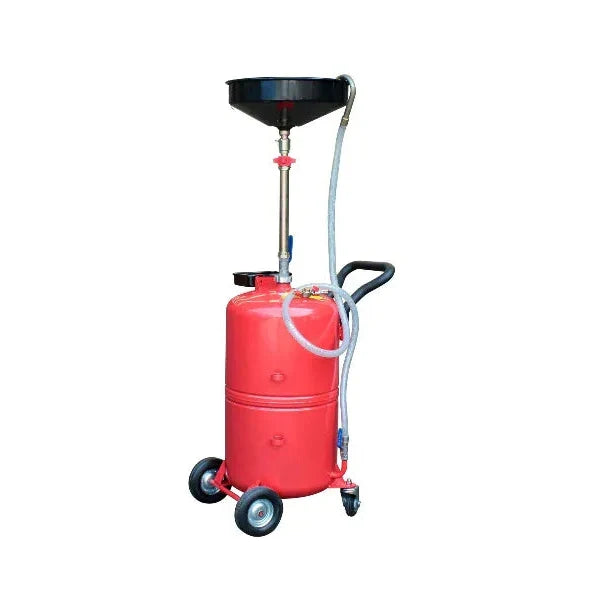

Tuxedo 24G-SE-DRAIN 24 Gallon “Self Evacuation” Oil Drain

If your shop sees a steady stream of oil services, the last thing you need is a slow drain cart bottlenecking the bay. The Tuxedo 24G-SE-DRAIN is a high-capacity, air-powered oil drain built for faster, cleaner fluid handling—capture it, contain it, and evacuate it with minimal effort. With a generous 24-gallon capacity and a rugged steel reservoir, it’s designed to keep up with busy technicians and long days.

The wide 17" diameter funnel helps you catch the stream even when the drain plug doesn’t cooperate, while the built-in contamination screen keeps debris out of the tank. Height adjusts from 50" to 73", making it easy to set under lifted vehicles, trucks, and SUVs. When the reservoir is full, the pneumatic self-evacuation system does the heavy lifting—hook up shop air, set the pressure using the gauge and regulator, then send used oil out through the 7 ft evacuation hose and nozzle with controlled flow.

It’s not just functional—it’s built smart. A dedicated storage tray keeps essentials like plugs, filters, and gaskets from disappearing into the tool abyss. Add a durable powder-coat finish and an easy-rolling wheel setup (two swivel casters + two fixed wheels), and you’ve got an oil drain that moves easily, works cleanly, and feels right at home in a professional bay.

Key Highlights

• 24 Gallon Capacity: High-volume fluid handling for busy shops and fleet work.
• Pneumatic Self-Evacuation: Uses shop air to evacuate quickly—less pumping, less downtime.
• Steel Reservoir Tank: Rugged build with a fill sight tube for quick level checks.

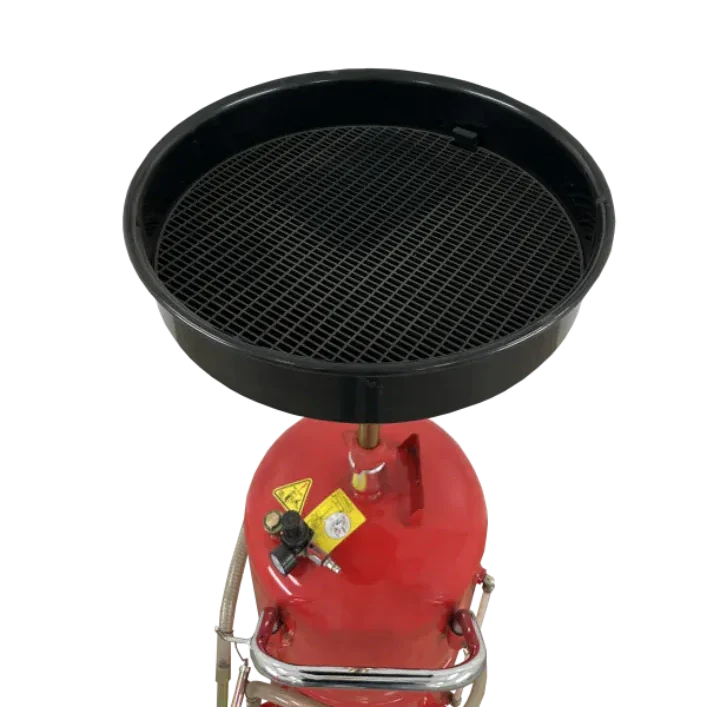

• 17" Funnel + Debris Screen: Wide catch area with built-in contamination screen to trap debris.

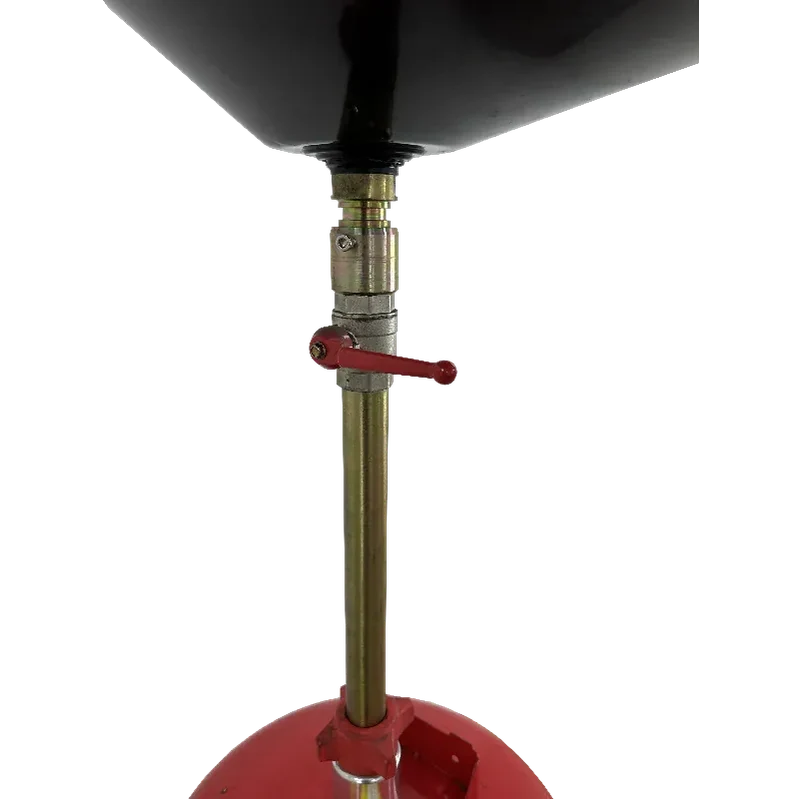

• Adjustable Height: Set from 50" to 73" for easy positioning under lifts.

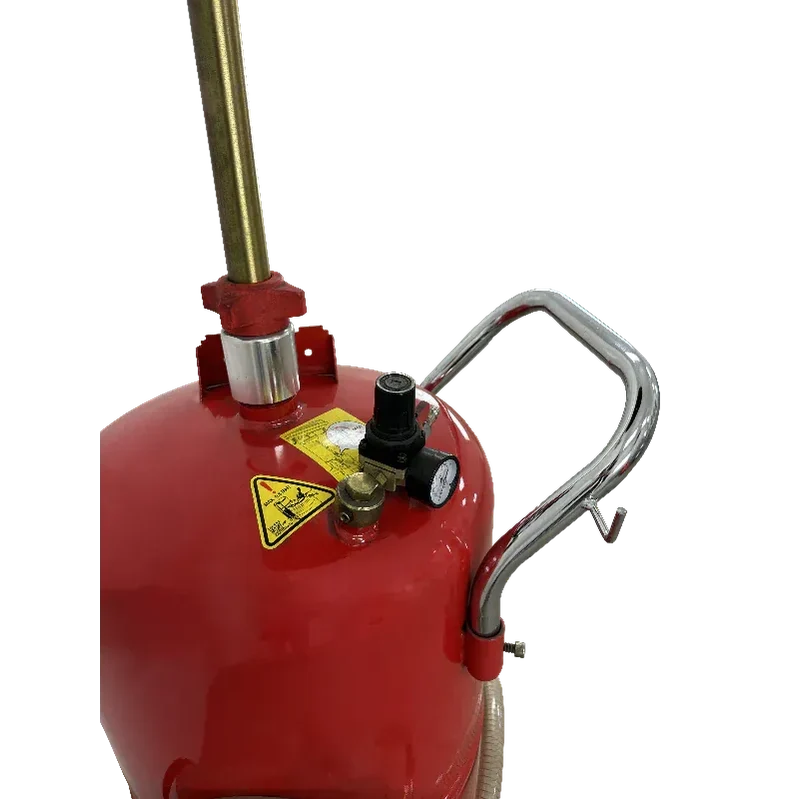

• Gauge & Regulator: Control air pressure for smoother, safer evacuation.
• 7 ft Evacuation Hose + Nozzle: Longer reach and better control when discharging.
• Built-In Storage Tray: Handy spot for plug, filter, and gasket during service.
• Durable Powder-Coat Finish: Stands up to daily shop wear and fluid exposure.

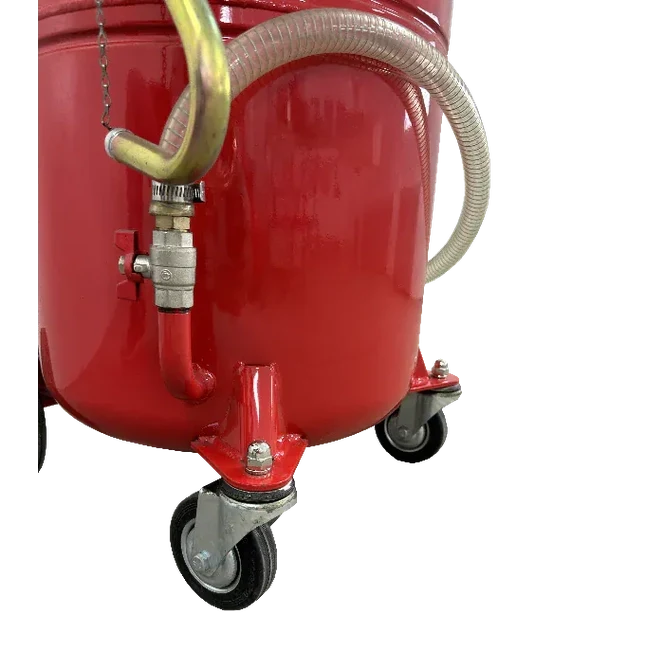

• Easy Mobility: Two swivel casters + two fixed wheels for stable rolling and steering.
• Safe & Easy to Use: Designed for clean handling and efficient workflow.

How You’ll Use It (Everyday Workflow)

• Roll the drain into position and adjust the funnel height between 50" and 73".
• Drain oil into the wide funnel; the contamination screen catches debris.
• Monitor level using the reservoir’s fill sight tube.
• Connect shop air, set pressure using the gauge and regulator, and evacuate through the 7 ft hose and nozzle.
• Use the storage tray to keep the plug, filter, and gasket organized during the job.

Specifications

Bottom Line

The Tuxedo 24G-SE-DRAIN is built for faster oil service with less effort. With 24-gallon capacity, a rugged steel tank, and air-powered self-evacuation, it keeps your bay cleaner, your workflow smoother, and your technicians moving. Capture it cleanly. Evacuate it quickly. Get on to the next job.

Warranty

Tuxedo covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. Tuxedo pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
