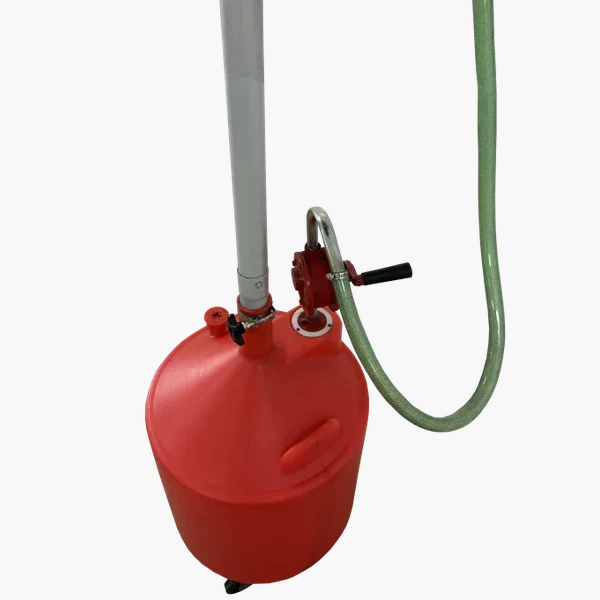

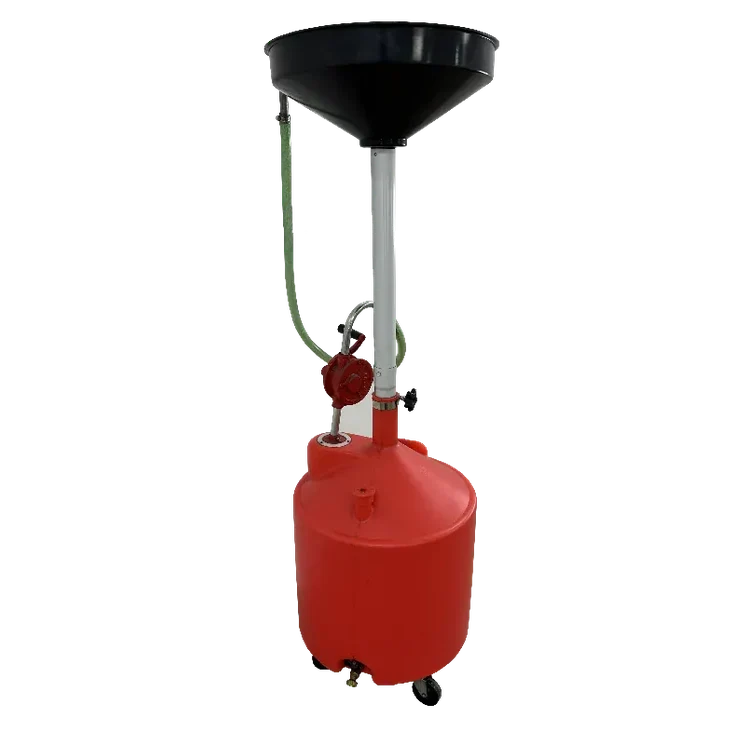

Tuxedo 18G-DRAIN 18 Gallon Oil Drain

Oil changes get messy fast—unless your drain setup is built to keep up. The Tuxedo 18G-DRAIN is a shop-ready, portable 18-gallon oil drain designed to capture, contain, and evacuate used fluids cleanly, whether you’re working under a lift or sliding it under a truck in a busy bay. It’s stable, easy to maneuver, and sized for real-world service volume—because a “small” drain pan doesn’t cut it when the work keeps rolling in.

The wide 17" diameter plastic funnel helps you hit the target without the splatter, while the built-in contamination screen catches debris before it reaches the reservoir. The translucent polyethylene tank makes it easy to check fluid level at a glance, and integrated hand grips make moving and pouring less awkward (and less risky). When it’s time to empty, the manual hand-pump evacuation system paired with a 4 ft. evacuation hose and nozzle gives you controlled discharge—no electricity, no air supply, no drama.

From the adjustable height range to the smooth-rolling casters, this unit is built for one thing: faster, cleaner fluid service with fewer shop-floor headaches.

Key Highlights

• 18 Gallon Capacity: Handles high-volume fluid service with fewer trips to empty.

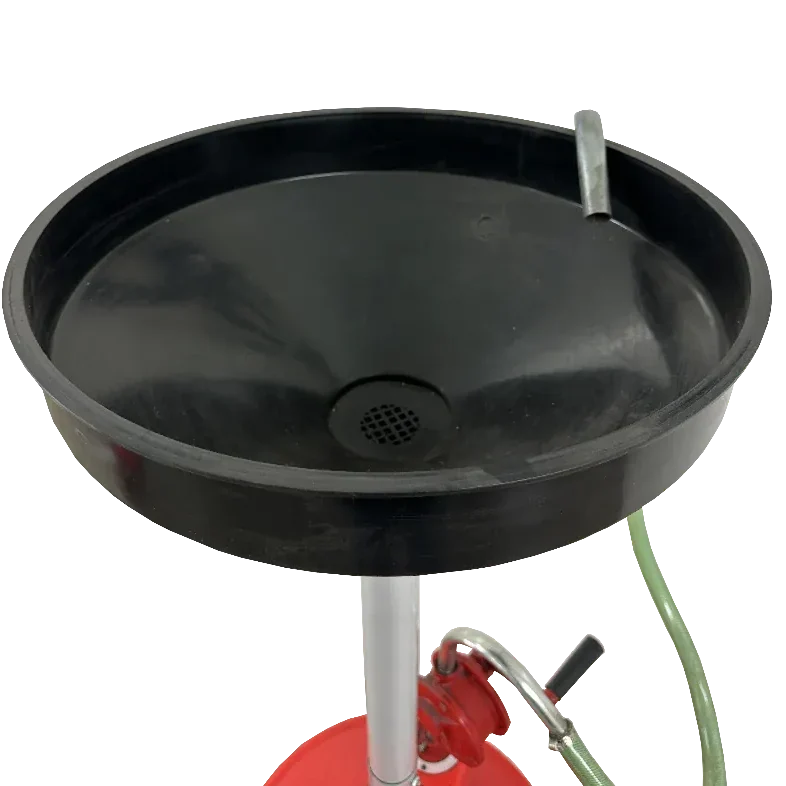

• 17" Wide Funnel: Larger catch area reduces spills and cleanup time.
• Contamination Screen: Built-in funnel screen helps trap debris before it enters the reservoir.
• Adjustable Height: Raises from 48" to 71" for easy positioning under lifts and trucks.
• Translucent Poly Reservoir: Quick visual fluid-level check—no guessing.
• Pour Spout & Cap: Easier, cleaner controlled pouring when needed.

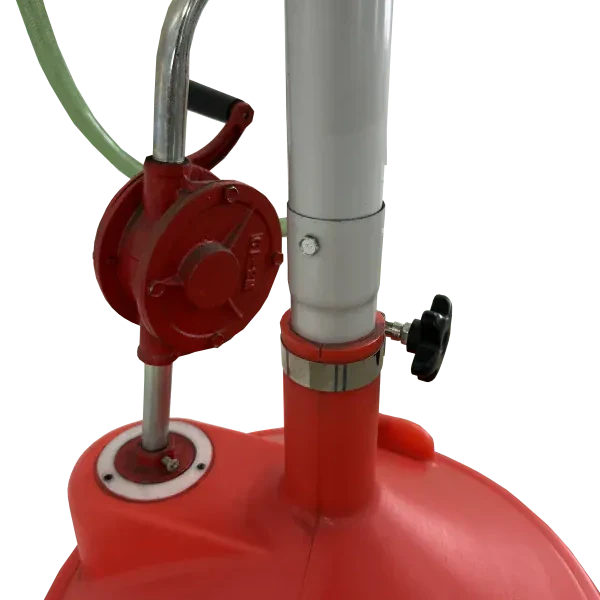

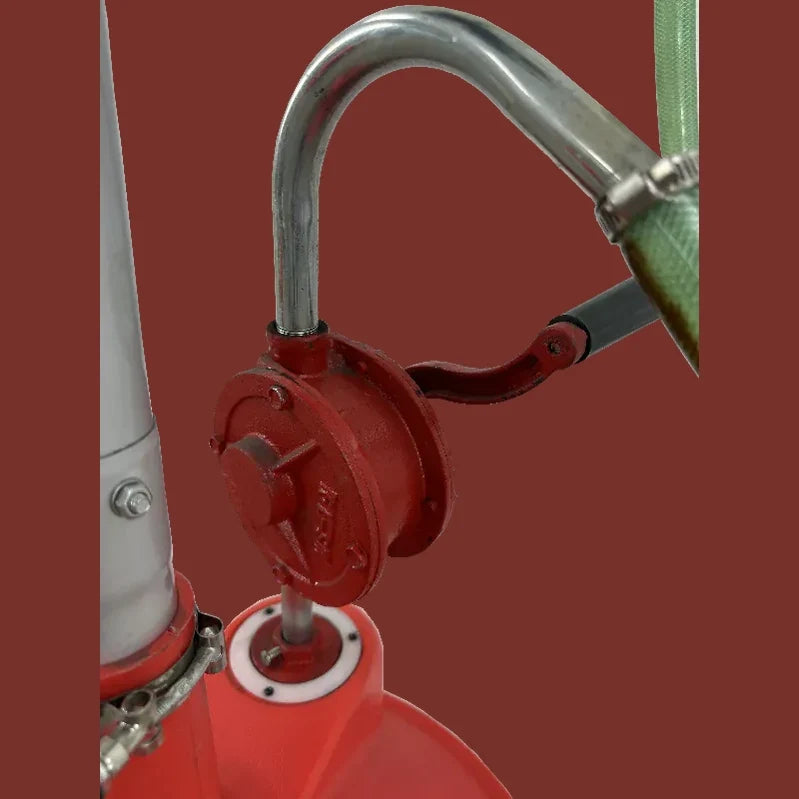

• Manual Hand-Pump Evacuation: Simple evacuation without requiring shop air or power.
• 4 ft Evacuation Hose + Nozzle: Better reach and more control during discharge.
• Built-In Hand Grips: Designed for safer handling and transport.

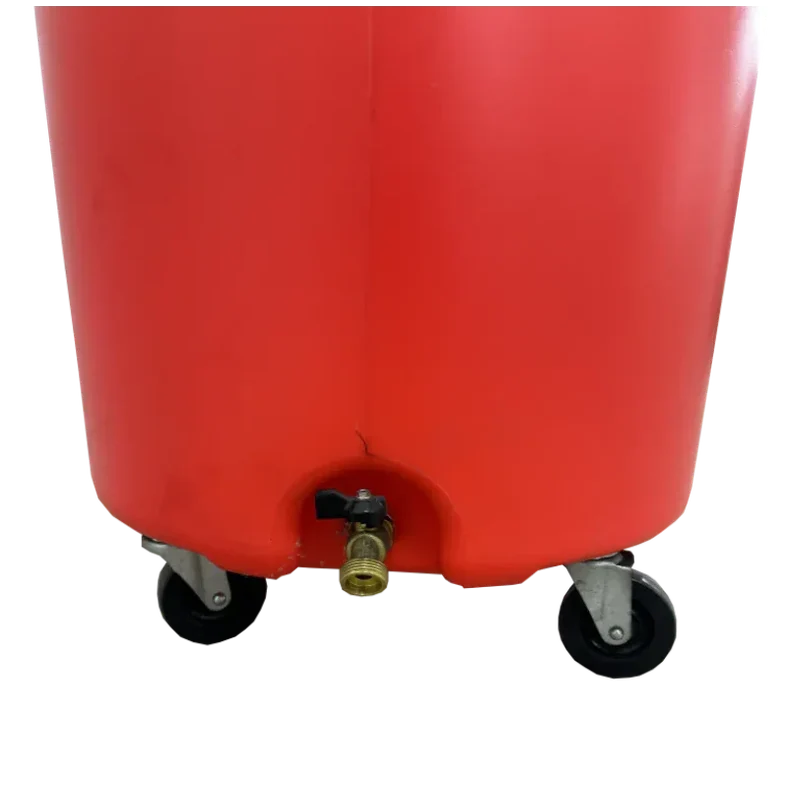

• Portable & Stable: Four 3.5" swivel casters roll smoothly around the bay.
• Safe, Easy to Use: Straightforward design that works well for daily service.

How You’ll Use It (Everyday Workflow)

• Roll the drain into position under the vehicle using the swivel casters.
• Adjust the funnel height between 48" and 71" to match the drain point.
• Drain oil into the wide funnel; the contamination screen helps catch debris.
• Monitor fill level through the translucent reservoir.
• Evacuate used fluid using the manual hand pump and 4 ft hose with nozzle for controlled discharge.
• Cap the reservoir and move to the next bay—fast, clean, repeatable.

Specifications

Bottom Line

The Tuxedo 18G-DRAIN is a practical, high-capacity oil drain built for the rhythm of a working shop. With a wide funnel, debris screen, adjustable height, easy-to-read translucent tank, and manual pump evacuation, it keeps fluid service clean, controlled, and portable—exactly how it should be.

Warranty

Tuxedo covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. Tuxedo pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
