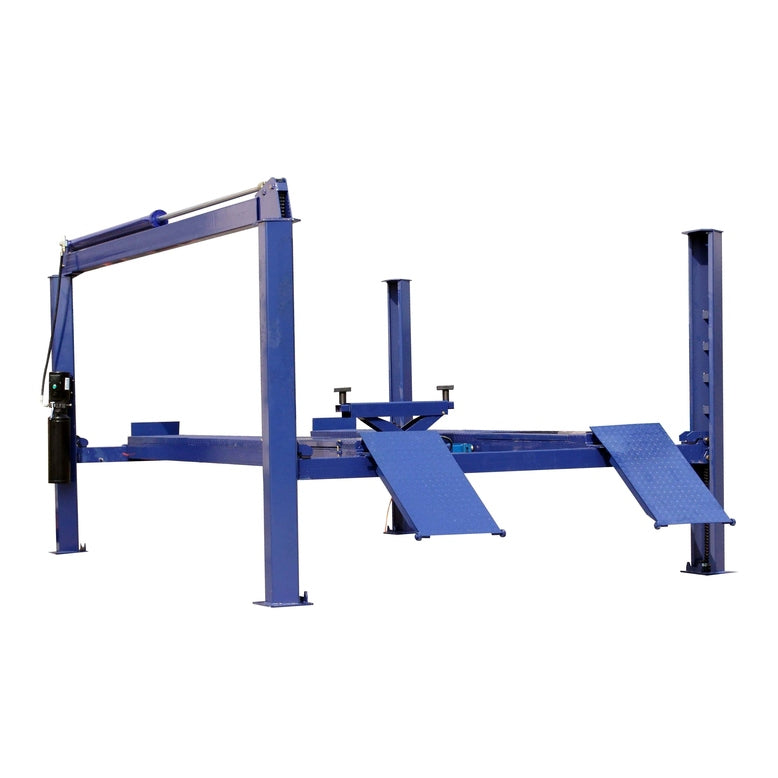

Tuxedo FP14KA 14,000 lb Four Post Alignment Lift - Chain Driven
Warehouse Pickup
£3,756.00
Sale price
£3,756.00
Regular price
Skip to product information
Tuxedo FP14KA 14,000 lb Four Post Alignment Lift - Chain Driven
£3,756.00
Sale price
£3,756.00
Regular price
Shipping calculated at checkout.
FP14KA
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
iDEAL 14,000 lb Post Alignment Lift 182.5" WB
*Bridge Jacks Not included
These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel.
Features
- 14000 LBS Capacity
- High performance commercial alignment lift
- Durable, high quality cable lift system
- Extended rise height
- 'BOLT-ON' Runway alignment kit
- 166.7" Max alignment wheelbase (2 wheel)
- 157" Max alignment wheelbase (4 wheel)
- 182.5" Max service wheelbase
- 18 locking height positions
- Full width rear wheel slip plates
- Two turntable positions w/spacer covers
- 20" Wide runways
- Narrow & wide runway mounting positions
- Single point pneumatic lock release
- Fully adjustable lock stops for easy leveling
- Slack cable safety devices
- Self-chocking approach ramps w/ nylon rollers
- Wheel chocks (1PR)
- Durable powder coat finish
Specifications
| Lift model | FP14KAC-X |
| Capacity | 14000 lbs |
| Overall length w/ Ramp | 252-1/2" |
| Overall width (without power unit) | 131-7/8" |
| Overall width (with power unit) | 142" |
| Overall height | 92-1/2" |
| Max rise height | 79-1/2" |
| Min height | 9-7/8" |
| Width between posts | 116-1/4" |
| Length between posts | 196" |
| Width between runways | 43" or 46" |
| Width of runways | 20" |
| Max wheelbase | 182-1/2" |
| Max. align wheelbase (2 wheel) | 166-3/4" |
| Min / Max. Align wheelbase (4 wheel) | 103" / 157" |
| Ramp length | 44" |
| Max. Clearance under runway | 69-5/8" |
| Drive-thru clearance | 100" |
| Base plate | 10-1/2" x 9" |
| Power requirement | 220V - 20 Amp 1 PH |
| Ship weight | 3810 lbs |
| Min bay size | 16 x 25 |
Accessories (Included)
- Internal airline kit w/ FLR
- HD Carbon steel turntables - 4.5K cap. EA
- Rollback spacers for HD turntables
Warranty
Tuxedo covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. Tuxedo pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
