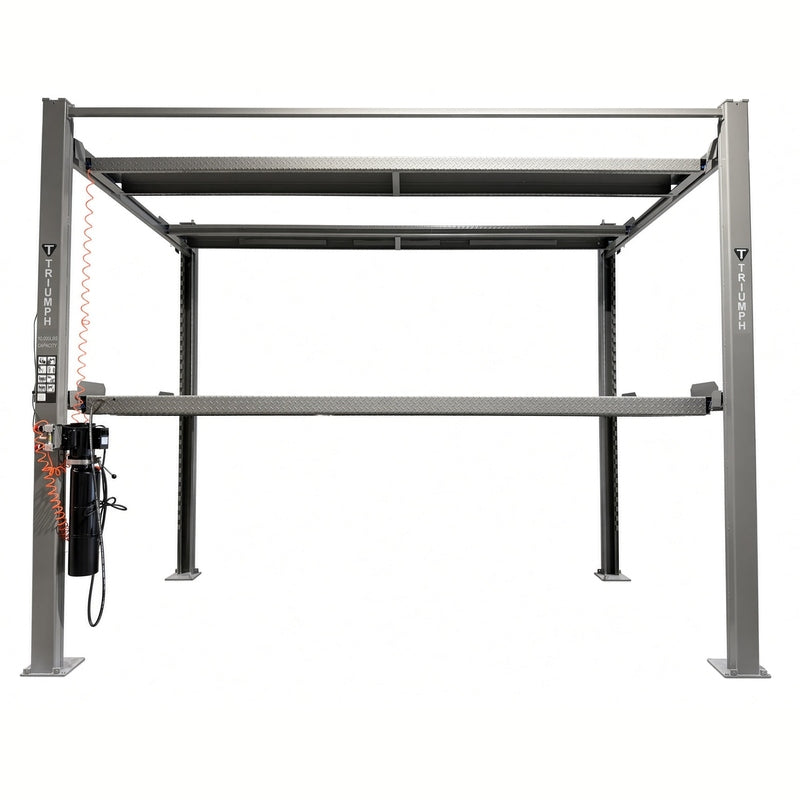

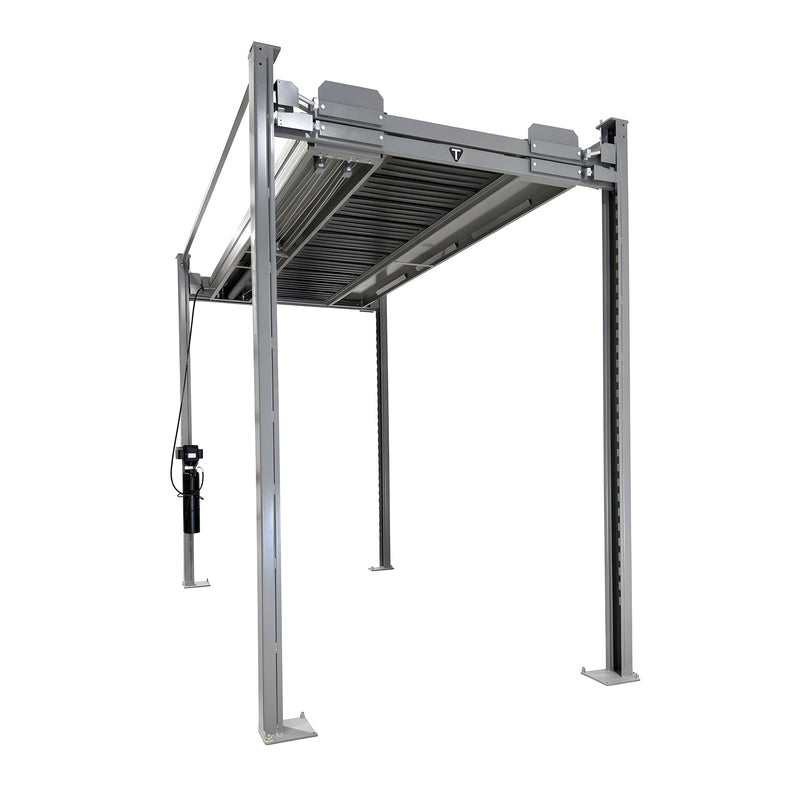

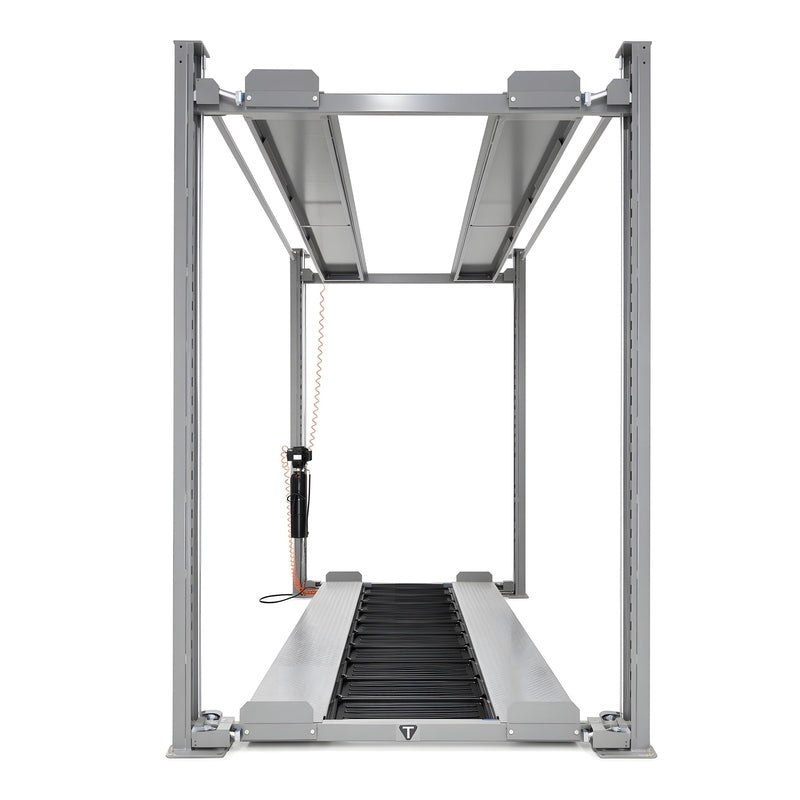

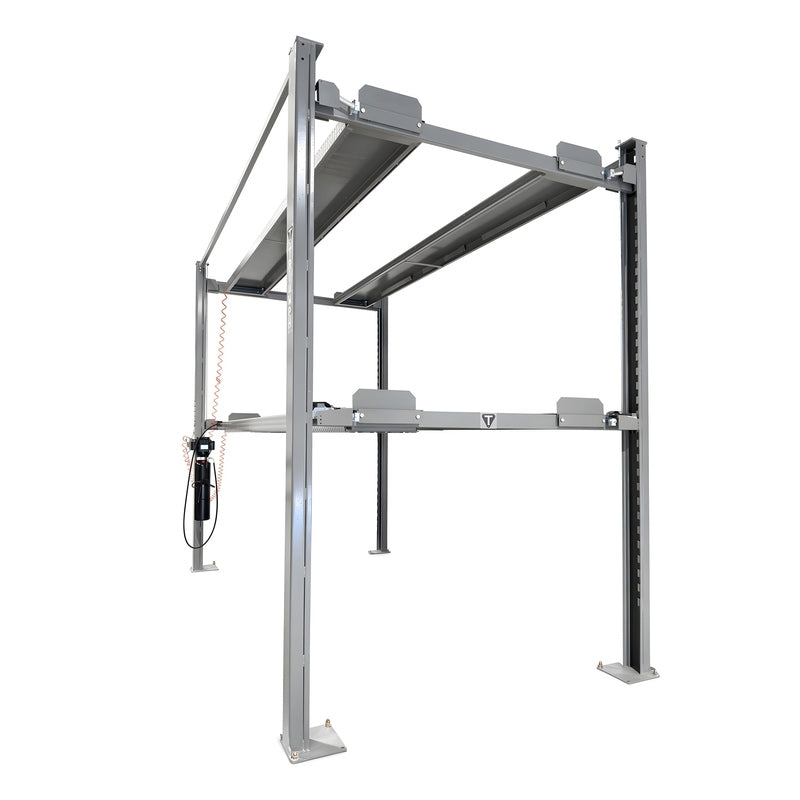

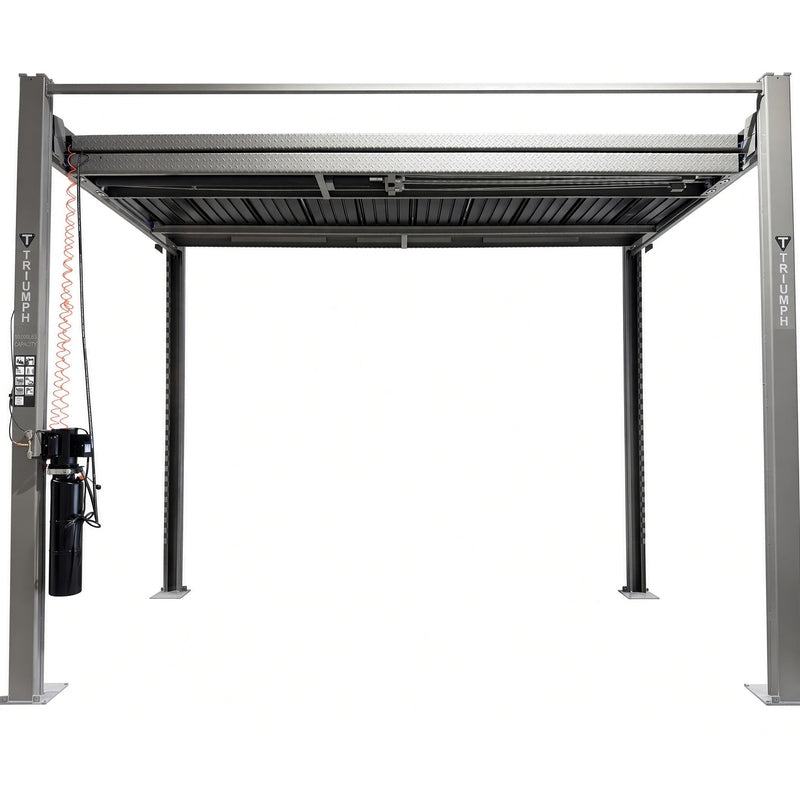

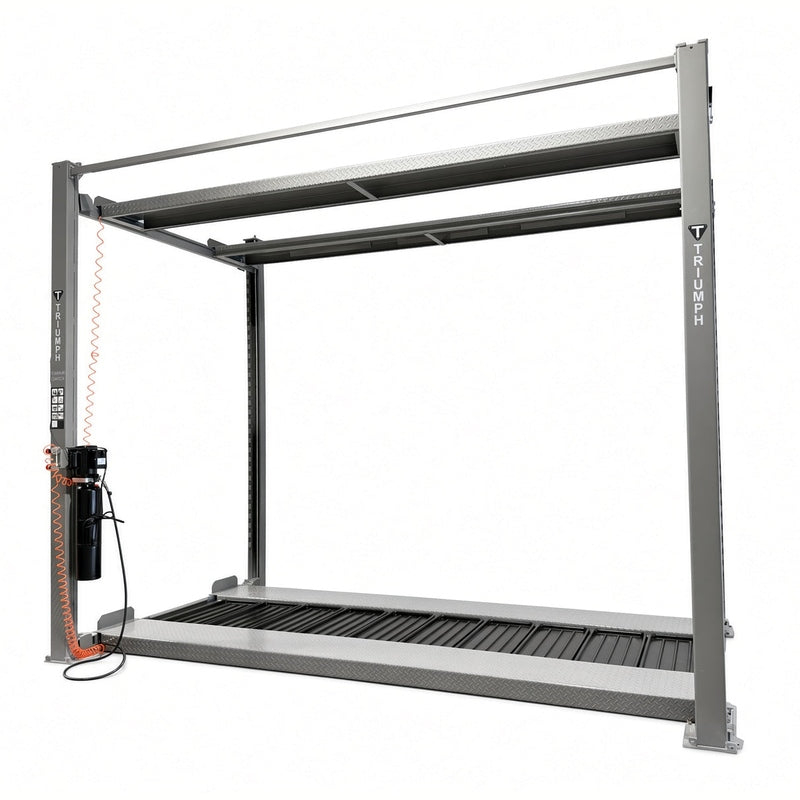

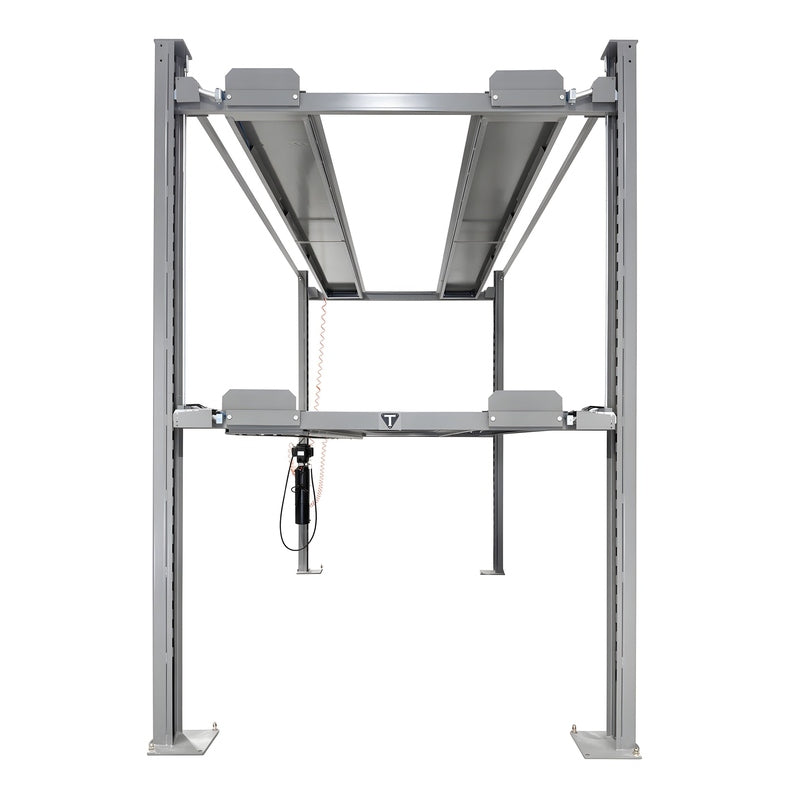

The Triumph NSS-5x2 is a triple-stacker four-post storage lift that parks three vehicles in the footprint of one — two vehicles elevated on stacked runways and a third on the floor beneath them. Each runway is rated to 5,000 lb, for a combined 10,000 lb of lifting capacity, so a single bay becomes three parking spots for collector storage, a multi-car garage, or a shop that needs to keep extra vehicles off the ground.
Six drip trays sit between the decks so fluid from an upper vehicle stays off the one below it. The locks are air-operated — easy to assemble and operate, seating into 30 lock height positions welded into each column — so you'll want shop air available (a compressor is not included). The lift runs on standard 110-volt power and ships in its standard grey finish; Triumph can also build it in many other colors on request.
Features
Three vehicles, one footprint. Two cars park on the stacked runways with a third on the floor underneath, turning a single bay into three parking spots.
5,000 lb per runway. Each deck is rated to 5,000 lb, for 10,000 lb combined across the two elevated vehicles.
Air-operated locks, 30 positions per column. Easy-to-operate air locks engage in lock heights welded directly into the columns; shop air is required and a compressor is not included.

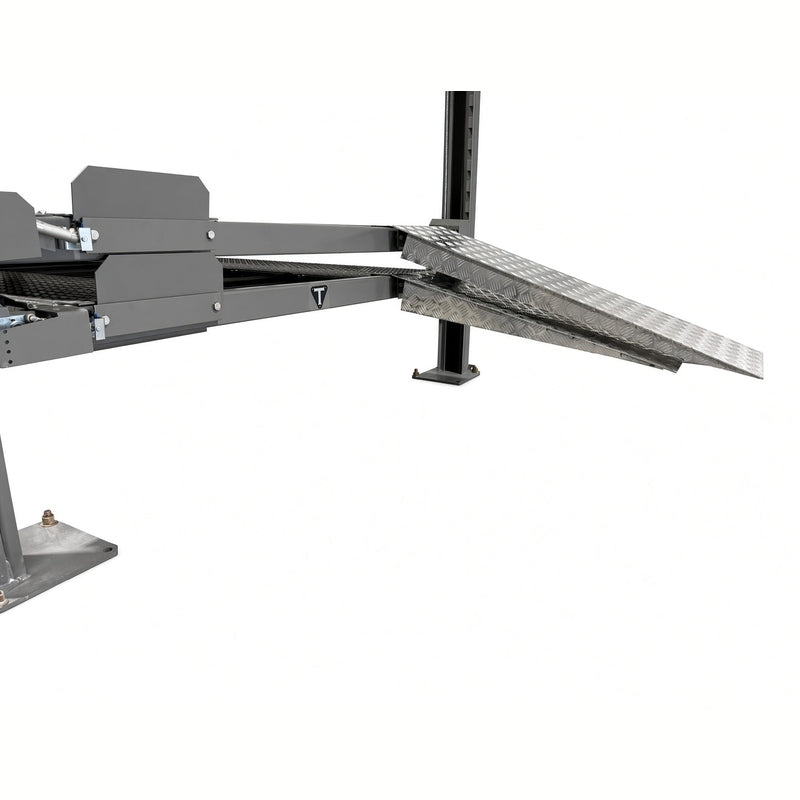

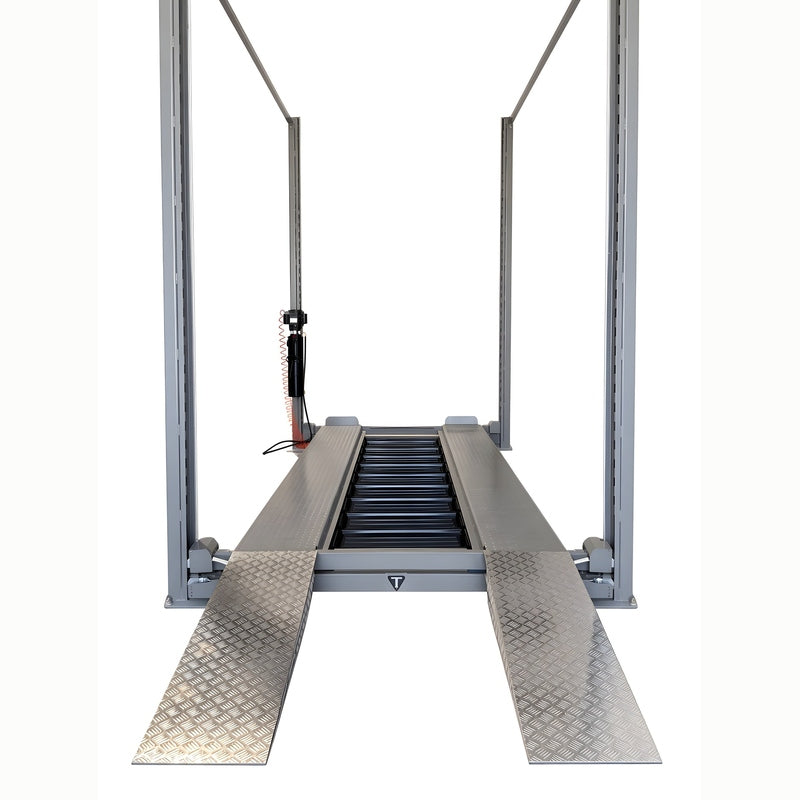

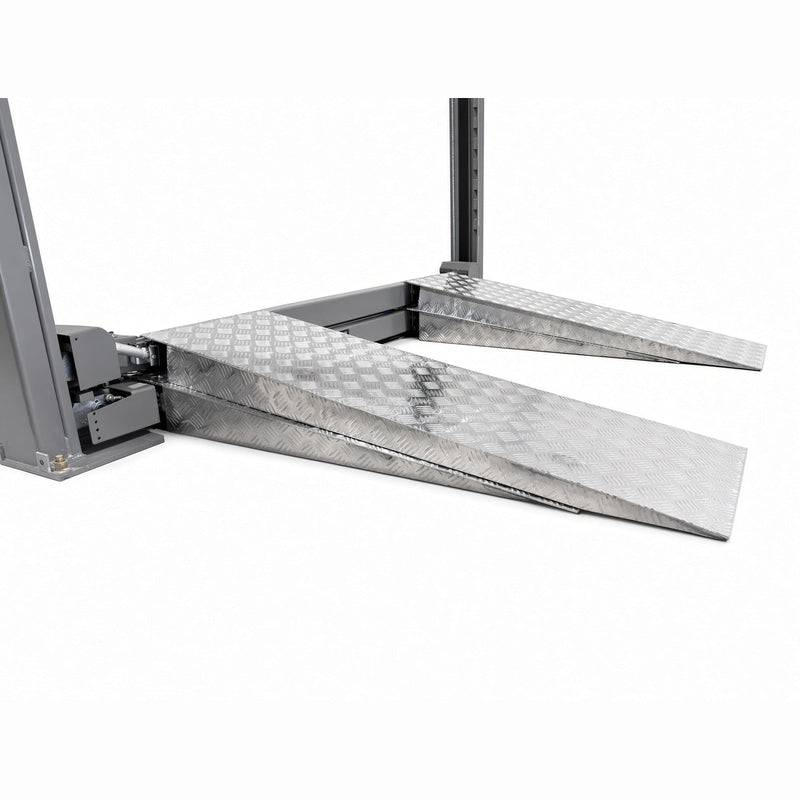

Two sets of aluminum ramps included. Lightweight checker-plate approach ramps make drive-on loading straightforward.

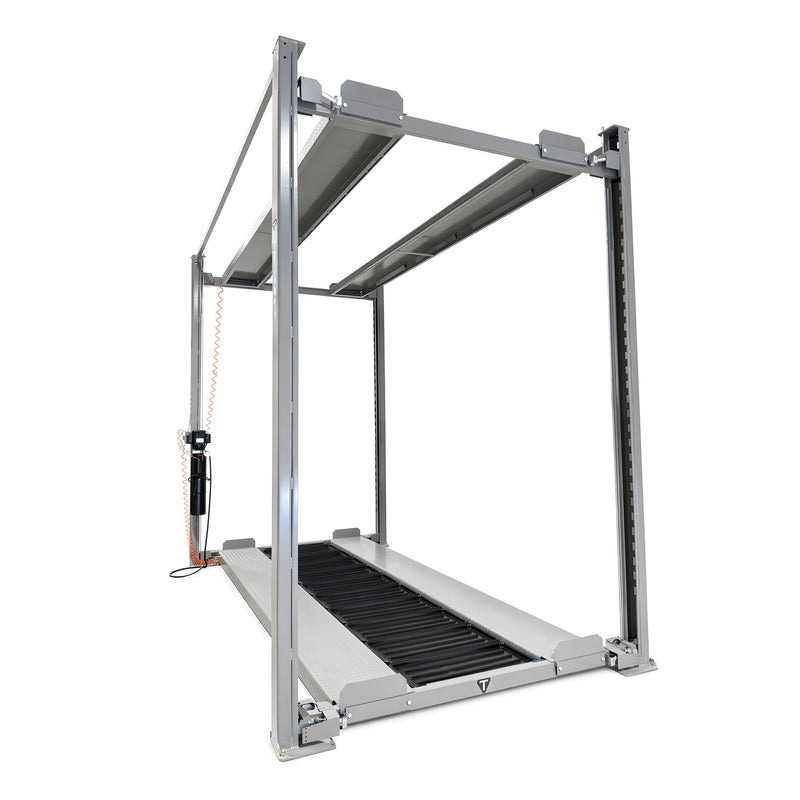

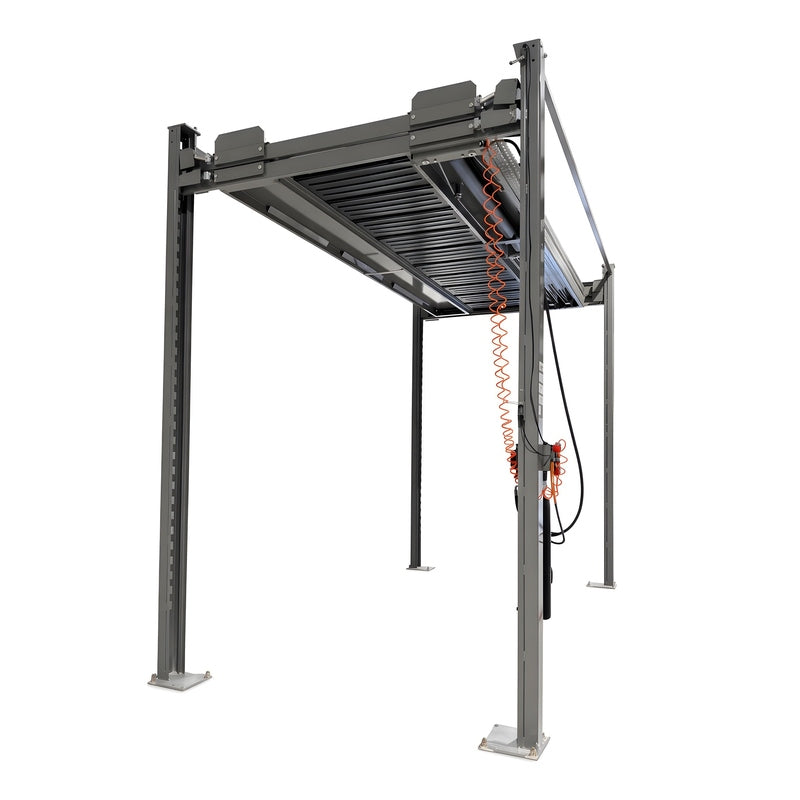

Six drip trays included. Trays between the decks catch fluid from an upper vehicle before it reaches the vehicle below.

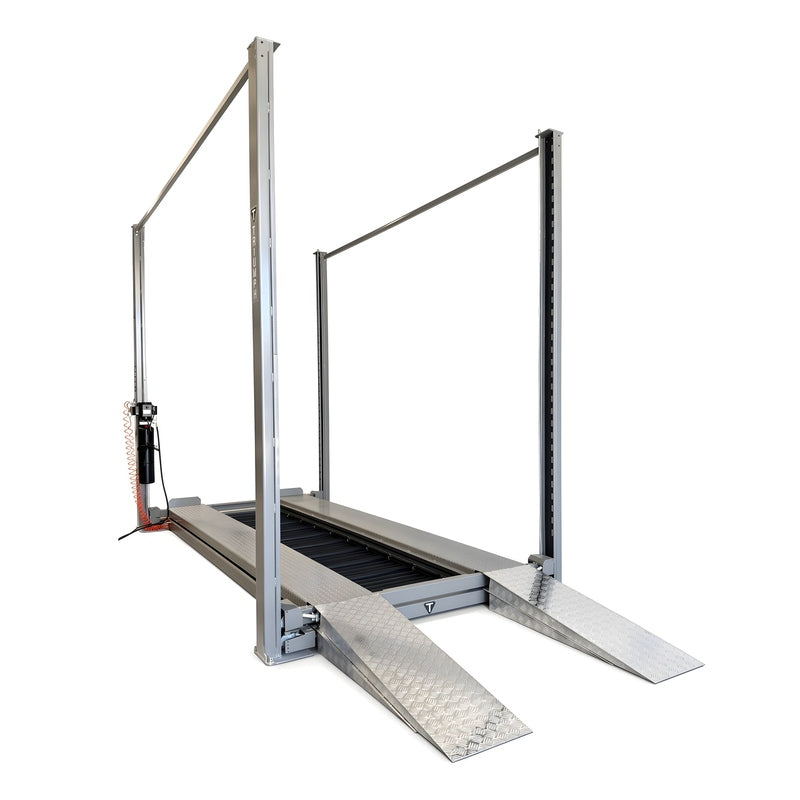

Drive-through design. A 93-inch drive-through width and 180-inch runways let vehicles pull straight on and off.

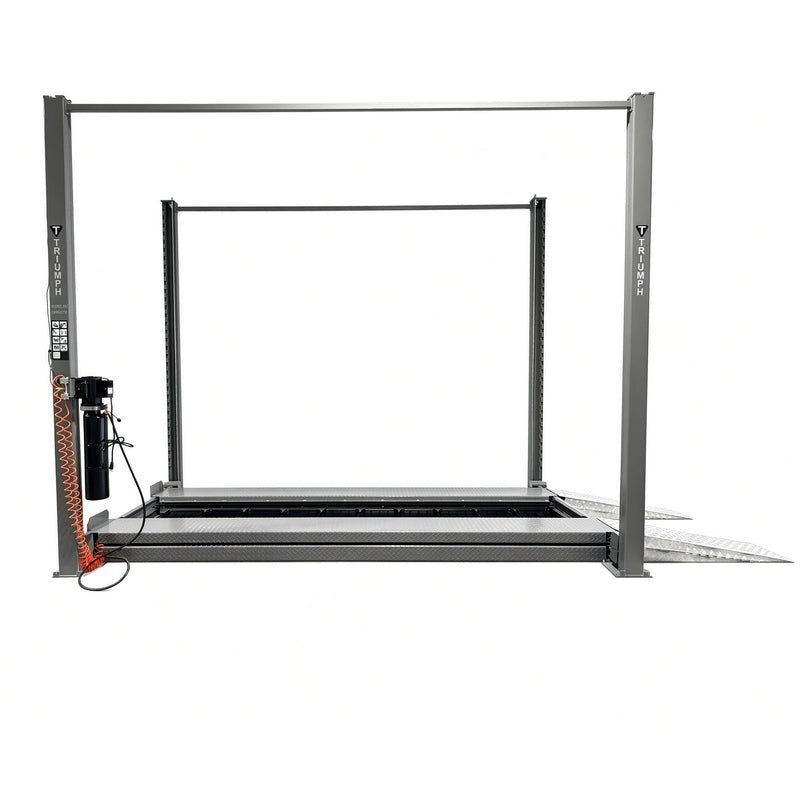

Low 5-inch lowered height. The runways drop to 5 inches at their lowest, easing drive-on for lower-clearance vehicles.
Standard 110-volt power. Runs on a common 110-volt supply with a 125-second full lift time.
What's Included
Two sets of aluminum approach ramps
Six drip trays
Anchoring system
Specifications
Triumph NSS-5x2 Specifications
Capacity
5,000 lb per vehicle (10,000 lb combined)
Lift Height
143" top runway, 71" middle runway
Height Under Runway
65.5"
Overall Height
147"
Overall Length (without approach ramps)
199"
Overall Length (with approach ramps)
225"
Overall Width
101"
Drive-Through Width
93"
Runway Length
180"
Runway Width
19"
Between Runways
37.5"
Lowered Height
5"
Locking Positions
30 per column, welded into the columns
Lock System
Air-operated (shop air required; compressor not included)
Lift Time
125 seconds
Power
110 volts
Hydraulic Fluid
AW32
Concrete Requirement
4" minimum
Shipping Weight
3,500 lb
Shipping Dimensions
187" L x 22" W x 43" T
Front, side, and top-view dimensions for the NSS-5x2.
Warranty
Triumph lifts carry a 1-year parts warranty (parts only, no labor). If a covered part fails, call MGS to troubleshoot the problem over the phone; the replacement part and ground shipping are both free. Labor to install the replacement is not covered, though most repairs are straightforward for a mechanic to handle.
Hydraulic cylinders carry a 30-day full warranty; after 30 days, a seal kit is provided. Rubber lifting pads are not covered.
FAQ
How many vehicles does the NSS-5x2 hold?
Three. Two vehicles park on the stacked runways and a third parks on the floor underneath, all within a single bay.
How much weight does each level carry?
Each runway is rated to 5,000 lb, for 10,000 lb combined across the two elevated vehicles.
How much ceiling height do I need?
The upper runway carries a vehicle to a 143-inch lift height, and the lift's overall height is 147 inches (12 feet 3 inches). Confirm your ceiling clears the vehicle you plan to store on the top deck before ordering.
Do I need an air compressor?
Yes. The locking system is air-operated, so the lift needs shop air to release the locks; a compressor is not included. The locks seat into 30 welded positions per column and are easy to assemble and operate.
What are the power requirements?
The NSS-5x2 runs on standard 110-volt power, and a full lift cycle takes about 125 seconds. Plan for an air supply as well, since the locks are air-operated.
What colors does it come in?
Standard finish is grey. Triumph builds the NSS-5x2 in many other colors on request — ask when ordering.
How is it delivered, and who unloads it?
The lift ships on an LTL common carrier and arrives on a 48-foot semi at roughly 3,500 lb. The driver does not unload it and lift-gate service is not available, so you need equipment that can handle the full weight — a forklift, Bobcat, tractor, tow truck, or backhoe all work. If you cannot unload at your location, the carrier can hold the shipment at its nearest freight terminal for pickup with a trailer or moving van. You schedule the delivery appointment directly with the freight company.
