The Triumph NSS-11 (NSS11000) is an 11,000-lb four-post automotive lift built for both vehicle service and stacked storage. It pairs an 86.5-inch maximum lift height with a 196-inch runway and 118 inches of drive-thru clearance, and runs on standard 110-volt, 60 Hz, single-phase service rather than three-phase power.

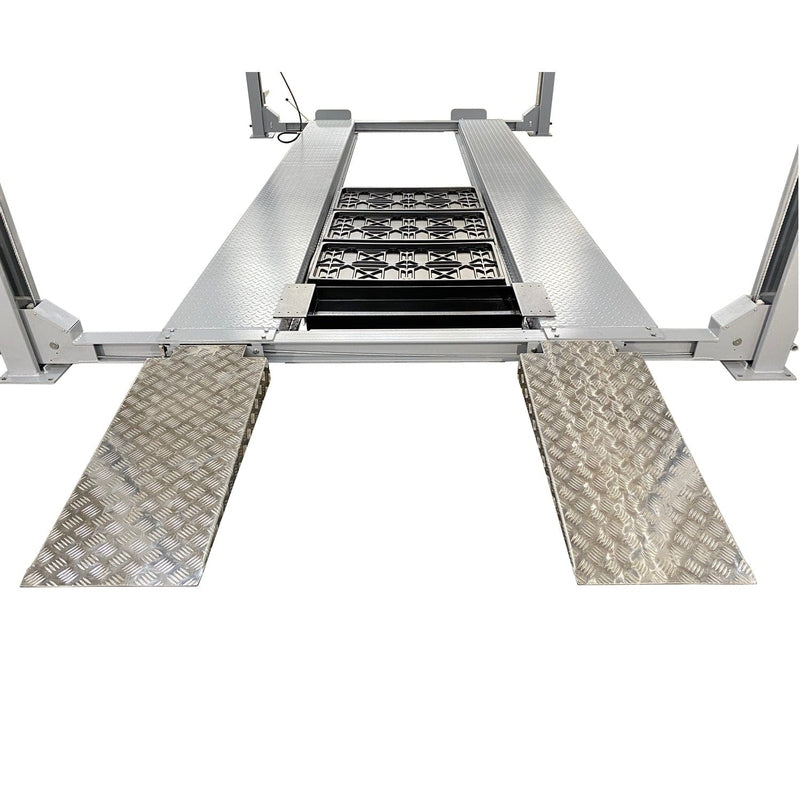

A caster kit ships with the lift so one technician can roll the assembled NSS-11 across the shop or garage floor between jobs. An included jack tray accepts a bottle jack or floor jack for raising one end of a vehicle, and six drip trays sit between the runways during stacked storage so fluid from the upper vehicle doesn't reach the lower one.
The lift uses a hydraulic cylinder driving a four-cable system, with eleven automatic mechanical locking positions that engage as the lift rises and a single-point release that drops all four columns together in roughly 40 seconds. The NSS-11 is built around a proven design that has been in continuous production for over twenty years and ships in default grey.

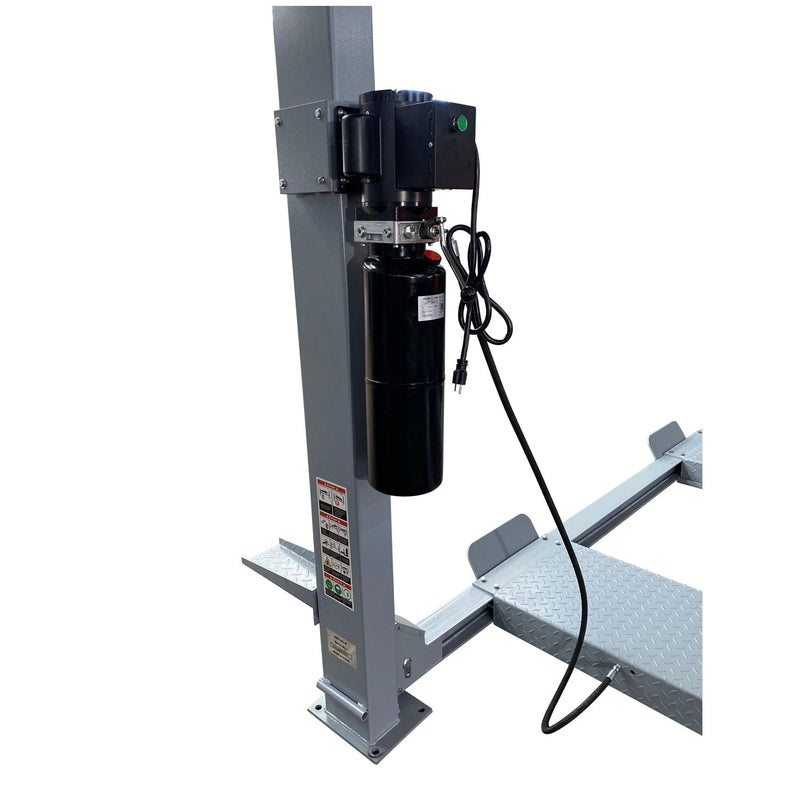

110-volt hydraulic power unit, column-mounted.
Features
11,000-lb lifting capacity rated for service or stacked storage
86.5-inch maximum lift height with 81 inches of working height under the runways
Automatic 11-position locking engages as the vehicle rises; single-point lock release drops all four columns together
40-second lift cycle on 110-volt, 60 Hz, single-phase service — no three-phase required
Minimum 3,000 PSI concrete required under the column base plates per the owner's manual
Single-cylinder hydraulic drive with a four-cable equalizer system for synchronized column travel
Caster kit included for repositioning the lift across the shop floor

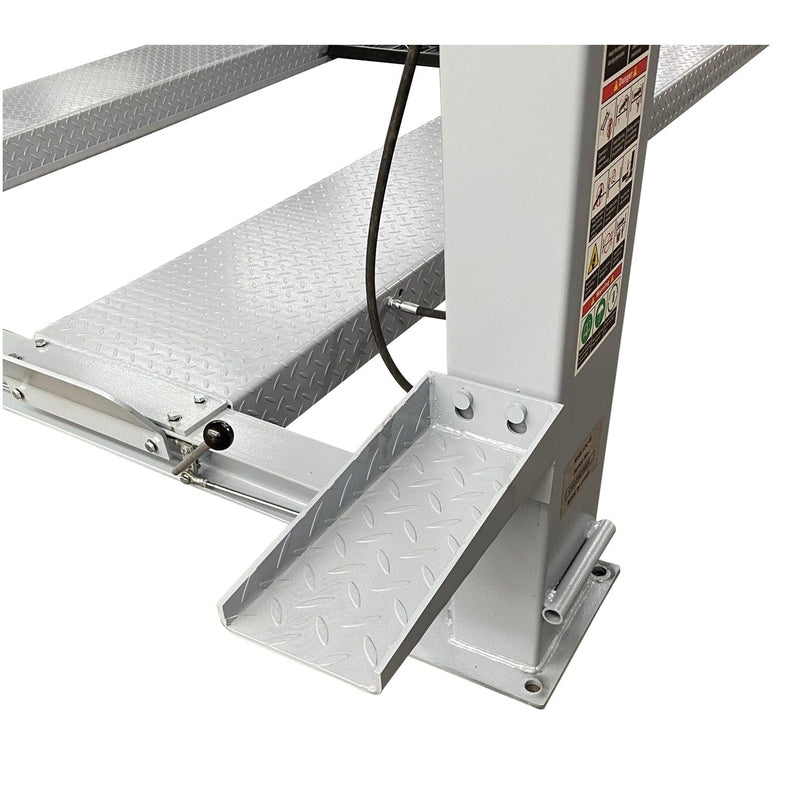

Jack tray included for bottle or floor jack use

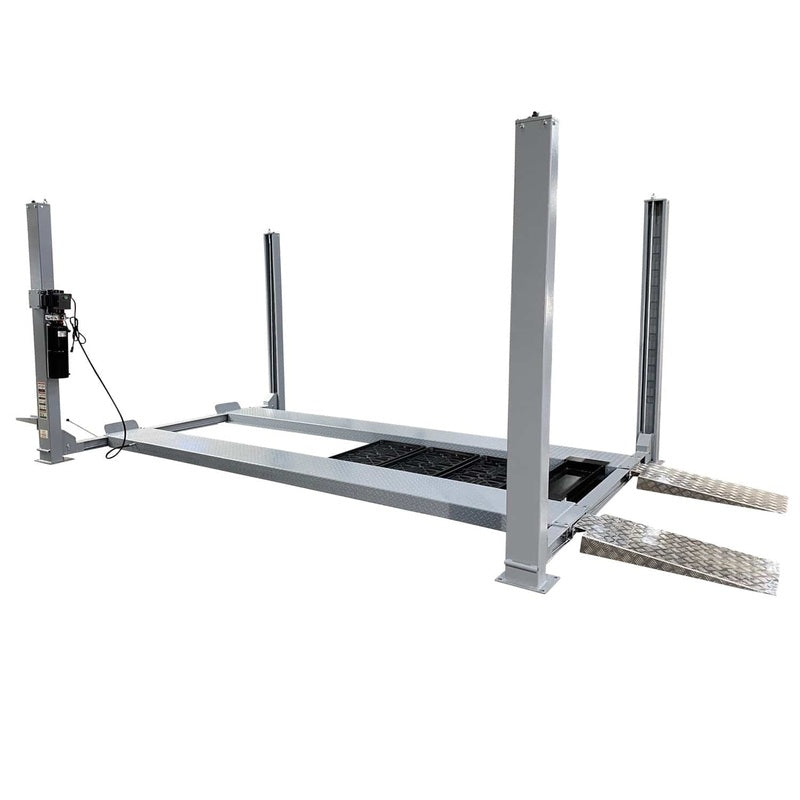

Six drip trays included to prevent fluid transfer between stacked vehicles
Adjustable runway spacing at 39 inches or 44.5 inches between runways
5-inch lowered height with the standard drive-on ramps
118-inch drive-thru width with a 130-inch overall width
What's Included
One Triumph NSS-11 four-post automotive lift, default grey finish
Caster kit for shop-floor portability
Jack tray for bottle or floor jack use
Six drip trays for stacked storage
Drive-on ramps
Wheel chocks
Installation hardware and owner's manual
Specifications
Triumph NSS-11 dimensions diagram — side, top, and front views.
Triumph NSS-11 (NSS11000) Specifications
Capacity
11,000 lbs
Lift Height
86.5"
Height Under Runway
81"
Overall Height
97"
Overall Length (without ramps)
216"
Overall Width
130"
Runway Length
196"
Runway Width
19.5"
Drive-Thru Width
118"
Between Runways
39" or 44.5"
Lowered Height
5"
Locking Positions
11
Base Plate Size
11.5" x 9.75"
Lock Release
Single point
Lift Time
40 seconds
Power Supply
110 V, 60 Hz, single-phase
Drive System
Single hydraulic cylinder, four-cable equalizer
Minimum Concrete Strength
3,000 PSI
Shipping Weight
2,400 lbs
FAQ
Will my vehicle fit on the NSS-11?
The NSS-11 offers 118 inches of drive-thru clearance, a 196-inch runway, and runway spacing adjustable to 39 inches or 44.5 inches. Compare your vehicle's wheelbase, track width, and curb weight against the spec table to confirm fit within the 11,000-lb rated capacity.
Does it really run on 110 volts?
Yes. The NSS-11 lifts a full 11,000-lb load on standard 110-volt, 60 Hz, single-phase service, so no three-phase wiring or special high-amperage electrical work is required at the shop. Per the owner's manual, the electrical hookup should be made by a qualified electrician to the motor nameplate rating.
Can I get it with a 220V power unit?
Yes. Choose the 220V voltage option above; the price difference is shown on the page, and Triumph ships the lift with a 220V power unit in place of the standard 110V unit.
What does the floor need to be?
The Triumph NSS-11 owner's manual specifies a minimum concrete strength of 3,000 PSI under the column base plates. Confirm your slab's strength, depth, and levelness before installing; a defect-free pour is required to keep the four columns vertical to the ground plane in normal use.
How many drip trays are included, and what do they do?
Six drip trays ship with the lift. They sit between the runways during stacked storage so oil, coolant, or other fluid leaking from the upper vehicle is contained instead of dripping onto the lower one.
Can the lift be moved around the shop?
The included caster kit lets one technician roll the assembled lift across the shop or garage floor between jobs. The NSS-11 is anchored or chocked in place when in use and rolled when repositioning.
What is the lowered height, and is it drive-on?
Lowered runway height is 5 inches with the standard drive-on ramps in place. Rolling a vehicle onto the lift is straightforward and does not require sleds, dollies, or external ramps.
Freight Delivery
The Triumph NSS-11 ships via LTL common-carrier freight on a 48-foot semi truck and weighs approximately 2,400 lbs. Before purchase, please note:
The customer unloads the lift from the truck. The driver does not unload it for you.
Lift gate delivery is not available for auto lifts.
Unloading requires a forklift, Bobcat, tractor, tow truck, or back hoe. The lift cannot be unloaded by hand.
If unloading at your address is not possible, the lift can be shipped to the carrier's nearest freight terminal for pickup with a trailer or moving van.
Freight-company delivery appointments are coordinated by the customer directly with the carrier.
