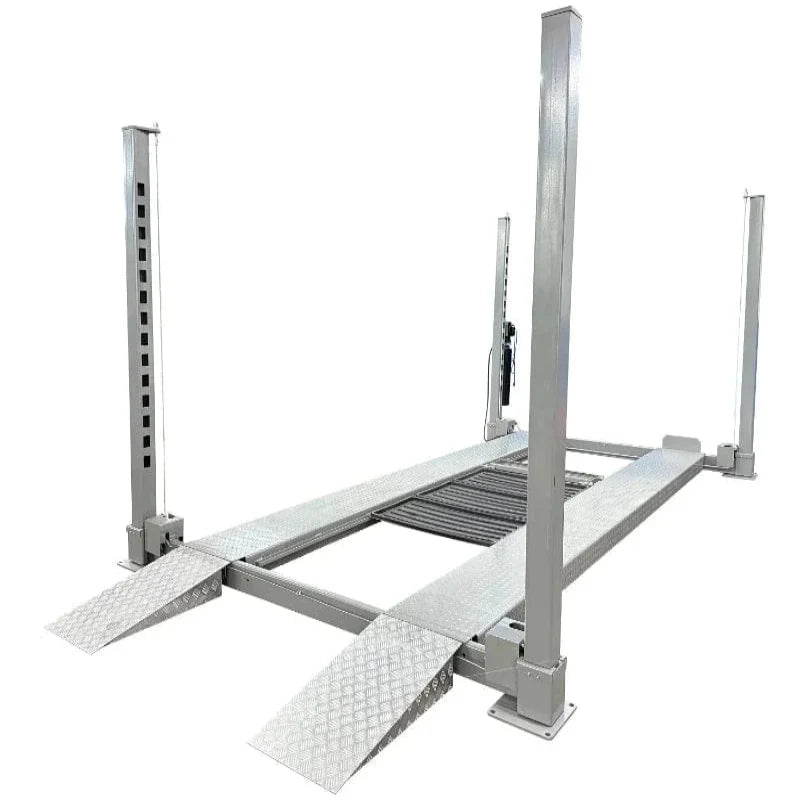

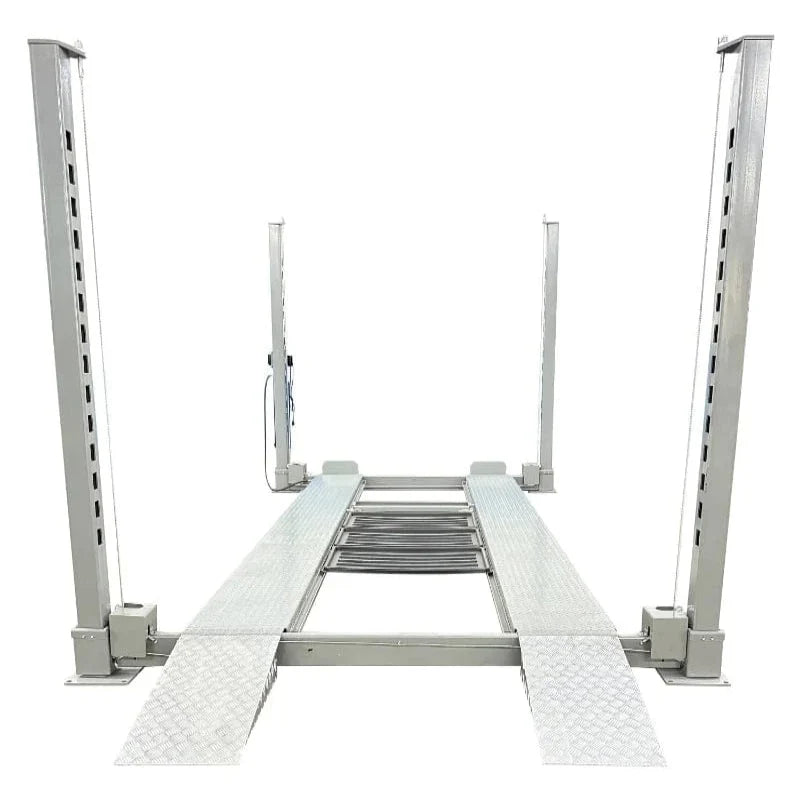

The Triumph NOS10000 is a 10,000-lb four-post lift built for two jobs at once: hands-on service work and long-term vehicle storage. Its proven outside-slider column design keeps the runways rigid and stable through the full travel, so cars, trucks, and SUVs sit securely for service work below or long-term parking overhead.

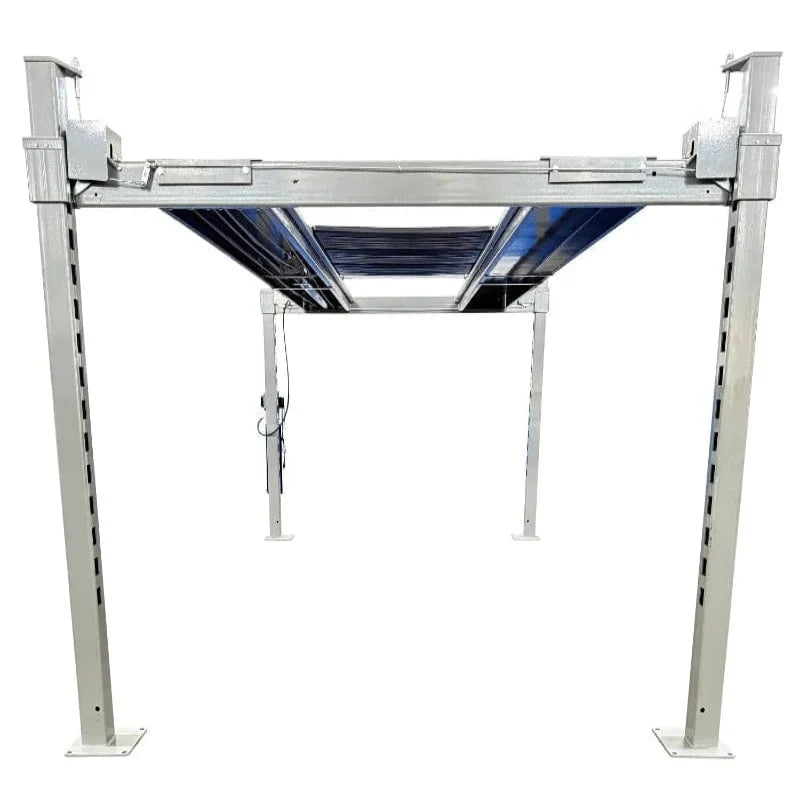

Each column measures 4.75" x 4.75" and rides on 6.5" x 6.5" slide collars, and the drive-on runways are built from boxed tracks for added strength. The lift reaches an 87" lift height with 81.5" of clearance under the runways — enough headroom to stand and work beneath a raised vehicle — and settles to a 5.5" lowered height for an easy drive-on over the 36" aluminum ramps.
Vehicles are held by manual deadbolt locks with an oversized release linkage across 14 locking positions, dropped together through a single-point release. A secondary redundant safety system and cable keepers back up the primary locks, and the wire-rope lifting system is driven by a single hydraulic cylinder that raises the platform in about 60 seconds. A center rolling jack tray is included and accepts the optional Triumph RJ-5 5,000 lb Rolling Bridge Jack (sold separately) to raise a wheels-free axle for brake, tire, or alignment work.
The four-post frame is freestanding and rides on included heavy-duty poly-coated casters, so you can reposition it inside the shop; anchor bolts are included if you prefer a permanent install. It runs on standard 110V single-phase power at 60 Hz and needs only a level concrete floor rated to at least 3,000 psi. Overall the lift stands 99.5" tall, 123" wide, and 210.5" long (247" including the ramps), with 109" between the columns.
NOS10000 dimensioned layout: overall footprint, runway, and column measurements.
Your NOS10000 ships freight on an LTL common carrier and arrives on a 48-foot semi at a shipping weight of 2,535 lbs, with freight included in the listed price. Liftgate service is not available for auto lifts, so plan to unload with a forklift, tractor, bobcat, or similar equipment; if that is not an option, MGS can route the shipment to the carrier's nearest freight terminal for trailer pickup — call 307-381-1810 or email sales@mygaragesupplies.com to arrange terminal delivery.
Features
Outside-slider column design for a rigid, stable platform
4.75" x 4.75" columns with 6.5" x 6.5" slide collars
Boxed-track runways for added structural strength
Manual deadbolt locks with oversized release linkage and 14 locking positions
Single-point lock release
Secondary redundant safety system with cable keepers
Single hydraulic cylinder with wire-rope lifting and roughly 60-second lift time
12" x 12" 5/8" reinforced base plates
Heavy-duty poly-coated casters for repositioning

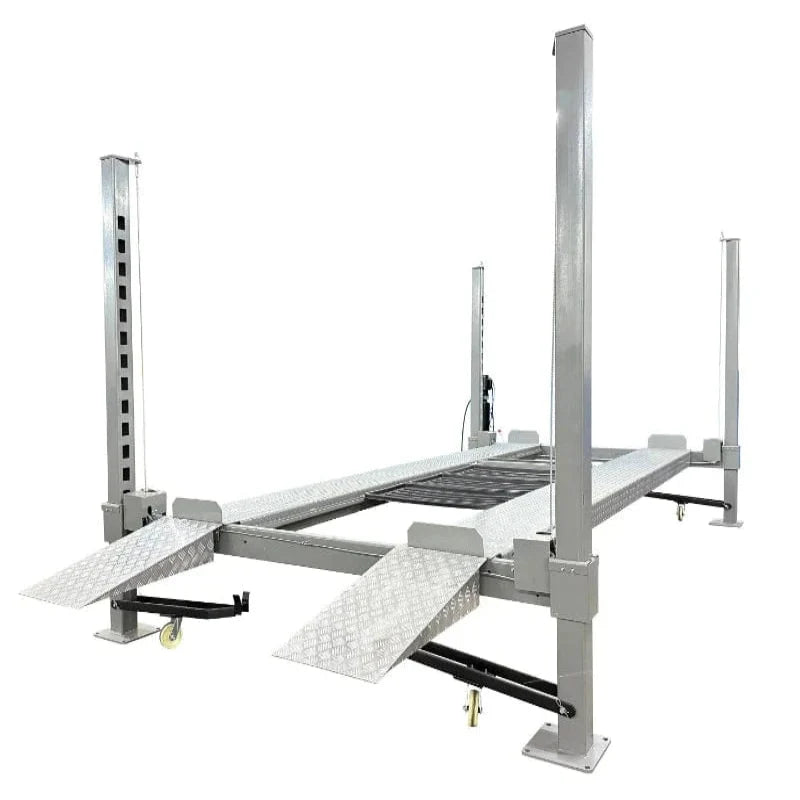

Lightweight 36" aluminum drive-on ramps, 29 lbs each

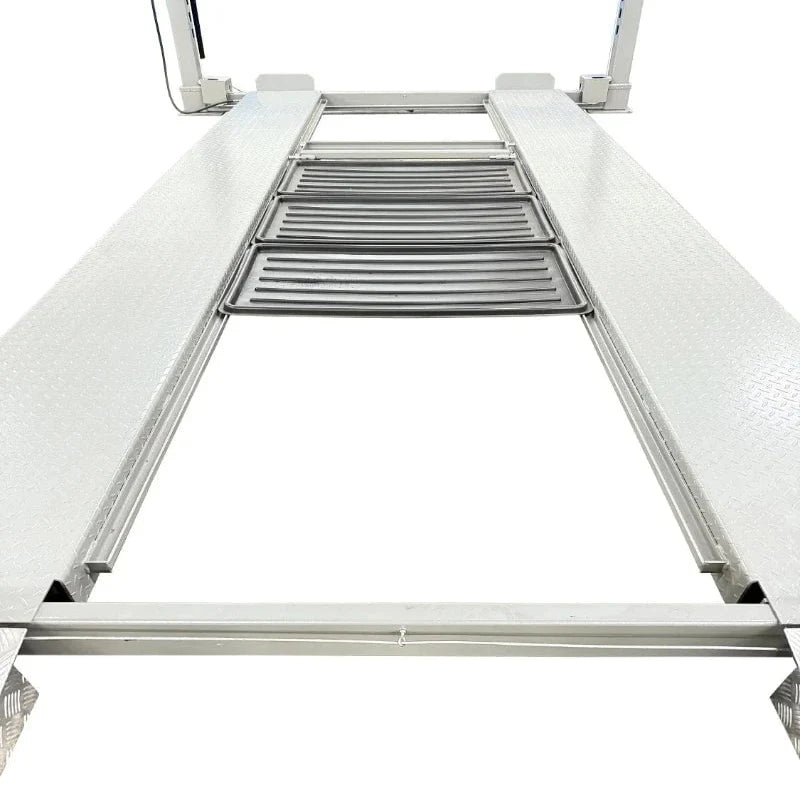

Drip trays included for cleaner storage
What's Included
Two boxed-track drive-on runways
36" aluminum drive-on ramps (29 lbs each)
Set of drip trays
Center rolling jack tray
Heavy-duty poly-coated caster set
Wheel chocks
110V hydraulic power unit
Manual deadbolt lock system with single-point release
Anchor bolts for optional permanent installation
Installation manual
Specifications
Triumph NOS10000 Specifications
Lifting Capacity
10,000 lbs
Overall Height
99.5"
Overall Length (with ramps)
247"
Overall Length (without ramps)
210.5"
Overall Width
123"
Lift Height
87"
Height Under Runway
81.5"
Runway Length
204"
Runway Width
20"
Width Between Columns
109"
Drive-Thru Clearance
94.5"
Lowered Height
5.5"
Locking Positions
14
Lock Release
Single point
Base Plate Size
12" x 12"
Lift Time
60 seconds
Power Requirement
110V single-phase, 60 Hz
Concrete Requirement
3,000 psi minimum
Shipping Weight
2,535 lbs
Warranty
The Triumph NOS10000 is backed by a 1-year parts warranty.
FAQ
What can the NOS10000 lift and store?
It has a 10,000-lb capacity and handles most cars, trucks, and SUVs. There are 109" between the columns, the runways are 204" long and 20" wide, and drive-thru clearance is 94.5".
What electrical service does it need?
The power unit runs on 110V single-phase power at 60 Hz, so no 220V or three-phase service is required.
Can I move the lift after it is set up?
Yes. It is a freestanding four-post design on included heavy-duty poly-coated casters, so you can roll it to a new spot in the shop. Anchor bolts are included if you would rather fix it in place.
Is this a service lift or a storage lift?

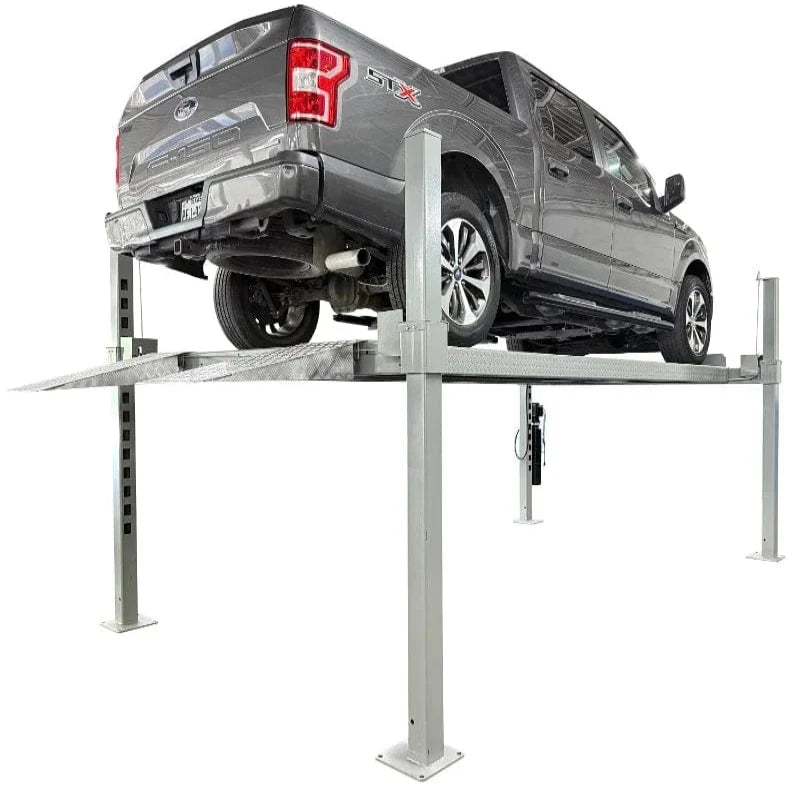

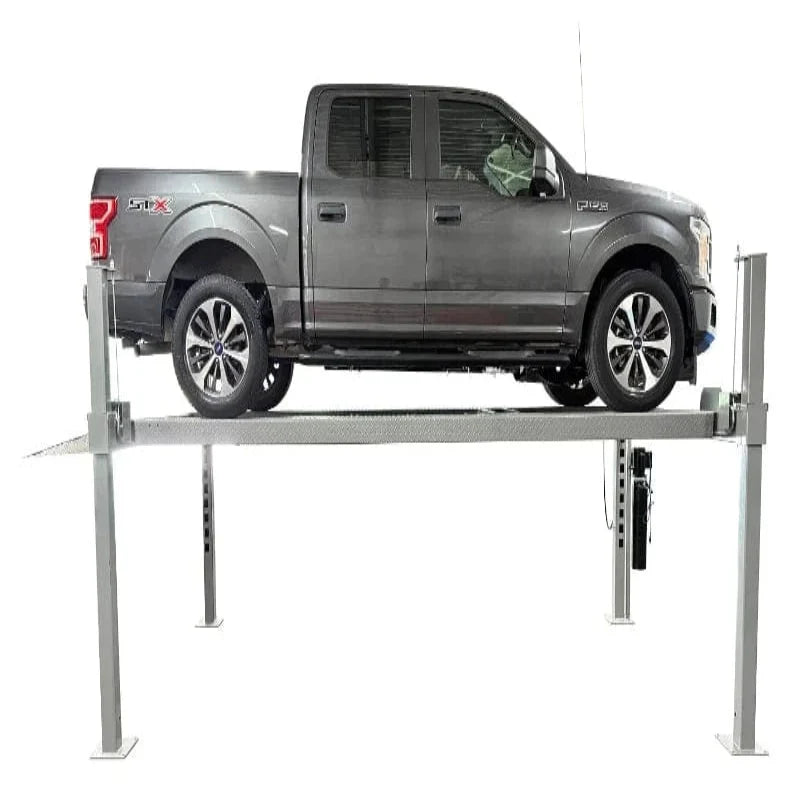

Both. The NOS10000 is built for service work and for long-term or stacked vehicle storage, with 81.5" of clearance under the runways.
How is it delivered?
It ships freight on an LTL carrier at roughly 2,535 lbs. Liftgate service is not available for auto lifts, so plan to unload with a forklift or similar equipment, or arrange terminal pickup.
