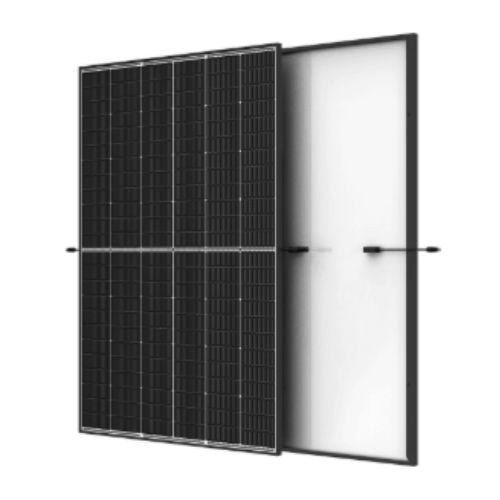

Trina Vertex S+ 460W N-Type Dual Glass Solar Panel
£35.00
Sale price
£35.00
Regular price
Skip to product information
Trina Vertex S+ 460W N-Type Dual Glass Solar Panel
£35.00
Sale price
£35.00
Regular price
Shipping calculated at checkout.
TSM-460-NEG9R.28
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Trina Vertex S+ 460W is a compact N-type i-TOPCon dual glass solar panel for residential and commercial rooftop PV systems. It delivers high output from a manageable module size, with robust construction for reliable long-term performance.
- 460W maximum power output with up to 23.0% module efficiency
- N-type i-TOPCon monocrystalline technology
- Dual glass construction for improved durability and weather resistance
- 1762 x 1134 x 30 mm module size
- 21.0 kg module weight for easier handling and installation
- Mechanical test load up to 5400 Pa front side and 4000 Pa rear side
- Compatible with mainstream inverters and diverse mounting systems
- Certified resistance against salt spray, sand dust, ammonia and PID
- 15-year product warranty and 30-year power warranty
A professional high-efficiency rooftop module compatible with mainstream inverters, optimisers and mounting systems. Its light dual glass construction helps improve durability while keeping the panel practical for residential and commercial installations.
Specifications
| Specification | Value |
|---|---|
| Model / SKU | TSM-460-NEG9R.28 |
| Maximum power | 460W |
| Open circuit voltage (Voc) | 53.8V |
| Short circuit current (Isc) | 10.81A |
| Maximum power voltage (Vmpp) | 45.4V |
| Current at maximum power (Impp) | 10.14A |
| Module efficiency | 23.0% |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 21.0 kg |
| Cell type | N-type i-TOPCon monocrystalline |
| Number of cells | 144 cells |
| Front glass | 1.6 mm AR coating heat strengthened glass |
| Back glass | 1.6 mm heat strengthened glass |
| Frame | 30 mm black anodised aluminium alloy |
| Junction box | IP68 rated |
| Connector | MC4 EVO2 / TS4 Plus / TS4* |
| Cable | 4.0 mm² photovoltaic cable, portrait 350 / 280 mm |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.24%/°C |
| Temperature coefficient of Isc | +0.04%/°C |
| NOCT | 43°C ±2°C |
| Maximum system voltage | 1500V DC (IEC) |
| Maximum series fuse rating | 25A |
| Operating temperature | -40°C to +85°C |
| Mechanical test load | Up to 5400 Pa front side and 4000 Pa rear side |
| Product warranty | 15 years |
| Power warranty | 30 years |
*Connector type may vary by regional datasheet or supply batch. Please check the product label or supplied documentation before installation.
