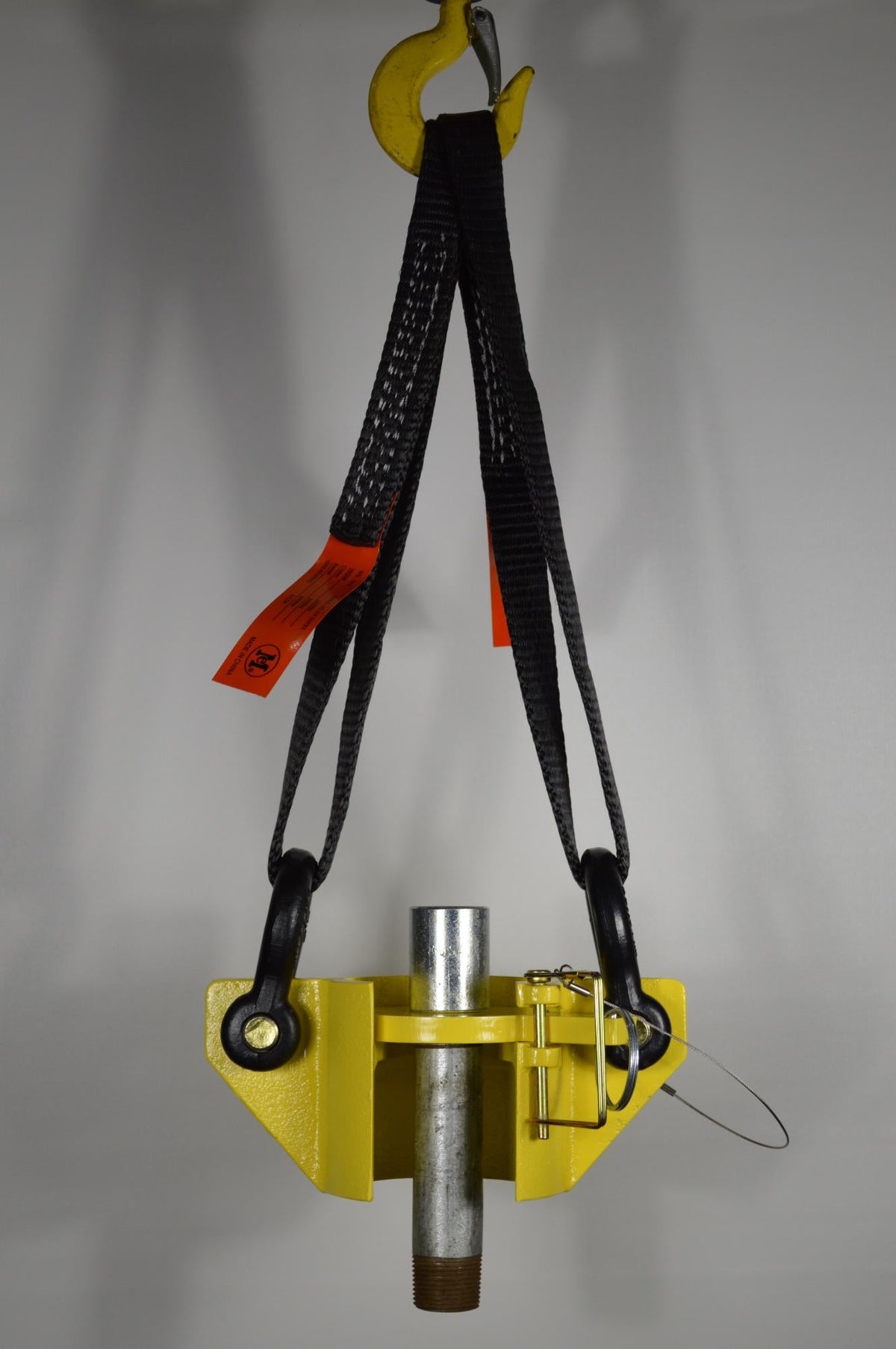

The Pro Pipe Puller is the highest quality pipe elevator on the market — a cast steel body with hot rolled dies built to last a lifetime, fitting 1", 1¼", 1½", and 2" drop pipe simply by changing the die.

Key Features:

• One Tool Fits 1"–2" Drop Pipe: Simply change the die to fit 1", 1¼", 1½", or 2" drop pipe — eliminating the need for multiple size-specific elevators on the job.
• Cast Steel Body with Hot Rolled Dies: The highest quality pipe elevator on the market, built from cast steel and hot rolled dies for lifetime durability under daily professional use.

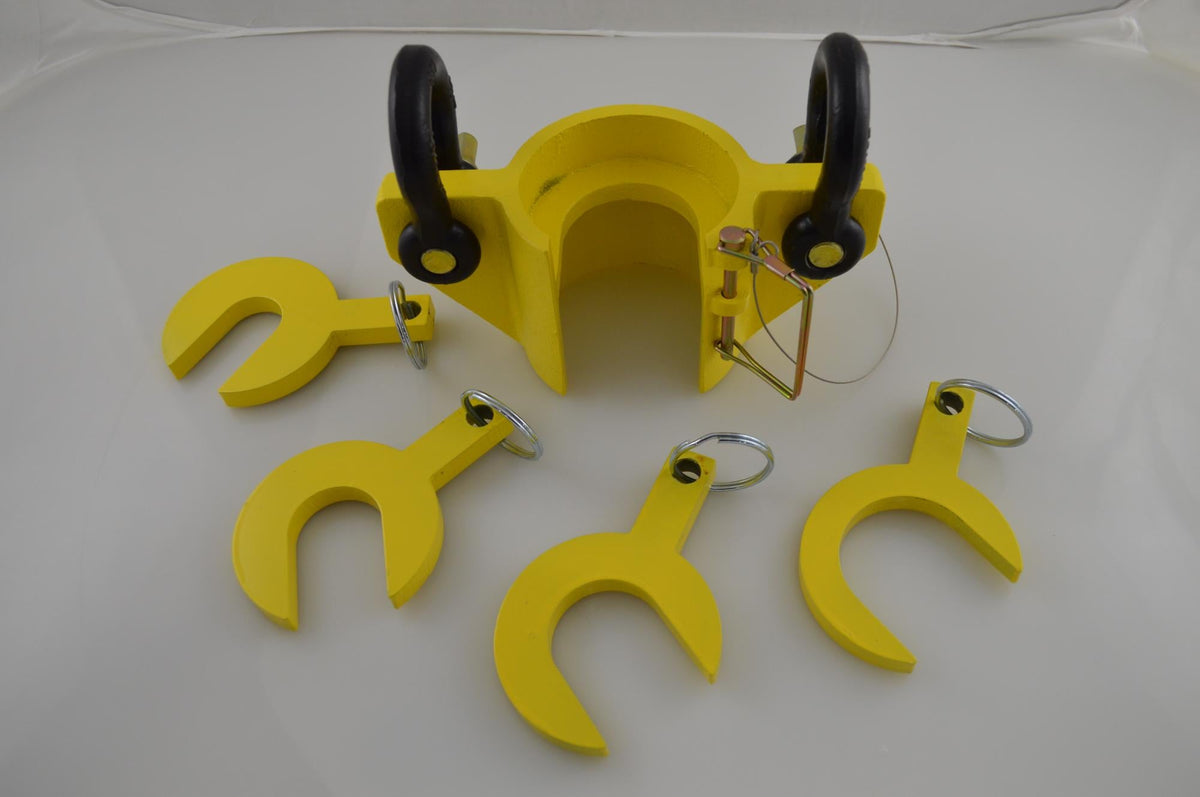

• Simple Die Change Operation: Place the body around the pipe, insert the proper die, twist counter-clockwise until it stops, and insert the locking pin — remove by twisting clockwise after releasing the locking pin.
• Attaches at Ground Level: Like the Standard Pipe Elevator, the Pro Pipe Puller can be attached at ground level and sent up to the coupling at the top to re-set the drop pipe.
• 6,000 lb Capacity: Rated to #6000 for confident handling of heavy drop pipe and pump assemblies in demanding residential and commercial well service applications.

The Pro Pipe Puller is designed for the professional water well repairman who needs a single, lifetime-quality pulling device across all common drop pipe sizes. Pull the pipe to the desired point and secure, then lower the puller, remove the locking pin, and twist the die clockwise to disengage and repeat for the next section.
