TBB RENEWABLE ES100-II: Revolutionising Energy Storage from 5kWh to 160kWh

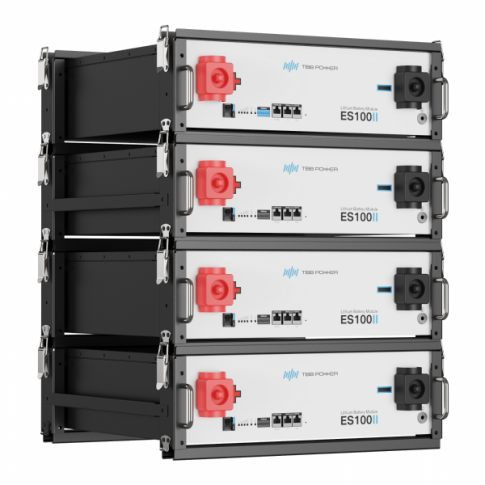

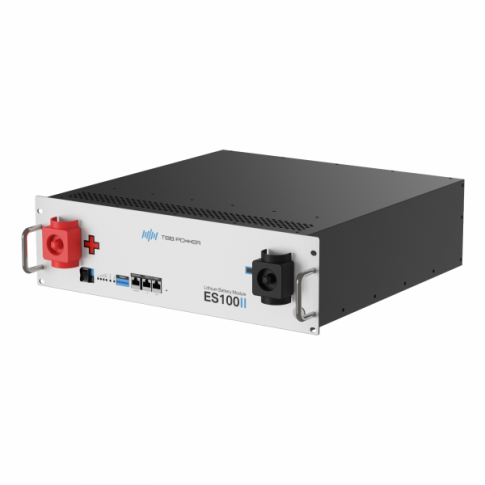

Introducing the new TBB Renewable ES100-II LiFePO4 (LFP) Battery with a remarkable capacity of 5.04kWh. This battery boasts a modular design, simplifying system capacity expansion as required, with a parallel capacity of up to 32 units. This enables you to achieve a maximum accumulation of up to 161.28 kWh without the need for an additional LV Hub.

One pair of TBB Renewable ES100-II Brackets are required for each battery!

Ensure Compliance with the Latest Safety Standards

When installing in or near residential premises, the installer must ensure that the battery installation complies with PAS 63100:2024 Electrical Installations – Protection Against Fire of Battery Energy Storage Systems for Use in Dwellings – Specification .

Flexible and Secure Installation

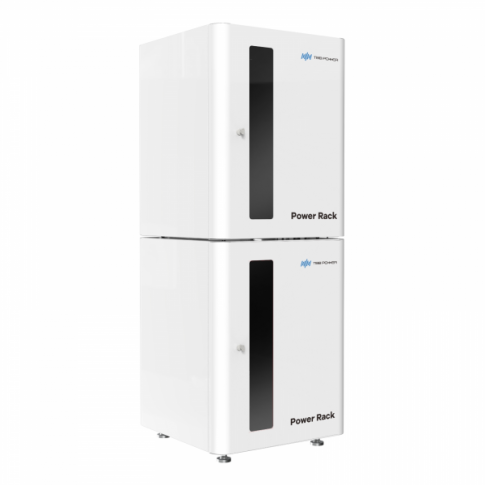

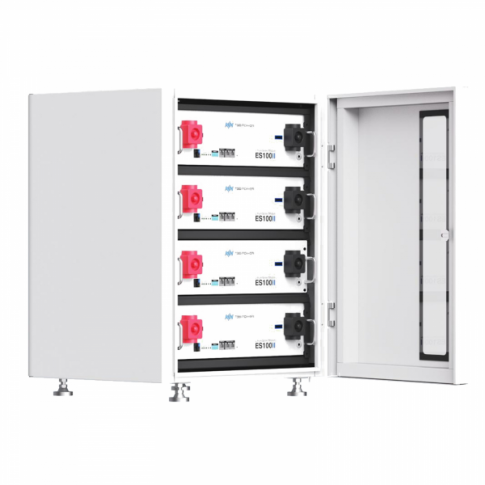

The ideal location for storage batteries is outside dwellings and away from rooms used for living. The IP65 rated IP65 cabinet allows up to 4 x TBB ES100-II batteries to be installed outdoors for maximum installation flexibility and saving your time spent on installation. Remote monitoring is also available via your smartphone or web portal.

Features

• Compatible inverters: The TBBES100-II battery is meticulously crafted for seamless integration with RIIO SUN II 3.0kW 24V, RIIO SUN II 5.0kW 48V and RIIO SUN II 8.0kW 48V Off-grid Hybrid Inverter Chargers, or RIIO II 3.0kW 24V, RIIO II 3.0kW 48V,  RIIO II 5.0kW 48V, TYRANN 8.0kW 48V,  TYRANN 10.0kW 48V, and TYRANN 15.0kW 48V Grid-Backup Inverters.
• Safe and reliable: Utilises lithium iron phosphate (LiFePO4) cells, providing superior safety and longevity compared to traditional battery technologies.
• Easy installation: Automatically assigns communication addresses to slave modules, making the parallel connection process straightforward and efficient.
• High performance: Capable of short-time high-current charge and discharge with an impressive 90% depth of discharge (DoD) and a lifespan of up to 6,000 cycles.
• Versatile compatibility: Features external CAN communication and an RS485 communication port for seamless integration with leading inverter brands, including TBB inverters.

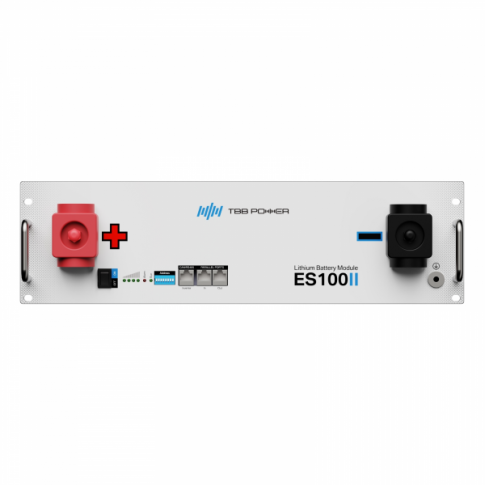

• User-friendly design: Equipped with universal positive and negative terminals for hassle-free installation and comes standard with a 300A parallel bus bar.
• Intelligent management system: Each battery pack includes an advanced Battery Management System (BMS) for effective monitoring and management of modules.
• Warranty: 5 years.

FREE 2-3 working days' nationwide delivery.

Detailed specifications:
