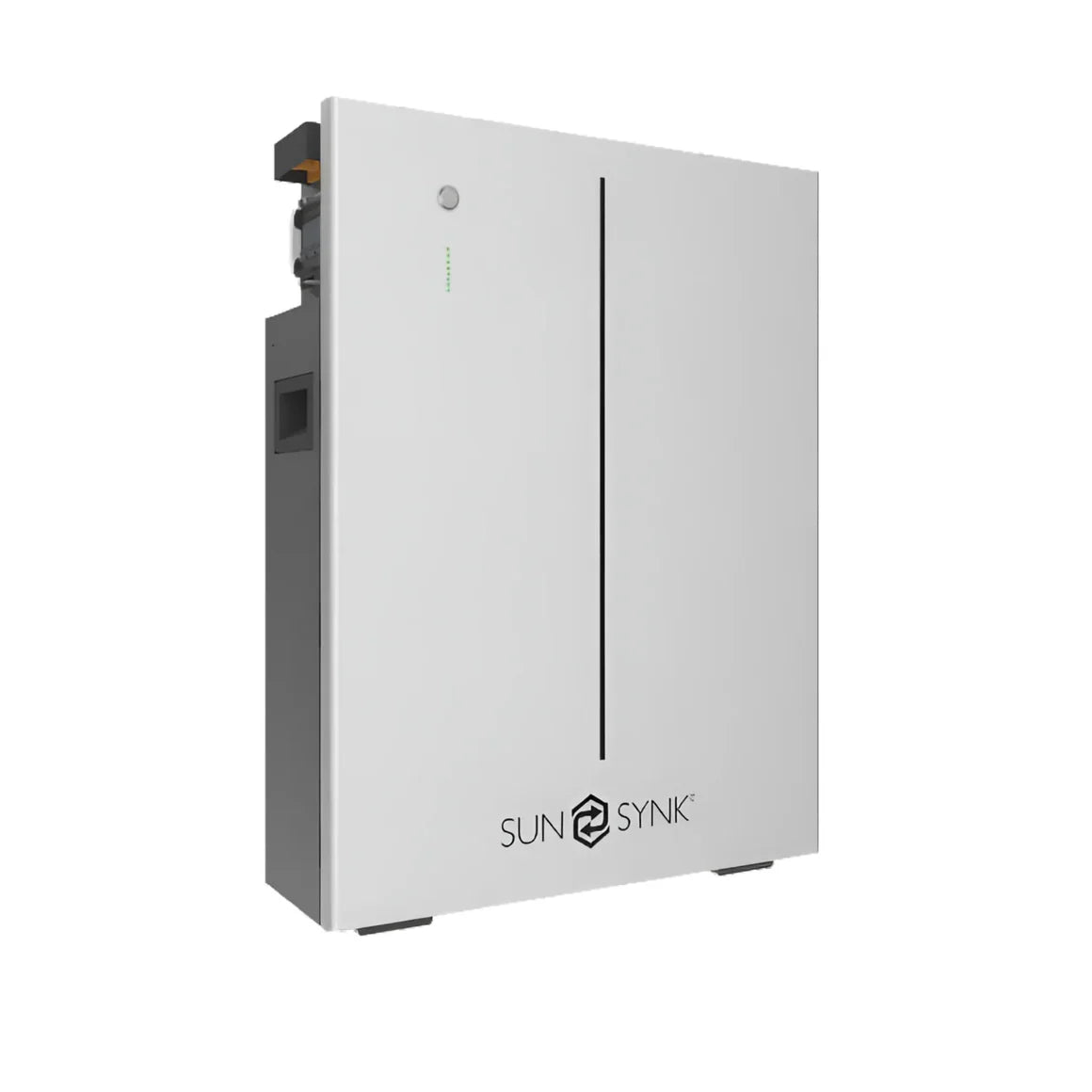

Sunsynk W10.6 10.64kWh IP65 Lithium Battery System (White)
- Robust, weather-resistant (IP65) design for flexible indoor or outdoor installation
- High usable capacity: 10.64kWh per unit, scalable up to 32 batteries (340kWh) for large UK projects
- Long cycle life and safety with advanced LiFePO4 chemistry; supports solar, off-grid and hybrid energy systems
Description
The Sunsynk W10.6 is a powerful lithium battery system designed for residential, SME, and industrial energy storage. Each unit offers 10.64kWh rated capacity and 90% depth of discharge, with easy parallel connection of up to 32 modules for projects requiring up to 340kWh. Installation options include wall-mounting or standard 19-inch rack cabinets. IP65 housing ensures safe operation in challenging UK locations. CAN/RS485 communication allows integration with Sunsynk and other compatible inverters[attached_file:21].
Key Features
- Usable energy: 10.64kWh per battery
- Max. parallel connections: 32 units (340kWh)
- IP65 enclosure: approved for outdoor installation
- Built-in BMS and master LED indicators for safety and status
- Supports wall-mounting and 19-inch racks
- Wide operating temperature range for reliability across UK climates
- Long cycle life: 6000 cycles at 90% DoD
Technical Specifications
| Battery Chemistry | LiFePO4 |
| Rated Energy | 10.64kWh |
| Usable Energy | DC usable energy, test at 90% DoD, 0.5C at 25°C. Actual depends on setup |
| Capacity | 208Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 43.2–57.6V |
| Max Parallel Units | 32 units (up to 340kWh) |
| Recommended Charge/Discharge Current | 104A |
| Max Current | 200A (charge), 240A (discharge) |
| Peak Current (2 min @ 25°C) | 300A (discharge) |
| Depth of Discharge (DoD) | 90% |
| Cycle Life | 6000 (at 25°C, 90% DoD, 0.5C~1C, 70% EOL) |
| Dimensions (W x H x D) | 610 × 760 × 200 mm |
| Weight | 105kg |
| IP Rating | IP65 |
| Operating Temperature (Charge) | -10°C to 55°C |
| Operating Temperature (Discharge) | -20°C to 55°C |
| Storage Temperature | 0°C to 35°C |
| Humidity | < 95% RH |
| Altitude | < 2000m |
| Communication Ports | CAN2.0, RS485 |
| Certifications | IEC62619, CE, UKCA, CEC, UN38.3 |
| Installation Type | Wall-mounted, 19" rack supported |
| Master LED Indicator | 5 LED SOC (20–100%), working, alarm, protection |
| Built-in Protection | Master control and optional DC circuit breaker |
| Warranty | 10 years or 32MWh throughput (whichever is first) |
Applications
- Residential battery storage for hybrid and off-grid systems
- Commercial solar PV installations (schools, SME sites)
- Backup power in industrial settings or remote properties
- Scalable deployment for large renewable energy projects (up to 340kWh)
Shipping & Support
Delivery available UK-wide, to Ireland, Africa, the Caribbean and worldwide. If shipping rates are not listed, contact us: +44 2080640335 or info@energian.co.uk
UK expert support available – reach us by phone, email, live chat or visit our London office for in-person advice.
