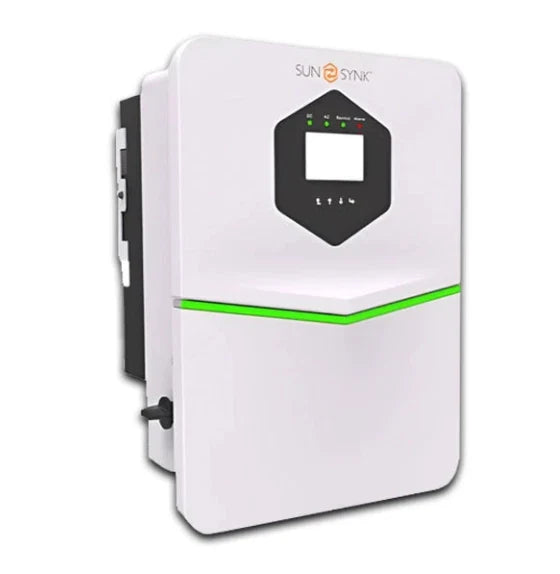

Sunsynk ACURE 8.0kW (White) Single Phase Hybrid Inverter

£666.00

Sunsynk ACURE 8.0kW (White) Single Phase Hybrid Inverter

£666.00

Shipping calculated at checkout.

SunC2-8.0LV01W

✔ Premium Quality Materials
✔ Quality Checked Before Dispatch
✔ Secure Payments
✔ Dedicated Customer Support

🚚

Fast Shipping

Quick dispatch and reliable delivery.

🔒

Secure Checkout

Your payments are protected and encrypted.

↩️

Easy Returns

Hassle-free return process.

⭐

Trusted Quality

Premium products loved by customers.

Don't Forget To Explore More From This Collection

Customers often buy these together to complete their project.

Sunsynk Acure 8kW White Single-Phase Hybrid Inverter

8 kW single-phase hybrid inverter for solar PV, 48 V battery storage and backup-power applications.
Accommodates up to 16 kW PV input power through two independent MPPT trackers.
Supports lead-acid or lithium-ion batteries and offers up to twice rated off-grid power for 10 seconds.

Sunsynk Acure 8kW hybrid inverter for solar and battery storage

The Sunsynk Acure 8kW Single-Phase Hybrid Inverter combines solar PV conversion, low-voltage battery charging and AC energy management in one IP65-rated enclosure. It is suitable for larger homes, farm buildings, workshops, offices and other single-phase sites where solar self-consumption and battery-backed loads are required.

With 8,000 W rated AC input/output active power, 190 A maximum battery charge and discharge current, and two MPPTs, the Acure 8kW provides a practical basis for a professionally designed solar-and-storage system. Installation and commissioning should be carried out by a qualified trusted partner. [file:76]

Key features

Two MPPTs: supports two PV tracker inputs, with two strings per tracker and up to 16,000 W PV access power.
48 V battery connection: compatible with lead-acid or lithium-ion batteries across a 40–60 V battery voltage range.
Backup-power capability: 8 kW rated power and two-times-rated off-grid peak power for up to 10 seconds.
Efficient solar conversion: 97.6% maximum efficiency, 96.5% European efficiency and 99% MPPT efficiency.
Suitable for external locations: IP65 enclosure, intelligent air cooling and operation from -40°C to +60°C, with derating above +45°C.

Where to use

Use the Sunsynk Acure 8kW hybrid inverter in single-phase PV and battery installations for high-demand homes, agricultural buildings, workshops, small offices and light-commercial premises. The two MPPT inputs can accommodate separate array orientations where PV-string voltage and current limits are met.

It can be specified for solar self-consumption, battery charging, timed energy use and backup circuits. Battery capacity, backup loads, protection equipment, earthing, cable sizing and grid-notification requirements must be assessed for the individual site; Energian can provide UK expert support and help source a trusted installation partner. [web:77][file:76]

Technical specifications

Model	SunC2-8.0LV01WB
Battery type	Lead-acid or lithium-ion
Battery voltage range	40–60 V
Maximum charging current	190 A
Maximum discharging current	190 A
Lithium-ion charging strategy	Self-adaption to BMS
Number of battery inputs	1
Maximum PV access power	16,000 W
Maximum PV input power	12,800 W
Maximum PV input voltage	500 V
Start-up voltage	125 V
MPPT voltage range	150–425 V
Rated PV input voltage	370 V
Maximum operating PV input current	32 A / 32 A
Maximum input short-circuit current	48 A / 48 A
Number of MPPT trackers / strings per MPPT	2 / 2+2
Rated AC input/output active power	8,000 W
Maximum AC input/output apparent power	8,800 VA
Peak power off-grid	2 times rated power, 10 seconds
Rated AC input/output current	36.4 A / 34.8 A
Maximum AC input/output current	40 A / 38.3 A
Maximum continuous AC passthrough, grid to load	50 A
Rated input/output voltage range	220 V / 230 V; 0.85Un–1.1Un
Grid connection form	L/N/PE
Rated input/output grid frequency range	50 Hz: 45–55 Hz; 60 Hz: 55–65 Hz
Power factor adjustment range	0.8 leading–0.8 lagging
Total current harmonic distortion	THDi <3% of nominal power
DC injection current	<0.5% In
Maximum efficiency	97.6%
European efficiency	96.5%
MPPT efficiency	99%
Protection	Integrated DC polarity reverse connection protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, overvoltage load drop protection, ground fault current monitoring, optional arc fault circuit interrupter, power network monitoring, island protection monitoring, earth fault detection, DC input switch, DC terminal insulation impedance monitoring, residual current RCD detection
Surge protection level	Type II DC, Type II AC
Display	LCD / LED
Communication interface	RS485 / RS232 / CAN
Monitoring mode	GPRS / WiFi / Bluetooth / 4G / LAN optional
Operating temperature range	-40°C to +60°C; derating above +45°C
Permissible ambient humidity	0–100%
Permissible altitude	2,000 m
Noise	<30 dB
Ingress protection rating	IP65
Inverter topology	Non-isolated
Over-voltage category	OVC II DC; OVC III AC
Cabinet size (W × H × D)	366 × 630 × 281.41 mm, excluding connectors and brackets
Weight	27.1 kg
Cooling	Intelligent air cooling
Warranty	5 years; 10 years when installed with a Sunsynk battery
Grid regulation	G98/G99, NRS 097-2-1, EN 50549-1
Safety and EMC standards	IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4, IEC/EN 62109-1, IEC/EN 62109-2
