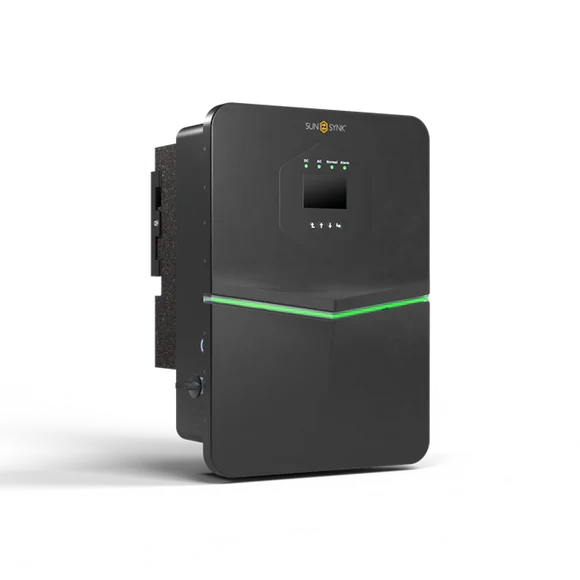

Sunsynk ACURE 5.0kW (Black) Single Phase Hybrid Inverter

£480.00

Sunsynk ACURE 5.0kW (Black) Single Phase Hybrid Inverter

£480.00

Shipping calculated at checkout.

SunC1-5.0LV01

✔ Premium Quality Materials
✔ Quality Checked Before Dispatch
✔ Secure Payments
✔ Dedicated Customer Support

🚚

Fast Shipping

Quick dispatch and reliable delivery.

🔒

Secure Checkout

Your payments are protected and encrypted.

↩️

Easy Returns

Hassle-free return process.

⭐

Trusted Quality

Premium products loved by customers.

Don't Forget To Explore More From This Collection

Customers often buy these together to complete their project.

Sunsynk Acure 5kW Black Single-Phase Hybrid Inverter

5 kW single-phase hybrid inverter for solar PV, 48 V battery storage and selected backup-load applications.
Supports up to 10 kW PV access power through two MPPT trackers, allowing flexible solar-array layouts.
Compatible with lead-acid and lithium-ion batteries, with BMS self-adaption for supported lithium battery systems.

Sunsynk Acure 5kW hybrid inverter for solar and battery storage

The black Sunsynk Acure 5kW Single-Phase Hybrid Inverter combines solar PV conversion, low-voltage battery charging and AC power management in an IP65-rated enclosure. It is suited to homes, farm buildings, workshops, small offices and light-commercial single-phase sites.

The unit provides 5,000 W rated AC input/output active power and up to 120 A battery charge or discharge current. Its two MPPT inputs support solar arrays across different roof orientations, subject to the stated PV voltage, current and string limits. [web:64]

Key features

Two MPPT trackers: supports two strings per MPPT and up to 10,000 W PV access power.
48 V battery connection: suitable for lead-acid or lithium-ion batteries within a 40–60 V operating range.
Backup capability: delivers 5 kW rated AC power and up to two-times-rated off-grid peak power for 10 seconds.
Efficient conversion: maximum efficiency of 97.6%, European efficiency of 96.5% and MPPT efficiency above 99%.
Protected enclosure: IP65 rating, Type II AC and DC surge protection, and intelligent air cooling.

Where to use

The Sunsynk Acure 5kW Black Single-Phase Hybrid Inverter is appropriate for solar self-consumption and battery-storage systems at houses, outbuildings, agricultural buildings, small retail units, workshops and offices with a single-phase electricity supply.

It can form part of a battery-backed supply arrangement, but it is not an out-of-the-box installation. A trusted qualified partner should confirm battery compatibility, backup-load requirements, PV string design, earthing, protection and applicable G98/G99 grid-connection requirements. Energian can provide UK expert support for product selection and system design. [web:64][web:86]

Technical specifications

Model	SunC2-5.0LV01WB
Battery type	Lead-acid or lithium-ion
Battery voltage range	40–60 V
Maximum charging current	120 A
Maximum discharging current	120 A
Lithium-ion charging strategy	Self-adaption to BMS
Number of battery inputs	1
Maximum PV access power	10,000 W
Maximum PV input power	8,000 W
Maximum PV input voltage	500 V
Start-up voltage	125 V
MPPT voltage range	150–425 V
Rated PV input voltage	370 V
Maximum operating PV input current	32 A / 32 A
Maximum input short-circuit current	48 A / 48 A
Number of MPPT trackers / strings per MPPT	2 / 2+2
Rated AC input/output active power	5,000 W
Maximum AC input/output apparent power	5,500 VA
Peak power off-grid	2 times rated power, 10 seconds
Rated AC input/output current	22.8 A / 21.8 A
Maximum AC input/output current	25 A / 24 A
Maximum continuous AC passthrough, grid to load	40 A
Rated input/output voltage range	220 V / 230 V; 0.85Un–1.1Un
Grid connection form	L+N+PE
Rated input/output grid frequency range	50 Hz: 45–55 Hz; 60 Hz: 55–65 Hz
Power factor adjustment range	0.8 leading–0.8 lagging
Total current harmonic distortion	THDi <3% of nominal power
DC injection current	<0.5% In
Maximum efficiency	97.6%
European efficiency	96.5%
MPPT efficiency	>99%
Protection	Integrated DC polarity reverse connection protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, overvoltage load drop protection, ground fault current monitoring, optional arc fault circuit interrupter, power network monitoring, island protection monitoring, earth fault detection, DC input switch, DC terminal insulation impedance monitoring, residual current (RCD) detection
Surge protection level	Type II (DC), Type II (AC)
Display	LCD + LED
Communication interface	RS485 / RS232 / CAN
Monitoring mode	GPRS / WiFi / Bluetooth / 4G / LAN (optional)
Operating temperature range	-40°C to +60°C; derating above +45°C
Permissible ambient humidity	0–100%
Permissible altitude	2,000 m
Noise	<30 dB
Ingress protection rating	IP65
Inverter topology	Non-isolated
Over-voltage category	OVC II (DC), OVC III (AC)
Cabinet size (W × H × D)	366 × 630 × 281.41 mm, excluding connectors and brackets
Weight	27.1 kg
Cooling	Intelligent air cooling
Warranty	5 years; 10 years when installed with a Sunsynk battery
Grid regulation	G98/G99, NRS 097-2-1, EN 50549-1
Safety / EMC standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
