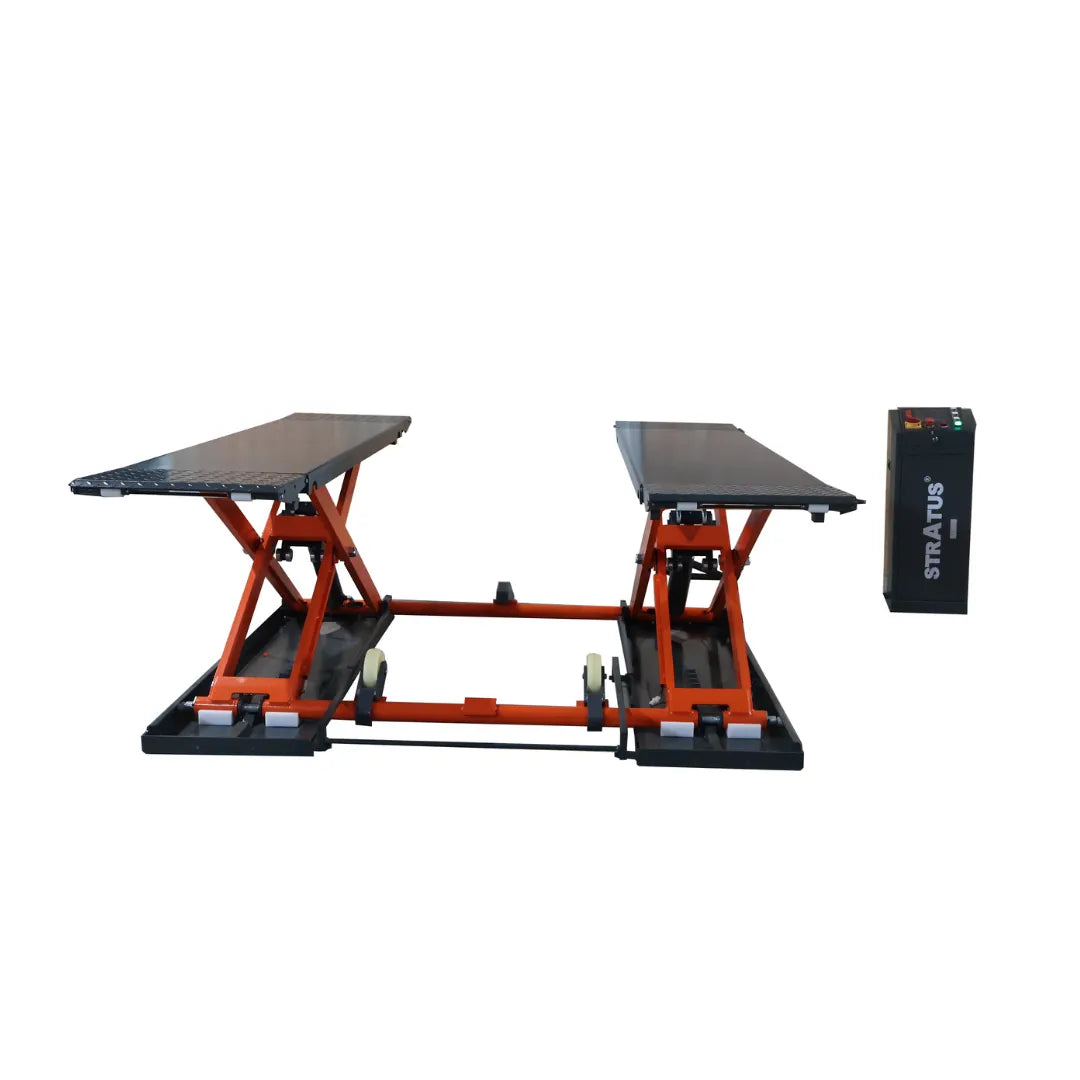

The Stratus SAE-MS9000XT is a commercial-grade, 9,000-lb capacity mid-rise scissor lift built for shops that service a wide mix of cars, light trucks, and vans. Its open-center design leaves the area beneath the vehicle clear, so brakes, exhaust, suspension, tires, and general undercar work stay within easy reach instead of being blocked by a crossbar or center frame.
Two features set this model apart from a standard mid-rise: it is extra-wide to support a broader footprint of vehicles, and it is extra-tall, reaching a maximum platform height of 47 1/4". That added rise lets a technician work seated or standing with real clearance rather than crouching at knee height. Nine mechanical lock positions hold the platforms securely from 18 3/4" up to 45 1/2", and an electric safety lock release drops all locks together at the press of a button.
Because it rides on an included mobile kit, the MS9000XT rolls between bays or out of the way when the floor is needed for something else. A dual-cylinder structure with anti-surge valves keeps the two runways level under load, and a built-in 24V low-voltage control system runs the raise, lower, and lock-release functions.
Like any vehicle lift, the MS9000XT must operate on a sound concrete floor. The manufacturer specifies a minimum of 6 inches of reinforced concrete rated for 3,000 PSI and cured at least 28 days. The lift ships in two pieces — the platform assembly and the freestanding control console — and moves by freight; the receiving shop arranges offloading, and MGS confirms delivery details and any regional freight surcharges at the time of order.
Features
Open-center mid-rise design — no center obstruction, for full undercar access to brakes, exhaust, and suspension
Extra-wide, extra-tall — maximum platform height of 47 1/4" for genuine working clearance
9 lock positions — mechanical safety locks from 18 3/4" to 45 1/2"
Electric safety lock release — releases all locks together from the control console
Dual-cylinder structure with anti-surge valves — keeps the platforms level under load

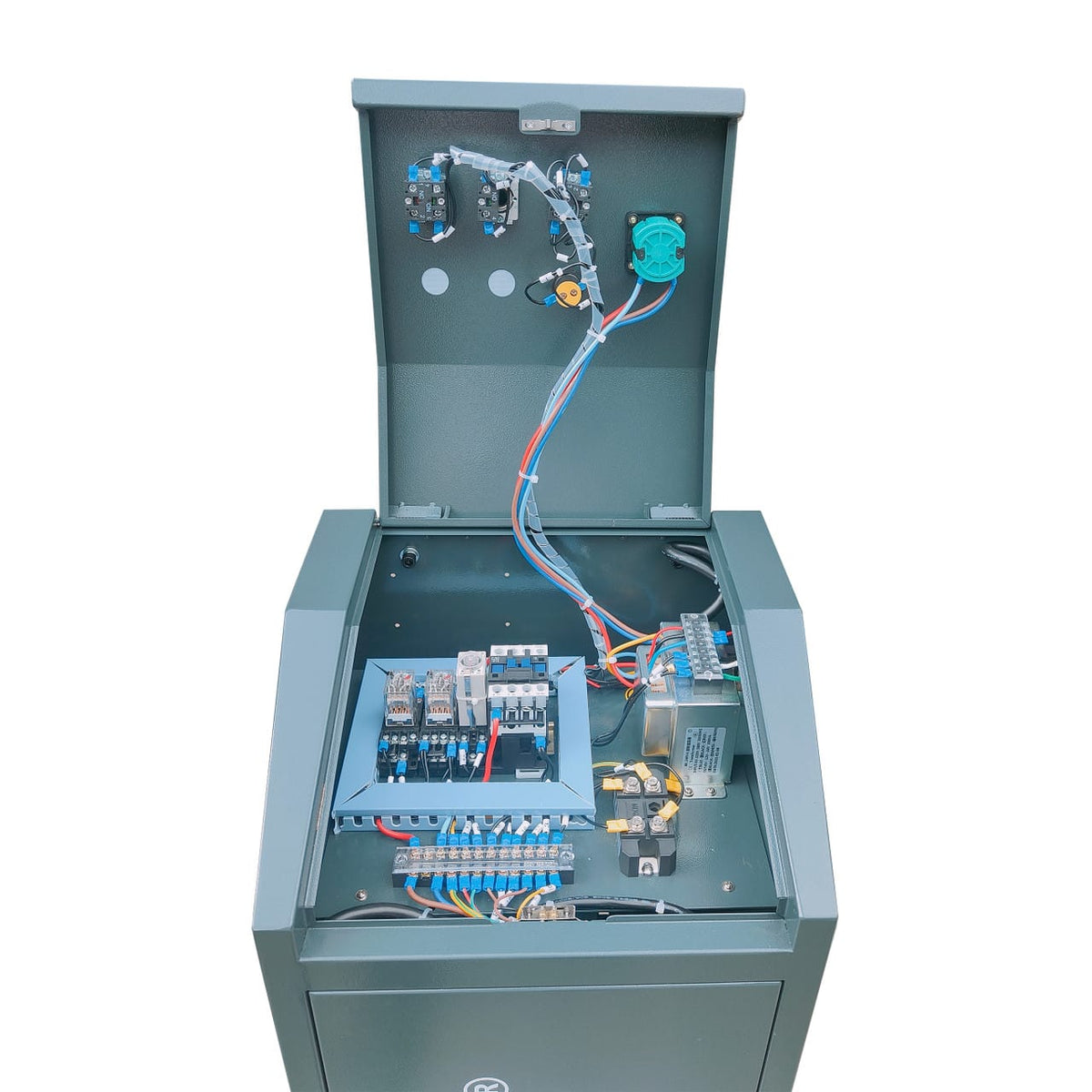

24V low-voltage control system with a programmable logic controller (PLC)
Available in 110V or 220V — a 3 HP single-phase motor
Self-lubricated bushings and bearings
Included mobile kit — reposition the lift without disassembly
Operator controls: disconnect, key switch, emergency stop, and start button.
What's Included
Four 1-3/8" rubber pads
Four 2-3/8" rubber pads
Four drive-on ramps
Mobile kit for repositioning the lift
Optional accessories, sold separately: a 4" platform extension, a support bar, and a set of four low-profile approach ramps for low-clearance vehicles.
Specifications
Stratus SAE-MS9000XT Specifications
Model
SAE-MS9000XT
Capacity
9,000 lbs
Maximum lifting height
47 1/4" (1,200 mm)
Minimum height
4 3/4" (121 mm)
Lock positions
9 (18 3/4" to 45 1/2")
Lifting time
Approx. 40 seconds
Platform length (without ramps)
62 5/8" (1,590 mm)
Platform length (with ramps)
86" (2,190 mm)
Overall width
76 3/4" (1,943 mm)
Width between platforms
35 13/16" (911 mm)
Runway width
20 1/2" (519 mm)
Motor
3 HP, 110V / 220V, 60 Hz, single-phase
Recommended breaker
20A (110V) / 30A (220V)
Hydraulic oil
AW32 or AW46
Sound level
Up to 75 dB
Platform shipping weight
1,318 lbs
Platform shipping dimensions
69" L × 79" W × 11" H
Control console shipping weight
132 lbs
Control console shipping dimensions
38" L × 17" W × 23" H
The lift ships as two freight packages: the platform assembly and the freestanding control console.
Warranty
Stratus backs the SAE-MS9000XT with a 5-year warranty on the lifting structure, a 3-year warranty on hydraulic components, and a 2-year warranty on electrical components. Coverage assumes the lift is installed, operated, and maintained per the manufacturer's manual; unauthorized modification voids the warranty.
FAQ
What concrete does the lift require?
The manufacturer specifies a minimum of 6 inches of reinforced concrete rated for 3,000 PSI and cured at least 28 days before installation.
What electrical service does it need?
The 3 HP motor runs on 110V or 220V single-phase, 60 Hz power. A 30A breaker is recommended for a 220V supply (20A for 110V). The lift does not ship with a power plug — a 220–250V, 30A plug is required. The power cord reaches about 11 feet.
Can I adjust the lowering speed?
Yes. The hydraulic oil-flow valve controls speed — turning it clockwise slows the lift, and counter-clockwise speeds it up.
How do I lower the lift if it is stuck in the air?
Release the mechanical safety locks, then release the pressure in the hydraulic system, as described in the manual.
Does it need anything before the first lift?
Yes. The manual directs you to raise the lift to its highest point and lower it fully two to three times without a load to bleed air from the hydraulic hoses and cylinders before lifting a vehicle.
